GQ4-66TTire Pressure Monitor

TRW Automotive TRW Automotive U.S. LLC June14, 2013 GEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel248.478.7210 Fax248.699.4241 RE:Certification forHKMCFACI TPMSLM/SL FLFSK 315MHz TX Part Number:233661-101 Model #:66T FCC ID:GQ4-66T Canada IC:1470A-47T User’s Manual and Compliance Statement TheTPM Sensorisindividually sold by the distributing supplier and as such it will require eachmodule sold to be accompanied with the FCC Statement Part 15. The compliance statement for thePassive Entrywillread: FCC ID: GQ4-66TIC: 1470A-47T This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Le present appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: 1.L’appareil ne doit pas produire de brouillage. 2.L’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re:Certification for TRW Automotive 233661 Please find enclosed application materials for certification of TRW Automotive 233661. Note that portions of this submittal are filed Confidential. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 10

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re:Certification for TRW Automotive 233661 IC: 1470A-47T Please find enclosed application materials for certification of TRW Automotive 233661. We tested it and found it to comply with RSS-210 and RSS-Gen. There is only a single electrical variant of the EUT, as tested. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 9 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for TRW Automotive 233661 FCC ID: GQ4-66T Please find enclosed application materials for certification of TRW Automotive 233661. We tested it and found it to comply with CFR Title 47, Part 15.231. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 8

TRW Automotive January 25, 2013 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that TRW Automotive authorizes Dr. Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 25 th day of January, 2013 By: Mark Baker Title: Engineering Director – RF Products email: [email protected] On behalf of: TRW Automotive Telephone: 248-699.4487 Fax: 248-699-4241

Re: Certification for TRW Transmitter FCC ID IC: REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, TRW requests that a part of the subject application be held confidential. TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: TRW requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): TRW requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan : GQ4-66T 1470A-47T

TRW Automotive TRW Automotive U.S. LLC June 18, 2013 GEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel248.478.7210 Fax248.699.4241 RE:Certification forHKMCFACI TPMSLM/SL FLFSK 315MHz TX Part Number#:233661-101 Model#:66T FCC ID:GQ4-66T Canada IC:1470A-47T ITEMS TO BE LASER MARKED ATRW LOGOTRW BRECYCLECODE>PPA-GF3< CFREQUENCY315MHz DHKMC PART NUMBER52933-2S510 ETRW PARTNUMBER233661 FASSEMBLY VERSION NUMBER-101 GTRANSMITTER SERIAL NUMBERXXXXXXXX HFCC IDGQ4-66T JCANADIAN ID1470A-47T K2D BARCODE (OPTIONAL) LDATE CODE (XXX=DAY, YY=YEAR)XXXYY Laser Marking Chart

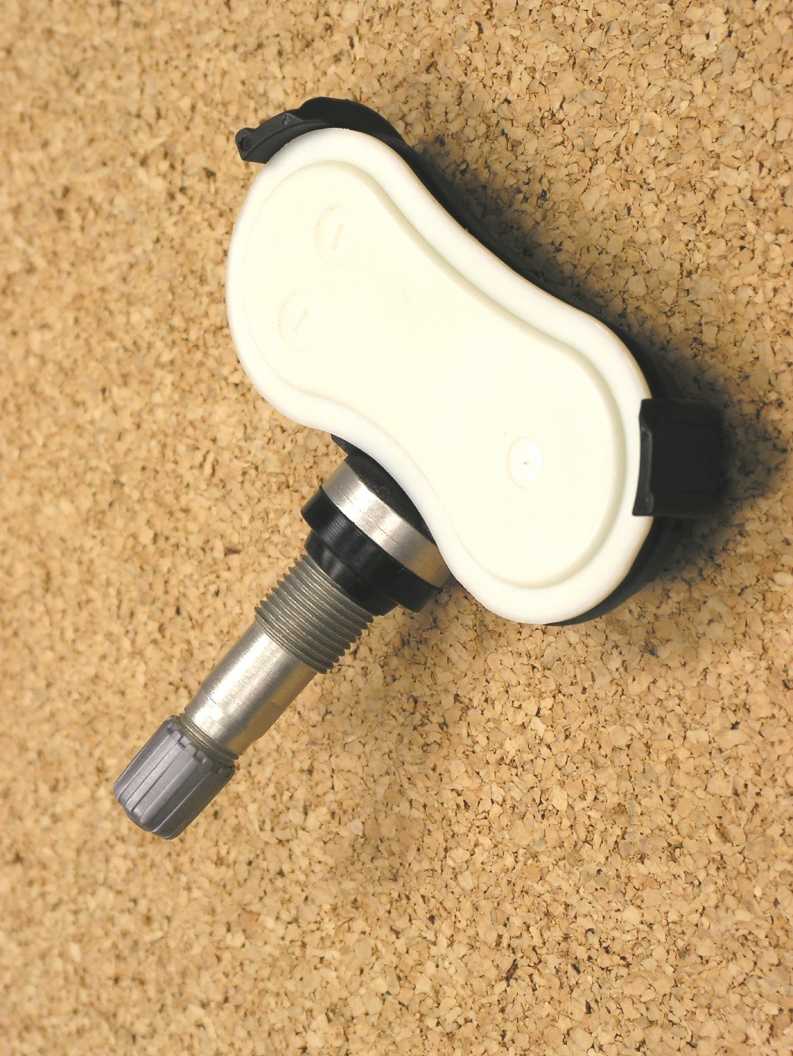

TRW Automotive TRW Automotive US LLC June14, 2013 GEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel248.478.7210 Fax248.699.4241 RE:Certification forHKMCHKMCFACI TPMSLM/SL FLFSK 315MHz TX Part Number:233661-101 Model#:66T FCC ID:GQ4-66T Canada IC:1470A-47T GENERAL DESCRIPTION Descriptionof Operation Sensor State/Mode Description Frequency of Transmission StorageMeasurespressure/ temperature.Single8-Frame TPS Messageupon LF request. SleepMeasures pressure/ temperature and motion. Single 8-Frame TPS Messageupon LF request. MotionMeasures pressure / temperature and motion.Transmits periodically. Single 8-Frame TPS Message at16 secondintervals for 1st minute after exiting Sleep State and then at 1 minute intervals or upon LF request. MotionAlertMeasures pressure / temperature and motion.Transmits when: a) significant pressure delta detected 1 minute period of 4 second interval 8- Frame TPS Messages RestMeasures pressure / temperature and motion. Single 8-Frame TPS Messageupon LF request. This device is a transmitter/sensor with tire valve, which is mounted in the valve hole of the rim and measures the pressure inside the tire, as well as if the vehicle is in motion. These measurements are then transmitted over Radio Frequency (RF) to a receiver also located in the vehicle.

Date of Issue: July 21, 2013Prepared For: TRW AutomotiveTest Report No.: 417124-663 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.231 Canada: RSS-210 and RSS-Gen are herein reported for TRW Automotive 233661 Test Report No.: 417124-663 Copyright c ©2013 Applicant/Provider: TRW Automotive 24175 Research Drive, Farmington Hills Michigan 4835-2642 USA Phone: +1 (248) 699-4487, Fax: +1 (248) 699-4241 Contact Person: Mark Baker; [email protected] Report by: Report Date of Issue: July 21, 2013 Valdis V. Liepa, Ph.D. Results of testing completed on (or before) July 21, 2013 are as follows. Emissions:The transmitter fundamental emission meets the regulatory limit(s) by no less than 7.9 dB. Transmit chain spurious harmonic emissions comply by no less than 9.2 dB. The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 1 of 14 Date of Issue: July 21, 2013Prepared For: TRW AutomotiveTest Report No.: 417124-663 Contents 1 Test Specifications, General Procedures, and Location3 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2 Configuration and Identification of the Equipment Under Test5 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .6 3 Emissions7 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 List of Tables 1The University of Michigan Radiation Laboratory Equipment List.. . . . . . . . . . . . . . . . . . .4 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 6Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 2 of 14 Date of Issue: July 21, 2013Prepared For: TRW AutomotiveTest Report No.: 417124-663 1 Test Specifications, General Procedures, and Location 1.1 Test Specification and General Procedures The ultimate goal of TRW Automotive is to demonstrate that the Equipment Under Test (EUT) complies with the Rules and/or Directives below. Detailed in this report are the results of testing the TRW Automotive 233661 for compliance to: Country/RegionRules or DirectiveReferenced Section(s) United StatesCode of Federal RegulationsCFR Title 47, Part 15.231 CanadaIndustry CanadaRSS-210 and RSS-Gen In association with the rules and directives outlined above, the following specifications and procedures are fol- lowed herein. ANSI C63.4-2003 ”Methods of Measurement of Radio-Noise Emissions from Low-Vo…

Text truncated - open the document above for the full version.
