GQK-VC220Customer Display

VC220 Manual 1 Customer Display Components...................................................................................... 2 2 Customer Display Installation......................................................................................... 3 3Customer Display Set Discription.................................................................................... 3 3.1 Install customer display setup software................................................................ 3 3.2 Use customer display setup software .................................................................. 3 4Customer Display Test .................................................................................................... 6 4.1 Test software installation ...................................................................................... 6 4.2 Use the testing software....................................................................................... 6 5.Customer Display Specifications .................................................................................... 8 1 Customer Display Components 1. VFD Disnplay 2.Customer Display Pole 3. Customer Display Base 4. Customer Display Cable 2 Customer Display Installation ①
Connect customer display components to bottom plate expansion board, connect signal cable to COM3；plug one side of power supply into motherboard USB interface, plug the other side into circular power port of the customer display signal cable. ② Push forward the whole component into the host, which having location clip on the left and right side; ③ Fix screws with screw driver from top to bottom to prevent them falling off. 3Customer Display Set Discription 3.1 Install customer display setup software Double click setup software, accept all the default settings. 3.2 Use customer display setup software ①double click VFD_Setup_Utilityicon on the desktop. ②open up the following interface “COM Port” menu sets which COM port the customer display will connect to. “PC_Baudrate” menu sets computer Baud rate. “VFD_Command” menu sets customer display’s Baud rate, language and so on. 4Customer Display Test 4.1 Test software installation Double click setup software, accept all the default settings. 4.2 Use the testing software ①double click Wincheck icon on the desktop. ②click “file”-“new” on the interface. ③Printer chooses ‘NONE’ , LineDisplay chooses ‘VC220’ , LineDisplay port chooses the corresponding port that customer display connects to . Mainboard chooses ‘D525’，COM CashDrawer chooses “NONE”, and other options accept the default settings, then click “OK” button。 ④click “save” button, then click “Burn”-“Start”. 5.Customer Display Specifications Model VC220 Display mode VFD Character color Green Digital format 5*7 point Matrix Character size 5.5*10.5 mm Character 7.4*15.5 mm Display area(mm) 146.1*29 Power supply +5V~+24V Interface RS-232 Baud rate 9600 Size (W×D×H) 200mm×25mm×65mm Color Dark Grey Stereoscopic height adjustable Yes Mean time to failure 20000 hr Power 5W Working temperature 0 °C - +75°C Storage temperature -40 °C - +85°C Working humidity 30- 85% Storage humidity 30- 90% Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment。 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: GQK-VC220 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Qingdao Hisense Intelligent Commercial System Co., Ltd. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 13.04.2012 Authority to Act as an Agent We declare that the following representative (agent) to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Customer Display Model Name VC220 Brand Name Hisense We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Chu tong jin Position Technical Director Company Name Qingdao Hisense Intelligent Commercial System Co., Ltd. Address Bldg 3, 151 Zhuzhou Lu, Laoshan, Qingdao Tel +86-532-80876742 In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. Name Mark Zhu Position General Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F Building B,East Area of Nanchang Second Industrial Zone,Gushu 2nd Road,Bao’an District,Shenzhen 518126,P.R.China Tel / Fax 0755-86375552 / 0755-26736857 E-Mail [email protected]

Qingdao Hisense Intelligent Commercial System Co., Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Qingdao Hisense Intelligent Commercial System Co., Ltd. FCC ID : GQK-VC220 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Chu tong jin Position Technical Director Company Name Qingdao Hisense Intelligent Commercial System Co., Ltd. Address Bldg 3, 151 Zhuzhou Lu, Laoshan, Qingdao Tel +86-532-80876742

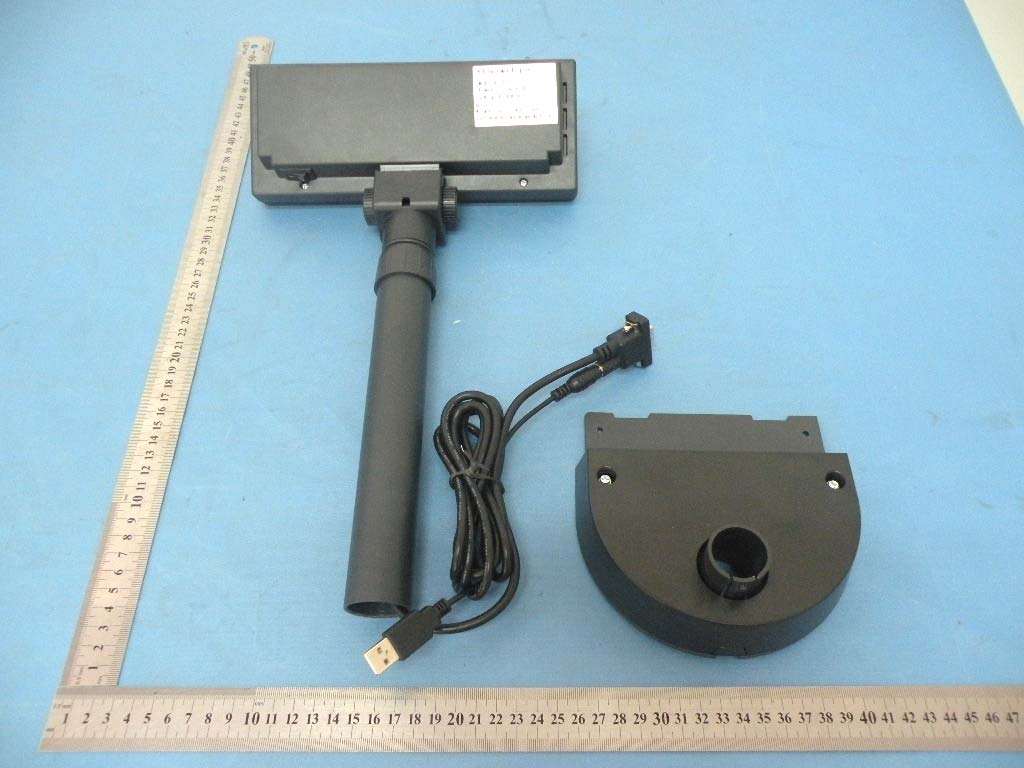

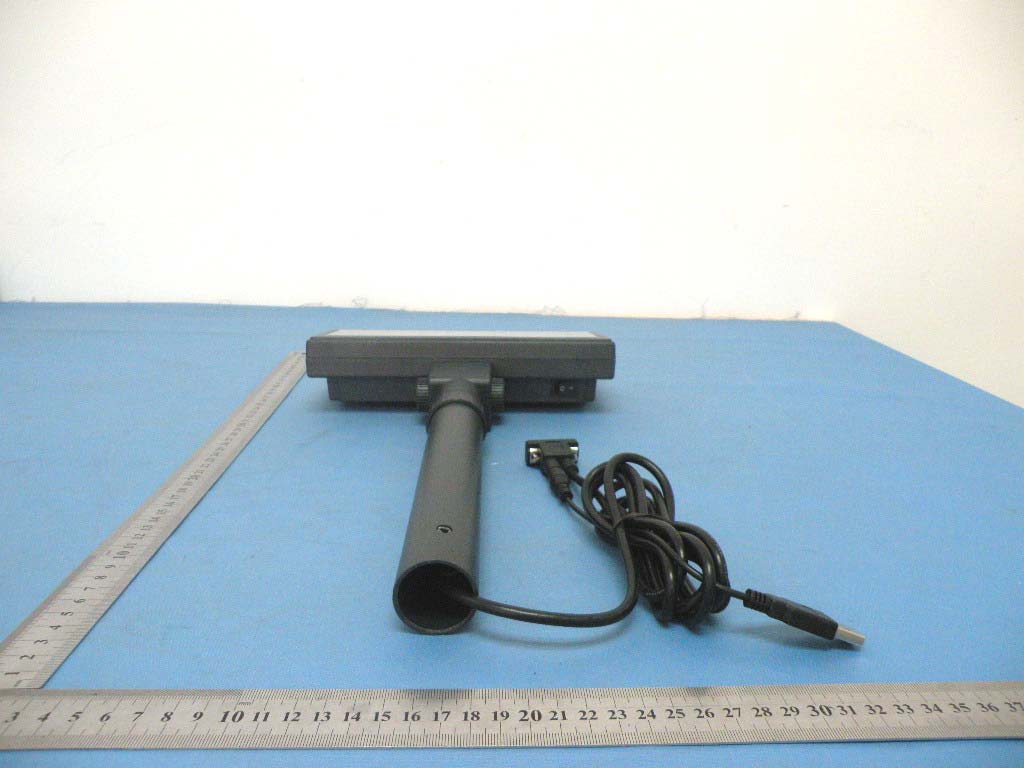

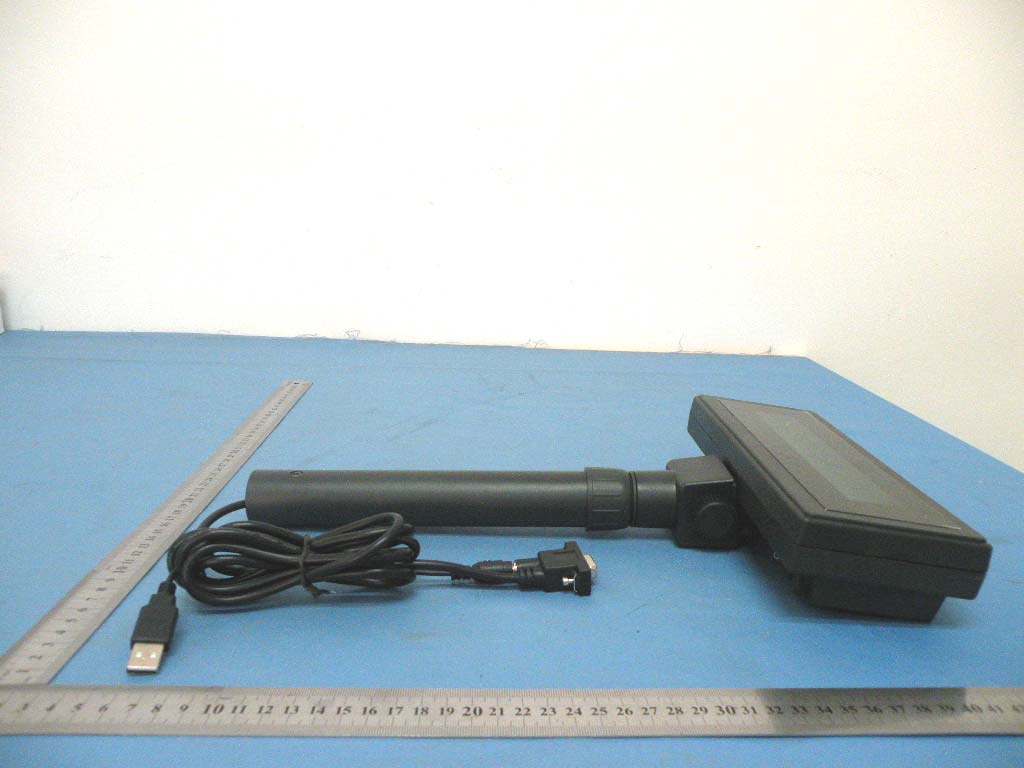

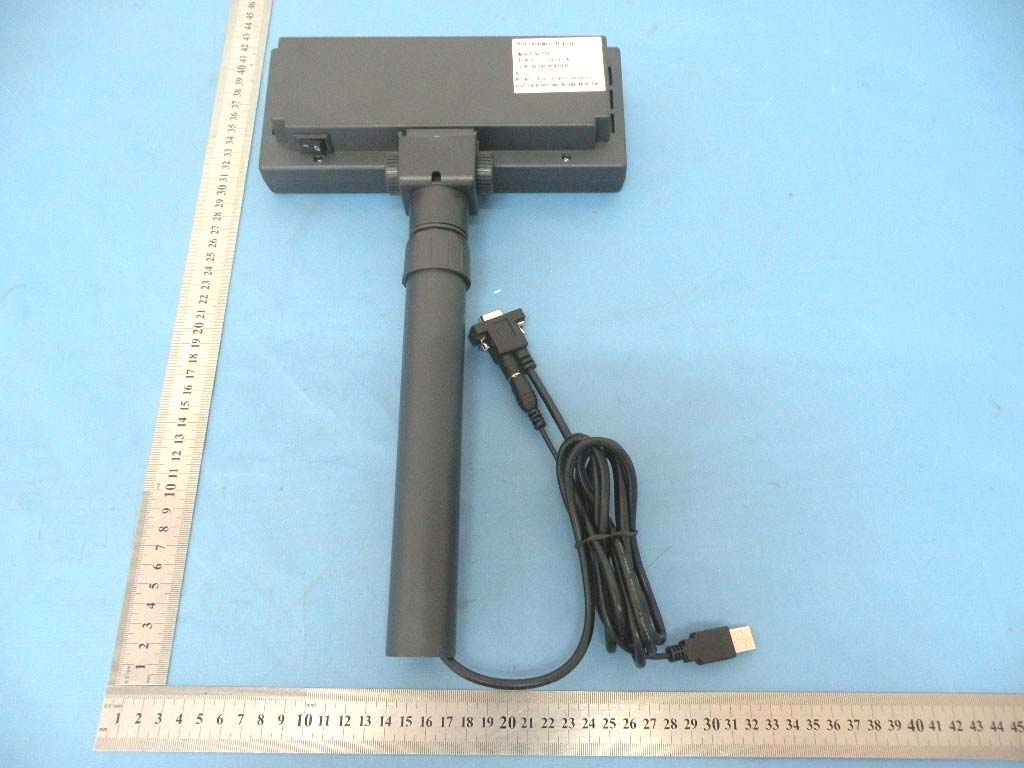

Full View Rear View Front View To p Vi e w Bottom View Left View Right View

FCC ID: GQK-VC220 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

Shenzhen Certification Technologh Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China TEST REPORT FCC ID: GQK-VC220 Applicant Qingdao Hisense Intelligent Commercial System Co., Ltd. Address Bldg 3, 151 Zhuzhou Lu, Laoshan, Qingdao Equipment under Test (EUT): Name : customer display Model : VC220 Standards : FCC PART 15, Subpart B Class B 2011 Report No. : STE120320277 Date of Test : March 23-April 12, 2012 Date of Issue : April 13, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE120320277 FCCID: GQK-VC220 Page 2 of 22 TABLE OF CONTENTS Description Page Test Report Declaration ...............................................................3 1. Summary of standards and results.................................................................................... 4 1.1. Description of Standards and Results......................................................................... 4 2. GENERAL INFORMATION ............................................................................................ 5 2.1. Description of Device (EUT) ..................................................................................... 5 2.2. Tested Supporting System Details ............................................................................. 5 2.3. Block Diagram of connection between EUT and simulators ..................................... 6 2.4. Test Facility ................................................................................................................ 6 2.5. Measurement Uncertainty .......................................................................................... 6 3. POWER LINE CONDUCTED Emission test .................................................................. 7 3.1. Test Equipment........................................................................................................... 7 3.2. Block Diagram of Test Setup ..................................................................................... 7 3.3. Power Line Conducted Emission Test Limits ............................................................ 7 3.4. Configuration of EUT on Test.................................................................................... 8 3.5. Operating Condition of EUT ...................................................................................... 8 3.6. Test Procedure ............................................................................................................ 8 3.7. Conducted Disturbance at Mains Terminals Test Results.......................................... 8 4. Radiated emission Test ..................................................................................................... 11 4.1. Test Equipment......................................................................................................... 11 4.2. Block Diagram of Test Setup ................................................................................... 11 4.3. Radiated Emission Limit .......................................................................................... 12 4.4. EUT Configuration on Test ...................................................................................... 12 4.5. Operating Condition of EUT .................................................................................... 13 4.6. Test Procedure .......................................................................................................... 13 4.7. Radiated Disturbance Test Results........................................................................... 13 5. Photograph ........................................................................................................................ 16 5.1. Photos of Power Line Conducted Emission Test ..................................................... 16 5.2. Photos of Radiated Emission Test (In Anechoic Chamber)..................................... 17 6. Photos of the EUT ............................................................................................................. 18 Report No.: STE120320277 FCCID: GQK-VC220 Page 3 of 22 TEST REPORT VERIFICATION Applicant : Qingdao Hisense Intelligent Commercial System Co., Ltd. Manufacturer : Qingdao Hisense Intelligent Commercial System Co., Ltd. EUT Description : customer display (A) Model No. : VC220 (B)Trademark :Hisense (C) Serial No. :N/A (D) Power Supply : DC 5V From PC (E) Test Voltage : DC 5V From PC Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart B Class B 2011 The device described above is tested by Shenzhen Certification Technology Service Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B Class B limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Certification Technology Service Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts wit…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup Radiated Emission Test Setup in Chamber
