GSS-VS10276ViewSonic Wirelss 802.11g Router

User Guide 802.11g Wireless Router WR100 ViewSonic Wireless Router i Copyright © ViewSonic Corporatio n, 2004. All rights are reserved. ViewSonic and the three birds logo are regi stered trademarks of ViewSonic Corporation. UPnP™ is a trademark of UPnP™ Implementers Corporation (UIC).The ‘Wi-Fi CERTIFIED’ logo is a cert ification mark of the Wi-Fi Alliance. Broadcom and the pulse logo are trademarks of Broadcom Corporation and/or its affiliates in the United States and certain other countries.Microsoft, Windows, the Microsoft Internet Explorer logo graphic, and the Windows logo are either registered trademarks or trademarks of Microsoft Corp oration in the United States and/or other countries. Corporate names and trademarks are the pr operty of their respective companies. Disclaimer: ViewSonic Corporation shall not be liable for techni cal or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Inform ation in this document may change without notice. No part of this document may be copied, reproduc ed, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. Product Registration To meet your future needs and to receive additional produc t information as it becomes available, register your ViewSonic ® product at: www.viewsonic.com. For Your Records Model Name:Model Number:Document Number:Serial Number:Purchase Date : WR100VS10276A-WR100-1_CD 07-21-04____________________________________ ViewSonic Wireless Router ii Table of Contents Product Registration......................................................................................................... i For Your Records ............................................................................................................. i Overview ....................................................................................................................... ... 1 Finally, networking made easy. ........................................................................................ 1 Chapter 1: Getting Started Freedom of a wireless network.............................................................................................. 2 Package Contents ............................................................................................................... .. 3 Safety Notice .................................................................................................................. ....... 4 Front of router ................................................................................................................ ........ 6 Chapter 2: Product Description Back of router ................................................................................................................. ....... 7 Chapter 3: Setting up the wireless router Configuring the wireless router usi ng Web-based utility screens .......................................... 14 Wireless ....................................................................................................................... .......... 19 Security....................................................................................................................... ........... 21 System......................................................................................................................... .......... 24 DHCP Server .................................................................................................................... ..... 30 Status......................................................................................................................... ............ 33 Advanced Wireless .............................................................................................................. .. 34 Access Filters ................................................................................................................. ....... 38 Virtual Server ................................................................................................................. ........ 44 Routing Table .................................................................................................................. ...... 47 Operating Mode ............................................................................................................... 47 ViewSonic Wireless Router iii Table of Contents, continued Dynamic Routing (RIP) .................................................................................................... 47Static Routing, Destination IP Address, Subnet Mask, Gateway, and Interface .............. 48 Appendix Specifications................................................................................................................. ........ 51 Wireless Security & Glossary ................................................................................................ 52Troubleshooting ................................................................................................................ ..... 73 Compliances .................................................................................................................... ...... 77 Cleaning & Maintenance........................................................................................................ 8 0 Customer Support............................................................................................................... ... 81 Limited Warranty............................................................................................................... ..... 82 ViewSonic Wireless Router 1 OverviewCongratulations on purchasing the ViewSonic Wireless Router!Finally, networking made easy.Networking your home or small business is easy with ViewSonic’s WR100 Wire…

Text truncated - open the document above for the full version.

ViewSonic Corporation 381 Brea Canyon Road, Walnut, California 91789 (909) 444-8888 * Fax (909) 444-8652 http://www.viewsonic.com Agency Authorization Letter FCC ID: GSS-VS10276 Date: June 30, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, ___________________________ June 30, 2004 James Huang Date Regulatory Manager Tel: 909-444-8786 e-Mail: [email protected]

ViewSonic Corporation 381 Brea Canyon Road, Walnut, California 91789 (909) 444-8888 * Fax (909) 444-8652 http://www.viewsonic.com FCC ID: GSS-VS10276 Date: June 30, 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, ___________________________ June 30, 2004 James Huang Date Regulatory Manager Tel: 909-444-8786 e-Mail: [email protected]

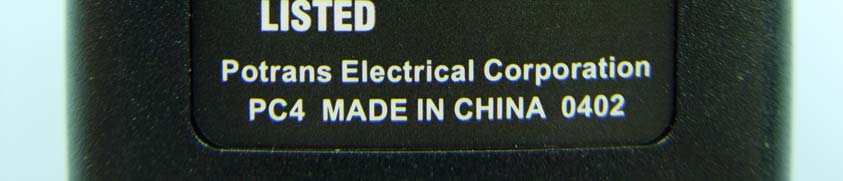

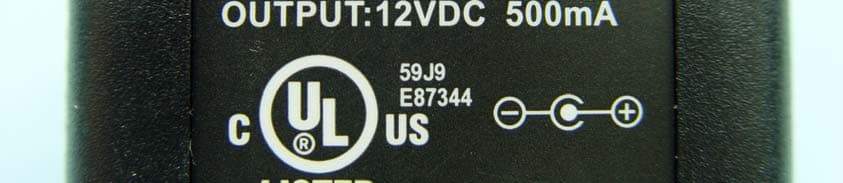

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

ViewSonic Wireless 802.11g Router Made In Taiwan xx xxxxx MAC: XXXXXXXXXXX SN: P6UYYWWnnnnn Tested To Comply FOR HOME OR OFFICE USE With FCC Standards (2) this device must accept any interference received, including interference that may cause undesired operation. (1) This device may not cause harmful interference, and This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

ViewSonic Wireless 802.11g Router Made In Taiwan xx xxxxx MAC: XXXXXXXXXXX SN: P6UYYWWnnnnn Tested To Comply FOR HOME OR OFFICE USEWith FCC Standards (2) this device must accept any interference received, including interference that may cause undesired operation. (1) This device may not cause harmful interference, and This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: GSS-VS10276 Report No. RF930623L13 Operational Description This device operates in the 2.4GHz frequency band. The maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter. The antenna type is Dipole antenna without any antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: GSS-VS10276 Report No: SA930623L13 1 RF EXPOSURE REPORT REPORT NO.: SA930623L13 MODEL NO.: VS10276 OEM MODEL NO.: WR100 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ViewSonic Corp. ADDRESS: 381 Brea Canyon Rd. Walnut, CA. 91789, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: GSS-VS10276 Report No: SA930623L13 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: GSS-VS10276 Report No: SA930623L13 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: GSS-VS10276 Report No: SA930623L13 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For CCK technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.9530.0061.0 6243719.9530.0061.0 11246219.9530.0061.0 For OFDM technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.9530.0061.0 6243719.9530.0061.0 11246219.9530.0061.0

FCC ID: GSS-VS10276 Report No.: RF930623L131Issued: June 30, 2004 FCC TEST REPORT REPORT NO.: RF930623L13 MODEL NO.: VS10276 OEM MODEL NO.: WR100 RECEIVED: June 10, 2004 TESTED: June 10 ~ June 29, 2004 APPLICANT: ViewSonic Corp. ADDRESS: 381 Brea Canyon Rd., Walnut, CA 91789, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: GSS-VS10276 Report No.: RF930623L132Issued: June 30, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 13 4.1.7TEST RESULTS (A) .................................................................................... 14 4.1.8TEST RESULTS (B) .................................................................................... 20 4.2RADIATED EMISSION MEASUREMENT ................................................... 26 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 26 4.2.2TEST INSTRUMENTS ................................................................................ 27 4.2.3TEST PROCEDURES................................................................................. 28 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 28 4.2.5TEST SETUP .............................................................................................. 29 4.2.6EUT OPERATING CONDITIONS................................................................ 29 4.2.7TEST RESULTS (A) .................................................................................... 30 4.2.8TEST RESULTS (B) .................................................................................... 32 4.2.9TEST RESULTS.......................................................................................... 34 4.36dB BANDWIDTH MEASUREMENT .......................................................... 40 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 40 4.3.2TEST INSTRUMENTS ................................................................................ 40 4.3.3TEST PROCEDURE ................................................................................... 41 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 41 4.3.5TEST SETUP .............................................................................................. 41 4.3.6EUT OPERATING CONDITIONS................................................................ 41 FCC ID: GSS-VS10276 Report No.: RF930623L133Issued: June 30, 2004 4.3.7TEST RESULTS.......................................................................................... 42 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 50 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 50 4.4.2TEST INSTRUMENTS ................................................................................ 50 4.4.3TEST PROCEDURES................................................................................. 51 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 51 4.4.5TEST SETUP .............................................................................................. 51 4.4.6EUT OPERATING CONDITIONS................................................................ 51 4.4.7TEST RESULTS.......................................................................................... 52 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 53 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 53 4.5.2TEST INSTRUMENTS ................................................................................ 53 4.5.3TEST PROCEDURE ................................................................................... 54 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 54 4.5.5TEST SETUP .............................................................................................. 54 4.5.6EUT OPERATING CONDITIONS................................................................ 54 4.5.7TEST RESULTS.........................…

Text truncated - open the document above for the full version.

FCC ID: GSS-VS10276 Report No.: RF930623L1374Issued: June 30, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: GSS-VS10276 Report No.: RF930623L1375Issued: June 30, 2004 RADIATED EMISSION TEST
