GSS-VS10407Wireless 802.11g Access Point

ViewSonic ® - User Guide WAPBR-100 802.11g 3-in-1 Access Point 08/30/04 A Table of Contents Product Registration.......................................................................... 1 Regulatory Information...................................................................... 2 Chapter 1: Getting Started.......................................................... 4 Overview ........................................................................................... 4 Package Contents............................................................................. 6 Safety Notice..................................................................................... 7 Chapter 2: Installation.................................................................. 8 Front of Access point......................................................................... 8 Back of Access point ......................................................................... 8 Chapter 3: Setting up the Access Point................................ 9 Step 1. Connect the Access point. .................................................... 10 Step 2. Configure your PC ............................................................... 11 For Windows ® 2000 or XP ...................................................... 11 For Windows ® 98 or Me .......................................................... 14 Chapter 4: Web Management Settings.................................. 16 Start Up & Login................................................................................ 16 4.1. Primary Setup................................................................... 17 4.2. System ............................................................................. 22 4.3. Operating Mode................................................................ 23 4.4. Status ............................................................................... 24 4.5. Traffic Log......................................................................... 25 4.6. Access Control ................................................................. 26 4.7. Advanced Wireless........................................................... 27 4.8. SNMP INFO ..................................................................... 29 4.9. Firmware Upgrade............................................................ 30 Appendix............................................................................................ 32 Specifications .................................................................................... 33 Wireless Security & Glossary............................................................ 34 Troubleshooting ................................................................................ 46 Customer Support ............................................................................. 48 Limited Warranty ............................................................................... 49 ViewSonic 3-in-1 Access Point1 Copyright © ViewSonic Corporation, 2004. All rights reserved. ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Corporate names and trademarks are the property of their respective companies. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. Product Registration To meet your future needs and to receive additional product information as it becomes available, register your ViewSonic ® product at: www.viewsonic.com For Your Records Product Name: Model Number: Document Number: Serial Number: Purchase Date: ViewSonic 802.11g 3-in-1 Access Point WAPBR-100 VS10408 A-CD-WAPBR-100-1-UG __________________ __________________ ViewSonic 3-in-1 Access Point 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies …

Text truncated - open the document above for the full version.

ViewSonic Corporation 381 Brea Canyon Road, Walnut, California 91789 (909) 444-8888 * Fax (909) 444-8652 http://www.viewsonic.com Agency Authorization Letter FCC ID: GSS-VS10407 Date: Sept. 10, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding this authorization, please feel free to contact us. Sincerely, ___________________________ September 10, 2004 James Huang Date Regulatory Manager Tel: 909-444-8786 e-Mail: [email protected]

ViewSonic Corporation 381 Brea Canyon Road, Walnut, California 91789 (909) 444-8888 * Fax (909) 444-8652 http://www.viewsonic.com FCC ID: GSS-VS10407 Date: Sept. 10, 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, ___________________________ September 10, 2004 James Huang Date Regulatory Manager Tel: 909-444-8786 e-Mail: [email protected]

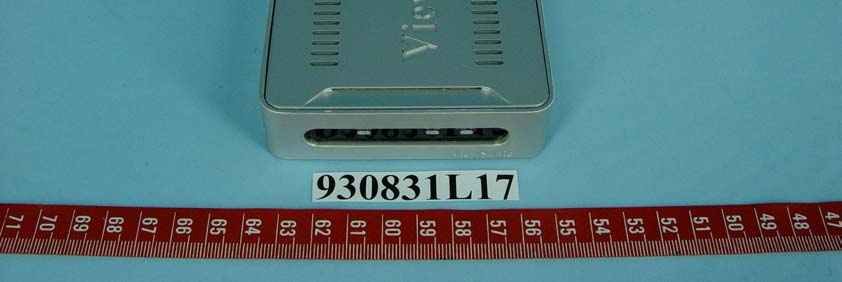

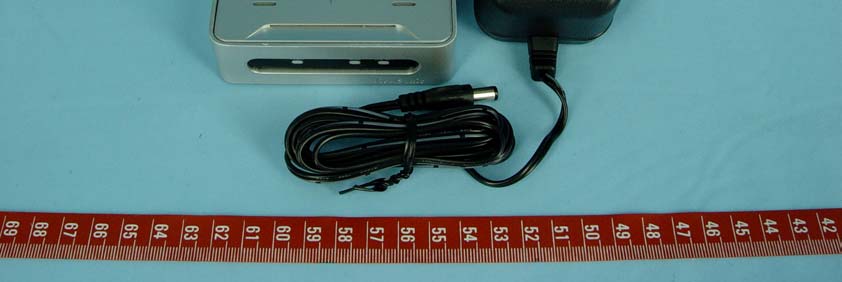

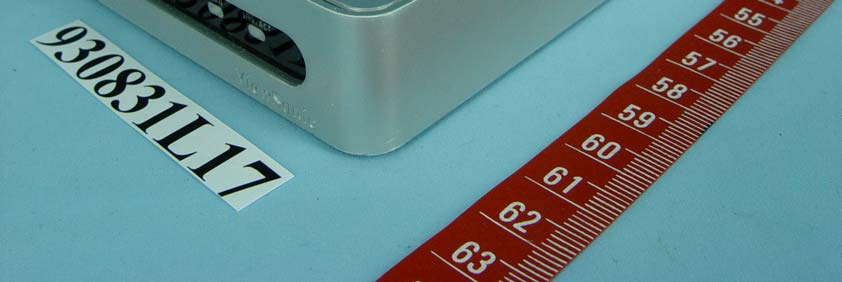

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Wireless Broadband Anywhere Gemtek Technology Co ., Ltd. With FCC Standards FOR HOME OR OFFICE USE Tested To Comply SN: PDCYYWWnnnnn MAC: XXXXXXXXXXX Made in Taiwan ViewSonic Wireless 802.11g Access Point 1A XXXXX 0560 381 Brea Canyon Rd. Walnut, CA. 91789 U.S.A. With FCC StandardsFOR HOME OR OFFICE USE Tested To Comply SN: PDCYYWWnnnnn MAC: XXXXXXXXXXX Made in Taiwan ViewSonic Wireless 802.11g Access Point 1A XXXXX 0560 381 Brea Canyon Rd. Walnut, CA. 91789 U.S.A. With FCC Standards FOR HOME OR OFFICE USE Tested To Comply SN: PDCYYWWnnnnn MAC: XXXXXXXXXXX Made in Taiwan ViewSonic Wireless 802.11g Access Point 1A XXXXX 0560 381 Brea Canyon Rd. Walnut, CA. 91789 U.S.A.

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: GSS-VS10407 Report No.: RF930831L17 Operational Description This device is a Wireless 802.11g Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna is Dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: GSS-VS10407 Report No: SA930831L17 1 RF EXPOSURE REPORT REPORT NO.: SA930831L17 MODEL NO.: WAPBR-100, VS10407 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ViewSonic Corp. ADDRESS: 381 Brea Canyon Rd. Walnut, CA. 91789, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: GSS-VS10407 Report No: SA930831L17 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: GSS-VS10407 Report No: SA930831L17 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: GSS-VS10407 Report No: SA930831L17 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.584 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For 2.4GHz band: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.0910.0061.0 6243719.9530.0061.0 11246220.1370.0061.0

FCC ID: GSS-VS10407 Report No.: RF930831L171Issued: Sept. 09, 2004 FCC TEST REPORT REPORT NO.: RF930831L17 MODEL NO.: WAPBR-100, VS10407 RECEIVED: Aug. 20, 2004 TESTED: Aug. 20 ~ Sept. 06, 2004 APPLICANT: ViewSonic Corp. ADDRESS: 381 Brea Canyon Rd. Walnut, CA. 91789, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: GSS-VS10407 Report No.: RF930831L172Issued: Sept. 09, 2004 Table of Contents 1CERTIFICATION.........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................6 3GENERAL INFORMATION.........................................................................................7 3.1GENERAL DESCRIPTION OF EUT...........................................................................7 3.2DESCRIPTION OF TEST MODES.............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................8 3.4DESCRIPTION OF SUPPORT UNITS.......................................................................9 3.5CONFIGURATION OF SYSTEM UNDER TEST.....................................................10 4TEST TYPES AND RESULTS...................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................11 4.1.2TEST INSTRUMENTS...............................................................................................11 4.1.3TEST PROCEDURES..............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD....................................................................12 4.1.5TEST SETUP............................................................................................................13 4.1.6EUT OPERATING CONDITIONS.............................................................................14 4.1.7TEST RESULTS........................................................................................................15 4.2RADIATED EMISSION MEASUREMENT................................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................21 4.2.2TEST INSTRUMENTS..............................................................................................22 4.2.3TEST PROCEDURES..............................................................................................23 4.2.4DEVIATION FROM TEST STANDARD....................................................................23 4.2.5TEST SETUP............................................................................................................24 4.2.6EUT OPERATING CONDITIONS.............................................................................24 4.2.7TEST RESULTS........................................................................................................25 4.2.8TEST RESULTS (A)..................................................................................................27 4.2.9TEST RESULTS (B)..................................................................................................30 4.36dB BANDWIDTH MEASUREMENT........................................................................33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.....................................................33 4.3.2TEST INSTRUMENTS..............................................................................................33 4.3.3TEST PROCEDURE.................................................................................................34 4.3.4DEVIATION FROM TEST STANDARD....................................................................34 4.3.5TEST SETUP............................................................................................................34 4.3.6EUT OPERATING CONDITIONS.............................................................................34 4.3.7TEST RESULTS (A)..................................................................................................35 4.3.8TEST RESULTS (B)..................................................................................................39 FCC ID: GSS-VS10407 Report No.: RF930831L173Issued: Sept. 09, 2004 4.4MAXIMUM PEAK OUTPUT POWER.......................................................................43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.......................43 4.4.2TEST INSTRUMENTS..............................................................................................43 4.4.3TEST PROCEDURES..............................................................................................44 4.4.4DEVIATION FROM TEST STANDARD....................................................................44 4.4.5TEST SETUP............................................................................................................44 4.4.6EUT OPERATING CONDITIONS.............................................................................44 4.4.7TEST RESULTS (A)..................................................................................................45 4.4.8TEST…

Text truncated - open the document above for the full version.

FCC ID: GSS-VS10407 Report No.: RF930831L1761Issued: Sept. 09, 2004 FCC ID: GSS-VS10407 Report No.: RF930831L1762Issued: Sept. 09, 2004 FCC ID: GSS-VS10407 Report No.: RF930831L1763Issued: Sept. 09, 2004 FCC ID: GSS-VS10407 Report No.: RF930831L1764Issued: Sept. 09, 2004 FCC ID: GSS-VS10407 Report No.: RF930831L1765Issued: Sept. 09, 2004 FCC ID: GSS-VS10407 Report No.: RF930831L1766Issued: Sept. 09, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is Dipole antenna without connector. And the maximum Gain of this antenna is 2.0dBi. FCC ID: GSS-VS10407 Report No.: RF930831L1767Issued: Sept. 09, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: GSS-VS10407 Report No.: RF930831L1768Issued: Sept. 09, 2004 RADIATED EMISSION TEST FCC ID: GSS-VS10407 Report No.: RF930831L1769Issued: Sept. 09, 2004 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP, UL , A2LA GermanyTUV Rheinland JapanVCCI NorwayNEMKO CanadaINDUSTRY CANADA , CSA R.O.C.CNLA, BSMI, DGT NetherlandsTelefication SingaporePSB , GOST-ASIA(MOU) RussiaCERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety/Telecom Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Linko RF Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also. Report Format Version 1.5

FCC ID: GSS-VS10407 Report No.: RF930831L1767Issued: Sept. 09, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: GSS-VS10407 Report No.: RF930831L1768Issued: Sept. 09, 2004 RADIATED EMISSION TEST
