GSS-VS10418MPocket PC (PDA)

User Guide V38r Rugged Handheld with Pocket PC 2003 Operating System ViewSonic V38r with Pocket PC OSi Copyright © ViewSonic Corporation, 2006. All rights reserved. ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation. Intel XScale is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Bluetooth is a trademark owned by its proprietor and used by Intel Corporation under license. Microsoft, Windows, the Microsoft Internet Explorer logo graphic, ActiveSync, PowerPoint, Outlook, DirectX, DirectSound, Pocket Word, MSN, Pocket Excel, Pocket Internet Explorer, Microsoft Exchange, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. ClearVue is a trademark of the Westtek Corporation. Corporate names and trademarks are the property of their respective companies. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. Product Registration To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic product also comes with a CD-ROM that has a registration form that you can print and mail or fax to ViewSonic Corporation. Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. For Your Records Model Name: Model Number: Document Number: Serial Number: Purchase Date: ASV38r VS10418 _______________ _______________ V38r-PPC_UG_ Rev1 F J 4 January 0J6J Contents ViewSonic V38r with Pocket PC OSii INTRODUCTION Packaged contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Features (if equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Software installed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Side views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 INITIAL SETUP 1.Remove the back panel . . . . . . . . . . . . . . . . . . . . . . . . 6 2.Slide the backup battery switch to ON . . . . . . . . . . . . . 7 3.Install the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 4.Replace the back panel and close the latch . . . . . . . . 9 5.Remove the protective cover (depending on model) . . 9 6.Connect AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 7.Charge the battery overnight . . . . . . . . . . . . . . . . . . . .10 8.Turn the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 MORE ABOUT SETUP Battery and power properties . . . . . . . . . . . . . . . . . . . . .12 Battery power status . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 The stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Calibrating the touch screen . . . . . . . . . . . . . . . . . . . . . .14 Adjusting the stylus double-tap rate . . . . . . . . . . . . . . . .14 Enable wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 ViewSonic V38r with Pocket PC OSiii USING THE V38r The Today screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Status icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Navigation bar and Command bar . . . . . . . . . . . . . . . 19 Running programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Pop-up menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Entering information . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Entering text using the Input Panel . . . . . . . . . . . . . . 22 Writing on the screen . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Drawing on the screen . . . . . . . . . . . . . . . . . . . . . . . . . 27 Recording a message . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Playing a message . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Recording formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using My Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 MANAGING THE V38r Managing power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Smart power management . . . . . . . . . . . . . . . . . . . . 32 Power-saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Battery storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Data storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Managing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Storage and program memory . . . . . . . . . . . . . . . . . . 34 Memory cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 SD memory capabilities . . . . . . . . . . . . . . . . . . . . . . . . . 34 SDRAM memory allocation . . . . . . . . . . . . . . . . . . . . 35 Memory map for 64/128 MB SDRAM . . . . . . . . . . . . 35 Antenna signal properties . . . . . . . . . . . . . . . . . . . . . 35 Finding and organizing information . . . . . . . . . . . . . . . . 36 …

Text truncated - open the document above for the full version.

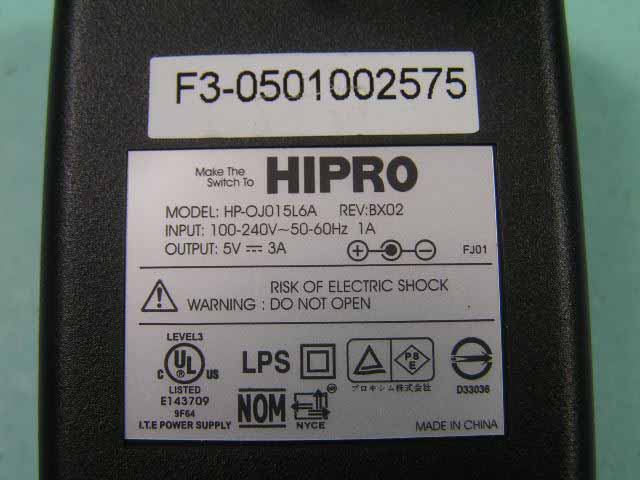

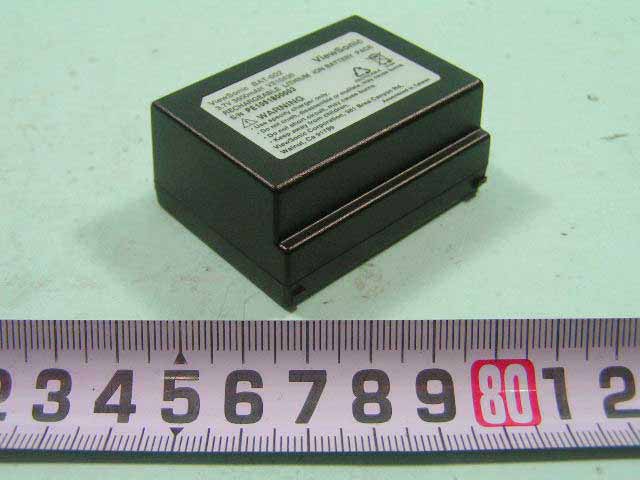

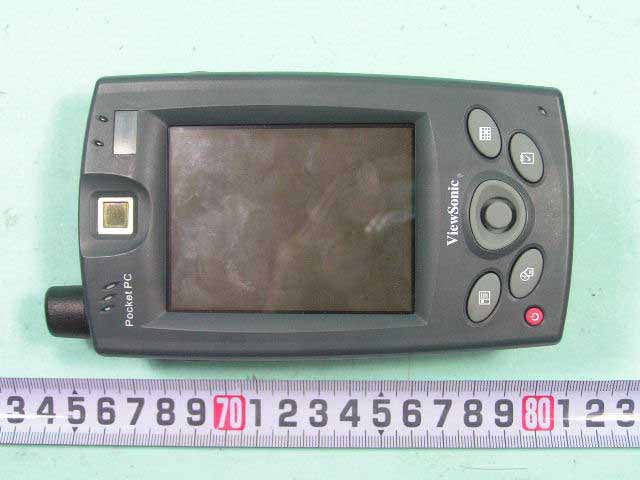

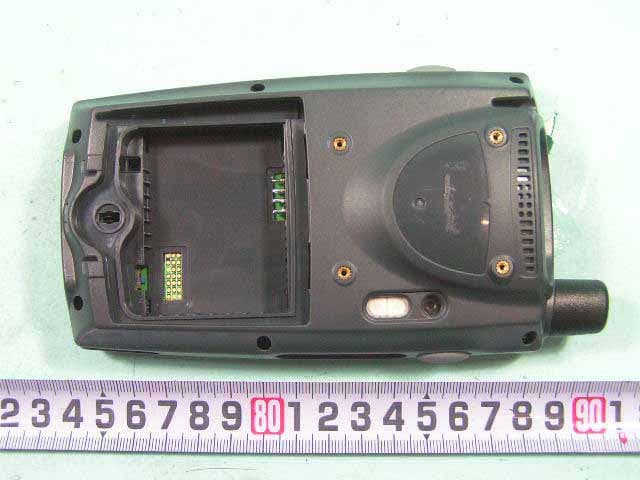

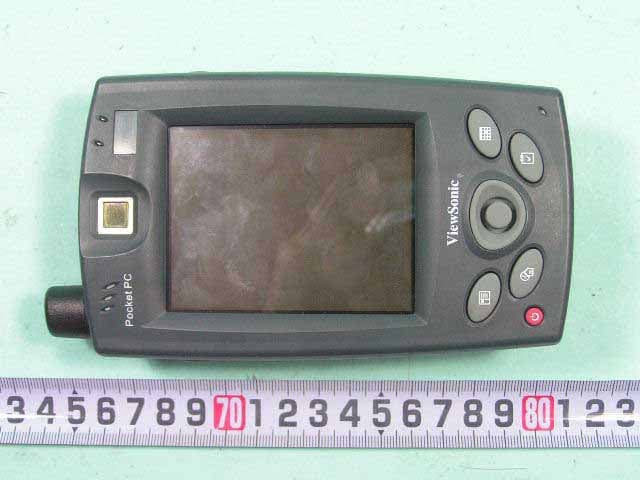

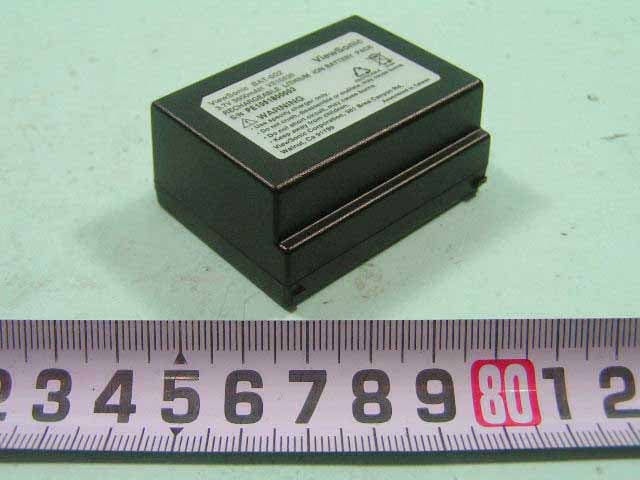

SPORTON International Inc. PAGE NUMBER : A1 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255

Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SPORTON International Inc. PAGE NUMBER : A17 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A19 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A20 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A21 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A22 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A23 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A24 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A25 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A26 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A27 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A28 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A29 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A30 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A31 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A32 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A33 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A34 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A35 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A36 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A37 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A38 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A39 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A40 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A41 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A42 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A43 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A44 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A45 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A46 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A47 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A48 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A49 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A50 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A51 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A52 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A53 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A54 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A55 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A56 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A57 OF A57 TEL : 886-2-2696-2468 ISSUED DATE : Jan,02,2006 FAX : 886-2-2696-2255

Operational Description Date: 2006/1/10 EUT is a pocket PC(PDA) with 11 channels(2412MHz~2462MHz, Space 5MHz). It allows you to connect to other WLAN device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Transceiver IC and operate frequency in 2.4GHz and 5GHz Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: BBP IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then 2.4GHz and 5GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by BBP IC. Data Modulation: DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation type is controlled by BBP IC. Power Control Level: BBP IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is ±0.5dB. Transmit/Receive Switch: EUT has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11 Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Interface: NA 7. Power: Input 3.7Vdc from battery. This power is provided to regulator components to regulated DC power. Report No.: FR5D1601 Report Format Version: RF-15.247-2005-12-28-b Page No. : 3 of 56 FCC ID: GSS-VS10418M Issued Date : Jan. 02, 2006 3. GENERAL INFORMATION 3.1. Product Details EUT is a pocket PC (PDA) with IEEE 802.11b/g and Bluetooth radio functions. Only the radio detail of WLAN is shown in the table below. For more detailed features description, please refer to the manufacturer’s specifications or user’s manual. Items Description Product Type WLAN Radio Type Intentional Transceiver Power Type Power Adapter & Battery Interface Type Please refer to user’s manual Modulation DSSS for IEEE 802.11b ; OFDM for IEEE 802.11g Data Modulation DSSS (BPSK / QPSK / CCK) ; OFDM (BPSK / QPSK / 16QAM / 64QAM) Data Rate (Mbps) DSSS (1/ 2/ 5.5/11) ; OFDM (6/9/12/18/24/36/48/54 Frequency Range 2400 ~ 2483.5MHz Channel Number 11 Channel Band Width (99%) 11b: 13.68 MHz ; 11g: 16.68 MHz Conducted Output Power 11b: 15.64 dBm ; 11g: 16.09 dBm Carrier Frequencies Please refer to section 3.4 Antenna Please refer to section 3.3 3.2. Accessories

©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 Specific Absorption Rate (SAR) Test Report for ViewSonic Corporation on the Pocket PC (PDA) Report No. : FA5D1601-1-2-01 Trade Name : ViewSonic Model Name : VS10418 FCC ID : GSS-VS10418 IC ID : 4280A-VS10418 Date of Testing : Dec. 15, 2005 Date of Report : Dec. 30, 2005 Date of Review : Dec. 30, 2005 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Report Version: Rev.01 SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2005 SPORTON International Inc. SAR Testing Lab Rev.01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 Table of Contents 1. Statement of Compliance .......................................................................................................1 2. Administration Data ................................................................................................................2 2.1 Testing Laboratory..................................................................................................................................... 2 2.2 Detail of Applicant ..................................................................................................................................... 2 2.3 Detail of Manufacturer ............................................................................................................................... 2 2.4 Application Detail ...................................................................................................................................... 2 3. Scope .......................................................................................................................................3 3.1 Description of Device Under Test (DUT) .................................................................................................... 3 3.2 Product Photo ........................................................................................................................................... 4 3.3 Applied Standards: .................................................................................................................................... 5 3.4 Device Category and SAR Limits............................................................................................................... 6 3.5 Test Conditons .......................................................................................................................................... 6 3.5.1 Ambient Condition: .......................................................................................................................... 6 3.5.2 Test Configuration: ........................................................................................................................... 6 4. Specific Absorption Rate (SAR) .............................................................................................7 4.1 Introduction ............................................................................................................................................... 7 4.2 SAR Definition........................................................................................................................................... 7 5. SAR Measurement Setup........................................................................................................8 5.1 DASY4 E-Field Probe System ................................................................................................................... 9 5.1.1 ET3DV6 E-Field Probe Specification .............................................................................................. 10 5.1.2 ET3DV6 E-Field Probe Calibration ................................................................................................. 10 5.2 DATA Acquisition Electronics (DAE)......................................................................................................... 11 5.3 Robot ...................................................................................................................................................... 12 5.4 Measurement Server............................................................................................................................... 12 5.5 SAM Twin Phantom................................................................................................................................. 12 5.6 Data Storage and Evaluation ................................................................................................................... 14 5.6.1 Data Storage.................................................................................................................................. 14 5.6.2 Data Evaluation ............................................................................................................................. 14 5.7 Test Equipment List ................................................................................................................................. 17 6. Tissue Simulating Liquids ....................................................................................................18 7. Uncertainty Assessment.......................................................................................................20 8. SAR Measurement Evaluation..............................................................................................22 8.1 Purpose of System Performance check ................................................................................................... 22 8.2 System Setup......................................................................................…

Text truncated - open the document above for the full version.

©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01

©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ FA5D1601-1-2-01

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-a FCC RADIO TEST REPORT Applicant’s company ViewSonic Corporation Applicant Address 381 Brea Canyon Rd. Walnut, CA. 91789, U.S.A. FCC ID GSS-VS10418M Manufacturer’s company Universal Scientific Industrial Co., LTD (Nan Kang Plant) Manufacturer Address 330, Kung-Yeh Road, Nan-Kang Industrial District, Nan-Tou, Taiwan Product Name Pocket PC (PDA) Brand Name ViewSonic Model Name VS10418 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Dec. 16, 2005 Test Date Dec. 30, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR5D1601 Report Format Version: RF-15.247-2005-12-28-b Page No. : i of ii FCC ID: GSS-VS10418M Issued Date : Jan. 02, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations ......................................................…

Text truncated - open the document above for the full version.
