GSS-VS14032SMART PHONE

ViewPhone 3 User Guide Model No. VS14032 i Compliance Information FCC NOTICE The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID: GSS- VS14032 on the product label.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This mobiledevice has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • onsult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void theuser’s authority to operate the equipment. The antenna(s) used for this transmitter must not be colocated or operating in conjunction with any otherantenna or transmitter. RF EXPOSURE INFORMATION (FCC SAR) THIS MOBILE DEVICE MEETS THE GOVERNMENT’S REQUIREMENT FOR EXPOSURE TO RADIO WAVES. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.664 W/kg and when worn on the body, as described in this user guide, is 0.999 W/kg (Body-worn measurements dif fer among phone models, depending upon available accessories and FCC requirements.) ii While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirements. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: GSS-VS14032. For body-worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the handset a minimum of 1.0 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do no t use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.0 cm from your body when the phone is switched on. CE SAR Information THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 W/kg averaged over 10 grams of tissue. Test for body worn SAR, the positions of the device are at a minimum of 1.5 cm from the body with the device transmitting at its highest certified power level in all tested frequency bands. The actual SAR level of an operating device can be below the maximum value because the device is designed to use only the power required to reach the network. That amount changes depending on a number of factors such as how close you are to a network base station. The highest SAR value under the ICNIRP guidelines for use of the device at the body is 0.525 W/kg. Use of device accessories and enhancements may result in different SAR values. SAR values may vary depending on national reporting and testing requirements and the network band. CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC. Following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collectio…

Text truncated - open the document above for the full version.

Date: December 9, 2011 Statement We, ViewSonic Corporation, states that our device, FCC ID: GSS-VS14032, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, ____________________ Name Sophia Wu Position Manager ViewSonic Corporation Tel no.: 886-2-22463456 E-mail: [email protected]

Date: December 9, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: GSS-VS14032 To Whom It May Concern: We, ViewSonic Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, ____________________ Name Sophia Wu Position Manager ViewSonic Corporation Tel no.: 886-2-22463456 E-mail: [email protected]

Date: December 9, 2011 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: GSS-VS14032 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: VS14032_Schem.pdf) Block Diagram (file: VS14032_BlkDia.pdf) Parts List (file: VS14032_PartsLst.pdf) Operation Description (file: VS14032_OpDes.pdf) Tune up Procedure (file: VS14032_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ____________________ Name Sophia Wu Position Manager ViewSonic Corporation Tel no.: 886-2-22463456 E-mail: [email protected]

ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA 91789, USA Tel: 886-02-2246-3456 ; Fax: 886-02-8242-3660 Date: December 9, 2011 Power of Attorney To whom it may concern, Please be notified that I, Sophia Wu, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: GSS-VS14032 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Sophia Wu Company: ViewSonic Corporation TEL: 886-02-2246-3456 FAX: 886-02-8242-3660 E-mail: [email protected]

Date: December 9, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : GSS-VS14032 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: VS14032_ExtPho.pdf)  Internal Photos (file: VS14032_IntPho.pdf)  Test Setup Photos (file: VS14032_Tsup.pdf)  User Manual (file: VS14032_UserMan.pdf) The application contains technical information, which ViewSonic Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, ____________________ Name Sophia Wu Position Manager ViewSonic Corporation Tel no.: 886-2-22463456 E-mail: [email protected]

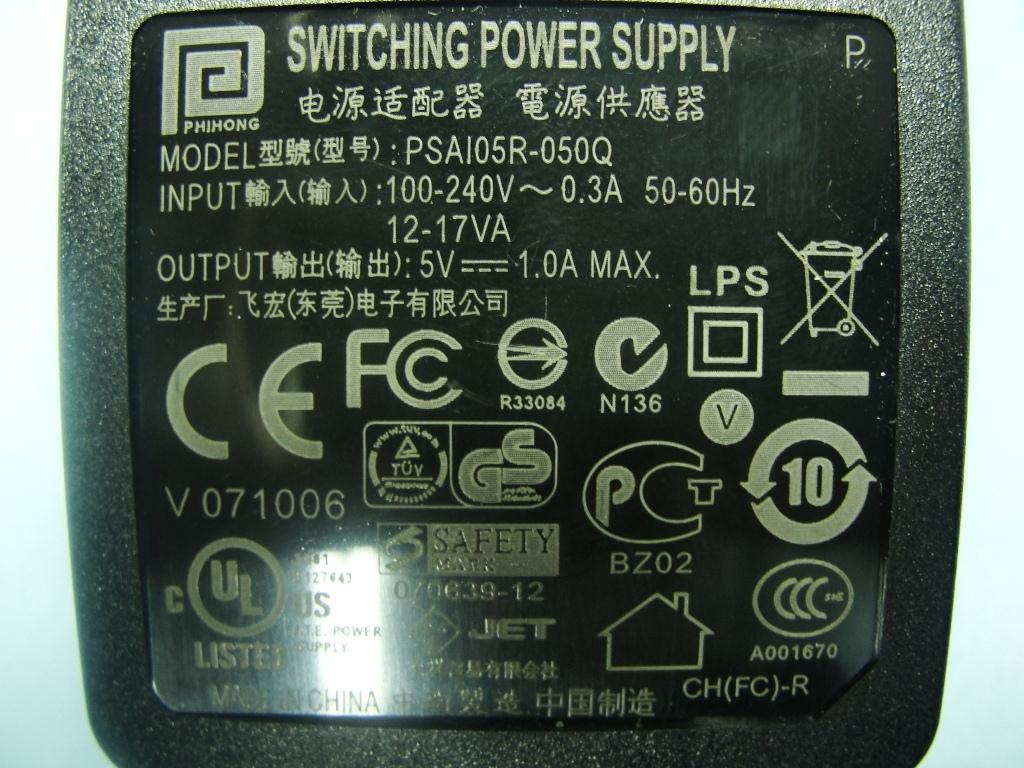

Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 1 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 1. External Photograph of EUT Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 2 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 720510 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 3 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 List of Accessory: Specification of Accessory AC Adapter Brand Name PHIHONG Model Name PSAI05R-050Q Battery Brand Name LICO Model Name HH08 Earphone Brand Name Fujikon Model Name TDM-600-002 USB Cable Brand Name Hon Hai Model Name CUNC004B-T19-EF Camera 1 Brand Name N/A Model Name N/A Camera 2 Brand Name MCNEX Model Name MC520A-2DD1T8012 LCD Panel Brand Name CHIMEI INNOLUX Model Name PJ035MA-02A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 4 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 5 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 6 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 720510

FCC ID: GSS‐VS14032 Mobile Phone (Back) Battery Compartment Label Location

Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 7 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 3. Internal Photograph of EUT Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 9 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 10 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 11 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 12 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx> Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 13 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 14 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 15 of 15 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 720510 GPS Antenna <Tx / Rx>

Photographs of EUT Report No.: 1N2831 Brand Name: ViewSonic / Model Name: VS14032 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 Antenna Length Width WWAN Antenna <Tx / Rx> 5.4cm 1.2cm Bluetooth & WLAN Antenna <Tx / Rx> 2.1cm 1.8cm GPS Antenna <Rx> 2.1cm 2.0cm WWAN Antenna <Tx / Rx> 0 .1cm 0.1 cm Bluetooth & WLAN Antenna <Tx / Rx> 0.3 cm 0.4 cm 3.5 cm 0.3 cm 8.2 cm GPS Antenna <Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 43 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 FCC SAR Test Report Report No. : FA1N2831 FCC SAR Test Report APPLICANT : ViewSonic Corporation EQUIPMENT : Smart Phone BRAND NAME : ViewSonic MODEL NAME : VS14032 FCC ID : GSS-VS14032 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Nov. 28, 2011 and completely tested on Dec. 21, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 43 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : GSS-VS14032 FCC SAR Test Report Report No. : FA1N2831 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 6 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4 .1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. Uncertainty Assessment .............................................................................................................................................21 8. SAR Measurement Evaluation ....................................................................................................................................23 8.1 Purpose of System Performance check ................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/14 System Check_Head_835MHz_111214 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_111214 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.64 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = 0.040 dB Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.66 mW/g 0 dB = 2.66mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-15 System Check_Body_835MHz_111215 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_111215 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2011-09-12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.68 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.1 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 3.71 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.67 mW/g 0 dB = 2.67mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/14 System Check_Head_1900MHz_111214 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_111214 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.19, 5.19, 5.19); Calibrated: 2011/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.0 V/m; Power Drift = 0.134 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.82 mW/g; SAR(10 g) = 5.07 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 11.0mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-14 System Check_Body_1900MHz_111214 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_111214 Medium parameters used: f = 1900 MHz; σ = 1.52 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.64, 4.64, 4.64); Calibrated: 2011-09-12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 10.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.5 V/m; Power Drift = -0.037 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.24 mW/g; SAR(10 g) = 4.76 mW/g Maximum value of SAR (measured) = 10.5 mW/g 0 dB = 10.5mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/21 System Check_Head_2450MHz_111221 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_111221 Medium parameters used: f = 2450 MHz; σ = 1.815 mho/m; ε r = 37.636; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.301 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.113 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 30.390 W/kg SAR(1 g) = 13.4 mW/g; SAR(10 g) = 6.05 mW/g Maximum value of SAR (measured) = 14.924 mW/g 0 dB = 14.920mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/21 System Check_Head_2450MHz_111221 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_111221 Medium parameters used: f = 2450 MHz; σ = 1.815 mho/m; ε r = 37.636; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: D…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/14 #01 GSM850_Right Cheek_Ch251 DUT: 1N2831 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_111214 Medium parameters used: f = 849 MHz; σ = 0.918 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.644 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.45 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 0.741 W/kg SAR(1 g) = 0.616 mW/g; SAR(10 g) = 0.466 mW/g Maximum value of SAR (measured) = 0.646 mW/g 0 dB = 0.646mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/14 #02 GSM850_Right Tilted_Ch251 DUT: 1N2831 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_111214 Medium parameters used: f = 849 MHz; σ = 0.918 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.410 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = 0.112 dB Peak SAR (extrapolated) = 0.464 W/kg SAR(1 g) = 0.394 mW/g; SAR(10 g) = 0.301 mW/g Maximum value of SAR (measured) = 0.416 mW/g Ch251/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = 0.112 dB Peak SAR (extrapolated) = 0.363 W/kg SAR(1 g) = 0.272 mW/g; SAR(10 g) = 0.180 mW/g Maximum value of SAR (measured) = 0.324 mW/g 0 dB = 0.324mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/14 #03 GSM850_Left Ch…
