GSS-VS15180Wireless Presentation Gateway

WPG-370 Wireless Presentation Gatway User Guide Model No. VS15180 IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual” ViewSonic i Compliance Information For U.S.A. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. For Canada • This Class B digital apparatus complies with Canadian ICES-003. • Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. Following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium, or more than 0.004% Lead. ViewSonic ii FCC Radiation Exposure Statement This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This wireless module device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Notice This wireless module device complies with Canadian RSS-210.To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmitting antenna) that is installed outdoors is subject to licensing. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s web site www.hc- sc.gc.ca/rpb. R&TTE Compliance Statement This device complies with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: ETSI EN 300 328 EN 301 489-01 EN 301 489-17 EN 62311 Notified Countries: Germany, UK, Netherlands, Belgium, Sweden, Denmark, Finland, France, Italy, Spain, Austria, Ireland, Portugal, Greece, Luxembourg, Estonia, Latvia, Lithuania, Czech Republic, Slovakia, Slovenia, Hungary, Poland and Malta. ViewSonic iii Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/ EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Substance Proposed Maximum ConcentrationActual Concentration Lead (Pb)0,1%< 0,1% Mercury (Hg)0,1%< 0,1% Cadmium (Cd)0,01%< 0,01% Hexavalent Chromium (Cr6+)0,1%< 0,1% Polybrominated biphenyls (PBB)0,1%< 0,1% Polybrominated diphenyl ethers (PBDE)0,1%< 0,1% Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are: 1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive. 2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices). 3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). 4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up t…

Text truncated - open the document above for the full version.

WPG-370 Wireless Presentation Gatway User Guide Model No. VS15180 IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual” ViewSonic i Compliance Information For U.S.A. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. For Canada • This Class B digital apparatus complies with Canadian ICES-003. • Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. Following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium, or more than 0.004% Lead. ViewSonic ii FCC Radiation Exposure Statement This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This wireless module device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Notice This wireless module device complies with Canadian RSS-210.To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmitting antenna) that is installed outdoors is subject to licensing. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s web site www.hc- sc.gc.ca/rpb. R&TTE Compliance Statement This device complies with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: ETSI EN 300 328 EN 301 489-01 EN 301 489-17 EN 62311 Notified Countries: Germany, UK, Netherlands, Belgium, Sweden, Denmark, Finland, France, Italy, Spain, Austria, Ireland, Portugal, Greece, Luxembourg, Estonia, Latvia, Lithuania, Czech Republic, Slovakia, Slovenia, Hungary, Poland and Malta. ViewSonic iii Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/ EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Substance Proposed Maximum ConcentrationActual Concentration Lead (Pb)0,1%< 0,1% Mercury (Hg)0,1%< 0,1% Cadmium (Cd)0,01%< 0,01% Hexavalent Chromium (Cr6+)0,1%< 0,1% Polybrominated biphenyls (PBB)0,1%< 0,1% Polybrominated diphenyl ethers (PBDE)0,1%< 0,1% Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are: 1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive. 2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices). 3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). 4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up t…

Text truncated - open the document above for the full version.

ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA91789, U.S.A. Declaration of Authorization We Name: ViewSonic Corporation Address: 381 Brea Canyon Road, Walnut, CA91789, Country: U.S.A. Declare that: Name Representative of agent: Delia Feng Agent Company name: Cerpass Technology Corporation Address: 2F-11, No. 3, Yuan Qu St. (Nankang Software Park) City: Taipei, 115 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless Presentation Gateway Type designation: VS15180 Trademark: ViewSonic on our behalf. Date: Jan. 15, 2013 City: Walnut , CA, U.S.A. Name: Sophia Wu Function: Compliance Assistance Manager Signature:

ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA91789, U.S.A. Date: Jan. 15, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: GSS-VS15180 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, ViewSonic Corporation Hereby requests permanent confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagrams  Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, _____________________ Sophia Wu/ Compliance Assistance Manager ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA91789, U.S.A. Tel: + 1-800- 688- 6688 Fax: + 1-909- 468- 3757

ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA91789, USA Date: Jan. 23, 2013 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: GSS-VS15180, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name and Model Name of the specified radio equipment: ViewSonic / VS15180 FCC ID: GSS-VS15180 Product Name: Wireless Presentation Gateway Regards, Signature Name/Title: Sophia Wu / Compliance Assistance Manager Company Name: ViewSonic Corporation TEL: +1-800-688-6688 FAX: +1-909-468-3757 Email: [email protected]

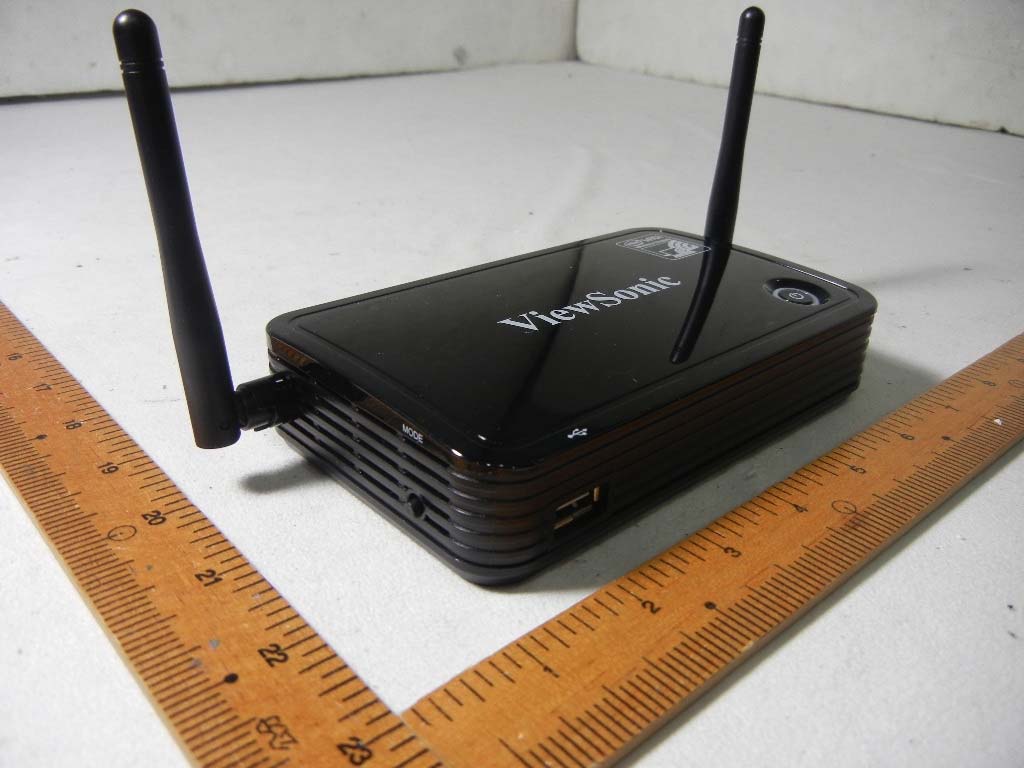

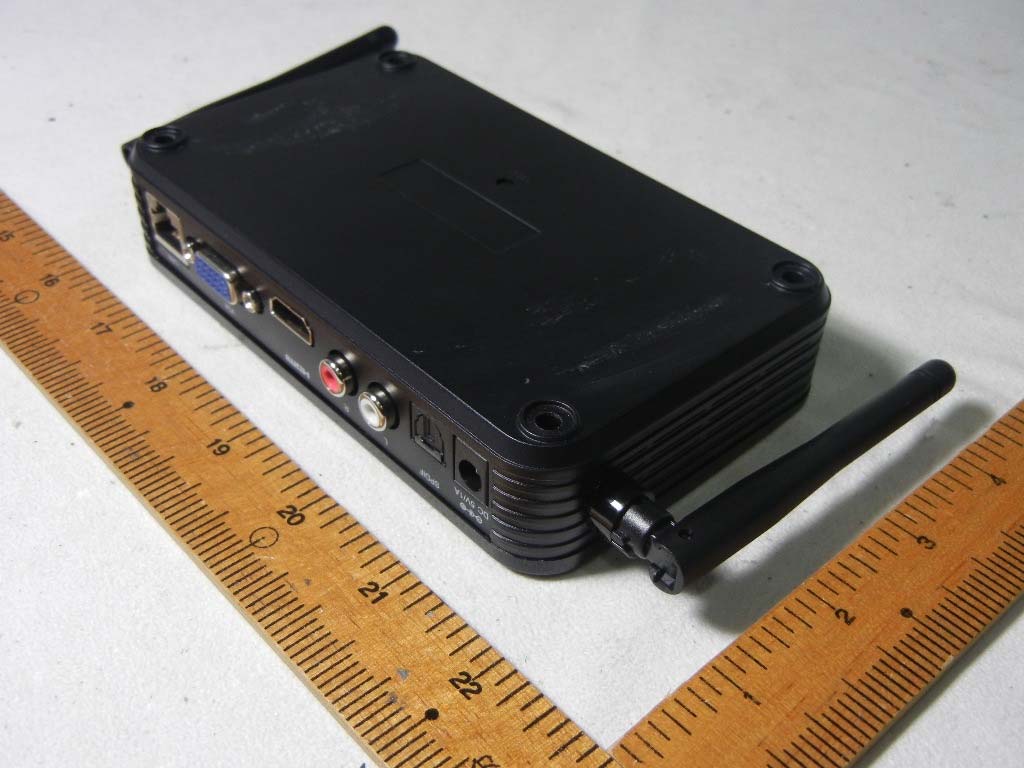

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 FCC ID : GSS-VS15180 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : GSS-VS15180

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A5 FCC ID : GSS-VS15180 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A5 FCC ID : GSS-VS15180

Label & Location

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : GSS-VS15180 CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : GSS-VS15180 CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5 FCC ID : GSS-VS15180

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A5 FCC ID : GSS-VS15180 CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A5 FCC ID : GSS-VS15180 CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued Date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A5 FCC ID : GSS-VS15180

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : GSS-VS15180 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Presentation Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 19.88 dBm (97.17 mW) 802.11g: 17.95 dBm (62.31 mW) 802.11n (20MHz): 15.99 dBm (39.72 mW) 802.11n (40MHz): 15.93 dBm (39.18 mW) 802.11a: 16.26 dBm(42.31 mW) 802.11n (20MHz): 16.23dBm(41.99 mW) 802.11n (40MHz): 16.12dBm(40.89 mW) Antenna gain (Max) 2.81 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 19.88 dBm (97.17 mW) at 2462 MHz (with numeric 0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : GSS-VS15180 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : GSS-VS15180 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 19.88 2.81 20 0.037 1 802.11g 2412-2462 17.95 2.81 20 0.024 1 802.11n (20MHz) 2412-2462 15.99 2.81 20 0.015 1 802.11n (40MHz) 2422-2452 15.93 2.81 20 0.015 1 802.11a 5725-5825 16.26 2.81 20 0.016 1 802.11n (20MHz) 5725-5825 16.23 2.81 20 0.016 1 802.11n (40MHz) 5725-5825 16.12 2.81 20 0.016 1 802.11a 5150-5250 8.43 2.81 20 0.003 1 802.11n (20MHz) 5150-5250 9.08 2.81 20 0.003 1 802.11n (40MHz) 5150-5250 8.35 2.81 20 0.003 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : GSS-VS15180 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Presentation Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 19.88 dBm (97.17 mW) 802.11g: 17.95 dBm (62.31 mW) 802.11n (20MHz): 15.99 dBm (39.72 mW) 802.11n (40MHz): 15.93 dBm (39.18 mW) 802.11a: 16.26 dBm(42.31 mW) 802.11n (20MHz): 16.23dBm(41.99 mW) 802.11n (40MHz): 16.12dBm(40.89 mW) Antenna gain (Max) 2.81 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 19.88 dBm (97.17 mW) at 2462 MHz (with numeric 0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : GSS-VS15180 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : GSS-VS15180 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 19.88 2.81 20 0.037 1 802.11g 2412-2462 17.95 2.81 20 0.024 1 802.11n (20MHz) 2412-2462 15.99 2.81 20 0.015 1 802.11n (40MHz) 2422-2452 15.93 2.81 20 0.015 1 802.11a 5725-5825 16.26 2.81 20 0.016 1 802.11n (20MHz) 5725-5825 16.23 2.81 20 0.016 1 802.11n (40MHz) 5725-5825 16.12 2.81 20 0.016 1 802.11a 5150-5250 8.43 2.81 20 0.003 1 802.11n (20MHz) 5150-5250 9.08 2.81 20 0.003 1 802.11n (40MHz) 5150-5250 8.35 2.81 20 0.003 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 214 FCC ID : GSS-VS15180 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : ViewSonic Corporation Address : 381 Brea Canyon Road, Walnut, CA91789, U.S.A. Equipment : Wireless Presentation Gateway Model No. : VS15180 Trade Name : ViewSonic FCC ID : GSS-VS15180  The test result refers exclusively to the test presented test model / sample.,  Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full.  The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 214 FCC ID : GSS-VS15180 Contents 1. Report of Measurements and Examinations ......................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ......................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ....................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................... 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement Equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 4.6 Test Photographs ..................................................................................................................... 26 5. Test of Radiated Emission .................................................................................................................. 27 5.1 Test Limit .................................................................................................................................. 27 5.2 Test Procedures ....................................................................................................................... 27 5.3 Typical Test Setup .................................................................................................................... 28 5.4 Measurement Equipment ......................................................................................................... 28 5.1 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 29 5.2 Test Result and Data ................................................................................................................ 29 5.3 Test Photographs (30MHz~1000MHz) ..................................................................................... 93 5.4 Test Photographs (1000MHz~40000MHz) ............................................................................... 94 6. 6dB Bandwidth Measurement Data .................................................................................................... 95 6.1 Test Limit .................................................................................................................................. 95 6.2 Test Procedures ....................................................................................................................... 95 6.3 Test Setup Layout .................................................................................................................... 95 6.4 Measurement Equipment ......................................................................................................... 95 6.5 Test Result and Data ................................................................................................................ 96 7. Maximum Peak and Average Output Power ..................................................................................... 117 7.1 Test Limit ..................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 82 of 214 FCC ID : GSS-VS15180 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 5 : 802.11an HT20, CH157 Temperature : 22 °C Memo : Humidity : 63 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1212088 Cerpass Technology Corp. Issued date : Jan. 18, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 83 of 214 FCC ID : GSS-VS15180 Power : AC 120V Pol/Phase : VERTICAL Test Mode 5 : 802.11an HT20, CH165 Temperature : 22 °C Memo : Humidity : 63 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1212…
