GT3CSC003Remote Controller

VICTOR/RM-SRXDP10J EXHIBIT B [Ref: RSP-1002.4(a)] " Block Diagram " VICTOR/RM-SRXDP10J Fig.B-1 Block Diagram of RM-SRXDP10J (9) LCD Panel To each device (10) DC Battery (11) Power Supply To each device (1) Key Switch (8) LCD Controller (6) IR Transmit Unit (5) IR Learning Unit (2) CPU 16bit (7) RF Unit (19) Antenna (3) ROM 96k Byte (4) RAM 5k Byte VICTOR/RM-SRXDP10J Fig.B-2 Block Diagram of RF Unit VDD +3V Control Data (13) Channel Switch (14) Tr1 Oscillator (17) Low pass Filter Each Device (18) High pass Filter Antenna (19) (12) SAW Resonator SAW1: 433.92MHz SAW2: 423.22MHz (15) Tr3 Modulator (16) Tr2 Amplifier

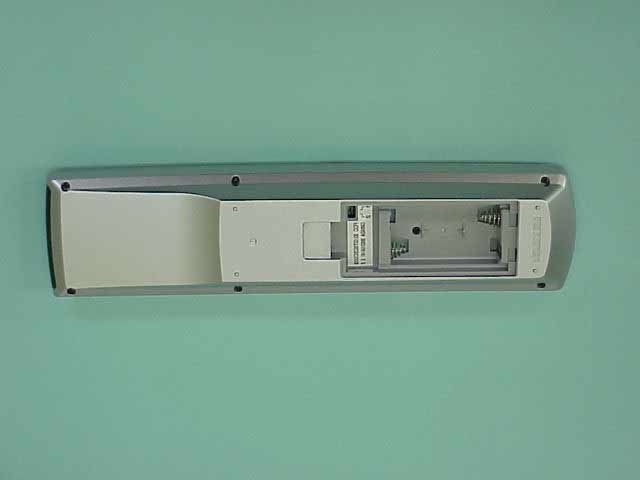

VICTOR/RM-SRXDP10J EXHIBIT D - 1 Top View of RM-SRXDP10J VICTOR/RM-SRXDP10J EXHIBIT D - 2 Bottom View of RF Unit of RM-SRXDP10J Certification Number for FCC & Industry CANADA Certification Number FCC ID : GT3CSC003

VICTOR/RM-SRXDP10J EXHIBIT D - 7 Bottom View of RF Unit of RM-SRXDP10J Certification Number for FCC & Industry CANADA Certification Number FCC ID : GT3CSC003

VICTOR/RM-SRXDP10J Top View of Main Unit of RM-SRXDP10J VICTOR/RM-SRXDP10J Bottom View of Main Unit RM-SRXDP10J Wire Antenna Wire AntennaWire Antenna Wire Antenna RF Unit RF UnitRF Unit RF Unit VICTOR/RM-SRXDP10J Top View of RF Unit of RM-SRXDP10J VICTOR/RM-SRXDP10J Bottom View of RF Unit RM-SRXDP10J

VICTOR/RM-SRXDP10J EXHIBIT A-1 EXHIBIT A [Ref: RSP-100 2.4(a)] " Product Description " VICTOR/RM-SRXDP10J EXHIBIT A-2 1. OUTLINE OF RM-SRXDP10J * RM-SRXDP10J is a remote control transmitter that is attached to RX-DP10VSLCD an audio/video receiver. * RM-SRXDP10J can transmit both of RF (Radio Frequency) signal and IR (Infrared Ray) signal at the same time. * When a key operation is made, a control signal is transmitted with the code according to the selected operation. * When pressing of a key is stopped, the transmitting is stopped. If pressing of a key is stopped in the middle of a frame of control signal, RM-SRXDP10J transmits a complete frame within 46 msec of the frame length, then stops transmitting. * When a key operation is made, the LCD (Liquid Crystal Display) (9) panel displays the information according to the selected operation. 2. SPECIFICATION OF RF SECTION Frequency 433.92 and 423.22 MHz Number of channels 2 Channel spacing 10.7 MHz Channel selection Switching the Channel Switch (13) to change the RF oscillator frequency according to each SAW resonator. Antenna Internal wire antenna Supply voltage 3 Vdc Modulation format Amplitude Shift Keying (ASK) 3. ACTIVE COMPONENT FUNCTION LIST Circuit Symbol Device Number Description Tr1 2SC4228 Transistor, Oscillator Tr2 2SC4226 Transistor, RF Amplifier Tr3 RN2306 Transistor, Modulator VICTOR/RM-SRXDP10J EXHIBIT A-3 4. OPERATION OF EACH SECTION SECTION DESCRIPTION (12) SAW resonator Surface Acoustic Wave Resonator makes Oscillator (14) oscillation. (14) Oscillator Direct oscillation of RF carrier frequency of 433.92MHz and 423.22MHz according to each SAW resonator (12). (15) Modulator Modulation of control signal with ASK (16) Amplifier Amplification of RF signal (17) Low pass Filter A passive low pass filter to eliminate uppers of undesired RF signal. (18) High pass Filter A passive high pass filter to eliminate lowers of undesired RF signal. (19) Antenna Radiation of RF signal on air 5. OPERATION OF RF UNIT * Oscillator (14) generates RF carrier frequency of 433.92 or 423.22MHz according to each characteristics of SAW resonator (12).which can be selected by Channel Switch(13). * Input of control data switches Modulator (15) and Amplifier (16) to be active, and vanishing of control data switches the circuits to be inactive. * Modulator (15) modulates from the control data to the RF signal according to the frequency of RF carrier signal generated by Oscillator (14). * Amplifier (16) amplifies the modulated signal. * Low pass Filter (17) and High pass Filter (18) eliminates undesired part of RF modulated signal. * The signal from High pass Filter (18) is radiated from Antenna (19) on air.

VICTOR/RM-SRXDP10J EXHIBIT C [Ref: RSP-1002.4(a)] " Schematic Diagram " VICTOR/RM-SRXDP10J Schematic Diagram of RF Unit

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, TELEX 242-2531 JQA J FAX (03) 3416-9691 JQA APPLICATION NO.: 400-10075 Issue Date : May 9, 2001 Page 1 of 30 EMI TEST REPORT JQA APPLICATION NO. : 400-10075 Model No. : RM-SRXDP10J Type of Equipment : Remote Controller Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : GT3CSC003 Applicant : SMK Corporation Address : 5-5, Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511, Japan Manufacture : SMK Corporation Address : 5-5, Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511, Japan Received date of EUT : May 7, 2001 Final Judgment : Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to Electro-Technical Lab. of METI Japan and Communications Research Lab. of MPHPT Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-10075 FCC ID :GT3CSC003 Model No. :RM-SRXDP10J Issue Date :May 9, 2001 Standard :CFR 47 FCC Rules Part 15 Page 2 of 30 JQA QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 19 1.10 EUT Arrangement (Photographs) 20 - 21 2 Test Data 2.1 AC Power Line Conducted Emission 0.45 MHz – 30 MHz N/A 2.2 Radiated Emission (Electric Field) 22 – 27 2.3 Frequency Stability N/A 2.4 Occupied Bandwidth 28 – 30 C O P Y JQA Application No. :400-10075 FCC ID :GT3CSC003 Model No. :RM-SRXDP10J Issue Date :May 9, 2001 Standard :CFR 47 FCC Rules Part 15 Page 3 of 30 JQA QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C (June 23, 1989) Intentional Radiators Test procedure : AC power line conducted emission, radiated emission, frequency stability and occupied bandwidth tests were performed according to the procedures in ANSI C63.4-1992. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : June 04, 2002 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2001) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Remote Controller 2) Product Type : Pre-Production 3) Category : Security/Remote Control Transmitter 4) EUT Authorization : Certification 5) FCC ID : GT3CSC003 6) Trade Name : JVC 7) Model No. : RM-SRXDP10J 8) Operating Frequency Range : 423.22 MHz - 433.92 MHz 9) Highest Frequency Used in the EUT : 433.92 MHz 10) Serial No. : None 11) Date of Manufacture : - 12) Power Rating : DC 3.0V(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-10075 FCC ID :GT3CSC003 Model No. :RM-SRXDP10J Issue Date :May 9, 2001 Standard :CFR 47 FCC Rules Part 15 Page 4 of 30 JQA QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 Sep. 2000 1 Year - Test Receiver ESH-3 Rohde & Schwarz 881460/030 June 2000 1 Year - LISN(for Peripheral) KNW-407 Kyoritsu Electrical 8-833-6 Apr. 2001 1 Year - LISN(for EUT) KNW-407 Kyoritsu Electrical 8-855-2 Apr. 2001 1 Year - LISN KNW-407 Kyoritsu Electrical 8-757-1 Apr. 2001 1 Year - RF Cable 3D-2W Fujikura 155-21-006E0 Apr. 2001 1 Year - RF Cable 3D-2W Fujikura 155-21-007E0 Apr. 2001 1 Year - 50ohm Termination - SUHNER 154-06-501E0 Jan. 2001 1 Year - 50ohm Termination - SUHNER 154-06-502E0 Jan. 2001 1 Year C O P Y JQA Application No. :400-10075 FCC ID :GT3CSC003 Model No. :RM-SRXDP10J Issue Date :May 9, 2001 Standard :CFR 47 FCC Rules Part 15 Page 5 of 30 JQA QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(9 kHz – 30 MHz) - was performed in the following test site. x - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date : N/A 2) Interval : N/A Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 Sep. 2000 1 Year - Test Receiver ESH-3 Rohde & Schwarz 881460/030 June 2000 1 Year - Test Receiver ESHS10 Rohde & Schwarz 835871/004 Oct. 2000 1 Year - Antenna HFH2-Z2 Rohde & Schwarz 881058/62 Nov 2000 1 Year C O P Y JQA Application No. :400-10075 FCC ID :GT3CSC003 Model No. :RM-SRXDP10J Issue Date :May 9, 2001 Standard :CFR 47 FCC Rules Part 15 Page 6 of 30 JQA QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. …
