GT3FC020ZigBee RF4CE module

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC)] *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. [For USA-Federal Communications Commission (FCC)] Contains Transmitter Module FCC ID: GT3FC020 or Contains FCC ID: GT3FC020 [For Industrial Canada (IC)] Contains Transmitter Module IC: 3683A-FC020 or Contains IC: 3683A-FC020 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan The following statements must be described on the user manual of the host device of this module; [Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC)] [For USA-Federal Communications Commission (FCC)] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

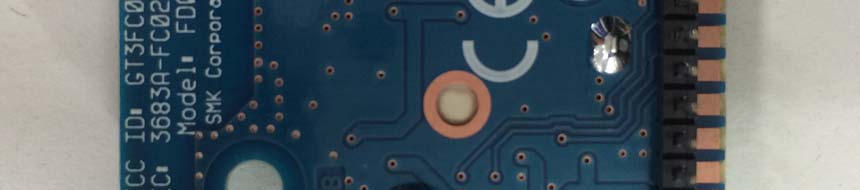

Photo SMK Corporation. FD0001

Copyright © SMK Corporation All Right reserved. 㻠㻛㻡㻌 ZigBee RF4CE module (FD0001) 㻌 3. Outline View(2/2): Label Requirement 㻌㻌 እ ほ (2/2): 䝷 䝧 䝹 韭 グ

Photo SMK Corporation. FD0001 The antenna connector shown in this photo is used for testing only and is not provided in the mass production.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: GT3FC020 To whom it may concern, We, UL Japan, Inc., hereb y declare that ZigBee RF4CE module, model : FD0001 (FCC ID: GT3FC020) of SMK Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01 (v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and <7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are a pplicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum avera ge output power was 1 mW So for this device: 1 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Akio Hayashi Engineer Consumer Technology Division UL Japan, Inc.

Test report No. : 10744027S-A Page : 2 of 32 FCC ID : GT3FC020 Issued date : April 30, 2015 Revised date : May 25, 2015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10744027S-A Revision Test report No. Date Page revised Contents -(Original) 10744027S-A April 30, 2015 - - 1 10744027S-A May 25, 2015 5 Addition of Remark Test report No. : 10744027S-A Page : 3 of 32 FCC ID : GT3FC020 Issued date : April 30, 2015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Conducted emission ............................................................................................ 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 10 SECTION 7: Maximum peak output power .......................................................................... 10 SECTION 8: Out of band emissions (Antenna port conducted) ......................................... 10 SECTION 9: Peak power density ........................................................................................... 10 SECTION 10: Radiated emission ........................................................................................... 11 Contents of APPENDIXES ....................................................................................................... 13 APPENDIX 1: Data of Radio tests .......................................................................................... 14 APPENDIX 2: Test instruments ............................................................................................. 29 APPENDIX 3: Photographs of test setup ............................................................................... 30 Test report No. : 10744027S-A Page : 4 of 32 FCC ID : GT3FC020 Issued date : April 30, 2015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : SMK Corporation Address : 5-5, Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511, Japan Telephone Number : +81-3-3785-1111 Facsimile Number : +81-3-3785-1878 Contact Person : Mitsuhiko Goto SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipmen t : ZigBee RF4CE module Model No. : FD0001 Serial No. : Refer to 4.2 in this report. Rating : DC 1.8V to 3.6V, Typ. 3.0V Country of Mass- production : Japan, China, Malaysia, Philippines, Hungary, U.S.A., Mexico Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : April 7, 2015 2.2 Product description Model: FD0001 (referred to as the EUT in this report) is ZigBee RF4CE module. Clock frequency(ies) in the system : 16MHz, 125kHz Radio Specification Equipment type : Transceiver Frequency of operation : 2425-2475MHz Bandwidth : 2MHz Channel spacing : 5MHz Type of modulation : O-QPSK, DSSS Antenna type : PCB printed antenna Antenna connector type : None Antenna gain : -0.6dBi(Max) ITU code : G1D Operation temperature range : -20 to +70 deg.C FCC 15.31 (e) / 212 The RF Module has its own regulator. The RF Module is constantly provided voltage (DC 1.5V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement of 15.212. FCC 15.203 / 212 The antenna is not removable from the EUT. Therefore the equipment complies with the requirement of 15.203/212. Test report No. : 10744027S-A Page : 5 of 32 FCC ID : GT3FC020 Issued date : April 30, 2015 Revised date : May 25, 2015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure *1) SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.10:2009 FCC 15.207 - N/A 5.0 dB Freq.: 0.47863 MHz Detector: Quasi-Peak Phase: N Mode: Tx 2475MHz Complied 6dB bandwidth ANSI C63.10:2009 FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum peak output power ANSI C63.10:2009 FCC 15.247 (b)(3) ConductedN/A Complied Out of band emission & Restricted band edges ANSI C63.10:2009 FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A *2) 3.7 dB Freq.: 65.208 MHz Polarization: Vertical Detection: Quasi-Peak Mode: Tx, 2450 MHz Complied Power density ANSI C63.10:2009 FCC 15.247 (e) ConductedN/A * See data Complied Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 and 13-EM-W0422. *1) These tests were also referred to KDB 558074 v03 r02 (FCC), "Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247”. *2) Radiated test was selected over 30 MHz based on section 15.247(d) and KDB 558074 D01 12.2.7. 3.3 Addition to standard Item Test Procedure SpecificationRemarksWorst Ma…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test report No. : 10744027S-A 30 of 32 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test report No. : 10744027S-A 31 of 32 Test report No. : 10005707S-A Page : 23 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test report No. : 10744027S-A 32 of 32
