GT3FC001BT Pendant

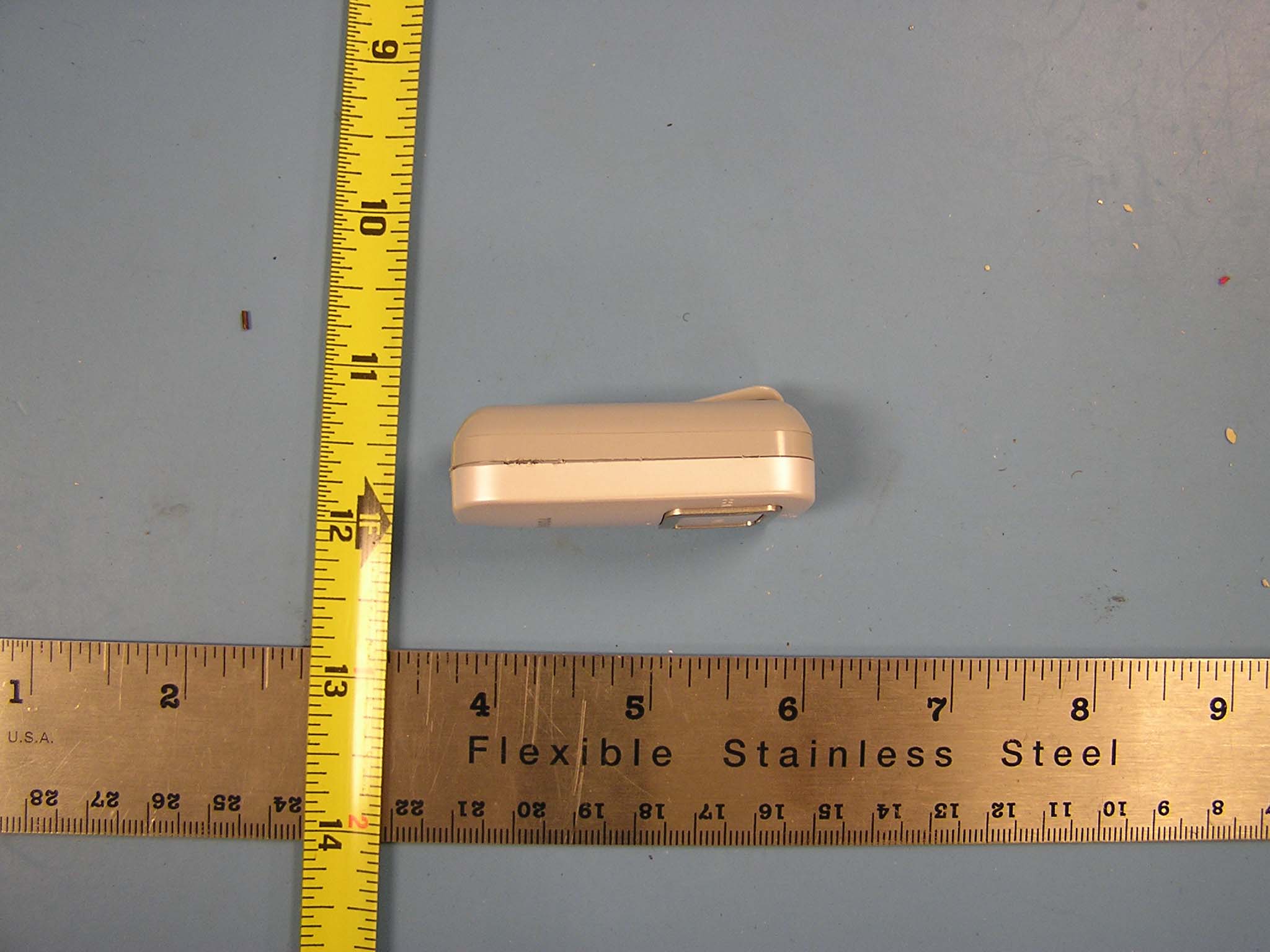

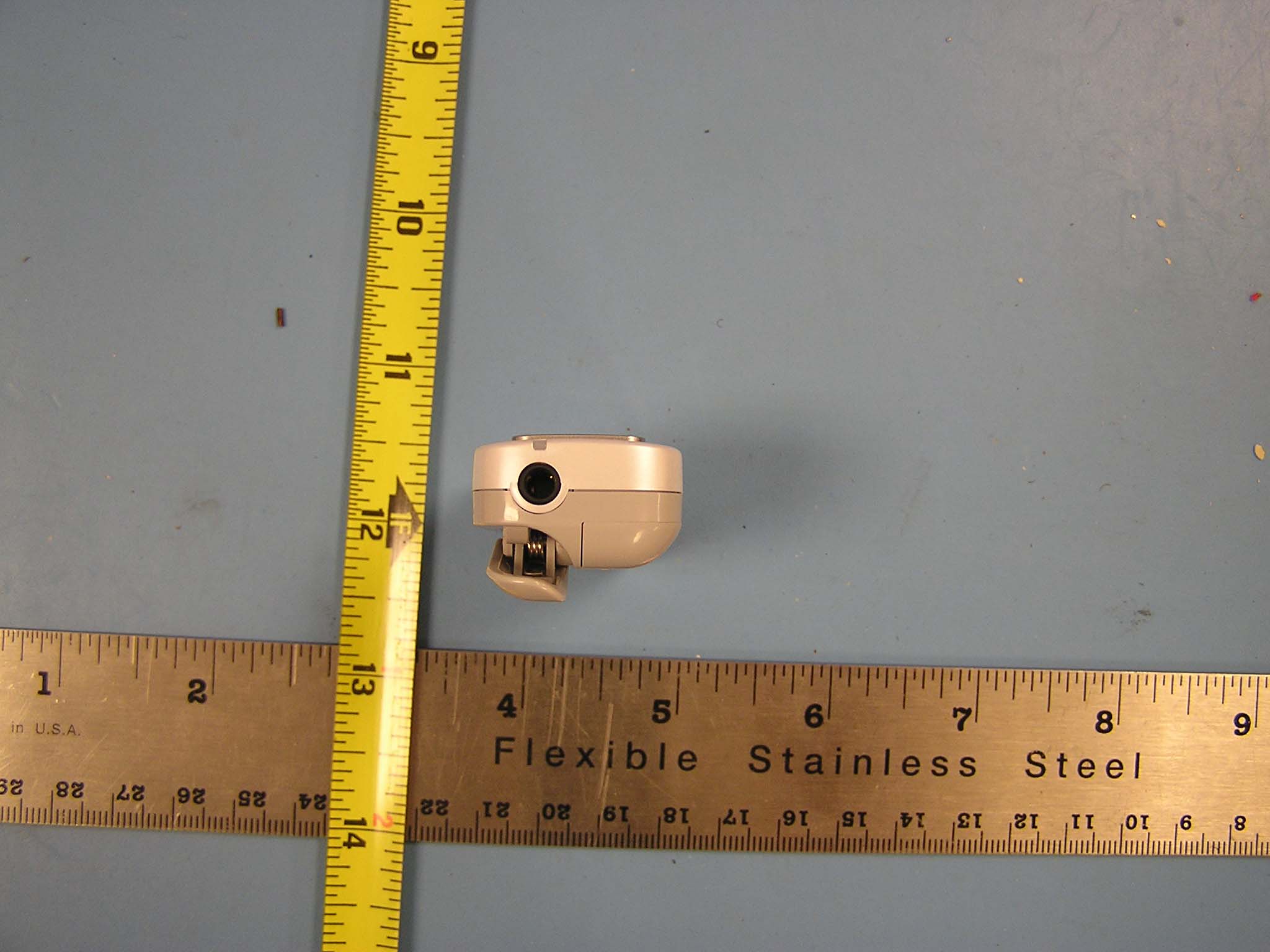

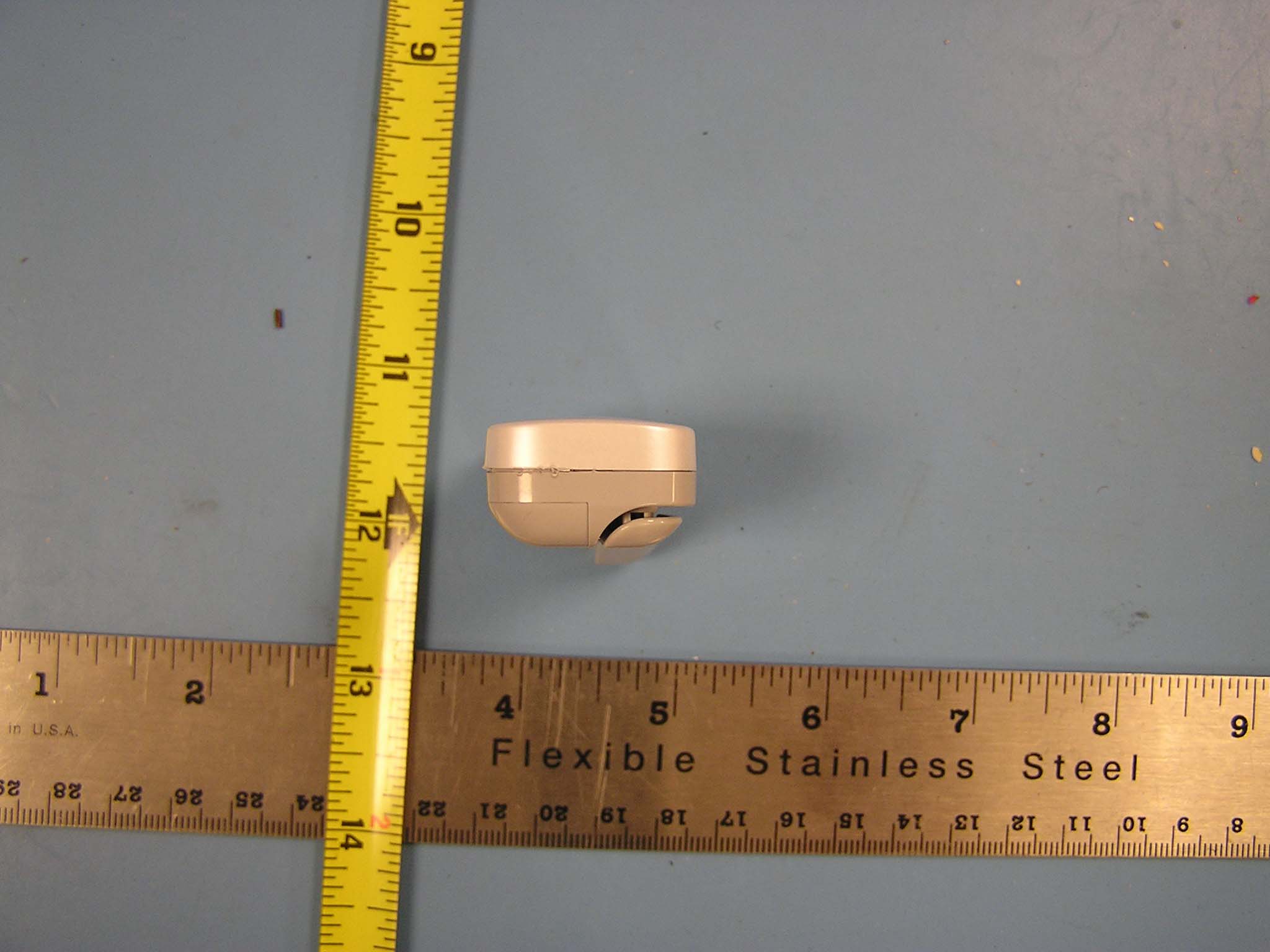

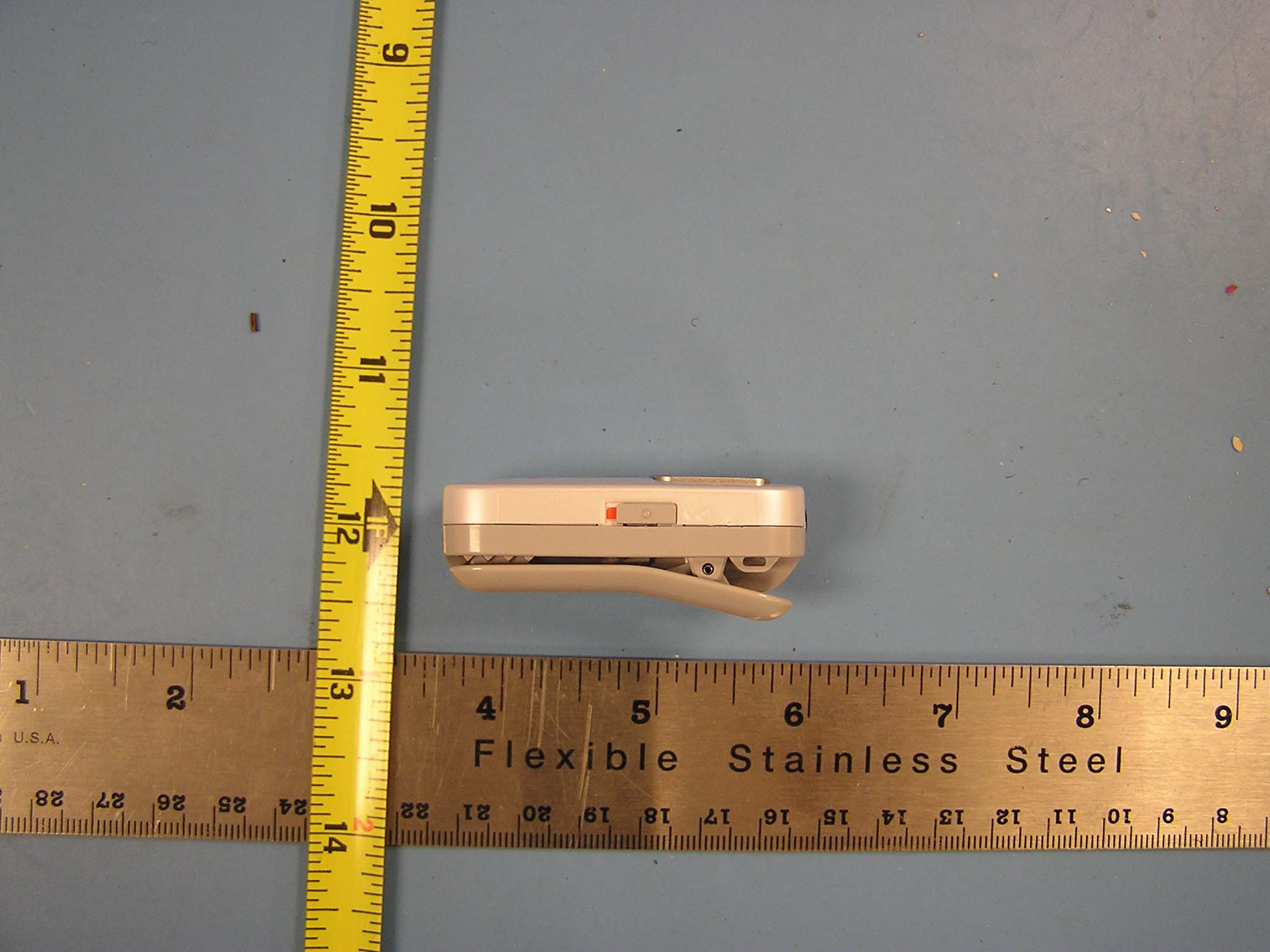

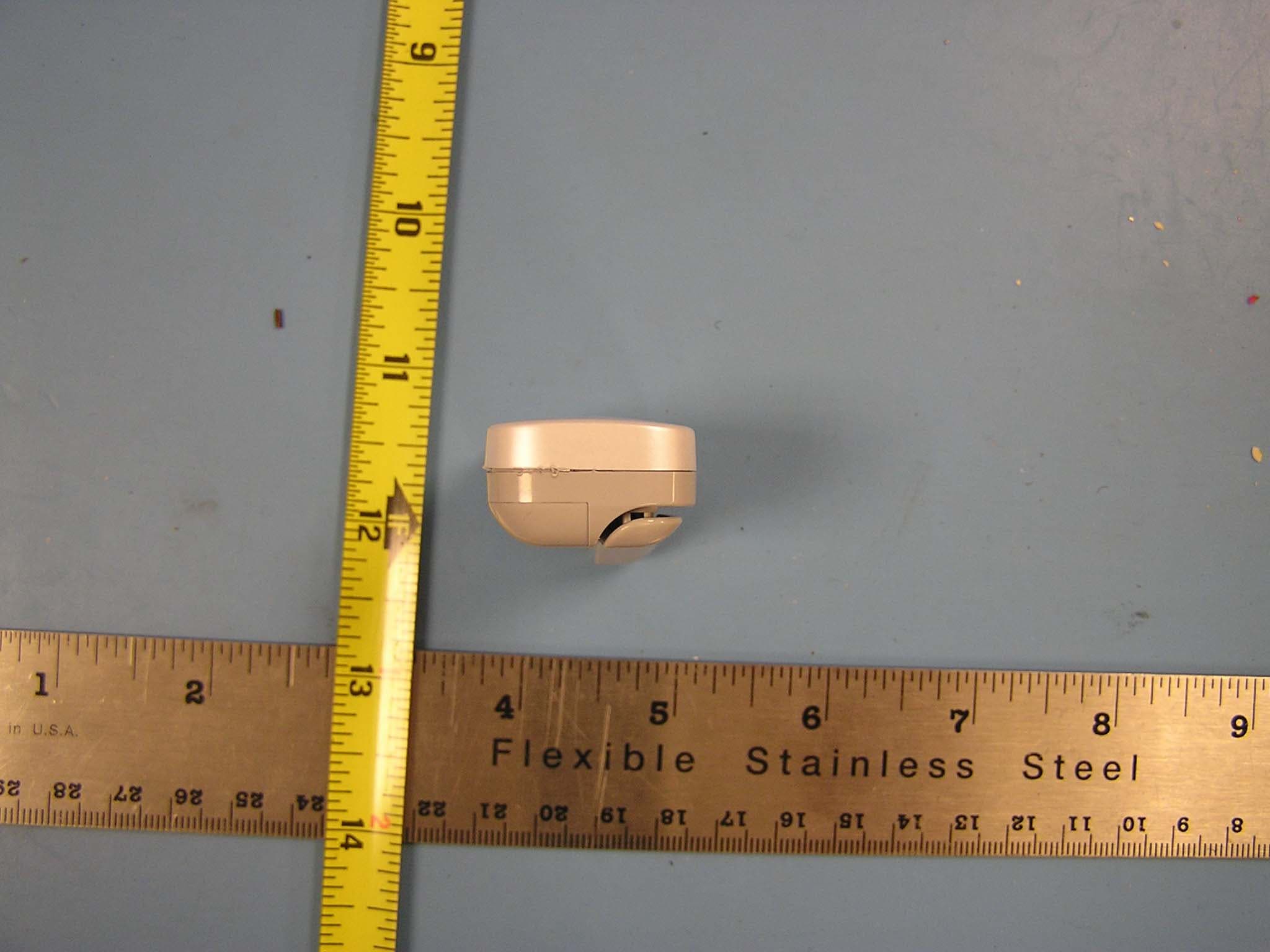

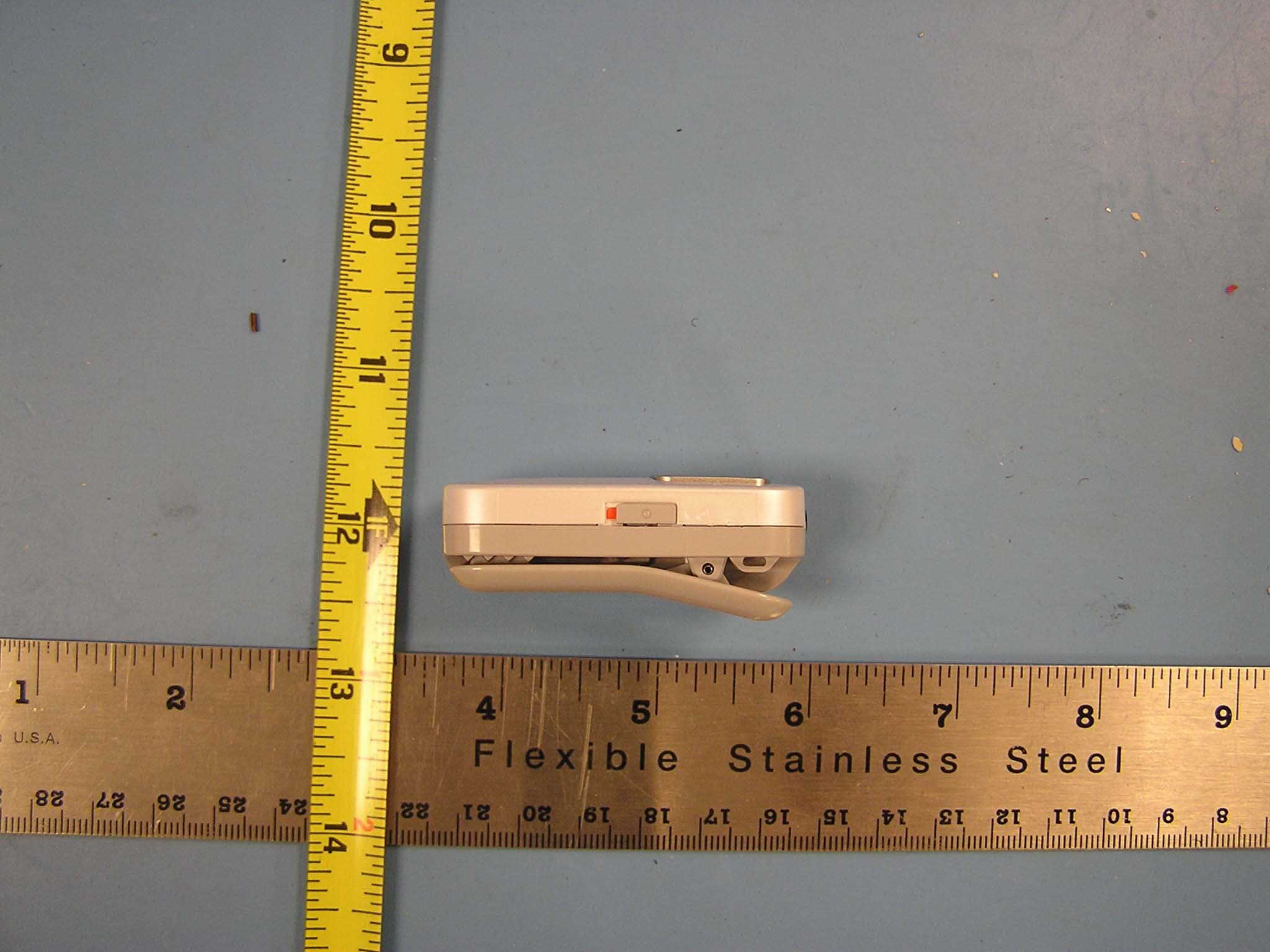

BT Pendant Instruction Manual Model: LAT9600-01XXE The BT Pendant seamlessly connects with mobile phone in wireless and allows you to play music files. Unpacking Contents Your package should have: - LAT9600-01XXE BT Pendant - LUM9600-2700E Headphone Name and Function of Each Part ⑤ ⑥ ② ① ⑦ ④ ③ ① Power key: Turn on/off the power, takes you back to standby mode and start to play music files. ② Earphone Jack ③ FF key: Press to forward music files or change the mode. ④ REW key: Press to rewind music files or change the mode. ⑤ LED indicator: Indicates whether power is ON or OFF. Off: OFF Lit Green and blinked: Power: ON ⑥ Volume key (+): Increase the volume ⑦ Volume key (-): Decrease the volume ⑪ ⑨ ⑧ ⑩ ⑧ Hold switch: Press to deactivate the buttons of the main unit to prevent misoperation. Release before operation to activate the buttons. ⑨ Strap Hole: Attach the strap ⑩ Clip: You can attach the BT pendant to you’re the garment by the Clip. Please ensure that the Clip is securely attached to the garment. ⑪ Battery compartment Basic Operations Using the AAA-size alkaline batteries Before the BT Pendant can be used for the first time, an AAA-size alkaline battery must be loaded. 1. Open the battery compartment. 2. Insert an AAA-size battery. Turning On the Power Press and hold the Power Key at least 1 second. The LED will flash green. Turning Off the Power Press and hold the FF Key, press the Power key and at least 1 second. Pairing to a Mobile Phone Before the BT Pendant can be used, it must be paired with a Bluetooth-enabled mobile phone. 1. Turn off the power of the BT Pendant. 2. Pressing and holding the FF Key, press the Power key at least 1 second. The BT Pendant is ready for pairing when the LED flashes green quickly. Refer to your mobile phone’s user guide to prepare the mobile phone for pairing to the BT Pendant. Using the headphone Connect the supplied headphone to the BT pendant. Adjusting the Volume Press the Volume key repeatedly until you reach the desired volume level. Main specifications Bluetooth Specification: Version 1.1 Dimension: 54.9 mm (L) x 27.7m (W) x 17.4mm (H) Total weight: approx. 15g Power supply: AAA-size alkaline battery Operating temperature: 0 to +60 o C Bluetooth range: max. 10 meters, less in buildings Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment. Caution Exposure to radio frequency radiation To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter.

1 Helen Zhao Subject: FW: answer: SMK Corporation, FCC ID: GT3FC001, Assessment NO.: AN06T5939, Notice# 1 ID Label Format and Location(r... Letter.pdf06J10302-1C FCC BLUETOOTH Repo... From: Claire Hoque Sent: Wednesday, July 12, 2006 4:51 PM To: Helen Zhao Cc: Michael Heckrotte; Kathy Yao; Alvin Ilarina Subject: answer: SMK Corporation, FCC ID: GT3FC001, Assessment NO.: AN06T5939, Notice#1 Hi Helen, Pls see answer below. Thanks! -----Original Message----- Sent: Tuesday, July 11, 2006 5:18 PM Subject: SMK Corporation, FCC ID: GT3FC001, Assessment NO.: AN06T5939, Notice#1 Question #1: Based upon FCC 2.925(a)(1), "The FCC Identifier shall be preceded by the term FCC ID in capital letters ..." The proposed FCC ID label format shows the FCC ID is proceded by something else. Please revise the FCC ID label format. <answer> revised label is attached. Question #2: Please revise the test report in the following areas: a) Section 5.1 indicates "The EUT is a Bluetooth transceiver headphone", which does not agree with other documents in the filing. Please update. <answer> pls see revised report attached. b) Since Section 7.1.2 shows EUT passed Hopping Frequency Separation test against two-thirds of 20dB limit, section 7.1.5 has to use 125mW as peak power output limit instead. Please update. <answer> pls see revised report attached. c) This is for your information. Page 40 shows display line is not placed correctly 20dB below the highest peak of the fundamental in the plot. In future, please place display line correctly. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the 2 sender.

PROPOSED ID LABEL LOCATION FCC ID: GT3FC001 ID LABEL LOCATION

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR BT PENDANT MODEL NUMBER: LAT9600-01XXE FCC ID: GT3FC001 REPORT NUMBER: 06J10302-1, REVISION C ISSUE DATE: JULY 12, 2006 Prepared for SMK CORPORATION 5-5 TOGOSHI 6-CHOME SHINAGAWA-KU, TOKOYO 142-8511, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06J10302-1C DATE: JULY 12, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 2 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 6/13/06 Initial Issue A. Ilarina B 7/10/06 Updated EUT description and antenna gain info A. Ilarina C 7/12/06 Update EUT description in section 5.1 Set Power Limit in section 7.1.5 to 21 dBm A. Ilarina REPORT NO: 06J10302-1C DATE: JULY 12, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 3 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS......................................................................................4 2. TEST METHODOLOGY.........................................................................................................5 3. FACILITIES AND ACCREDITATION....................................................................................5 4. CALIBRATION AND UNCERTAINTY...................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION.......................................................................5 4.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5. EQUIPMENT UNDER TEST...................................................................................................6 5.1. DESCRIPTION OF EUT......................................................................................................6 5.2. MAXIMUM OUTPUT POWER.............................................................................................6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS.......................................................................6 5.4. SOFTWARE AND FIRMWARE............................................................................................6 5.5. WORST-CASE CONFIGURATION AND MODE...................................................................6 5.6. DESCRIPTION OF TEST SETUP.........................................................................................7 6. TEST AND MEASUREMENT EQUIPMENT........................................................................10 7. LIMITS AND RESULTS........................................................................................................11 7.1. ANTENNA PORT CHANNEL TESTS..................................................................................11 7.1.1. 20 dB BANDWIDTH.................................................................................................11 7.1.2. HOPPING FREQUENCY SEPARATION...................................................................15 7.1.3. NUMBER OF HOPPING CHANNELS.......................................................................17 7.1.4. AVERAGE TIME OF OCCUPANCY.........................................................................21 7.1.5. PEAK OUTPUT POWER...........................................................................................28 7.1.6. RF EXPOSURE REQUIREMENT..............................................................................32 7.1.7. AVERAGE POWER..................................................................................................33 7.1.8. CONDUCTED SPURIOUS EMISSIONS....................................................................34 7.2. RADIATED EMISSIONS....................................................................................................43 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS.............................................43 7.2.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ.......................................46 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz.........................................55 8. SETUP PHOTOS....................................................................................................................59 REPORT NO: 06J10302-1C DATE: JULY 12, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 4 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SMK CORPORATION 5-5 TOGOSHI 6, CHOME SHINAGAWA-KU TOKYO 142-8511, JAPAN EUT DESCRIPTION: BT PENDANT MODEL: LAT9600-01XXE DATE TESTED: JUNE 01-03, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be use…

Text truncated - open the document above for the full version.

REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 59 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 60 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO - X POSITION REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 61 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO – X POSIITON REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 62 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED FRONT PHOTO - Y POSITION REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 63 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO – Y POSIITON REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 64 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED FRONT PHOTO - Z POSITION REPORT NO: 06J10302-1B DATE: JULY 10, 2006 EUT: BT PENDANT FCC ID: GT3FC001 Page 65 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED BACK PHOTO – Z POSIITON
