GT3FC003Transceiver Module

User Manual SMK Transceiver Module MODEL RXX9000-09XXF The purpose of this manual is to explain correct way how to integrate module RXX9000-09XXF to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. The SMK Transceiver Module, model RXX9000-09XXF has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Concept of SMK Transceiver Module, RXX9000-09XXF This Module is a 2.4 GHz ISM band small-power transceiver module with a built-in antenna. With UART and PWM output provided as an interface, sending and receiving of wireless data is a matter of simplicity via UART. PWM can output received wireless data in several decoded formats of remote control data. Regulatory Information USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling SMK Transceiver module RXX9000-09XXF labelled as below. FCC ID:GT3FC003 The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID:GT3FC003” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Europe-EU Declaration of Conformity and Restrictions European Community Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC The following standards were applied: • Radio: EN 300-328 v1.6.1 (2.4GHz operation) • EMC: EN 301.489-1 v1.6.1, EN 301.489-17 v1.2.1 • Safety: EN 60950-1:2001 We hereby declare that the human exposure of the Mitsumi module WML-C43 is below the SAR limits specified in the EU recommendation 1999/519/EC (the applicable limits are specified in table 1 with 2W/kg). The following CE mark is affixed to the device: Note: This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. For more details, contact your customer service representative. To comply with RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Member States shall ensure that the manufacturer or the person responsible for placing the apparatus on the market provides information for the user on the intended use of the apparatus, together with the declaration of conformity to the essential requirements. Where it concerns radio equipment, such information shall be sufficient to identify on the packaging and the instructions for use of the apparatus the Member States or the geographical area within a Member State where the equipment is intended to be used and shall alert the user by the marking on the apparatus referred to in Annex VII, paragraph 5, to potential restrictions or requirements for authorization of use of the radio equipment in certain Member States. Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC Česky [Czech] SMK Corporation tímto prohlašuje, že tento RXX9000-09XXF je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/EC. Dansk [Danish] Undertegnede SMK Corporation erklærer herved, at følgende udstyr RXX9000-09XXF overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EC. Deutsch [German] Hiermit erklärt SMK Corporation dass sich das Gerät RXX9000-09XXF in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie …

Text truncated - open the document above for the full version.

1 Helen Zhao Subject: FW: SMK Corporation, FCC ID: GT3FC003, Assessment NO.: AN07T6744, Notice#1 Test Fixture Photos.pdf RXX9000-09XXF_La be_FCC_042607.... -----Original Message----- From: September Radecki Sent: Wednesday, April 25, 2007 1:43 PM To: Helen Zhao Subject: RE: SMK Corporation, FCC ID: GT3FC003, Assessment NO.: AN07T6744, Notice#1 Hi Helen, Here are the answers to your questions on the above referenced application. Question #1: Please provide one more setup photo to show clearly how the radio module is connected with the test fixture. <CCS Answer:> Please see attached test fixture photos. Question #2: Please provide one more label that will be affixed on the host device when the module is installed inside the host. <CCS Answer:> Attached please find the new requested label. I hope this is sufficient. Thank you. Kindest regards, September The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

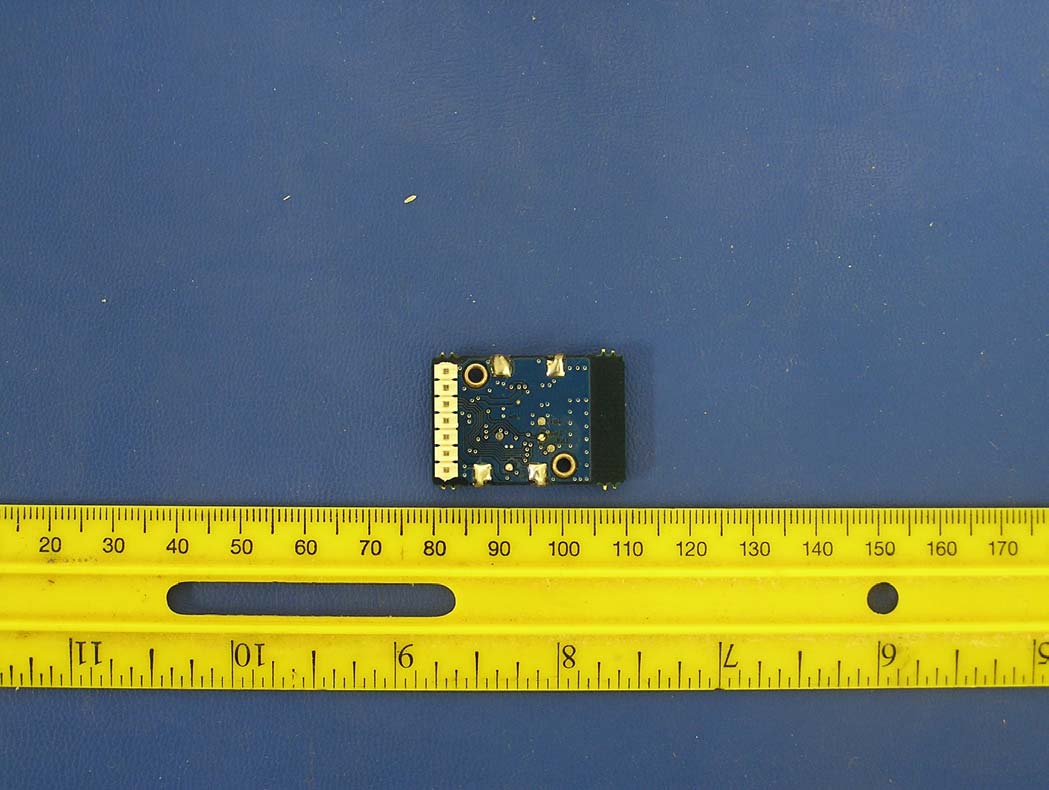

Company: SMK Corporation FCC ID: GT3FC003 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic (MC9S08QG8) inputs. 3 Have it own power supply regulation Internal power regulators are in RF Transceiver Chipset. Refer to Block diagram page 2. 4 Meet the antenna requirements of Section 15.203 Device is equipped with pattern antenna. Any connector isn’t used. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside of the PC for full modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID:GT3FC003” shall be placed on the outside of final host system. “GT3FC003” is the ID of the module. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Meet RF exposure compliance requirement

RXX9000-09XXF Label Format and location Label Format for Host Device Contains FCC ID: GT3FC003

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR TRANSCEIVER MODULE MODEL NUMBER: RXX9000-09XXF FCC ID: GT3FC003 REPORT NUMBER: 07J10915-1 ISSUE DATE: APRIL 11, 2007 Prepared for SMK CORPORATION 5-5 TOGOSHI 6-CHOME SHINAGAWA-KU, TOKOYO 142-8511, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 2 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/11/07 Initial Issue T. Chan REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 3 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 14 7.1.3. PEAK OUTPUT POWER .................................................................................................. 18 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 23 7.1.5. AVERAGE POWER........................................................................................................... 26 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 27 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 31 7.2. RADIATED EMISSIONS.............................................................................................................38 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 38 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ............................. 41 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 51 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 55 8. SETUP PHOTOS .............................................................................................................................. 59 REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 4 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SMK CORPORATION 5-5 TOGOSHI 6-CHOME SHINSGAWA-KU TOKYO, 142-8511 JAPAN EUT DESCRIPTION: TRANSCEIVER MODULE MODEL: RXX9000-09XXF SERIAL NUMBER: N/A DATE TESTED: MARCH 21-23, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Complia…

Text truncated - open the document above for the full version.

REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 59 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 60 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP CONFIGURATION RADIATED FRONT PHOTO REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 61 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 62 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 07U10915-1 DATE: APRIL 11, 2007 EUT: TRANSCEIVER MODULE FCC ID GT3FC003 Page 63 of 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
