GT3FC012Half-Mini Card size TransferJet module

TJ101Installation Manual 1 Image for Setup of TJ101(1/2) Installation inside PC Coupler: See page 3 Cable: See page 3 TJ101 Module 2 Image for Setup of TJ101(2/2) ! CAUTION ! ・Electrostatic discharge (ESD) can damage electronic components. Before beginning attachment, be sure that you are discharged of static electricity. ・To prevent damage to the TranferJet module, hold the TransferJet module by the edgesonly. Do not touch the components on the TransferJet module. PCI ExpressMini card Slot TJ101 (Top Side) PC Printed Circuit Board Ex.) Motherboard Antenna Connector (U.FL) Screw (Option) U.FL Coaxial Cable To Coupler 3 Available Coupler and Cable ○Available Coupler ・WHA9400-1501E ・WHA9400-1631F ・WHA9400-1626F ○Available Cable ・U.FL Coaxial Cable (Min. 100mm) http://www.smk.co.jp/

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Product Name: Half-Mini Card size TransferJet module Model number: TJ101 GENERAL The TJ101 is a Close Proximity Wireless TransferJet*1 module, implemented in a PCI Express*2 Half-Mini Card format. The TJ101 interfaces to a host PC by directly inserting the card into a PCI Express*2 Mini slot. Wireless connectivity requires an external TransferJet*1 coupler connected by an RF coax cable to the TJ101 module. *1 TransferJet is a trademark of Sony Corporation. *2 PCI Express is a trademark of the PCI Special Interest Group (PCI-SIG). Integration to the end product The SMK Transceiver Module, model TJ101 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Manual Information The following text shall be placed on the manual of end product. Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC RSS-Gen and RSS-102) USA-Federal Communications Commission (FCC) Only 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Industrial Canada (IC RSS-Gen and ICES-003) Only ・RSS-Gen （None） ・ICES003 ※it is the responsibility of the manufacturer or importer to determine whether the notice should appear in one or the other, or both, of the official languages, based upon the intended market, company marketing policies, and any other applicable provincial or federal regulations. Labelling SMK Transceiver module TJ101 labelled as below. FCC ID:GT3FC012 IC:3683A-FC012 The proposed FCC ID and IC label format is to be placed on the module. If FCC ID and IC is not visible when the module is installed into the system, The following sentences shall be placed on the outside of final host system. “Contains Transmitter Module FCC ID: GT3FC012, IC: 3683A-FC012” or “Contains FCC ID: GT3FC012, IC: 3683A-FC012” This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

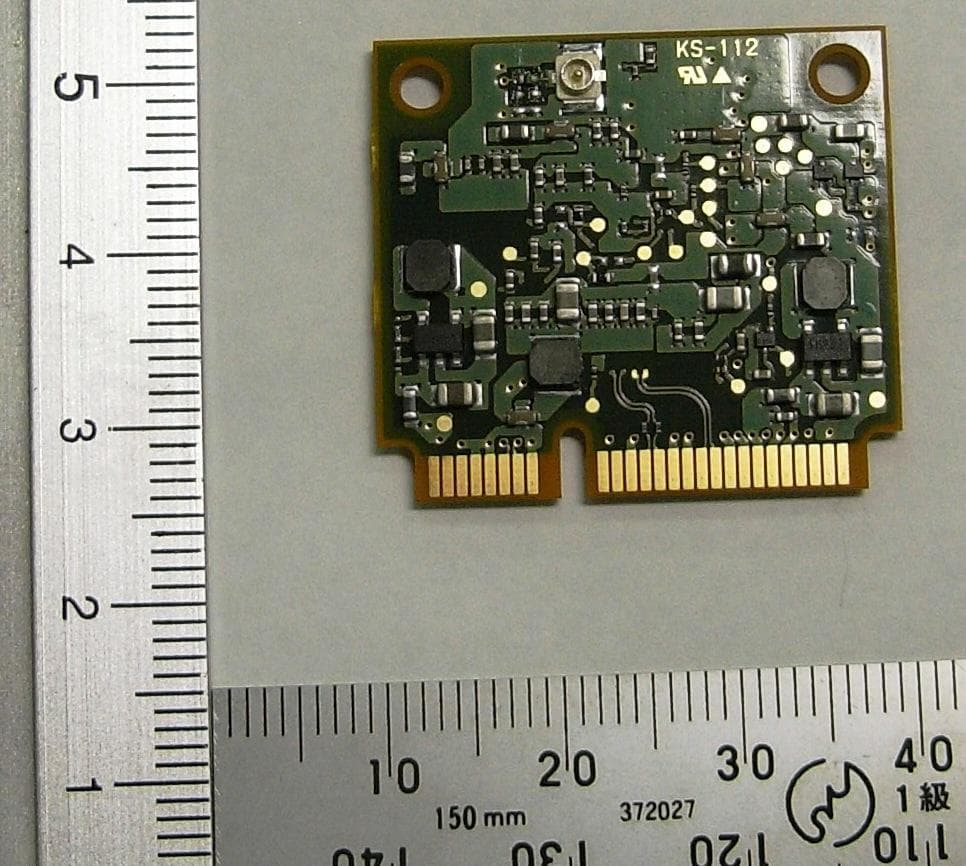

External View Top Side Bottom Side

SMK Corporation Model Name: TJ101 Label (Draft) ※ About 18.5 mm×15 mm SMK Corporation Model Name: TJ101 Label Location EUT Bottom

Internal View U.FL Connector (Antenna connector)

FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 2 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Conducted emission 7 6 UWB bandwidth & Occupied bandwidth (99%) 7 7 Radiated Emission and Peak level of the Emission 8 8 Transmitter Timeout 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test data 18 APPENDIX 3: Test instruments 26 FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 3 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant information Company Name : SMK Corporation Address : 5-5 Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511 JAPAN Telephone Number : +81-3-3785-5058 Facsimile Number : +81-3-3785-2904 Contact Person : Mitsuhiko Goto 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Half-Mini Card size TransferJet module Model No. : TJ101 Serial No. : Transmitter Time Out: 167 Other Test: 030 Rating : DC3.3V Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : February 14, 2011 2.2 Product description Model: TJ101 (referred to as the EUT in this report) is a Half-Mini Card size TransferJet module. Equipment type : Transceiver Frequency of operation : 4480MHz Clock frequency : 20MHz: Crystal, 4.4kHz: LC, 3000kHz: DC/DC Converter Effective Bandwidth (not 10dB Bandwidth) : 560MHz Type of modulation : DSSS Antenna type : TransferJet Coupler Antenna connector type : U-FL Antenna gain @4.48GHz : Antenna gain (without cable loss) Type A (WHA9400-1501E): -4.72dBi Type B (WHA9400-1631F): -6.50dBi Type C (WHA9400-1626F): -7.82dBi Antenna cable loss Type A: 0.68dB, Type B: 1.37dB, Type C: 0.98dB ITU code : Q7D Operation temperature range : -20 ~ +75 deg.C. FCC 15.31 (e) The RF Module is provided with stable power supply DC 3.3V from the host device and has power supply regulator which provides DC1.2V and DC 1.8 V, therefore, the equipment complies power supply regulation. FCC Part 15.203 The EUT has a unique coupling/antenna connector U-FL. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 4 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart F: 2010, final revised on December 6, 2010 and effective January 5, 2011. Title : FCC 47CFR Part15 Radio Frequency Device Subpart F Ultra-Wideband Operation Section 15.519 Technical requirements for hand held UWB systems * The EUT complies with FCC Part 15 Subpart B: 2010, final revised on December 6, 2010 and effective January 5, 2011. 3.2 Procedures & Results (Hand held UWB systems) Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 FCC 15.505(a) FCC 15.207 - N/A 20.4dB 0.30321MHz, N, QP Complied UWB Bandwidth ANSI C63.4:2003 FCC 15.503 (a) FCC 15.503 (d) FCC 15.519 (b) ConductedN/A - Complied Radiated Emission ANSI C63.4:2003 FCC 15.521 (d) 15.519 (c) (d) RadiatedN/A 1.5dB 1560.00MHz, Horizontal Complied Peak level of the Emission ANSI C63.4:2003 FCC 15.521 (e) (g) FCC 15.209 FCC 15.519 (e) RadiatedN/A 35.5dB 4480.00MHz, Horizontal Complied Transmitter Timeout ANSI C63.4:2003 FCC 15.519 (a) (1) ConductedN/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05. 3.3 Addition to standard Item Test Procedure Specification RemarksWorst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted - N/A * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 5 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency rangeNo.1 SAC*1/SR*2 (±)No.2 SAC/SR (±) No.3 SAC/SR (±) Conducted emission (AC Mains) AMN/LISN 150kHz-30MHz3.0 dB 2.7 dB 3.1 dB Radiated emission 30MHz-300MHz4.7 dB 4.5 dB 4.7 dB 300MHz-1GHz4.5 dB 4.6 dB 4.6 dB 1GHz-18GHz4.8 dB 4.8 dB 4.8 dB 18GHz-40GHz4.4 dB 4.2 dB 4.2 dB *1: SAC=Semi-Anechoic Chamber *2: SR= Shielded Room is applied besides radiated emission *3: Value of Antenna Terminal Voltage measurement is also applies to the No.5 and No.6 Shielded Room. Conducted emission test The data listed in this test report has enough margin, more than site margin. Radiated emission test The data listed in this report meets the limits unless the uncertainty is taken into consideration. 3.5 Test location UL Japan, Inc. Shonan EMC Lab. 1-22-3, Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 No.1/ No.2/ No.3 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on April 17, 2009 (Registration No.: 697847). IC Registration No. : 2973D-1 (No1 anechoic chamber) 2973D-2 (No2 anechoic chamber) 2973D-3 (No3 anechoic chamber) Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.1 Shielded ro…

Text truncated - open the document above for the full version.

DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/02/28 Company: SMK CorporationMode: Transmitting Kind of EUT: Half-Mini Card size TransferJet module Report No. : 31EE0216-SH-01-A Model No.: TJ101Power: AC120V/60Hz Single phase Serial No.: 030 Temp./Humi. : 21deg.C / 31% RH Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Hikaru Shirasawa Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN Control No.: Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1617228.2---13.842.0---65.355.323.3---N 20.3032126.8---12.939.7---60.150.120.4---N 31.5859410.1---12.722.8---56.046.033.2---N 46.993571.3---13.014.3---60.050.045.7---N 525.061963.1---14.217.3---60.050.042.7---N 629.498704.3---14.618.9---60.050.041.1---N 70.1617228.2---13.641.8---65.355.323.5---L1 80.3032126.8---12.939.7---60.150.120.4---L1 91.5964112.8---12.725.5---56.046.030.5---L1 106.396490.5---13.013.5---60.050.046.5---L1 1125.064972.4---14.216.6---60.050.043.4---L1 1229.498706.0---14.620.6---60.050.039.4---L1 18/27 Bandwidth (Regulation: FCC 15.503(d) 519(b)) UL Japan, Inc. SHONAN No.6 Shield Room COMPANY : SMK Corporation REPORT No. : 31EE216-SH-01-A Equipment : Half-Mini Card size TransferJet module REGULATION : FCC Part15SubpartF 503(d) 519(b) MODEL NUMBER : TJ101 DATE : 2011/2/16 SERIAL NUMBER : 030 TEMP./HUMI : 25deg.C/41% RH POWER : DC3.3V TEST MODE : Transmitting Remarks : - ENGINEER : Tatsuya Arai 10dB Bandwidth: 770.3MHz (LIMIT: >500MHz) Occupied Bandwidth (99%) : 858.1MHz Start Frequency: 3480MHz Stop Frequency: 5480MHz 19/27 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31EE216-SH-01-A Company: SMK Corporation Equipment: Half-Mini Card size TransferJet moduleRegulation: FCC Part15F Section 15.519(c) Model: TJ101Test Distance: 0.5m / 0.3m / 0.1m Sample No. : 030Date : 2011/2/15 Power: DC3.3VTemperature: 20deg.C Mode: TransmittingHumidity: 21% RH ENGINEER : Tatsuya Arai Horizontal (RBW: 1MHz) No. FREQ READING ANT AMP CABLE DistanceLIMIT MARGIN Detector Factor GAIN LOSS Factor 3mEIRP [MHz] [dBuV] [dB] [dB] [dB] [dB] [dBuV/m] [dBm] [dBm][dB] 1 1560.00 47.225.3 40.11.6 15.6 18.4-76.8-75.31.5RMS 2 1680.04 45.925.8 40.21.6 15.6 17.5-77.7-63.314.4RMS 3 2740.04 50.228.2 40.52.1 15.6 24.4-70.8-61.39.5RMS 4 3200.04 45.729.2 41.12.3 15.6 20.5-74.7-61.313.4RMS 5 4480.00 42.730.7 40.42.8 15.6 20.2-75.0-41.333.7RMS 6 7670.00 36.037.3 38.63.7 15.6 22.8-72.4-41.331.1RMS 7 10225.00 34.439.2 37.54.2 15.6 24.7-70.5-41.329.2RMS 8 14085.00 35.840.8 37.75.0 20.0 23.9-71.3-41.330.0RMS 9 17920.00 36.248.1 37.35.6 29.5 23.1-72.1-61.310.8RMS No1-7: 0.5m, No.8: 0.3m, No.9: 0.1m Vertical (RBW: 1MHz ) No. FREQ READING ANT AMP CABLE DistanceLIMIT MARGIN Detector Factor GAIN LOSS Factor 3mEIRP [MHz] [dBuV][dB] [dB] [dB] [dB] [dBuV/m] [dBm] [dBm][dB] 1 1040.00 47.223.7 39.91.3 15.6 16.7-78.5-75.33.2RMS 2 1959.96 43.227.0 40.41.8 15.6 16.0-79.2-63.315.9RMS 3 2739.94 46.828.2 40.52.1 15.6 21.0-74.2-61.312.9RMS 4 3360.01 44.429.4 41.22.4 15.6 19.4-75.8-41.334.5RMS 5 4480.00 43.630.7 40.42.8 15.6 21.1-74.1-41.332.8RMS 6 7669.17 36.237.3 38.63.7 15.6 23.8-71.4-41.330.1RMS 7 10224.87 34.339.2 37.54.2 15.6 24.6-70.6-41.329.3RMS 8 14085.00 35.740.8 37.75.0 20.0 23.8-71.4-61.310.1RMS 9 17920.00 35.948.1 37.35.6 29.5 22.8-72.4-61.311.1RMS No1-7: 0.5m, No.8: 0.3m, No.9: 0.1m Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Loss (Cable + ATT) - Distance Factor Distance Factor calculation 0.5m: 20*log (3.0[m]/0.5[m]) = 15.6[dB] 0.3m: 20*log (3.0[m]/0.3[m]) = 20.0[dB] 0.1m: 20*log (3.0[m]/0.1[m]) = 29.5[dB] RESULT (EIRP) = RESULT (3m field strength) - 95.2 DATA OF RADIATION TEST (Regulation: FCC 15.519(c)) RESULT RESULT 20/27 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31EE216-SH-01-A Company: SMK Corporation Equipment: Half-Mini Card size TransferJet moduleRegulation: FCC Part15F Section 15.519(c) Model: TJ101Test Distance: 3m Sample No. : 030Date : 2011/2/17 Power: DC3.3VTemperature: 20deg.C Mode: TransmittingHumidity: 21% RH ENGINEER : Tatsuya Arai Emissions from digital circuitry (limits in Section 15.209) Horizontal No. FREQ READING ANT AMP CABLE Distance RESULT LIMIT MARGIN Detector Factor GAIN LOSS Factor 3m [MHz] [dBuV] [dB] [dB] [dB] [dB] [dBuV/m][dBuV/m] [dB] 1539.99 41.317.6 32.09.40.036.346.09.7QP 2559.99 40.217.8 32.09.50.035.546.010.5QP 3579.99 39.518.0 31.99.60.035.246.010.8QP 4619.99 44.018.6 31.99.70.040.446.05.6QP 5659.99 39.619.2 31.99.90.036.846.09.2QP 6839.99 34.520.4 31.4 10.50.034.046.012.0QP Vertical No. FREQ READING ANT AMP CABLE Distance RESULT LIMIT MARGIN Detector Factor GAIN LOSS Factor 3m [MHz] [dBuV] [dB] [dB] [dB] [dB] [dBuV/m][dBuV/m] [dB] 1279.99 35.518.3 32.08.30.030.146.015.9QP 2379.99 44.015.5 31.98.80.036.446.09.6QP 3479.99 37.316.9 31.99.20.031.546.014.5QP 4499.99 44.017.2 31.99.30.038.646.07.4QP 5539.99 44.617.6 32.09.40.039.646.06.4QP 6559.99 43.517.8 32.09.50.038.846.07.2QP 7579.99 44.118.0 31.99.60.039.846.06.2QP DATA OF RADIATION TEST (Regulation: FCC 15.519(c)) 21/27 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31EE216-SH-01-A Company: SMK Corporation Equipment : Half-Mini Card size TransferJet moduleRegulation: FCC Part15F Section 15.519(d) Model: TJ101Test Distance: 0.5m Sample No. : 030Date : 2011/2/27 Power: DC3.3VTemperature: 21deg.C Mode: TransmittingHumidity: 31% RH ENGINEER : Tatsuya Arai Horizontal (RBW: 1kHz) No. FREQ READING ANT AMP CABLE DistanceLIMIT MARGIN Detector Factor GAIN LOSS Factor 3mEIRP [MHz] [dBuV] [dB] [dB] [dB] [dB] [dBuV/m] [dBm] [dBuV/m] [dB] 1 1239.55 16.224.3 40.0 1.415.6 -13.7 -108.9 -85.323.6RMS 2 1609.80 16.325.5 40.1 1.615.6 -12.3 -107.5 -85.322.2RMS Vertical (…

Text truncated - open the document above for the full version.

FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 11 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Conducted emission FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 12 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Radiated emission Below 960MHz FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 13 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Radiated emission Above 960MHz FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 14 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst position (Module) X-axis Z-axis Y-axis FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 15 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst position (Antenna) Antenna TypeA Antenna TypeB X-axis Y-axis Z-axis FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 16 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst position (Antenna) Antenna TypeC X-axis Y-axis Z-axis FCC ID : GT3FC012 Test report No. : 31EE0216-SH-01-A Page : 17 of 27 Issued date : March 11, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst case (Cable) Cable TypeA Cable TypeB Cable TypeC
