GT3FC015ZigBee RF4CE-compatible RF receiver

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Product Name: ZigBee RF4CE-compatible RF receiver Model number: SSR-RFNANO GENERAL This product is a 2.4GHz RF USB Receiver that uses ZigBee RF4CE (Radio Frequency for Consumer Electronics) technology. This RF Receiver is used with RF4CE remote controller in order to control the equipment (for example, Personal computer). It enables N-to-N high reliability two-way communication, low power consumption, coexistence with other 2.4GHz band RF, and security settings. This new system features two-way communication and network functions by using radio frequencies, enabling more convenient and easier operation. The receiver's small size contributes to the increased space-saving capacity of this equipment. SPEC. ・RF Standard : ZigBee®RF4CE specification version 1.00 compatible ・Supply Voltage Remote control : 3.4 to 5.5 VDC ・Operation Temperature Range : -20°C to +70°C ・External Dimensions Remote control : 24mm x 16mm x 8mm ・Receiver I/F : USB ・Frequency Range : 2425 to 2475MHz (11 channel) 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan SETUP 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Manual Information The following text shall be placed on the manual of end product. Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC RSS-Gen and RSS-102) 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan USA-Federal Communications Commission (FCC) Only Industrial Canada (IC RSS-Gen and ICES-003) Only ・RSS-Gen （None） ・ICES003 ※it is the responsibility of the manufacturer or importer to determine whether the notice should appear in one or the other, or both, of the official languages, based upon the intended market, company marketing policies, and any other applicable provincial or federal regulations. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

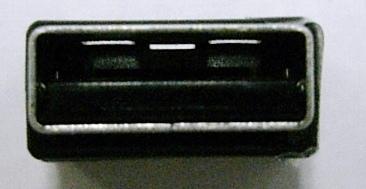

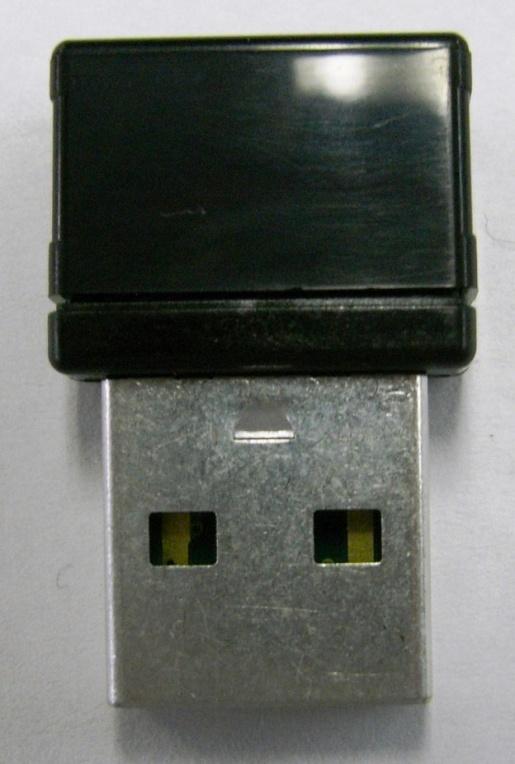

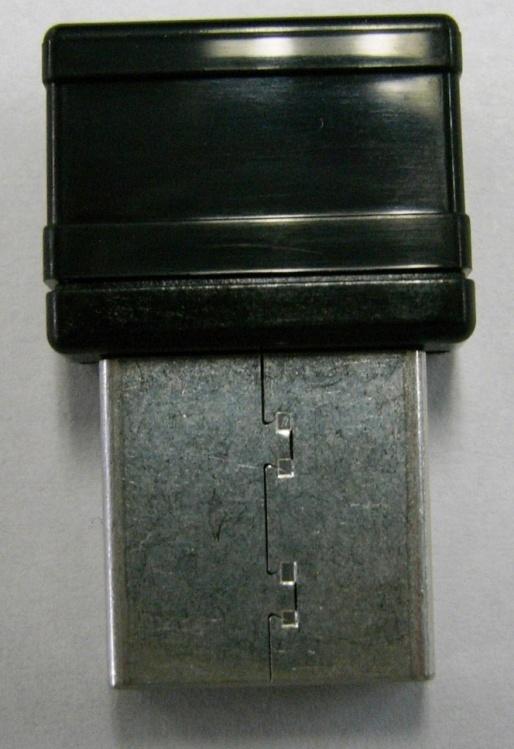

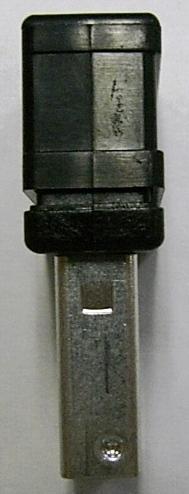

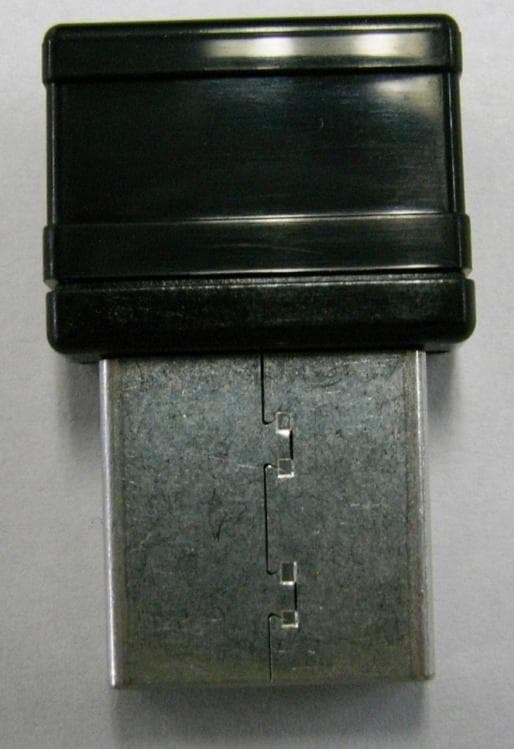

SSR-RFNANO External Photos

SSR-RFNANO Labelling 15.6mm 7.6mm 24.4mm

SSR-RFNANO Internal Photos Chip Antenna ※For testing

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 June 12, 2012 UL Japan, Inc. FCC ID: GT3FC015 To whom it may concern, We, UL Japan, Inc, hereby declare that ZigBee RF4CE-compatible RF receiver, model: SSR- RFNANO (FCC ID: GT3FC015) of SMK Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Toyokazu Imamura Leader of WiSE Japan, UL Verification Service UL Japan, Inc.

Test report No. : 32IE0294-SH-02-A Page : 2 of 35 Issued date : June 12, 2012 FCC ID : GT3FC015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32IE0294-SH-02-A Revision Test report No. Date Page revised Contents - (Original) 32IE0294-SH-02-A June 12, 2012 - - Test report No. : 32IE0294-SH-02-A Page : 3 of 35 Issued date : June 12, 2012 FCC ID : GT3FC015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted emission ......................................................................................... 8 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ............................................. 8 SECTION 7: Maximum peak output power ......................................................................... 9 SECTION 8: Spurious emission (Antenna port conducted) ................................................ 9 SECTION 9: Radiated emission .......................................................................................... 10 SECTION 10: Peak Power density ...................................................................................... 11 Contents of APPENDIXES ................................................................................................... 12 APPENDIX 1: Data of radio test ......................................................................................... 13 APPENDIX 2: Test instruments .......................................................................................... 32 APPENDIX 3: Photographs of test setup ............................................................................ 33 Test report No. : 32IE0294-SH-02-A Page : 4 of 35 Issued date : June 12, 2012 FCC ID : GT3FC015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : SMK Corporation Address : 5-5, Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511 JAPAN Telephone Number : +81-3-3785-1111 Facsimile Number : +81-3-3785-1878 Contact Person : Mitsuhiko Goto SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : ZigBee RF4CE-compatible RF receiver Model No. : SSR-RFNANO Serial No. : Refer to 4.2 in this report. Rating : DC3.4 to 5.5V (USB) Receipt Date of Sample : May 18, 2012 Country of Mass-production : China, Japan, Malaysia, USA, Mexico, Hungary Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: SSR-RFNANO (referred to as the EUT in this report) is a ZigBee RF4CE-compatible RF receiver. Clock frequency(ies) in the system : 32MHz, 32kHz Radio specification Equipment type : Transceiver Frequency of operation : 2425-2475MHz Bandwidth & channel spacing : 2MHz & 5MHz Type of modulation : OQPSK Antenna type : Chip Antenna Antenna connector type : None Antenna gain with cable loss : +2.5dBi ITU code : G1D Operation temperature range : -20 to +70 deg.C. FCC 15.31 (e) The stable voltage (DC3.3V) is constantly provided with the RF transmitter through the regulator. Therefore, this EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 32IE0294-SH-02-A Page : 5 of 35 Issued date : June 12, 2012 FCC ID : GT3FC015 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012 final revised on March 30, 2012 and effective April 30, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT complies with FCC Part 15 Subpart B. Refer to the test report: 32IE0294-SH-02-C. 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A 14.2dB Freq.: 0.20300MHz Detector: Quasi-Peak Phase: L1 Mode: Tx 2425MHz Complied 6dB bandwidth ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(2) & 15.209 ConductedN/A * See data Complied Maximum peak output power ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (b)(3) & 15.209 ConductedN/A Complied Spurious emission & Restricted band edges ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 7.9dB Freq.: 497.788MHz Detector: Quasi-Peak Polarization: Vertical Mode: Tx 2475MHz Complied Power density ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (e) & 15.209 ConductedN/A * See data Complied Note: UL Japan’s Work Procedures No.13-EM-W0420 and 13-EM-W0422 These tests were also referred to "Guidance on Measurement for Digital Transmission Systems Section15.247". 3.3 Addition to s…

Text truncated - open the document above for the full version.

Test report No. : 32IE0294-SH-02-A Page : 33 of 35 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test report No. : 32IE0294-SH-02-A Page : 34 of 35 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test report No. : 32IE0294-SH-02-A Page : 35 of 35 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
