GT3FC016WLAN Complete Module

SMK Corporation
WLAN Complete Module - FCC ID GT3FC016 - SMK Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 30, 2012
Application Purpose
Original Equipment
Date of Application
Jul 30, 2012
Equipment Note
WLAN Complete Module
Frequency Range
5745.00000000 - 5825.00000000
Company
SMK Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Product Name: WLAN Complete Module Model number: VRL4149-0601F GENERAL This product is a 2.4/5GHz Wireless Communication module that uses WLAN (Wireless LAN) technology. This Module enables the host device to connect with the Wireless LAN Access Point. SPEC ・RF Standard : 802.11b, 802.11g, 802.11n (2.4/5GHz), 802.11a ・Supply Voltage : VDD 2.7 to 5.6 VDC VIO 1.8 to 2.2 VDC 2.6 to 3.1 VDC 3.3 to 4.0 VDC +1V8 1.8 to 1.98 VDC ・ Operation Temperature Range : -20°C to +70°C ・ External Dimensions Remote control: 35mm x 27mm x 3.1mm ・ Receiver I/F: SDIO ・ Frequency Range: 2412MHz~2462MHz (5MHz interval, 11 Channels) (FCC/IC) 2412MHz~2472MHz (5MHz interval, 13 Channels) (CE) 5180MHz~5320MHz (20MHz interval, 8 Channels) (FCC/IC/CE) 5500MHz~5700MHz (20MHz interval, 11 Channels) (FCC/IC/CE) (Except 5600MHz~5650MHz in Canada) 5745MHz~5825MHz (20MHz interval, 5 Channels) (FCC/IC) INFORMATION Information below must be printed on the set product and the manual of the set product. Contains FCC ID: GT3FC016 Contains IC: 3683A-FC016 ※Over 5mm is recommended as a height of CE marking. Over 5mm User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan SETUP FPC CABLE 20Pin Connector To HOST Device Insert direction User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Manual Information The following text shall be placed on the manual of end product. Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC RSS-Gen Category I) RF Exposure Appliance This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). USA-Federal Communications Commission (FCC) Only This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan PART 15 FPC Cable for connection Regulation for using 5.15-5.25 GHz PART 15 Subpart C and Subpart E Industrial Canada (IC RSS-Gen and ICES-003) Only FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. A FPC Cable must be used for connection to the host computer. 5.15-5.25GHz band is restricted to indoor operations only. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulation for using 5.15-5.25 GHz (RSS-210) R&TTE Only This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 5.15-5.25GHz band is restricted to indoor operations only. La bande 5 150-5 250 MHz est restreints à une utilisation à l’intérieur. User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan 5180-5320MHz is restricted to indoor operation only. The country codes in which the module is used and the declarations must be listed on the product, the package, or the manual. The Examples of declaration

External Photos

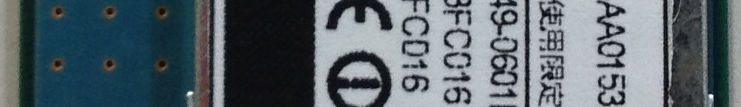

VRL4149 VRL4149VRL4149 VRL4149- -- -0601F 0601F0601F 0601F An outside appearance An outside appearanceAn outside appearance An outside appearance

ID Label/Location Info

ひ 5:1 VRL4149-0601F 204VRL-002-01F FC 小椋 '12.06.29 注記/ N O T E ●使用原材料のM S D Sをサンプル作成前に提出のこと。/ Submit MSDS of use raw material before sample creation. ●以下の物質を含まないこと/There do not contain the material as following in product or parts. 1.カドミウムおよびカドミウム化合物 1.Cadmium and cadmium compounds. 2.PBB(ポリブロモビフェニル)類及びPBDE(ポリブロモジフェニルエーテル)類 2.PBB(Polybrominated biphenyls) category and PBDE(Polybrominated diphenyl ethers) category. 3.塩素化パラフィン類(塩素系難 燃剤/可塑剤) 3.Chlorinated paraffins(chlorine flame retarding materials/plasticizers) 4.ポリ塩化ビフェニル(PCB)類 4.Polychlorinated biphenyls(PCB) category. 5.ポリ塩化ナフタレン(PCN)類 5.Polychlorinated naphthalenes(PCN) category. 6.ポリ塩化ターフェニル(PCT)類 6.Polychlorinated terphenyls(PCT) category. 7.有機すず化合物(トリプチルすず類/トルフェニルすず類) 7.Organic tin compounds(Tributhyl tin category/T riphenyl tin category.) 8.石綿 (アスベスト) 8.Asbestos. 9.特定アゾ化合物 9.Specific azo compounds. 10.ホルムアルデヒド 10.Formaldehyde. 11.ポリ塩化ビニル(PVC)及びPVC混合物 11.Polyvinyl chloride(PVC)and PVC blends. 12.鉛及び鉛化合物 12.Lead and lead compounds. 13.水銀及び水銀化合物 13.Merc ury and mercury compounds. 14.六価クロム化合物 14.Hexavalent chromium compounds. 2006.January DG FC 二宮 '12.06.29 Scale 5:1 Scale 1:1 4R0.5 FC 大矢 '12.06.29 1 1 2 007-AA0153 FCC ID : GT3FC016 IC : 3683A-FC016 Model: VRL4149-0601F R W52/W53 007-AA0153 FCC ID : GT3FC016 IC : 3683A-FC016 Model: VRL4149-0601F R W52/W53

ID Label/Location Info

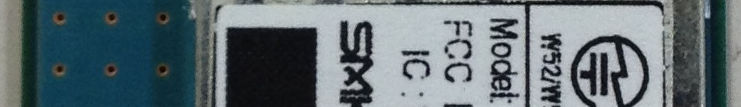

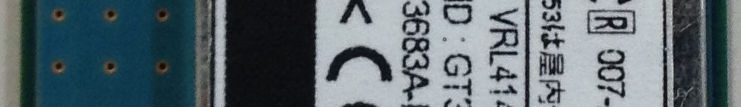

VRL4149 VRL4149VRL4149 VRL4149- -- -0601F 0601F0601F 0601F An outside appearance An outside appearanceAn outside appearance An outside appearance

Internal Photos

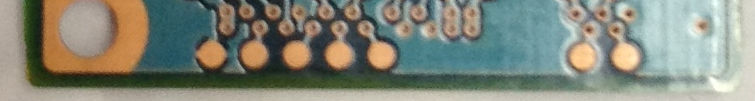

VRL4149 VRL4149VRL4149 VRL4149- -- -0601F 0601F0601F 0601F An internal appearance An internal appearanceAn internal appearance An internal appearance Front Back It is very difficult to customize the electronic circuit illegally because of the soldered shield. Antenna For testing

RF Exposure Info

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: SM K C orporation T ype of Equipment : WLAN Complete M odule M odel No. : VRL4149-0601F FCC ID: GT3FC016 SMK Corporation declares that Model : WLAN Complete M odule complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “VRL4149-0601F“ has 146.22 mW of conducted Peak Output power and 205.12 mW of EIRP. This equipment is co nsidered as a mobile device so that SAR testing is excluded. The Follo wing calculation is the reference data fo r 20cm distance. RF Ex posure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “VRL4149-0601F“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 146.22 mW (M aximum peak output pow er) G = 1.40 Num erical A ntenna gain; equal 1.47 dBi r =20.0 cm For: VRL4149-0601FS = 0.04081 mW/cm 2 No. : 32FE0117-SH-02 RF Exposure / SAR Statement

Test Report

Test report No. : 32FE0117-SH-02-A Page : 2 of 87 Issued date : July 18, 2012 FCC ID : GT3FC016 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted emission ........................................................................................ 9 SECTION 6: Radiated emission ......................................................................................... 10 SECTION 7: Out of band emissions (Antenna port conducted) ....................................... 12 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) ........................................... 12 SECTION 9: Maximum peak output power ...................................................................... 12 SECTION 10: Peak power density ...................................................................................... 12 Contents of APPENDIXES ................................................................................................... 13 APPENDIX 1: Test data ...................................................................................................... 14 APPENDIX 2: Test instruments ......................................................................................... 83 APPENDIX 3: Photographs of test setup ........................................................................... 85 Test report No. : 32FE0117-SH-02-A Page : 3 of 87 Issued date : July 18, 2012 FCC ID : GT3FC016 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : SMK Corporation Address : 5-6, Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511, Japan Telephone Number : +81-3-3785-2804 Facsimile Number : +81-3-3785-2877 Contact Person : Nobuhide Ninomiya SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : WLAN Complete Module Model Number : VRL4149-0601F Serial Number : Refer to Section 4.2 Rating : DC 1.8V (DC 1.71V to 1.89V) DC 3.3V (DC 3.0V to 3.6V) Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : June 14, 2012 Modification of EUT : The test lab did not make the modification to the EUT supplied from the customer to have it pass the tests. 2.2 Product description Model: VRL4149-0601F (referred to as the EUT in this report) is a WLAN Complete Module. Clock frequency(ies) in the system : 38.4MHz <Radio part> Equipment type : Transceiver Frequency of operation : 2412MHz to 2462MHz, 5180MHz to 5320MHz, 5500MHz to 5700MHz, 5745MHz to 5825MHz Radio part clock frequency : 38.4MHz Channel spacing : 5MHz (for 2412MHz to 2462MHz), 20MHz (for 5180MHz to 5825MHz) Type of modulation : DSSS, OFDM Antenna type : Printed wire Antenna connector type : None Antenna gain (maximum) : +1.47dBi (for 2412MHz to 2462MHz), -0.5dBi (for 5180MHz to 5260MHz), +1.15dBi (for 5260MHz to 5320MHz), -0.2dBi (for above 5500MHz) ITU code : G1D, D1D Operating Voltage (Radio part) : DC 1.8V (DC 1.71V to 1.89V) DC 3.3V (DC 3.0V to 3.6V) Operation temperature range : -20 deg.C to +70 deg.C Refer to 32FE0117-SH-02-B is FCC part 15 subpart E report and 32FE0117-SH-02-C is FCC part 15 DFS report. FCC 15.31 (e) / 212 This EUT provides stable voltage (DC1.8V and DC3.3V) constantly to RF Module regardless of input voltage from host device. Therefore, this EUT complies with the requirement. FCC Part 15.203 / 212 It is impossible for end users to replace the antenna, because it is soldered on the circuit board. Therefore the equipment complies with the requirement of 15.203/212. Test report No. : 32FE0117-SH-02-A Page : 4 of 87 Issued date : July 18, 2012 FCC ID : GT3FC016 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A 20.6dB (0.44469MHz, QP, L1, 11g, Tx, 2437MHz ) Complied 6dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum Peak Output Power ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (b)(3) ConductedN/A Complied Out of Band Emission & Restricted Band Edges ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 2.9dB (7660.000MHz, AV, Horizontal, 11a, Tx, 5745MHz ) Complied Power Density ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (e) ConductedN/A * See data Complied Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 and 13-EM-W0422. These tests were also referred to "Guidance on Measurement for Digital Transmission Systems Section15.247". Test report No. : 32FE0117-SH-02-A Page : 5 of 87 Iss…

Text truncated - open the document above for the full version.

Test Report

DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.1 Shielded Room Date : 2012/06/26 Company: SMK CorporationMode: Tx 11g 2437MHz Kind of EUT: Wireless LAN moduleReport No.: 32FE0117-SH-02-A Model No.: VRL4149-0601FPower: DC3.3V/DC1.8V Serial No.: 1Temp./Humi.: 25deg.C / 48%RH Remarks: DC power supply input: AC120V/60Hz, DC3.3V line, Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-01 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500022.92.412.635.515.066.056.030.541.0N 20.3907214.8-3.012.627.49.658.048.030.638.4N 30.5036913.8-4.012.626.48.656.046.029.637.4N 40.911656.4-7.012.619.05.656.046.037.040.4N 54.30298-6.0-13.012.86.8-0.256.046.049.246.2N 65.12451-7.2-13.612.95.7-0.760.050.054.350.7N 70.1500022.02.012.634.614.666.056.031.441.4L1 80.3907215.0-2.912.627.69.758.048.030.438.3L1 90.5036913.7-3.812.626.38.856.046.029.737.2L1 100.911656.4-6.912.619.05.756.046.037.040.3L1 114.30298-6.3-13.112.86.5-0.356.046.049.546.3L1 125.12451-6.5-13.412.96.4-0.560.050.053.650.5L1 Page 14 / 87 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.1 Shielded Room Date : 2012/06/26 Company: SMK CorporationMode: Tx 11g 2437MHz Kind of EUT: Wireless LAN moduleReport No.: 32FE0117-SH-02-A Model No.: VRL4149-0601FPower: DC3.3V/DC1.8V Serial No.: 1Temp./Humi.: 25deg.C / 48%RH Remarks: DC power supply input: AC120V/60Hz, DC1.8V line, Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-01 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500027.03.212.639.615.866.056.026.440.2N 20.4446923.1-1.112.635.711.556.946.921.235.4N 30.5036921.9-2.012.634.510.656.046.021.535.4N 40.9293413.1-6.012.625.76.656.046.030.339.4N 51.623259.0-8.812.721.73.956.046.034.342.1N 65.941583.1-12.512.916.00.460.050.044.049.6N 70.1500026.93.212.639.515.866.056.026.540.2L1 80.4446923.7-1.012.636.311.656.946.920.635.3L1 90.5036922.0-1.712.634.610.956.046.021.435.1L1 100.9293413.1-5.112.625.77.556.046.030.338.5L1 111.6642112.2-7.312.724.95.456.046.031.140.6L1 125.92444-0.7-12.712.912.20.260.050.047.849.8L1 Page 15 / 87 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.1 Shielded Room Date : 2012/06/26 Company: SMK CorporationMode: Tx 11a 5745MHz Kind of EUT: Wireless LAN moduleReport No.: 32FE0117-SH-02-A Model No.: VRL4149-0601FPower: DC3.3V/DC1.8V Serial No.: 1Temp./Humi.: 25deg.C / 48%RH Remarks: DC power supply input: AC120V/60Hz, DC3.3V line, Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-01 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500022.72.312.635.314.966.056.030.741.1N 20.3907514.9-2.912.627.59.758.048.030.538.3N 30.5036913.8-4.012.626.48.656.046.029.637.4N 40.911416.5-7.112.619.15.556.046.036.940.5N 54.30311-6.0-13.012.86.8-0.256.046.049.246.2N 65.12489-7.2-13.612.95.7-0.760.050.054.350.7N 70.1500022.02.112.634.614.766.056.031.441.3L1 80.3907515.1-2.712.627.79.958.048.030.338.1L1 90.5036913.8-3.912.626.48.756.046.029.637.3L1 100.911416.3-6.812.618.95.856.046.037.140.2L1 114.30311-6.3-13.212.86.5-0.456.046.049.546.4L1 125.12489-6.5-13.512.96.4-0.660.050.053.650.6L1 Page 16 / 87 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.1 Shielded Room Date : 2012/06/26 Company: SMK CorporationMode: Tx 11a 5745MHz Kind of EUT: Wireless LAN moduleReport No.: 32FE0117-SH-02-A Model No.: VRL4149-0601FPower: DC3.3V/DC1.8V Serial No.: 1Temp./Humi.: 25deg.C / 48%RH Remarks: DC power supply input: AC120V/60Hz, DC1.8V line, Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-01 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500026.83.112.639.415.766.056.026.640.3N 20.4447623.2-1.112.635.811.556.946.921.135.4N 30.5036721.8-2.012.634.410.656.046.021.635.4N 40.9293112.9-6.212.625.56.456.046.030.539.6N 51.623318.9-8.812.721.63.956.046.034.442.1N 65.942113.0-12.612.915.90.360.050.044.149.7N 70.1500026.83.012.639.415.666.056.026.640.4L1 80.4447623.5-1.112.636.111.556.946.920.835.4L1 90.5036721.9-1.912.634.510.756.046.021.535.3L1 100.9293113.0-5.212.625.67.456.046.030.438.6L1 111.6644112.1-7.412.724.85.356.046.031.240.7L1 125.92444-0.9-12.812.912.00.160.050.048.049.9L1 Page 17 / 87 APPENDIX 1: Data of Radio tests Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room DateJune 15, 2012 Temperature / Humidit y24deg.C, 47%RH Enginee rKenichi Adachi ModeTx, IEEE802.11b, PN9, worst data mode 11Mbps Tx1_6OBWTx2_6OBW Tx3_6OBW [MHz] > 0.500 > 0.500 Tx, 2462MHz [MHz] 9…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 32FE0117-SH-02-A Page : 85 of 87 Issued date : July 18, 2012 FCC ID : GT3FC016 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission (DC 3.3V line) (DC 1.8V line) (fornt) (front) (rear) (rear) Test report No. : 32FE0117-SH-02-A Page : 86 of 87 Issued date : July 18, 2012 FCC ID : GT3FC016 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission (front) (rear (below 1GHz)) (rear (above 1GHz)) Test report No. : 32FE0117-SH-02-A Page : 87 of 87 Issued date : July 18, 2012 FCC ID : GT3FC016 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position (Module) X-axis Y-axis Z-axis

Contact Information

Applicant

Akio Nakanishi(Manager)
[email protected]81-3-3785-5058Fax: 81-3-3785-0517

Technical Contact

UL Japan, Inc.Toyokazu Imamura
[email protected]81-463-50-6400

1-22-3, Megumigaoka, Hiratsuka-shi · Kanagawa-ken · Japan

Test Firm

UL Japan, Inc. Shonan EMC EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
215C5.75 GHz - 5.83 GHz43.60 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular Approval. Output power listed is Conducted. The antenna shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons. Use in portable RF exposure conditions must require additional filing for SAR compliance. Host systems must provide regulated supply voltages to the module. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter.
