GT3FC017ZigBee RF4CE-compatible RF receiver

SMK Corporation
ZigBee RF4CE-compatible RF receiver - FCC ID GT3FC017 - SMK Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 24, 2013
Application Purpose
Original Equipment
Date of Application
Mar 24, 2013
Equipment Note
ZigBee RF4CE-compatible RF receiver
Frequency Range
2425.00000000 - 2475.00000000
Company
SMK Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Product Name: ZigBee RF4CE-compatible RF receiver Model number: SSR-RFNANO GENERAL This product is a 2.4GHz RF USB Receiver that uses ZigBee RF4CE (Radio Frequency for Consumer Electronics) technology. This RF Receiver is used with RF4CE remote controller in order to control the equipment (for example, Personal computer). It enables N-to-N high reliability two-way communication, low power consumption, coexistence with other 2.4GHz band RF, and security settings. This new system features two-way communication and network functions by using radio frequencies, enabling more convenient and easier operation. The receiver's small size contributes to the increased space-saving capacity of this equipment. SPEC. ・RF Standard : ZigBee®RF4CE specification version 1.00 compatible ・Supply Voltage Remote control : 3.4 to 5.5 VDC ・Operation Temperature Range : -20°C to +70°C ・External Dimensions Remote control : 24mm x 16mm x 8mm ・Receiver I/F : USB ・Frequency Range : 2425 to 2475MHz (11 channel) 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan SETUP 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Manual Information The following text shall be placed on the manual of end product. Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC RSS-Gen and RSS-102) 859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan USA-Federal Communications Commission (FCC) Only Industrial Canada (IC RSS-Gen and ICES-003) Only ・RSS-Gen (None) ・ICES003 ※it is the responsibility of the manufacturer or importer to determine whether the notice should appear in one or the other, or both, of the official languages, based upon the intended market, company marketing policies, and any other applicable provincial or federal regulations. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

External Photos

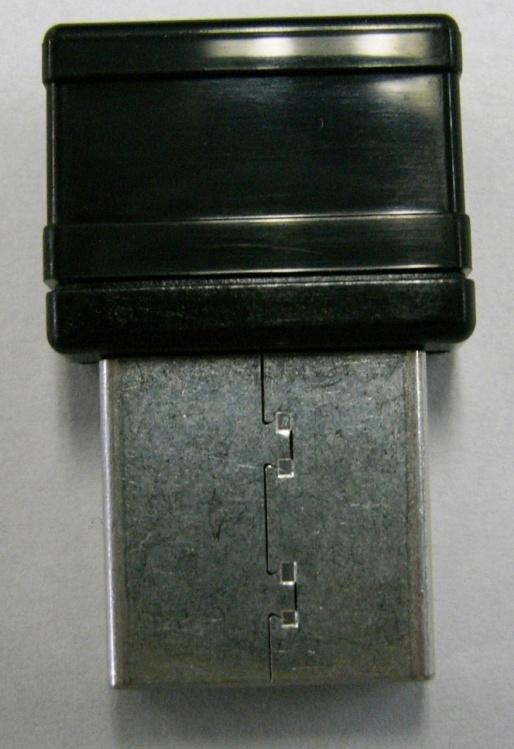

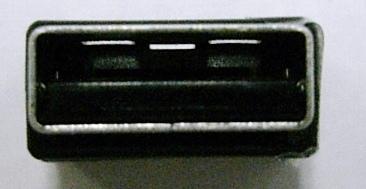

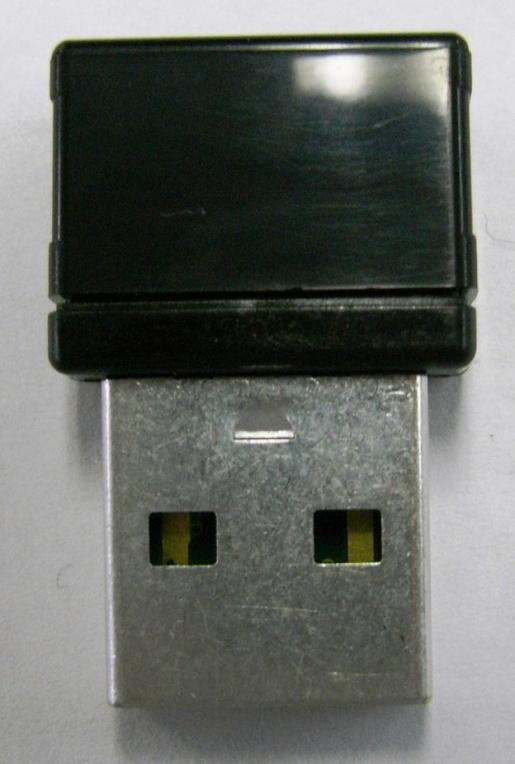

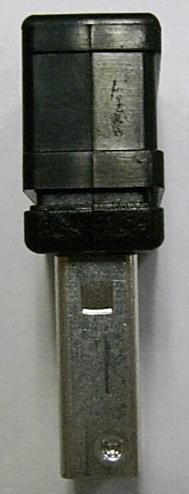

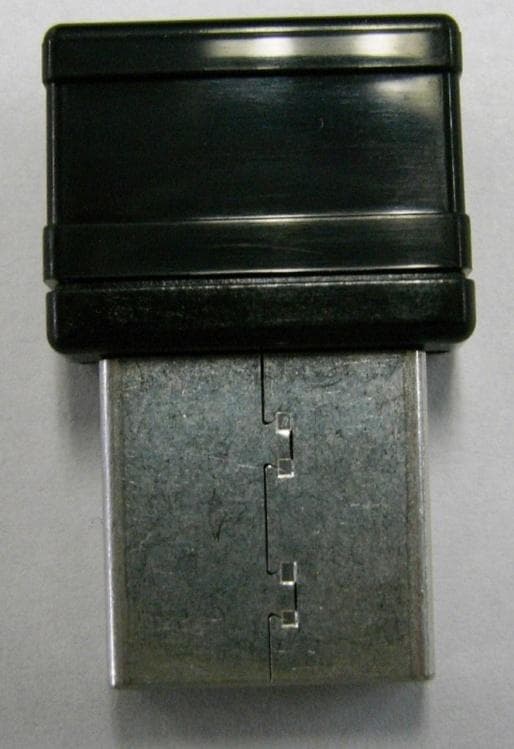

SSR-RFNANO External Photos

ID Label/Location Info

SSR-RFNANO Labelling 15.6mm 7.6mm 24.4mm

Internal Photos

SSR-RFNANO Internal Photos Chip Antenna ※For testing RF IC CC2531 Crystal 32MHz

RF Exposure Info

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: SM K C orporation T ype of Equipment : ZigBee RF4CE-compatible RF receiver M odel No. : SSR-RFNANO FCC ID: GT3FC017 SM K Corporation declares that M odel : ZigBee R F4C E-com patible RF receiver com plies w ith FC C radiation exposure requirem ent specified in the FC C R ules 2.1093. The “SSR-RFNANO“ has 1.26 mW of conducted Peak Output power and 2.25 mW of EIRP. This kind of equipment is complied to "( maximum EIRP [mW] ) / ( minimum test separation [mm] ) x ( √ f (GHz) )≦3.0 (for 1g-SAR) or ≦7.5 (for 10g extremity SAR) (from KDB 447498, 4.3.1 1) )", so that SA R testing is excluded. T he Following calculation is the reference data for 5mm minimum distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SSR-RFNANO“ as calculated value from FCC KDB 447498 D01 General RF Exposure Guidance v05 clause 4.3.1 1). This calculation is based on the highest EIRP possible from the system, considering caliculation value a less than 3.0, exposure limit. T he formula used was: [caliculation]: S= [(max. power [m W ])/(min. test separation distance[mm ])] x [ √ f (G Hz)] W here max. power [mW ] (E.I.R.P.) =2.25 mW min.test separation distance [mm]=5 mm (less than 5mm is 5mm) f (GHz)=2.475 GHz For: SSR-RFNANO S=0.7 No. : 33CE0139-SH-02 RF Exposure / SAR Statement

Test Report

Test report No. : 33CE0139-SH-02-A Page : 2 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 33CE0139-SH-02-A Revision Test report No. Date Page revised Contents - (Original) 33CE0139-SH-02-A January 28, 2013 - - Test report No. : 33CE0139-SH-02-A Page : 3 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted emission ........................................................................................ 8 SECTION 6: Radiated emission ........................................................................................... 9 SECTION 7: Out of band emissions (Antenna port conducted) ....................................... 11 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) ........................................... 11 SECTION 9: Maximum peak conducted output power..................................................... 11 SECTION 10: Maximum power spectral density ............................................................... 11 Contents of APPENDIXES ................................................................................................... 12 APPENDIX 1: Test data ...................................................................................................... 13 APPENDIX 2: Test instruments ......................................................................................... 31 APPENDIX 3: Photographs of test setup ........................................................................... 32 Test report No. : 33CE0139-SH-02-A Page : 4 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : SMK Corporation Address : 5-5, Togoshi 6-chome, Shinagawa-ku, Tokyo 142-8511 JAPAN Telephone Number : +81-3-3785-1111 Facsimile Number : +81-3-3785-1878 Contact Person : Mitsuhiko Goto SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : ZigBee RF4CE-compatible RF receiver Model Number : SSR-RFNANO Serial Number : Refer to Section 4.2 Rating : DC3.4 to 5.5V (USB) Country of Mass-production : China, Japan, Malaysia, USA, Mexico, Hungary (Test sample: Japan) Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 27, 2012 Modification of EUT : No modification by the test lab. 2.2 Product description Model: SSR-RFNANO (referred to as the EUT in this report) is a ZigBee RF4CE-compatible RF receiver. Clock frequency(ies) in the system : 32MHz, 32kHz Radio specification Equipment type : Transceiver Frequency of operation : 2425-2475MHz Bandwidth & channel spacing : 2MHz & 5MHz Type of modulation : OQPSK Antenna type : Chip Antenna Antenna connector type : None Antenna gain with cable loss : +2.5dBi ITU code : G1D Operation temperature range : -20 to +70 deg.C. FCC 15.31 (e) The stable voltage (DC3.3V) is constantly provided with the RF transmitter through the regulator. Therefore, this EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 33CE0139-SH-02-A Page : 5 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT has been tested for compliance with FCC Part 15 Subpart B by the customer. 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted Emission ANSI C63.10: 2009 Section 6.2 FCC 15.207 - N/A 7.1dB (0.40931MHz / 0.40933MHz, AV, N, Tx 2425MHz / Tx 2475MHz) Complied 6dB Bandwidth ANSI C63.10: 2009 Section 6.9 FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum Peak Conducted Output Power ANSI C63.10: 2009 Section 6.10 FCC 15.247 (b)(3) ConductedN/A Complied Out of Band Emission & Restricted Band Edges ANSI C63.10: 2009 Section 6.3 to 6.7, 6.9 FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 7.1dB (729.015MHz, QP, Vertical, Tx 2425MHz, ) Complied Maximum Power Spectral Density ANSI C63.10: 2009 Section 6.11 FCC 15.247 (e) ConductedN/A * See data Complied Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 and 13-EM-W0422. These tests were also referred to "Guidance on Measurement for Digital Transmission Systems Section15.247". (KDB 558074) 3.3 Addition to standard Item Test Procedure Specification RemarksWorst Margin Results Occupied Bandwidth (99%) ANSI C63.10: 2009 Section 6.9, RSS-Gen 4.6.1 R…

Text truncated - open the document above for the full version.

Test Report

DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2013/01/15 Company: SMK CorporationMode: Transmitting(2425MHz) Kind of EUT: ZigBee RF4CE-compatible RF receiver Report No.: 33CE0139-SH-02-A Model No.: SSR-RFNANOPower: DC5V(Host PC: AC120V / 60Hz) Serial No.: 3Temp./Humi.: 24deg.C / 29%RH Remarks: Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-05 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.2054936.727.712.649.340.363.353.314.013.0N 20.4093129.427.912.642.040.557.647.615.67.1N 30.6133219.718.012.732.430.756.046.023.615.3N 42.9969320.218.112.732.930.856.046.023.115.2N 56.2046326.817.012.939.729.960.050.020.320.1N 612.2030322.019.013.135.132.160.050.024.917.9N 70.2054936.927.812.649.540.463.353.313.812.9L1 80.4093128.927.312.641.539.957.647.616.17.7L1 90.6133219.117.112.731.829.856.046.024.216.2L1 102.9969322.721.412.735.434.156.046.020.611.9L1 116.3942526.316.312.939.229.260.050.020.820.8L1 1212.2517421.318.313.134.431.460.050.025.618.6L1 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2013/01/15 Company: SMK CorporationMode: Transmitting(2450MHz) Kind of EUT: ZigBee RF4CE-compatible RF receiver Report No.: 33CE0139-SH-02-A Model No.: SSR-RFNANOPower: DC5V(Host PC: AC120V / 60Hz) Serial No.: 3Temp./Humi.: 24deg.C / 29%RH Remarks: Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-05 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.2054836.627.612.649.240.263.353.314.113.1N 20.4093029.327.812.641.940.457.647.615.77.2N 30.6133119.517.912.732.230.656.046.023.815.4N 42.9969220.318.012.733.030.756.046.023.015.3N 56.2046826.616.912.939.529.860.050.020.520.2N 612.2030621.918.913.135.032.060.050.025.018.0N 70.2054836.527.512.649.140.163.353.314.213.2L1 80.4093028.727.312.641.339.957.647.616.37.7L1 90.6133119.017.012.731.729.756.046.024.316.3L1 102.9969222.721.312.735.434.056.046.020.612.0L1 116.3942626.216.212.939.129.160.050.020.920.9L1 1212.2517321.218.113.134.331.260.050.025.718.8L1 DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2013/01/15 Company: SMK CorporationMode: Transmitting(2475MHz) Kind of EUT: ZigBee RF4CE-compatible RF receiver Report No.: 33CE0139-SH-02-A Model No.: SSR-RFNANOPower: DC5V(Host PC: AC120V / 60Hz) Serial No.: 3Temp./Humi.: 24deg.C / 29%RH Remarks: Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Kenichi Adachi Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN: SLS-05 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.2055036.827.712.649.440.363.353.313.913.0N 20.4093329.527.912.642.140.557.647.615.57.1N 30.6133319.818.112.732.530.856.046.023.515.2N 42.9969420.118.012.732.830.756.046.023.215.3N 56.2046526.716.912.939.629.860.050.020.420.2N 612.2030522.119.113.135.232.260.050.024.817.8N 70.2055036.827.812.649.440.463.353.313.912.9L1 80.4093329.027.412.641.640.057.647.616.07.6L1 90.6133319.217.112.731.929.856.046.024.116.2L1 102.9969422.621.312.735.334.056.046.020.712.0L1 116.3942426.416.412.939.329.360.050.020.720.7L1 1212.2517221.418.313.134.531.460.050.025.518.6L1 Test placeUL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room DateJanuary 15, 2013 Temperature / Humidit y24deg.C, 45%RH Enginee rKenichi Adachi ModeTx, Transmitting, PN9 Tx1_6OBWTx2_6OBW Tx3_6OBW [MHz] > 0.500 > 0.500 Tx, 2475MHz [MHz] 1.583 1.583 1.563> 0.500 -6dB Bandwidth 2475.0000 -6dB Bandwidth Tx, 2425MHzTx, 2450MHz Freq. [MHz] 2425.0000 2450.0000 Limi t A Unit dB  V Ref Lvl 107 dB  V Ref Lvl 107 dB  V RF Att 10 dB 1MA Center 2.425 GHzSpan 10 MHz1 MHz/ RBW 50 kHz VBW 200 kHz SWT 10 ms IN1 1MAX 3MAX3MA SGL 10 20 30 40 50 60 70 80 90 100 7 107 1 T1 T2 Marker 1 [T1 ndB] ndB 6.00 dB BW 1.58316633 MHz 1 [T1] 90.93 dB  V 2.42523046 GHz ndB 6.00 dB BW 1.58316633 MHz T1 [T1] 85.59 dB  V 2.42418838 GHz T2 [T1] 84.27 dB  V 2.42577154 GHz Date: 15.JAN.2013 15:11:48 A Unit dB  V Ref Lvl 107 dB  V Ref Lvl 107 dB  V RF Att 10 dB SWT 10 ms Center 2.45 GHzSpan 10 MHz1 MHz/ RBW 50 kHz VBW 200 kHz IN1 1MA 3MA 1MAX 3MAX SGL 10 20 30 40 50 60 70 80 90 100 7 107 1 T1T2 Marker 1 [T1 ndB] ndB 6.00 dB BW 1.58316633 MHz 1 [T1] 91.51 dB  V 2.44972946 GHz ndB 6.00 dB BW 1.58316633 MHz T1 [T1] 85.96 dB  V 2.44918838 GHz T2 [T1] 85.84 dB  V 2.45077154 GHz Date: 15.JAN.2013 16:03:38 A Unit dB  V Ref Lvl 107 dB  V Ref Lvl 107 dB  V RF Att 10 dB Center 2.475 GHzSpan 10 MHz1 MHz/ 3MA 1MA1MAX 3MAX RBW 50 kHz SWT 10 ms VBW 200 kHz IN1 10 20 30 40 50 60 70 80 90 100 7 107 1 T1 T2 Marker 1 [T1 ndB] ndB 6.00 dB BW 1.56312625 MHz 1 [T1] 91.64 dB  V 2.47507014 GHz ndB 6.00 dB BW 1.56312625 MHz T1 [T1] 85.95 dB  V 2.47418838 GHz T2 [T1] 85.44 dB  V 2.47575150 GHz Date: 15.JAN.2013 16:14:34 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 (Option 3) Test placeUL Japan, Inc. Shon…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 33CE0139-SH-02-A Page : 32 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission (front) (rear) Test report No. : 33CE0139-SH-02-A Page : 33 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission (front) (rear, below 1GHz) (rear, above 1GHz) Test report No. : 33CE0139-SH-02-A Page : 34 of 34 Issued date : January 28, 2013 FCC ID : GT3FC017 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis End of Report
