GT3FC018Bluetooth Module

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Bluetooth ® module with a built-in 2.4GHz band antenna Model Name: Bluetooth Module Model number: BT401 GENERAL BT401 is a Bluetooth communication module complying with Bluetooth Version 3.0. It operates in the two modes, Command Mode and Automatic Mode, and makes automatic connection in Automatic Mode. It supports master and slave operations. It becomes an adapter which transfers various data wirelessly between master and slave devices. Therefore, wireless data communication can be realized by only replacing the cable between apparatuses with BT401, without changing a host system. Features 1) Surface mounting module with a built-in antenna. 2) Unique automatic connection method and command connection mode can be selected as control methods. 3) Support various profiles and protocols at user's requests. Integration to the end product The SMK Transceiver Module, model BT401 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Specification 1) Bluetooth® Specifications Ver.3.0-compliant (The high speed option is not supported.) 2) Frequency Range: 2402-2480 MHz 3) Modulation System: GFSK, π/4－DQPSK, 8-DPSK 4) Max. Data rate: 3Mbps 5) Antenna: PCB (Monopole) type User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling SMK Transceiver module BT401 labelled as below. FCC ID:GT3FC018 The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan when the module is installed into the system, “Contains FCC ID:GT3FC018” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Canada-Industry Canada (IC) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Labelling. SMK Transceiver module BT401 labelled as below. IC: 3683A-FC018 The proposed with IC ID label format is to be placed on the module. If IC ID is not visible when the module is installed into the system, “Contains IC: 3683A-FC018” shall be placed User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with IC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Instructions to OEM Integrators A User manual provided to the end user must indicate the operating requirements and conditions that must be observed to ensure compliance with the above-mentioned FCC /IC RF Exposure guideline. If this module is intended for use in a portable device, integrators are responsible for separate evaluation and/or approval to satisfy FCC/IC RF Exposure requirements. If an antenna with higher gain or new antenna type is used with this module, integrators must contact SMK for additional test…

Text truncated - open the document above for the full version.

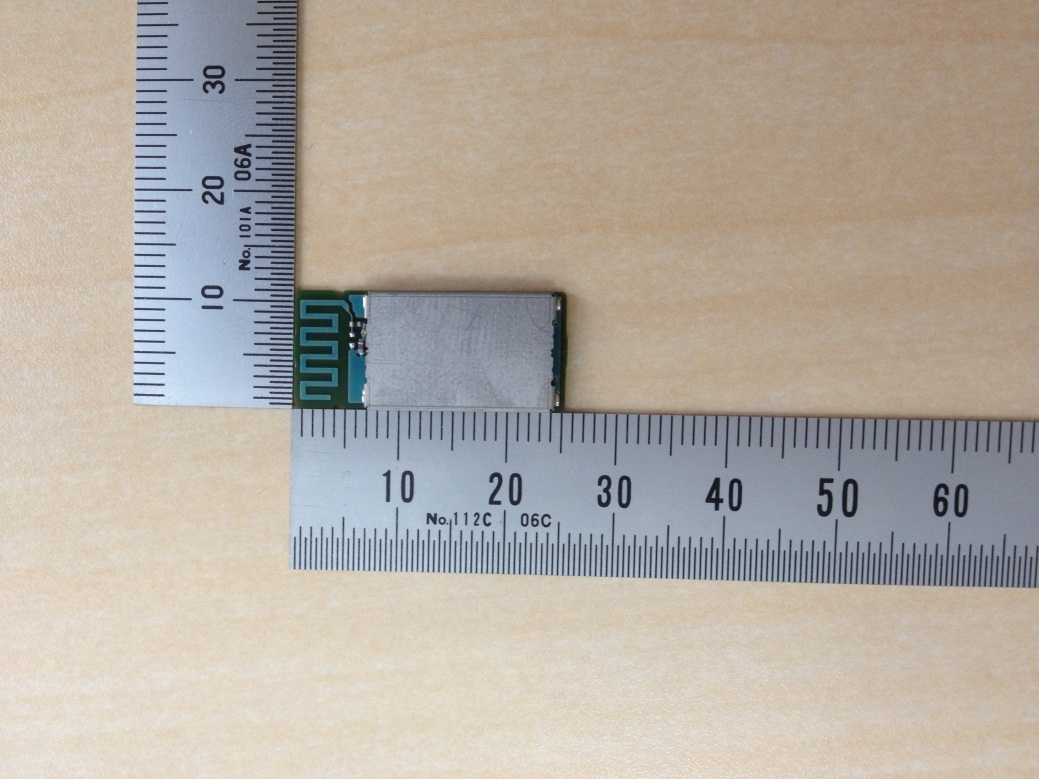

External Photo Model: BT-401 FCC ID: GT3FC018 IC: 3683A-FC018 <Top side> <Bottom side>

Internal Photo Model: BT-401 FCC ID: GT3FC018 IC: 3683A-FC018 <Top side> <Bottom side>

REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 113 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 114 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 115 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. Distance is given by: D = SQRT (EIRP / (4 * Pi * S)) where D = Separation distance in m EIRP = Equivalent Isotropic Radiated Power in W S = Power density in W/m^2 In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 RESULTS BandModeSeparationOutputAntennaIC PowerFCC Power DistancePowerGainDensityDensity (m)(dBm)(dBi)(W/m^2)(mW/cm^2) 2.4 GHzBluetooth0.203.802.000.00760.0008

RTL2610 FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Bluetooth Module MODEL NUMBER: BT401 FCC ID: GT3FC018 IC: 3683A-FC018 REPORT NUMBER: 33HE0044-SH-A ISSUE DATE: April 16, 2013 REVISED DATE: April 17, 2013 Prepared for SMK Corporation 5-5, Togoshi 6-chome, Shinagawa-ku, Tokyo, 142-8511, JAPAN Prepared by UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 JAB Accreditation No. : RTL02610 13-EM-F0429 REPORT NO: 33HE0044-SH-A DATE: April 17, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 2 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. Revision History Rev. Issue Date Revisions Revised By -- 04/16/13 Initial Issue T. Arai 1 04/17/13 p.10, change (STR-03)“Test Receiver” to “EMI Test Receiver”. T. Arai p.20, p.55 added “Test was not performed at AFH mode whose number of hopping channel is 20 channels because this Bluetooth radio is in compliance of Bluetooth Specification.” in TEST PROCEDURE. p.25, added “This device complies with the Bluetooth protocol for FHSS operation, employing a pseudo random channel selection and hopping rate to ensure that the occupancy time in N x 0.4s, where N is the number of channels being used in the hopping sequence (20 ≤ N ≤ 79), is always less than 0.4s regardless of packet size (DH1, DH3 or DH5). This is confirmed in the test report for N=79.” in TEST PROCEDURE. p.60, added “This device complies with the Bluetooth protocol for FHSS operation, employing a pseudo random channel selection and hopping rate to ensure that the occupancy time in N x 0.4s, where N is the number of channels being used in the hopping sequence (20 ≤ N ≤ 79), is always less than 0.4s regardless of packet size (3-DH1, 3-DH3 or 3-DH5). This is confirmed in the test report for N=79.” in TEST PROCEDURE. REPORT NO: 33HE0044-SH-A DATE: April 17, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 3 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................5 2. TEST METHODOLOGY ......................................................................................................6 3. FACILITIES AND ACCREDITATION ..................................................................................6 4. CALIBRATION AND UNCERTAINTY .................................................................................6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................6 4.2. SAMPLE CALCULATION ..............................................................................................6 4.3. MEASUREMENT UNCERTAINTY.................................................................................6 5. EQUIPMENT UNDER TEST ................................................................................................7 5.1. DESCRIPTION OF EUT ................................................................................................7 5.2. MAXIMUM OUTPUT POWER .......................................................................................7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................7 5.4. SOFTWARE AND FIRMWARE .....................................................................................7 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................8 5.6. DESCRIPTION OF TEST SETUP .................................................................................8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................10 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. BASIC DATA RATE GFSK MODULATION ..................................................................11 7.1.1. 20 dB AND 99% BANDWIDTH .............................................................................11 7.1.2. HOPPING FREQUENCY SEPARATION ..............................................................18 7.1.3. NUMBER OF HOPPING CHANNELS ...................................................................20 7.1.4. AVERAGE TIME OF OCCUPANCY .....................................................................25 7.1.5. OUTPUT POWER ................................................................................................32 7.1.6. AVERAGE POWER ..............................................................................................33 7.1.7. CONDUCTED SPURIOUS EMISSIONS ...............................................................34 7.2. ENHANCED DATA RATE 8PSK MODULATION .........................................................46 7.2.1. 20 dB AND 99% BANDWIDTH .............................................................................46 7.2.2. HOPPING FREQUENCY SEPARATION ..............................................................53 7.2.3. NUMBER OF HOPPING CHANNELS ...................................................................55 7.2.4. AVERAGE TIME OF OCCUPANCY .....................................................................60 7.2.5. OUTPUT POWER ................................................................................................67 7.2.6. AVERAGE POWER ..............................................................................................68 7.2.7. CONDUCTED SPURIOUS EMISSIONS ...............................................................69 8. RADIATED TEST RESULTS ..…

Text truncated - open the document above for the full version.

REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 116 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 10. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 117 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 118 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. RADIATED RF MEASUREMENT DEFINITION OF THE AXIS X-AXIS PHOTO Z-AXIS PHOTO Y-AXIS PHOTO REPORT NO: 33HE0044-SH-A DATE: April 16, 2013 FCC ID: GT3FC018 IC: 3683A-FC018 Page 119 of 119 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. AC POWER LINE CONDUCTED EMISSIONS SETUP END OF REPORT CONDUCTED FRONT PHOTO CONDUCTED SIDE PHOTO
