GVQ-CPE-0001LTE CPE

Skyroam Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 29, 2022
Application Purpose: Original Equipment
Date of Application: Aug 15, 2022
Equipment Note: LTE CPE
Frequency Range: 2412.00000000 - 2462.00000000
Company: Skyroam Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

I CPE-0001 user manual 1.1 ProductDescription .............................................................................................................................. 3 1.2 Product Features .................................................................................................................................. 4 1.3 Product Specifications ........................................................................................................................ 5 2.1 HardwareDescription ........................................................................................................................... 8 2.1.1 Front LED ..................................................................................................................................................... 10 2.1.2 LEDIndications ............................................................................................................................................. 10 2.1.3 RearPanel ..................................................................................................................................................... 11 3.1 System Requirements ........................................................................................................................ 13 3.2 Installing theRouter............................................................................................................................ 13 4.1 Manual Network Setup - TCP/IPConfiguration ................................................................................. 15 4.1.1 Obtaining an IP AddressAutomatically ..................................................................................................... 15 4.1.2 Configuring the IP AddressManually ......................................................................................................... 18 4.2 Starting Setup in the Web UI ............................................................................................................. 21 5.1 Home ................................................................................................................................................... 26 5.1.1 Internet .......................................................................................................................................................... 26 5.1.2 CPE-0001 ...................................................................................................................................................... 26 5.1.3 ConnectedClients ........................................................................................................................................ 27 5.2 Settings ............................................................................................................................................... 28 5.2.1 WAN .............................................................................................................................................................. 28 5.2.1.1. IPv4 .................................................................................................................................................. 28 5.2.1.2. IPv6 .................................................................................................................................................. 31 5.2.1.3. Status ............................................................................................................................................... 33 5.2.2 Mobile network ............................................................................................................................................. 33 5.2.2.1. Basic Settings ................................................................................................................................... 33 5.2.3 Operation Mode ........................................................................................................................................... 33 5.2.4 Wi-Fi .............................................................................................................................................................. 34 5.2.4.1. Wi-Fi ................................................................................................................................................. 34 5.2.4.2. Security ............................................................................................................................................ 36 5.2.4.3. ACL .................................................................................................................................................. 36 5.2.4.4. Site Survey ....................................................................................................................................... 37 5.2.4.5. WPS ................................................................................................................................................. 37 5.2.5 LAN................................................................................................................................................................ 38 5.2.5.1. IPv4 .................................................................................................................................................. 38 II 5.2.5.2. Static DHCP ..................................................................................................................................... 39 5.2.5.3. IPv6 .................................................................................................................................................. 39 5.2.5.4. RADVD ............................................................................................................................................. 40 5.2.5.5. TUNNEL 6 over 4 ............................................................................................................................. 41 5.2.6 VPN............................................…

Text truncated - open the document above for the full version.

External Photos

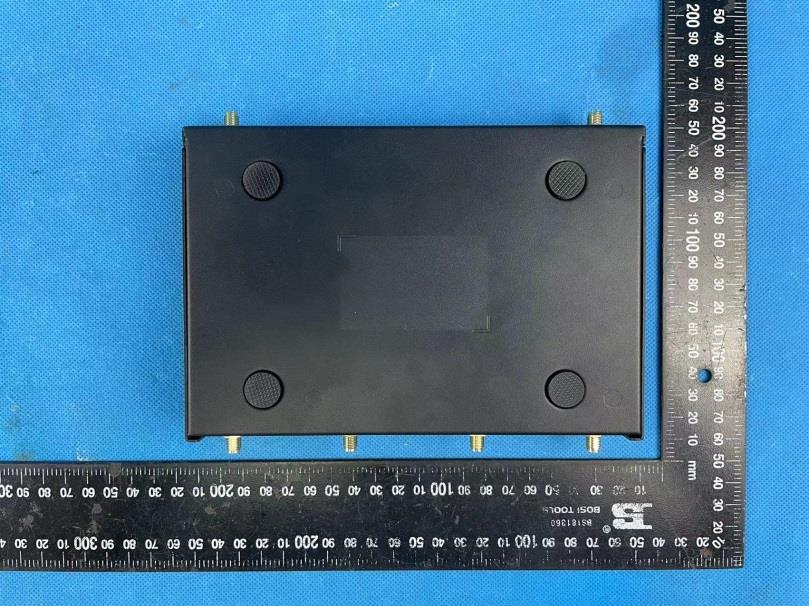

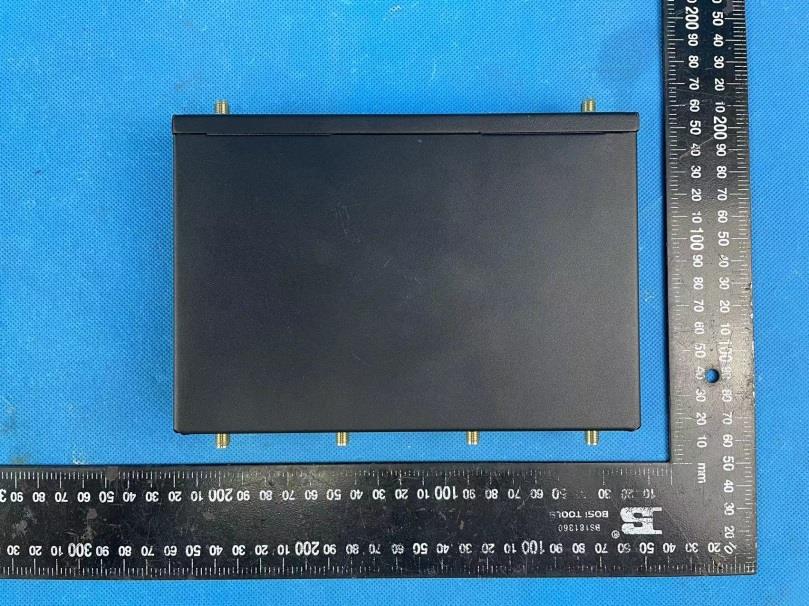

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT E X T ER N AL P H O T O S O F T H E E U T Model:CPE-0001

Internal Photos

I N T E R N AL P H O T O S O F T H E E U T M odel:CPE-0001

RF Exposure Info

FCCID:GVQ-CPE-0001 RFExposureEvaluation LIMIT Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposuretoradio frequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500--f/3006 1500–100,000--56 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500--f/150030 1500–100,000--1.030 Note:f=frequencyinMHz EVALUATIONMETHOD Transmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW,G=gainofantennainlinearscale; Pi=3.1416,R=distancebetweenobservationpointandcenteroftheradiatorincm TESTRESULT PassedNotApplicable TypeFrequency Conducted Average Power (dBm) Maximum Tune-up (dBm) PowerDensity (mW/cm2) Limit (mW/cm2) Result WCDMABandII1852.423.7324.000.093701.0000Pass WCDMABandIV1752.623.5224.000.089281.0000 Pass WCDMABandV826.423.5424.000.071240.5509Pass LTEBand2188024.0025.000.099711.0000Pass LTEBand41712.523.9024.000.097441.0000Pass LTEBand584423.9924.000.079020.5627Pass LTEBand7251023.8624.000.096551.0000Pass LTEBand12699.723.9324.000.077930.4665 Pass LTEBand13782.023.8424.000.076340.5213Pass FCCID:GVQ-CPE-0001 LTEBand1770923.9624.000.078470.4727Pass LTEBand25191023.8824.000.096991.0000 Pass LTEBand26846.524.1125.000.081230.5643Pass LTEBand38259523.9024.000.097441.0000Pass LTEBand40235523.8524.000.096321.0000Pass LTEBand412552.523.8724.000.096771.0000Pass LTEBand661710.723.7324.000.093701.0000Pass LTEBand71680.523.7024.000.073910.4537 Pass LTEBand26(part90)816.524.0125.000.079380.5443Pass WLAN2412-248023.0024.000.12551.0000Pass U-NIIBand15150-525015.5616.000.022631.0000Pass U-NIIBand25250-535016.1817.000.026111.0000Pass U-NIIBand35470-572517.2818.000.033631.0000Pass U-NIIBand45725-585013.7614.000.014951.0000 Pass ConsidertheCellularandWiFicantransmittingsimultaneously,thetotaltransmittingMPErateasbelow formula: MPErate=PowerdensityofCellular/limit+PowerdensityofWifi/limit<1 TheworstcaseisCellularandWIFItransmittingsimultaneously,theresultasbelow: EvaluationmodePowerdensity/limitSumofthe MPErate limit CellularWiFi LTE+2.4GWIFI0.167050.12550.29261 WCDMA+2.4GWIFI0.129320.12550.25481 LTE+5GWIFI0.167050.033630.20071 WCDMA+5GWIFI0.129320.033630.16301 Note: 1)Themaximumantennagainis5.0dBi 2)Theexposureevaluationsafetydistanceis20cm.

Test Report

Page: 1 of 34 TEST REPORT For WiFi-2.4GHz Band Report No. ...................................... : CHTEW22080159 Report Verification: Project No.................................： SHT2207038201EW FCC ID ............................................. : GVQ-CPE-0001 Applicant’s name ........................... : Skyroam Technology Co., Ltd. Address ............................................. : No.902,9th Floor,Weisheng Technology Building,No.9966 Shennan Avenue,Shenzhen,Guangdong,China Product Name ................................ : LTE CPE Trade Mark ....................................... : SIMO, SKYROAM Model No. ......................................... : CPE-0001 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Jul. 12, 2022 Date of testing.............................: Jul. 13, 2022- Aug. 05, 2022 Date of issue...............................: Aug. 05, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer David Chen Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22080159 Page: 2 of 34 Date of issue: 2022-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N ......................................... 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION ..................................................................... 4 3. SUMMARY ............................................................................... 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION ................................................................. 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Test sample information 8 4.5. Support unit used in test configuration and system 8 4.6. Testing environmental condition 8 4.7. Statement of the measurement uncertainty 8 4.8. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS ................................................... 10 5.1. Antenna Requirement 10 5.2. AC Conducted Emission 11 5.3. Peak Output Power 13 5.4. Power Spectral Density 14 5.5. 6dB bandwidth 15 5.6. 99% Occupied Bandwidth 16 5.7. Duty Cycle 17 5.8. Conducted Band edge and Spurious Emission 18 5.9. Radiated Band edge Emission 20 5.10. Radiated Spurious Emission 25 6. TEST SETUP PHOTOS ................................................................. 33 7. EXTERNAL AND INTERNAL PHOTOS ................................................. 34 8. APPENDIX REPORT ................................................................... 34 Report No.: CHTEW22080159 Page: 3 of 34 Date of issue: 2022-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules ‒ KDB662911 D01 Multiple Transmitter Output v02r01: Emissions Testing of Transmitters with Multiple Outputs in the Same Band (e.g., MIMO, Smart Antenna, etc) ‒ KDB662911 D02 MIMO with Cross-Polarized Antennas v01: MIMO with Cross-Polarized Antenna 1.2. Report version Revision No. Date of issue Description N/A 2022-08-05 Original Report No.: CHTEW22080159 Page: 4 of 34 Date of issue: 2022-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoqin Li 5.2 AC Conducted Emission 15.207 PASS Junman Wang 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoqin Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoqin Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoqin Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoqin Li 5.7 Duty cycle - PASS *1 Xiaoqin Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoqin Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Junman Wang 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Junman Wang Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22080159 Page: 5 of 34 Date of issue: 2022-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY …

Text truncated - open the document above for the full version.

Test Report

Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 55 APPENDIX REPORT Project No. SHT2207038201EW Radio Specification WIFI 2.4G Test sample No. YPHT22070382008 Model No. CPE-0001 Start test date 2022-07-20 Finish date 2022-08-05 Temperature 25.7°C Humidity 46% Test Engineer Xiaoxiao Li Auditor Appendix clause Test item Result A Conducted Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty Cycle PASS F Band edge and Spurious Emissions(coducted) PASS Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 55 Appendix A：Conducted Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result Antenna 0 Antenna 1 Total Antenna 0 Antenna 1 Total 802.11b 01 19.56 20.71 - 17.02 18.15 - ≤30.00 Pass 06 18.20 21.11 - 15.66 18.55 - 11 18.87 21.52 - 16.30 19.01 - 802.11g 01 22.68 22.11 - 20.55 19.88 - ≤30.00 Pass 06 22.09 22.68 - 19.94 20.51 - 11 22.34 23.00 - 20.18 20.85 - 802.11n (HT20) 01 18.91 18.40 21.67 16.45 16.08 19.28 ≤30.00 Pass 06 18.25 18.88 21.62 15.74 16.58 19.19 11 18.68 19.43 22.07 16.17 17.11 19.68 802.11n (HT40) 03 18.03 18.65 21.37 15.40 16.11 18.78 ≤30.00 Pass 06 18.10 18.74 21.42 15.43 16.21 18.85 09 18.82 19.20 22.01 16.22 17.34 19.83 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 55 Appendix B：Power Spectral Density Type Channel Power Spectral Density (dBm/30KHz) Total Power Spectral Density (dBm/30KHz) Limit (dBm/ 3KHz) Result Antenna 0 Antenna 1 802.11b 01 1.57 2.88 - ≤8.00 Pass 06 -0.27 3.17 - 11 0.42 3.90 - 802.11g 01 1.13 0.97 - ≤8.00 Pass 06 0.45 1.78 - 11 0.83 2.60 - 802.11n(HT20) 01 -1.82 -4.88 0.39 ≤8.00 Pass 06 -6.62 -3.63 -1.31 11 -2.41 -2.14 0.74 802.11n(HT40) 03 -7.11 -5.15 -3.01 ≤8.00 Pass 06 -6.17 -5.46 -2.79 09 -4.76 -6.67 -2.60 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 55 802.11 b Antenna 0 CH01 Date: 5.AUG.2022 14:45:45 CH06 Date: 5.AUG.2022 14:47:21 CH11 Date: 5.AUG.2022 14:49:07 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 55 802.11 b Antenna 1 CH01 Date: 5.AUG.2022 15:14:45 CH06 Date: 5.AUG.2022 15:16:38 CH11 Date: 5.AUG.2022 15:18:22 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 55 802.11 g Antenna 0 CH01 Date: 5.AUG.2022 14:53:23 CH06 Date: 5.AUG.2022 14:54:57 CH11 Date: 5.AUG.2022 14:56:28 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 55 802.11 g Antenna 1 CH01 Date: 5.AUG.2022 15:20:30 CH06 Date: 5.AUG.2022 15:21:57 CH11 Date: 5.AUG.2022 15:34:08 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 55 802.11 n(H20) Antenna 0 CH01 Date: 5.AUG.2022 15:01:34 CH06 Date: 5.AUG.2022 15:03:06 CH11 Date: 5.AUG.2022 15:05:32 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 55 802.11 n(H20) Antenna 1 CH01 Date: 5.AUG.2022 15:36:27 CH06 Date: 5.AUG.2022 15:37:59 CH11 Date: 5.AUG.2022 15:39:30 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 55 802.11 n(H40) Antenna 0 CH03 Date: 5.AUG.2022 15:07:42 CH06 Date: 5.AUG.2022 15:09:13 CH09 Date: 5.AUG.2022 15:10:45 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 55 802.11 n(H40) Antenna 1 CH03 Date: 5.AUG.2022 15:41:17 CH06 Date: 5.AUG.2022 15:42:47 CH09 Date: 5.AUG.2022 15:45:18 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 55 Appendix C：6dB Bandwidth Type Channel 6dB Bandwidth (MHz) Limit (kHz) Result 802.11b 01 10.14 ≥500 Pass 06 11.13 11 10.17 802.11g 01 13.92 ≥500 Pass 06 15.15 11 15.18 802.11n(HT20) 01 13.89 ≥500 Pass 06 15.15 11 15.15 802.11n(HT40) 03 22.74 ≥500 Pass 06 25.20 09 20.16 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 55 802.11 b CH01 Date: 19.JUL.2022 15:45:41 CH06 Date: 19.JUL.2022 15:50:42 CH11 Date: 19.JUL.2022 15:53:34 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 55 802.11 g CH01 Date: 19.JUL.2022 16:21:44 CH06 Date: 19.JUL.2022 16:25:20 CH11 Date: 19.JUL.2022 16:27:55 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 55 802.11n(HT20) CH01 Date: 20.JUL.2022 09:26:14 CH06 Date: 20.JUL.2022 09:28:58 CH11 Date: 20.JUL.2022 09:34:38 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 55 802.11n(HT40) CH03 Date: 20.JUL.2022 10:01:00 CH06 Date: 20.JUL.2022 10:08:05 CH09 Date: 20.JUL.2022 10:11:58 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 55 Appendix D：99% Occupied Bandwidth Type Channel 99% Bandwidth (MHz) Limit (kHz) Result 802.11b 01 14.06 - Pass 06 14.12 11 14.93 802.11g 01 16.54 - Pass 06 17.23 11 18.04 802.11n(HT20) 01 17.62 - Pass 06 18.43 11 18.70 802.11n(HT40) 03 34.77 - Pass 06 35.31 09 34.41 Project No.: SHT2207038201EW…

Text truncated - open the document above for the full version.

Test Report

Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 47 of 55 Test Item: SE 802.11 g Antenna 1 Reference level CH01 Date: 5.AUG.2022 15:20:36 CH01 Date: 5.AUG.2022 15:20:52 Date: 5.AUG.2022 15:21:09 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 48 of 55 Reference level CH06 Date: 5.AUG.2022 15:22:04 CH06 Date: 5.AUG.2022 15:22:20 Date: 5.AUG.2022 15:22:36 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 49 of 55 Reference level CH11 Date: 5.AUG.2022 15:34:17 CH11 Date: 5.AUG.2022 15:34:33 Date: 5.AUG.2022 15:34:50 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 50 of 55 Test Item: SE 802.11 n(HT20) Antenna 1 Reference level CH01 Date: 5.AUG.2022 15:36:34 CH01 Date: 5.AUG.2022 15:36:50 Date: 5.AUG.2022 15:37:07 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 51 of 55 Reference level CH06 Date: 5.AUG.2022 15:38:06 CH06 Date: 5.AUG.2022 15:38:22 Date: 5.AUG.2022 15:38:38 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 52 of 55 Reference level CH11 Date: 5.AUG.2022 15:39:37 CH11 Date: 5.AUG.2022 15:39:53 Date: 5.AUG.2022 15:40:09 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 53 of 55 Test Item: SE 802.11 n(HT40) Antenna 1 Reference level CH03 Date: 5.AUG.2022 15:41:24 CH03 Date: 5.AUG.2022 15:41:40 Date: 5.AUG.2022 15:41:57 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 54 of 55 Reference level CH06 Date: 5.AUG.2022 15:42:54 CH06 Date: 5.AUG.2022 15:43:10 Date: 5.AUG.2022 15:43:27 Project No.: SHT2207038201EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 55 of 55 Reference level CH09 Date: 5.AUG.2022 15:45:25 CH09 Date: 5.AUG.2022 15:45:42 Date: 5.AUG.2022 15:45:58 .......................End of Report.........................

Test Report

源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. CustomerName： CustomerModer： CustomerP/N：博联 CPE-0001 C2300116 CustomerDescribe： YCXP/N： CustomerDescribe： YCX08W-B466-SMAM 黑色刀锋2.4G单频/SMA头内螺纹公针/白色丝印WiFi2.4G PRODUCTSPECIFICATION Signatureandsealofconfirmation YCXApproved CustomerApproved Sampleaudit approved validatio n audit approved 邹杨辰王春江许军波韦轩任潘红章魏志勇 Date 2022-03-24 Date 2022-03-24 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD Fileforamendment/revocation/resume Version Date Production/revisedContent develop Approved Not e A1 2022.03.24 邹杨辰源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 3、Directory 1、directory ............................................................................................................. 1 2、Fileforamendment/revocation/resume...............................................2 3、directory.............................................................................................................3 4、Productdrawings ....................................................................................... 4 5、Passiveperformancetestparamete ................................................ 5 6、2D、3DPerformancefigure ..................................................................... 6 7、Electricalperformancetestreport ................................................... 7 765 4 3 2 REV. CHANGEDESCRIPTION DATE SIGNATURE A2 New 2022.08.19 zyc CC BB TOLERANCE 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. .XXX .XX .X X. XX. XXX. ±0.05 ±0.1 ±0.2 ±0.25 ±1 ±2 1 DRAWEDBYzyc PARTNO.: YCX08W-B466-SMAM SMA接头铜材质SMA公头公针 1 下固 L25.3*φ13Black 2 CHECKEDBY Mike TITLE: 黑色大刀锋2.4G5DBISMA公头公针上固 L28.2*φ13Black 1 UNIT mm APPROVEDBY Sky 杆套 L160*φ13Black 1 NO. PARTOR IDENTIFYINGNO. NOMENCLATUREORDESCRIPTION QTY UNIT MATERIALASDIMENSION SCALE:1:1 CADFILE: DWGTYPE:PRODUCTDRAWING 7 65432 www.yuanchuangxing.cn 1 D 200±3 D 1 2 ∅ 1 3 白色WiFi2.4G丝印 4 160±2 3 18.0 Technicalrequirements: 1.Electricalparameters: 177±2 1.1 1.2 1.3 1.4 1.5 1.6 Impedance Frequency VSWR PeakGain Polarization :50Ω :2400-2500MHz :<2.0 :5dBi :Linear RadiationPatten:Omnidirectional 2.Mechanicalproperties: 2.1StorageTemperatureRange:-40TO+85°C 2.2OperatingTemperatureRange:-40TO+85°C 3.AllmaterialmustmeetROHSrequest 4.Mark()asthekeycontroldimensions AA 8 1 www.yuanchuangxing.cn 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 4、Productdrawings W i F i 2 . 4 G 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 5、Passiveperformancetestparameters Frequency(GHz)2.42.452.5 VSWR1.14 1.101.34 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 6、2D、3DPerformancefigure PassiveTestForWiFi2.4G Freq (MHz ) Effi (%) Gain (dBi ) 2400 87 5.14 2450 88 5.26 2500 87 5.10 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 7、Electricalperformancetestreport Electricalparameters Frequencyrange 2400MHz-2500MHz inputimpedance 50Ω VSWR<2.0对照样品测试图形 Gain Maximum 5.26dBi Polarizationmode Verticalpolarization Radiationdirection omnidirectional connectionmethod IPEX Themechanicalparameters Cable RG178brown Saltspraytest 24H Environmentalparameters Workingtemperature -40~85°C

Test Report

源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. CustomerName： CustomerModer： CustomerP/N：博联 CPE-0001 C2300117 CustomerDescribe： YCXP/N： CustomerDescribe： YCX09W-B467-SMAM 黑色刀锋/5G单频/SMA头内螺纹公针/白色丝印WiFi5G PRODUCTSPECIFICATION Signatureandsealofconfirmation YCXApproved CustomerApproved Sampleaudit approved validatio n audit approved 邹杨辰王春江许军波韦轩任潘红章魏志勇 Date 2022-03-24 Date 2022-03-24 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD Fileforamendment/revocation/resume Version Date Production/revisedcontent develo p Approved Note A1 2022.03.24 邹杨辰源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 3、Directory 1、directory ............................................................................................................. 1 2、Fileforamendment/revocation/resume...............................................2 3、directory.............................................................................................................3 4、Productdrawings ....................................................................................... 4 5、Passiveperformancetestparamete ................................................ 5 6、2D、3DPerformancefigure ..................................................................... 6 7、Electricalperformancetestreport ................................................... 7 ∅ 1 3 160±2 3 18.0 177±2 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 4、Productdrawings 200±3 1 2 白色丝印WiFi5G 4 Technicalrequirements: 1Electricalparameters: 1.4Impedance:50Ω 1.5Frequency:5150-5850MHz 1.3VSWR:<2.0 1.1PeakGain:5dBi 1.2Polarization:Linear 1.3RadiationPatten:Omnidirectional 2Mechanicalproperties: 2.4StorageTemperatureRange:-40TO+85°C 2.5OperatingTemperatureRange:-40TO+85°C 3AllmaterialmustmeetROHSrequest 4Mark()asthekeycontroldimensions www.yuanchuangxing.cn 76 5 4 3 21 D C B A REV. CHANGEDESCRIPTION DATE SIGNA TURE D A2 New 2022.08. 19 zyc W i F i 5 G C B A TOLERANCE 源创星电子（深圳）有限公司 Yuanchuangxingelectronics (Shenzhen)CO.,LTD. .XXX±0.05 .XX±0.1 .X±0.2 X.±0.25 XX.±1 XXX.±2 1 DRAWED BY zyc PARTNO.: YCX09W-B467-SMAM SMA接头铜材质SMA公头公针 1 下固 L25.3*φ13Black 2 CHECKED BY Mike TITLE: 黑色大刀锋5.8G5DBISMA公头公针上固 L28.2*φ13Black 1 UNIT mm APPROVED BY Sky 杆套 L160*φ13Black 1 N O PART OR IDENTIFYIN NOMENCLATUREORDESCRIPTION QTY U N MATER IAL AS DIMENSION SCAL E: 1:1 CADFILE: DWGTYPE:PRODUCT DRAWING 8 765432 1 www.yuanchuangxing.cn 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 5、Passiveperformancetestparameters Frequency(GHz) 5.155.555.85 VSWR1.361.501.59 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 6、2D、3DPerformancefigure PassiveTestForWiFi5.8G Freq (MHz ) Effi (%) Gain (dBi ) 5150 82 4.22 5500 83 4.95 5850 83 4.72 源创星电子（深圳）有限公司 Yuanchuangxingelectronics(Shenzhen)CO.,LTD. 7、Electricalperformancetestreport Electricalparameters Frequencyrange 5150MHz-5850MHz inputimpedance 50Ω VSWR<2.0对照样品测试图形 Gain Maximum 4.95dBi Polarizationmode Verticalpolarization Radiationdirection omnidirectional connectionmethod IPEX Themechanicalparameters Cable RG178brown Saltspraytest 24H Environmentalparameters Workingtemperature -40~85°C

Test Setup Photos

6.TEST SETUP PHOTOS Radiated Emission M odel:CPE-0001

Contact Information

Applicant

min zou

[email protected]+86-755-86605475Fax: +86-755-86605475

Test Firm

Shenzhen Huatongwei International Inspection Co.,Tony Jiang

[email protected]+86-755-26748078

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	199.50 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This device has 20 MHz and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures, or as evaluated in this filing. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
