GVQ3GMATES3GMATE+

Skyroam Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Sep 17, 2014
Application Purpose: Original Equipment
Date of Application: Sep 14, 2014
Equipment Note: 3GMATE+
Frequency Range: 1712.40000000 - 1752.60000000
Company: Skyroam Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The mobile device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 1.19W/kg. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 15mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

Cover Letter(s)

Skyroam Technology Co., Ltd. DATE :2014-09-04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:GVQ3GMATES Product Name: 3Gmate+ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation Description  BOM  Tune up procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2014-09-04 By: Su Jia Signature Printed Title: Project Manager On behalf of : Skyroam Technology Co., Ltd. Telephone: 0755-26055497-825

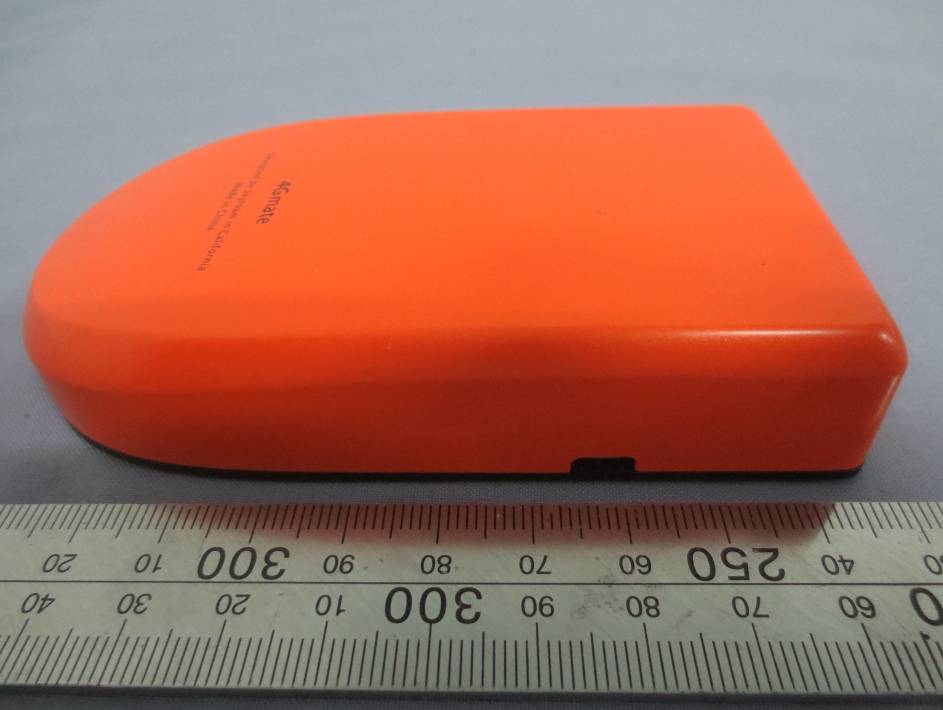

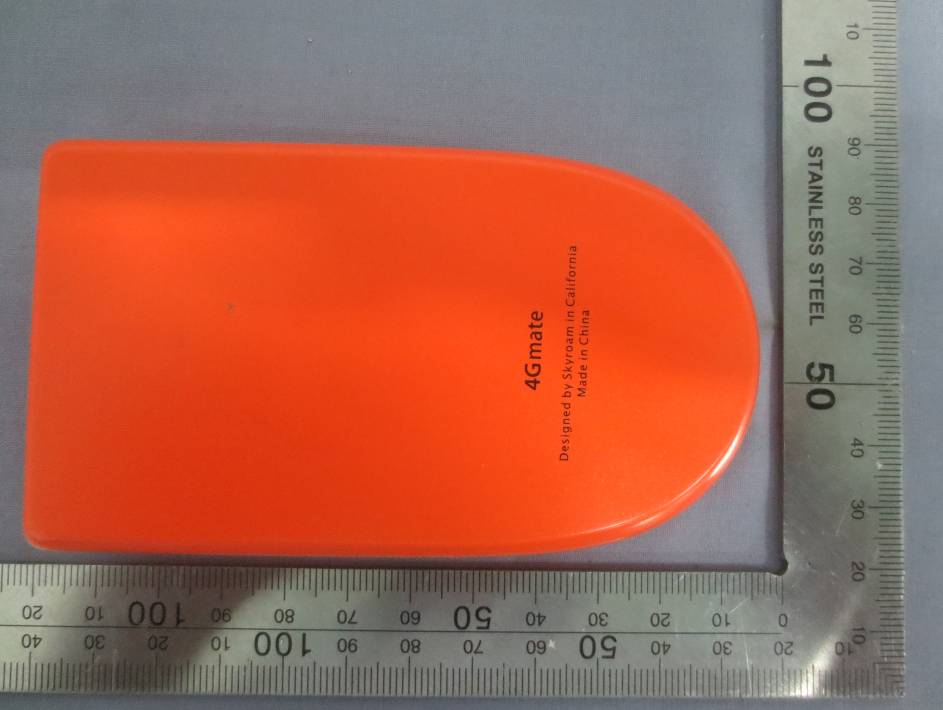

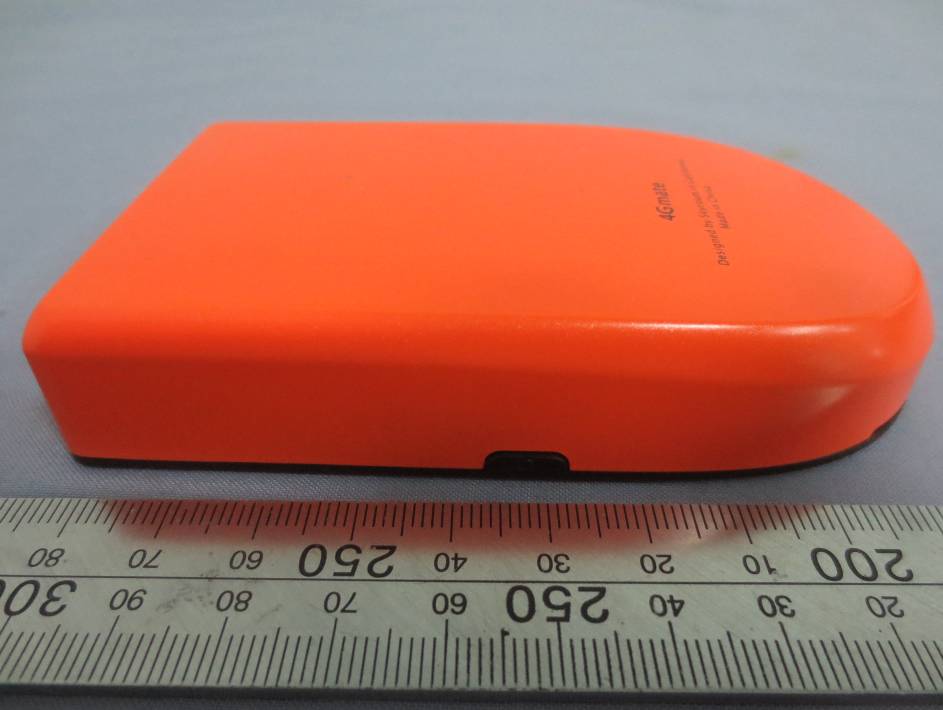

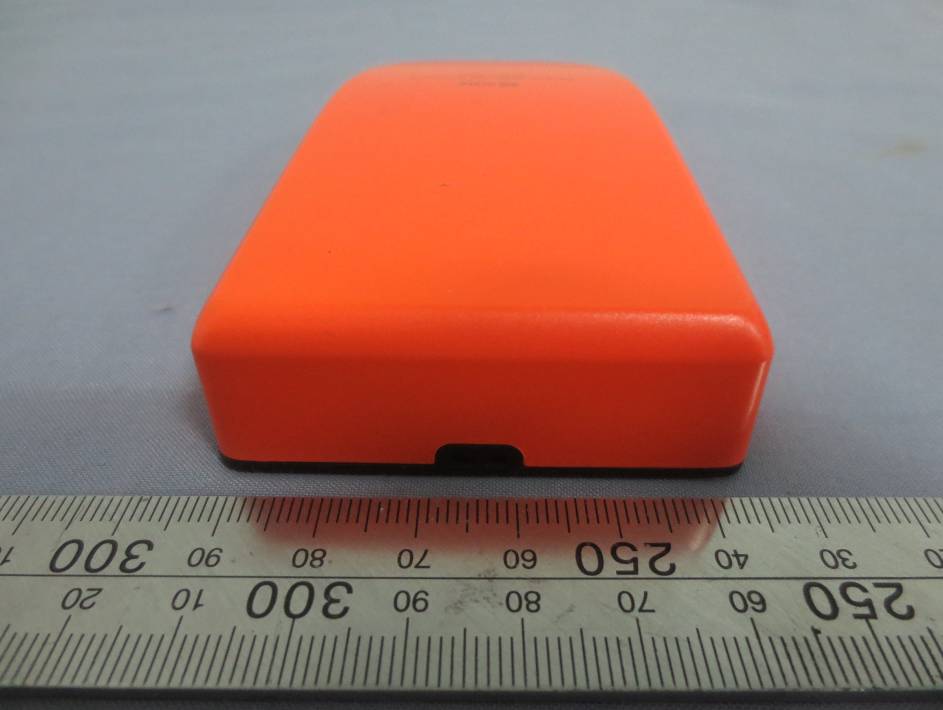

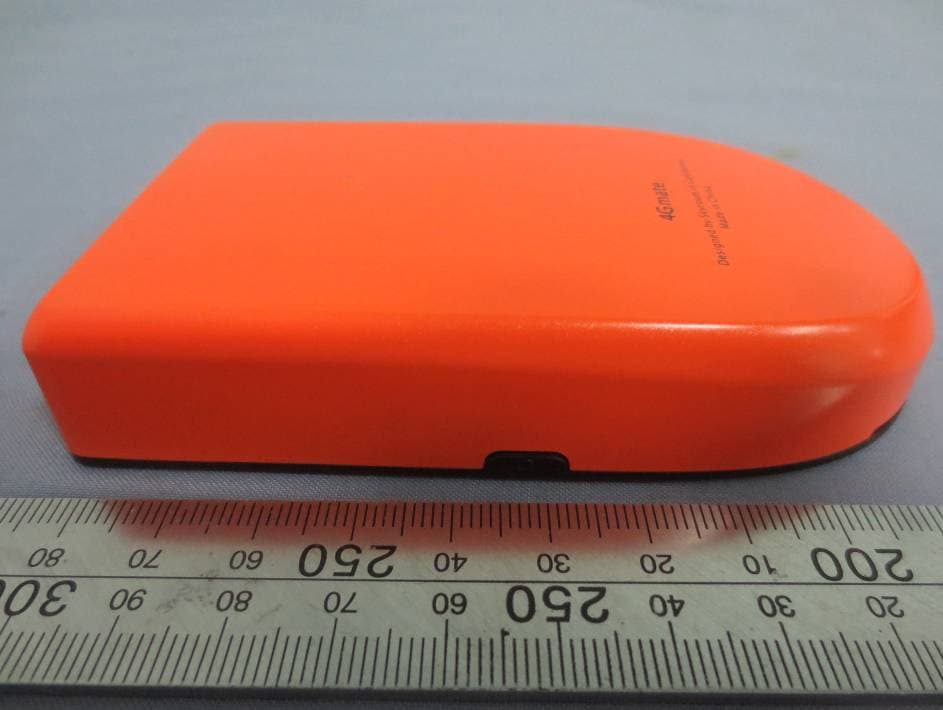

External Photos

ID Label/Location Info

Size：45.60mm X 35.00 Location

Internal Photos

Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 114 of 120 Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 115 of 120 Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 116 of 120 Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 117 of 120 Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 118 of 120 Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 119 of 120 Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 120 of 120 ------End of report------

RF Exposure Info

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14040025701 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Applicant: Skyroam Technology Company limited Address of Applicant: BLK F, Room 710-717 Xihaimingzhu Building, Taoyuan Road Nanshan District,Shenzhen Guangdong 518000 China Equipment Under Test (EUT) Product Name: 3Gmate+ Model No.: W20 Trade mark: FCC ID: GVQ3GMATES Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 30 Aug., 2014 ~ 02 Sep., 2014 Test Result: Maximum Reported 1-g SAR (W/kg) Body: 1.19 Report No: CCIS14040025701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400257RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 166 2 Version Version No. Date Description 00 03 Sep., 2014 Original Prepared by: Date: 03 Sep., 2014 Report Clerk Reviewed by: Date: 03 Sep., 2014 Project Engineer Report No: CCIS14040025701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400257RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 166 3 Contents 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 SAR RESULTS SUMMARY ................................................................................................................................. 5 5 GENERAL INFORMATION .................................................................................................................................. 6 5.1 CLIENT INFORMATION ..................................................................................................................................................................... 6 5.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................................... 6 5.3 MAXIMUM RF OUTPUT POWER ...................................................................................................................................................... 7 5.4 ENVIRONMENT OF TEST SITE ......................................................................................................................................................... 7 5.5 TEST LOCATION ............................................................................................................................................................................. 7 6 INTRODUCTION ................................................................................................................................................... 8 6.1 INTRODUCTION ............................................................................................................................................................................... 8 6.2 SAR DEFINITION ............................................................................................................................................................................ 8 7 RF EXPOSURE LIMITS ....................................................................................................................................... 9 7.1 UNCONTROLLED ENVIRONMENT ..................................................................................................................................................... 9 7.2 CONTROLLED ENVIRONMENT ......................................................................................................................................................... 9 7.3 RF EXPOSURE LIMITS .................................................................................................................................................................... 9 8 SAR MEASUREMENT SYSTEM ....................................................................................................................... 10 8.1 E-FIELD PROBE............................................................................................................................................................................ 11 8.2 DATA ACQUISITION ELECTRONICS (DAE) .................................................................................................................................... 11 8.3 ROBOT ..............................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14040025601 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1. Cover Page FCC REPORT Applicant: Skyroam Technology Company limited Address of Applicant: BLK F, Room 710-717 Xihaimingzhu Building, Taoyuan Road Nanshan District, Shenzhen Guangdong 518000 China Equipment Under Test (EUT) Product Name: 3Gmate+ Model No.: W20 Trade mark: FCC ID: GVQ3GMATES Applicable standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part22 Subpart H FCC CFR Title 47 Part24 Subpart E FCC CFR Title 47 Part 27 Subpart L Date of sample receipt: 25 Apr., 2014 Date of Test: 26 Apr., to 27 Aug., 2014 Date of report issued: 27 Aug., 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14040025601 2. Version Version No. Date Description 00 27 Aug., 2014 Original Prepared by: Date: 27 Aug., 2014 Report Clerk Reviewed by: Date: 27 Aug., 2014 Project Engineer Report No: CCIS140425601 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400256RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 120 3. Contents Page 1. COVER PAGE .............................................................................................................................................................. 1 2. VERSION ....................................................................................................................................................................... 2 3. CONTENTS ................................................................................................................................................................... 3 4. TEST SUMMARY ......................................................................................................................................................... 4 5. GENERAL INFORMATION ........................................................................................................................................ 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST MODES .......................................................................................................................................................... 8 5.4 RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................................... 8 5.5 TEST METHODOLOGY ............................................................................................................................................ 8 5.6 LABORATORY FACILITY .......................................................................................................................................... 8 5.7 LABORATORY LOCATION ....................................................................................................................................... 9 5.8 TEST INSTRUMENTS LIST ....................................................................................................................................... 9 6. SYSTEM TEST CONFIGURATION ........................................................................................................................ 10 6.1 EUT CONFIGURATION ......................................................................................................................................... 10 6.2 EUT EXERCISE .................................................................................................................................................... 10 6.3 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 10 6.4 DESCRIPTION OF TEST MODES ........................................................................................................................... 10 6.5 CONDUCTED OUTPUT POWER ............................................................................................................................ 11 6.6 OCCUPY BANDWIDTH .......................................................................................................................................... 21 6.7 MODULATION CHARACTERISTIC .......................................................................................................................... 50 6.8 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................................................................. 50 6.9 ERP, EIRP MEASUREMENT ..............................…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

min zou

[email protected]+86-755-86605475Fax: +86-755-86605475

Test Firm

Shenzhen Zhongjian Nanfang Testing Co.,LtdBruce Zhang

[email protected]86-755-23118282Fax: 86-755-23116366

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
7	27	1.71 GHz - 1.75 GHz	110.00 mW	4M22F9W	0.074 ppm

Confidentiality

Long Term

Grant Notes

Power listed is ERP for part 22, EIRP for part 24 and part 27. The highest reported SAR for stand-alone and simultaneous transmission exposure conditions are 1.19 W/kg and 1.19 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
