GVQ3GMATE-B3G3Gmate

Skyroam Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 02, 2014
Application Purpose: Original Equipment
Date of Application: Jan 02, 2014
Equipment Note: 3Gmate
Frequency Range: 2412.00000000 - 2462.00000000
Company: Skyroam Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BATTERY CHARGE: Connect the 3Gmate to your PC by USB port. FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. The mobile device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 1.451W/kg. 4. This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s body and the handset, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

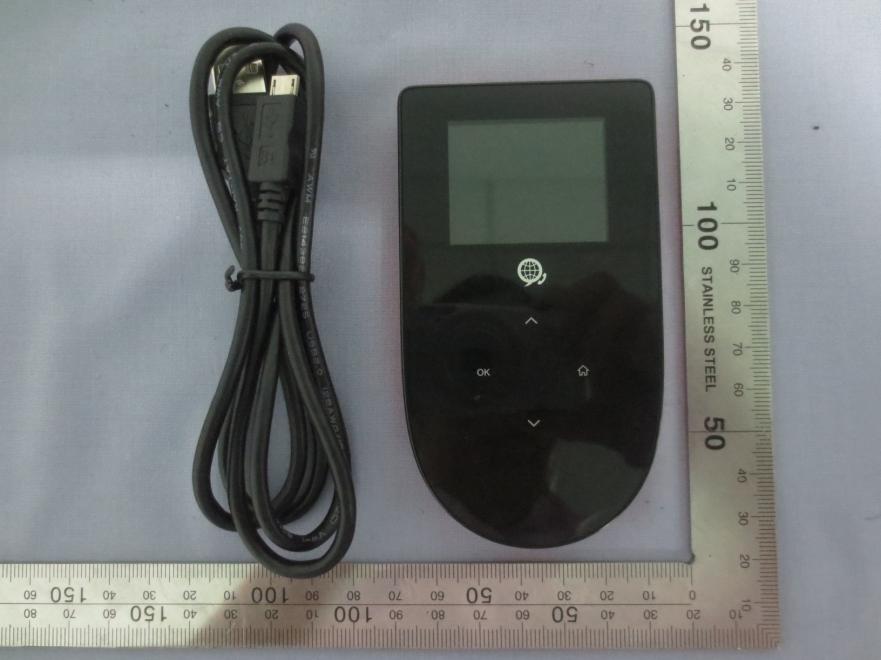

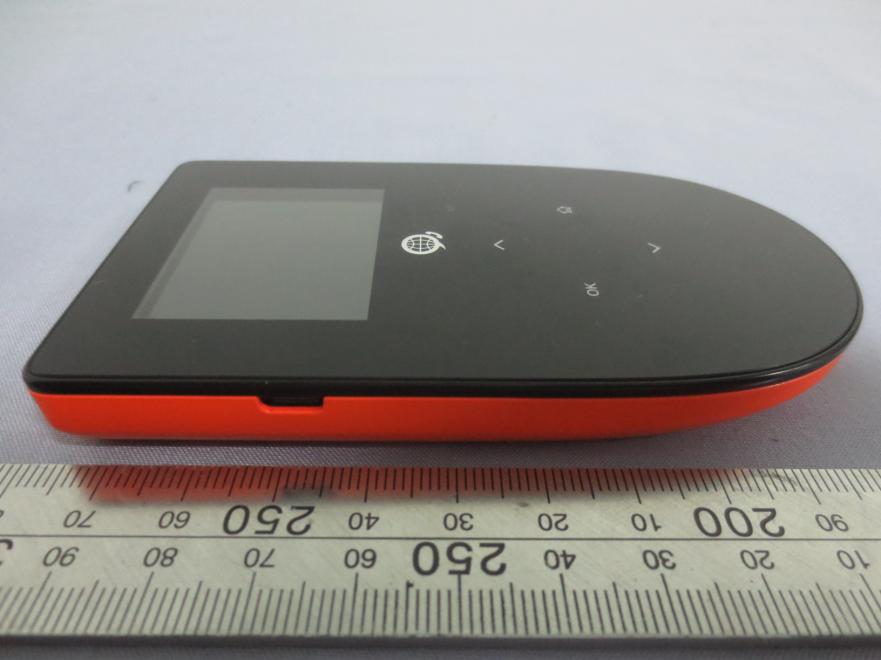

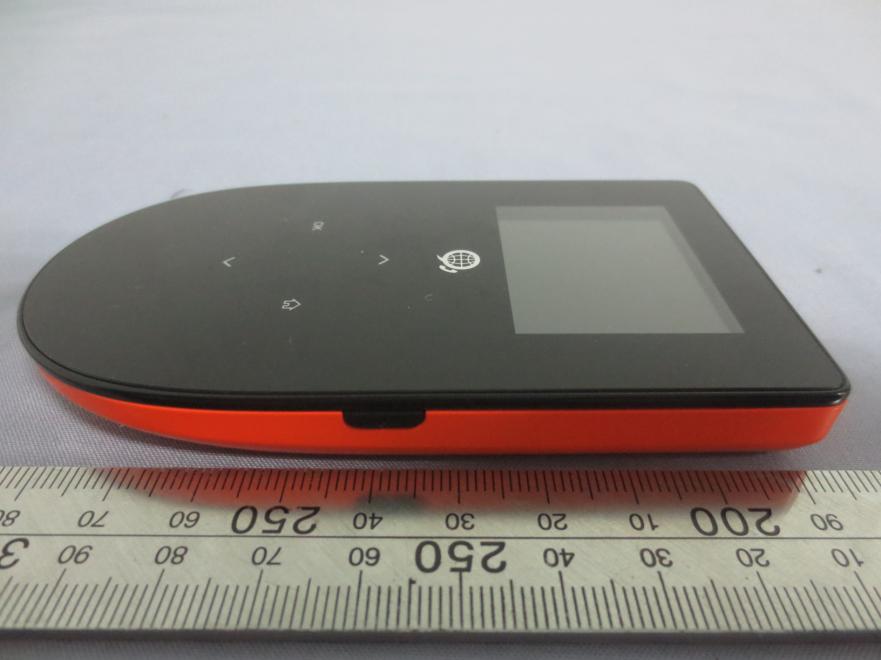

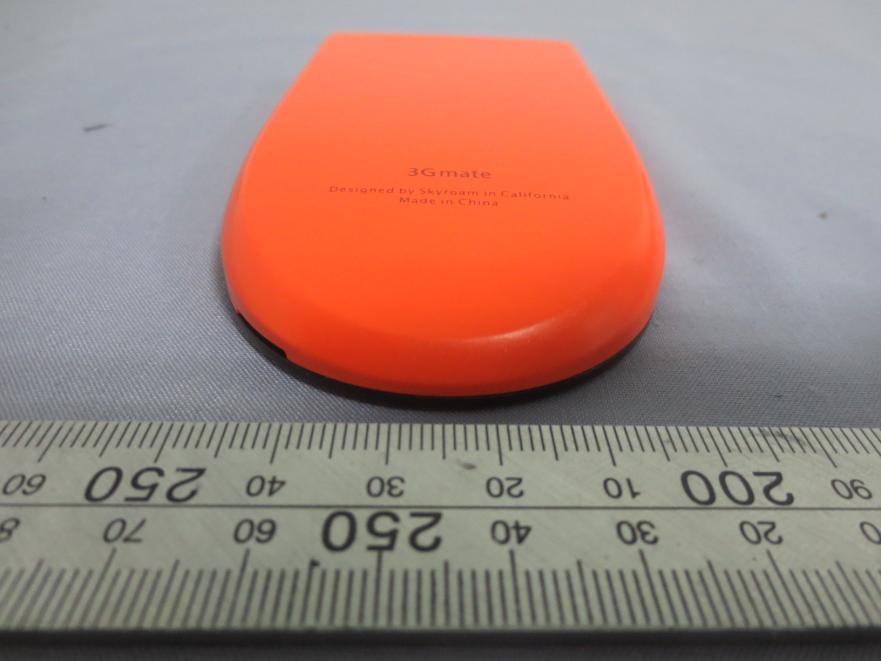

External Photos

ID Label/Location Info

Label and label location Label location

Internal Photos

Report No: CCIS13090036801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 115 of 120 Report No: CCIS13090036801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 116 of 120 Report No: CCIS13090036801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 117 of 120 Report No: CCIS13090036801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 118 of 120 Report No: CCIS13090036801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 119 of 120 Report No: CCIS13090036801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 120 of 120 ------End of report------

RF Exposure Info

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS13090036901 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Applicant: Skyroam Technology Company limited Address of Applicant: BLK F, Room 710-717 Xihaimingzhu Building, Taoyuan Road Nanshan District, Shenzhen Guangdong 518000 China Equipment Under Test (EUT) Product Name: 3Gmate Model No.: W19 Trade Mark: FCC ID: GVQ3GMATE-B3G Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 10 Oct., 2013 ~ 15 Nov., 2013 Test Result: Maximum Reported 1-g SAR Body: 1.451 W/kg Report No: CCIS13090036901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900369RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 143 2 Version Version No. Date Description 00 18 Nov., 2013 Original Prepared by: Date: 18 Nov.,2013 Report Clerk Reviewed by: Date: 18 Nov.,2013 Project Engineer Report No: CCIS13090036901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900369RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 143 3 Contents 1 COVER PAGE ................................................................................................................................................ 1 2 VERSION ........................................................................................................................................................ 2 3 CONTENTS .................................................................................................................................................... 3 4 SAR RESULTS SUMMARY ........................................................................................................................... 5 5 GENERAL INFORMATION ............................................................................................................................ 6 5.1 CLIENT INFORMATION ............................................................................................................................................ 6 5.2 GENERAL DESCRIPTION OF EUT .......................................................................................................................... 6 5.3 JUSTIFICATION ....................................................................................................................................................... 7 5.4 MAXIMUM RF OUTPUT POWER ............................................................................................................................. 8 5.5 ENVIRONMENT OF TEST SITE ................................................................................................................................ 8 5.6 TEST LOCATION ..................................................................................................................................................... 8 6 INTRODUCTION ............................................................................................................................................ 9 6.1 INTRODUCTION ...................................................................................................................................................... 9 6.2 SAR DEFINITION ................................................................................................................................................... 9 7 RF EXPOSURE LIMITS ............................................................................................................................... 10 7.1 UNCONTROLLED ENVIRONMENT ......................................................................................................................... 10 7.2 CONTROLLED ENVIRONMENT .............................................................................................................................. 10 7.3 RF EXPOSURE LIMITS ......................................................................................................................................... 10 8 SAR MEASUREMENT SYSTEM ................................................................................................................. 11 8.1 E-FIELD PROBE ................................................................................................................................................... 12 8.2 DATA ACQUISITION ELECTRONICS (DAE) .......................................................................................................... 12 8.3 ROBOT ................................................................................................................................................................. 13 8.4 MEASUREMENT SERVER ..........................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS13090036802 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: Skyroam Technology Company limited Address of Applicant: BLK F, Room 710-717 Xihaimingzhu Building, Taoyuan Road Nanshan District,Shenzhen Guangdong 518000 China Equipment Under Test (EUT) Product Name: 3Gmate Model No.: W19 Trade mark: FCC ID: GVQ3GMATE-B3G Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2011 Date of sample receipt: 17 Sep., 2013 Date of Test: 18 Sep., to 20 Nov., 2013 Date of report issued: 20 Nov., 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS13090036802 2 Version Version No. Date Description 00 20 Nov., 2013 Original Prepared by: Date: 20 Nov., 2013 Report Clerk Reviewed by: 0 Date: 20 Nov., 2013 Project Engineer Report No: CCIS13090036802 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 65 3 Contents Page 1 COVER PAGE ...................................................................................................................................................... 1 2 VERSION .............................................................................................................................................................. 2 3 CONTENTS .......................................................................................................................................................... 3 4 TEST SUMMARY ................................................................................................................................................ 4 5 GENERAL INFORMATION ................................................................................................................................ 5 5.1 CLIENT INFORMATION ................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. .............................................................................................................. 5 5.3 TEST ENVIRONMENT AND MODE ................................................................................................................... 7 5.4 DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 8 5.5 LABORATORY FACILITY ................................................................................................................................. 8 5.6 LABORATORY LOCATION ............................................................................................................................... 8 5.7 TEST INSTRUMENTS LIST .............................................................................................................................. 9 6 TEST RESULTS AND MEASUREMENT DATA ........................................................................................... 10 6.1 ANTENNA REQUIREMENT: ........................................................................................................................... 10 6.2 CONDUCTED EMISSIONS ............................................................................................................................ 11 6.3 CONDUCTED OUTPUT POWER ................................................................................................................... 14 6.4 OCCUPY BANDWIDTH ................................................................................................................................. 18 6.5 POWER SPECTRAL DENSITY ...................................................................................................................... 25 6.6 BAND EDGE ................................................................................................................................................. 29 6.6.1 Conducted Emission Method ............................................................................................................. 29 6.6.2 Radiated Emission Method ................................................................................................................. 32 6.7 SPURIOUS EMISSION .................................................................................................................................. 45 6.7.1 Conducted Emission Method ............................................................................................................. 45 6.7.2 Radiated Emission Method ................................................................................................................. 51 7 TEST SETUP PHOTO ................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No: CCIS13090036802 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 64 of 65 7 Test Setup Photo Radiated Spurious Emission Report No: CCIS13090036802 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS130900368RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 65 of 65 Conducted Emission 8 EUT Constructional Details Reference to the test report No. CCIS13090036801 ------End of report------

Contact Information

Applicant

min zou

[email protected]+86-755-86605475Fax: +86-755-86605475

Test Firm

Shenzhen Zhongjian Nanfang Testing Co.,LtdBruce Zhang

[email protected]86-755-23118282Fax: 86-755-23116366

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	27.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. The highest reported SAR for stand-alone and simultaneous transmission exposure conditions are < 0.10 W/kg and 1.45 W/kg, respectively.
