1 Helen Zhao To:SS Cc:R00/??? Subject:RE: Broadxent Pte Ltd, FCC ID: GX5-CB2436, Assessment NO.: AN05T4521, Notice#1 From: SS Sent: Thursday, February 03, 2005 12:35 AM To: Helen Zhao Cc: R00/??? Subject: Re: Broadxent Pte Ltd, FCC ID: GX5-CB2436, Assessment NO.: AN05T4521, Notice#1 Dear Helen, Replying your question. #1 The SAR test report is attached. #2 The setting is corrected. Please refer to the revised test report. #3 The setting is corrected. Please refer to the revised test report. #4 Please refer to the revised operation description file. Best regards, S. S. Liou -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Monday, January 31, 2005 4:08 PM Subject: Broadxent Pte Ltd, FCC ID: GX5-CB2436, Assessment NO.: AN05T4521, Notice#1 Question #1: MPE calculation was included in the filing. The user manual also asked the end user to maintain 20cm separation distance from the body or nearby person. However, this device, while used with notebook computer, is a typical portable application. MPE calculation is not applicable. Since the output power is over low threshold, please perform SAR test, and submit SAR test report. Please also revise the user manual to remove 20cm separation distance requirement. Question #2: The plots of "NUMBER OF HOPPING FREQUENCY USED" shows an incorrect setting was used: RBW=100KHz, while the span was 83.500MHz. The correct setting should be: RBW>=1% of the span. Please re-submit the plots with correct setting. Question #3: The plots of "100 kHz BANDWIDTH OF BAND EDGES MEASUREMENT" shows an incorrect setting was used: RBW=120KHz, while the span was 50MHz. The correct setting should be: RBW>=1% of the span. Please re-submit the plots with correct setting. Question #4: Please resubmit Operation Description. The file named "O-D" in the filing is actually an antenna specification only. Best Regards, 2 Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

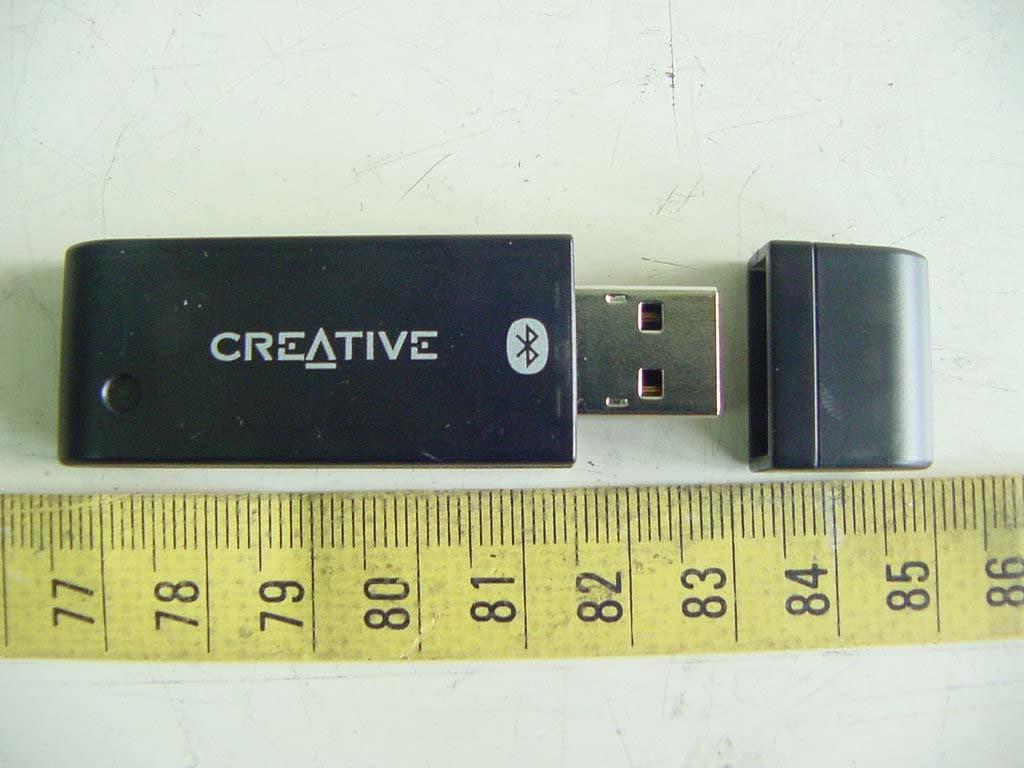

ETC Report No. : ET94R-01-095 Sheet 1 of 4 Sheets FCC ID. : GX5-CB2436 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Side View of EUT 2. Side View of EUT ETC Report No. : ET94R-01-095 Sheet 2 of 4 Sheets FCC ID. : GX5-CB2436 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Bottom View of EUT 4. Top View of EUT

Broadxent Pte Ltd. Model:CB2436 FCC ID: GX5-CB2436 Model:CB2436 FCC ID: GX5-CB2436 Model:CB2436 FCC ID: GX5-CB2436

ETC Report No. : ET94R-01-095 Sheet 3 of 4 Sheets FCC ID. : GX5-CB2436 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of EUT 6. Internal View of EUT ETC Report No. : ET94R-01-095 Sheet 4 of 4 Sheets FCC ID. : GX5-CB2436 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Component View of Main PCB 8. Solder View of Main PCB

Bluetooth is a worldwide standard for the wireless exchange of data between two compatible devices. It utilizes short-distance radio link technology and replaces the traditional cable connections to enable wireless connections between desktop and laptop computers, cellular, phones, scanners, digital cameras, printers, and other devices. You can now transfer files between two computers, dial up to the Internet using the host computer’s modem or a cell phone, or even share a network connection without literally attaching your cables to a device. To put it simply, Bluetooth unplugs all your cables and lets you forget about cable clutter for a change.

Compliance Certification Services Inc. Ref. No.: 41115201 Report No: 50203105-SF FCC ID: GX5-CB2436 Date of Issue: Feb. 03, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 1 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Broadxent Pte Ltd. Bluetooth USB Dongle Trade Name: Tecom, Creative, BTcom Model: BT3033A, BT3033A-II, CB2436, BTA-230 Issued to Broadxent Pte Ltd. 31 International Business Park. Creative Resource. Singapore 609921 Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Ref. No.: 41115201 Report No: 50203105-SF Date of Issue: Feb. 03, 2005 Page 2 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ................................................3 2. EUT DESCRIPTION ..................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 4. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 4.2 SYSTEM COMPONENTS.................................................................................................7 System Validation Kits ......................................................................................................8 5. EVALUATION PROCEDURES ...............................................................................................9 6. MEASUREMENT UNCERTAINTY ......................................................................................13 7. EXPOSURE LIMIT ..................................................................................................................14 8. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .14 9. MEASUREMENT RESULTS..................................................................................................15 9.1 SYSTEM PERFORMANCE CHECK..............................................................................15 9.2 TEST LIQUID CONFIRMATION...................................................................................16 9.3 EUT TUNE-UP PROCEDURES......................................................................................17 9.4 SAR MEASUREMENTS RESULTS...............................................................................18 10. EUT PHOTOS ...........................................................................................................................20 11. EQUIPMENT LIST & CALIBRATION STATUS................................................................22 12. FACILITIES..............................................................................................................................23 13. REFERENCES ..........................................................................................................................23 14. ATTACHMENTS......................................................................................................................24 Compliance Certification Services Inc. Ref. No.: 41115201 Report No: 50203105-SF Date of Issue: Feb. 03, 2005 Page 3 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Test: Nov. 15, 2004 Applicant: Broadxent Pte Ltd. 31 International Business Park. Creative Resource. Singapore 609921 Model Number / Trade Name: BT3033A, BT3033A-II, CB2436, BTA-230 / Tecom, Creative, BTcom Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: FHSS (GFSK) Tx Frequency: 2402 ~ 2480 MHz Max. O/P Power: (Conducted/Peak) 17.22 dBm Max. SAR (1g): 0.407 W/kg Application Type: Certification FCC Rule Part(s): 15C Model Difference Due to the business consideration, the models listed are identical except the model/brand name and enclosure. Note: This Report is only applicable for 802.11b/g. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Harris W. Lai Chris Hsieh Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Ref. No.: 41115201 Report No: 50203105-SF Date of Issue: Feb. 03, 2005 Page 4 2. EUT DESCRIPTION Applicant: Broadxent Pte Ltd. 31 International Business Park. Creative Resource. Singapore 609921 Model Number / Trade Name: BT3033A, BT3033A-II, CB2436, BTA-230 / Tecom, Creative, BTcom Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: FHSS (GFSK) Tx Frequency: 2402 ~ 2480 MHz Max. O/P Power: (Conducted/Peak) 17.22 dBm Max. SAR (1g): 0.407 W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: CHIPAnt. Test Host: Brand name: COMPAQ Model name: Presario 2800 Serial …

Text truncated - open the document above for the full version.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth USB Dongle Model : CB2436 FCC ID. : GX5-CB2436 for APPLICANT : Broadxent Pte Ltd. ADDRESS : 31 International Business Park, Creative Resource, Singapore 609921 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5 , DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWA, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET94R-01-095 ETC Report No. : ET94R-01-095 FCC ID. : GX5-CB2436 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Broadxent Pte Ltd. 31 International Business Park, Creative Resource, Singapore 609921 Manufacture : TECOM CO., LTD. 23, R&D Road 2 Science-Based Industrial Park Hsin-Chu Taiwan R.O.C. Description of Device : a) Type of EUT : Bluetooth USB Dongle b) Trade Name : Creative c) Model No. : CB2436 d) Power Supply : Power from PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2003) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jan. 27, 2005 Test Engineer : ( falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET94R-01-095 FCC ID. : GX5-CB2436 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION......................................................................................................1 1.1 Product Description......................................................................................................................1 1.2 Characteristics of Device.............................................................................................................1 1.3 Test Methodology........................................................................................................................1 1.4 Test Facility..................................................................................................................................1 2 PROVISIONS APPLICABLE.....................................................................................................2 2.1 Definition.....................................................................................................................................2 2.2 Requirement for Compliance.......................................................................................................3 2.3 Restricted Bands of Operation.....................................................................................................5 2.4 Labeling Requirement..................................................................................................................6 2.5 User Information..........................................................................................................................6 3 SYSTEM TEST CONFIGURATION.........................................................................................7 3.1 Justification..................................................................................................................................7 3.2 Devices for Tested System...........................................................................................................7 4 RADIATED EMISSION MEASUREMENT.............................................................................8 4.1 Applicable Standard.....................................................................................................................8 4.2 Measurement Procedure...............................................................................................................8 4.3 Measuring Instrument................................................................................................................10 4.4 Radiated Emission Data.............................................................................................................11 4.4.1 Tx Portion...........................................................................................................................................11 4.4.2 Radiated Emissions in Restricted Bands............................................................................................14 4.4.3 Other Emissions.................................................................................................................................15 4.5 Field Strength Calculation..........................................................................................................15 4.6 Photos of Radiation Measuring Setup........................................................................................16 5 CONDUCTED EMISSION MEASUREMENT.......................................................................17 5.1 Standard Applicable...................................................................................................................17 5.2 Measurement Procedure.............................................................................................................17 5.3 Conducted Emission Data..........................................................................................................18 5.4 Result Data Calculation..............................................................................................................18 5.5 Conducted Measurement Equipment.........................................................................................19 5.6 Photos of Conduction Measuring Setup.....................................................................................20 6 ANTENNA REQUIREMENT.......................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET94R-01-095 Sheet 16 of 37 Sheets FCC ID. : GX5-CB2436 Rev. No 2.1 4.6 Photos of Radiation Measuring Setup ETC Report No. : ET94R-01-095 Sheet 20 of 37 Sheets FCC ID. : GX5-CB2436 Rev. No 2.1 5.6 Photos of Conduction Measuring Setup
