GX5-CB3200Bluetooth USB Dongle

Bluetooth TM USB Dongle Product User’s Guide May 2005 ©2005 All rights reserved. Printed in Taiwan Application Setup & User’s Guide Trademark(s) ™ and Registered Trademark(s) ® The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc. USA and licensed to the company. Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders. BTW is Copyright Widcomm, Inc. and the BTW software is licensed to the company Winroute Lite is Copyright Tiny Software, Inc. ©2005 All rights reserved. 2 TABLE OF CONTENTS INTRODUCTION.............................................................................................................5 The Bluetooth Technology.......................................................................................................................5 What is BTW............................................................................................................................................5 What’s in the box.....................................................................................................................................5 What’s new in BTW4.0............................................................................................................................6 Bluetooth Tray.........................................................................................................................................6 My Bluetooth Places................................................................................................................................6 Icons used for Bluetooth devices and services.........................................................................................7 GETTING STARTED....................................................................................................11 My Bluetooth Places..............................................................................................................................11 Finding Bluetooth devices.....................................................................................................................11 Finding services.....................................................................................................................................11 Setting up a connection..........................................................................................................................12 Determining a connection status...........................................................................................................13 Send to another Bluetooth device..........................................................................................................14 CLIENT APPLICATIONS............................................................................................16 About Client and Server........................................................................................................................16 Human Interface Device........................................................................................................................16 Printer...................................................................................................................................................17 Audio Gateway......................................................................................................................................17 Headset..................................................................................................................................................18 Bluetooth Serial Port.............................................................................................................................18 Dial-up Networking...............................................................................................................................19 Fax.........................................................................................................................................................20 File Transfer..........................................................................................................................................20 Image.....................................................................................................................................................22 PIM Exchange......................................................................................................................................23 PIM Synchronization.............................................................................................................................24 Network Access......................................................................................................................................24 BLUETOOTH SERVICE..............................................................................................27 Common Configuration Settings............................................................................................................27 Notifications..........................................................................................................................................27 Audio Gateway......................................................................................................................................28 Bluetooth Image Transfer......................................................................................................................29 Bluetooth Serial Port.............................................................................................................................29 Dial-up Networking Service..................................................................................................................30 Fax Service...........................................................................................................................................…

Text truncated - open the document above for the full version.

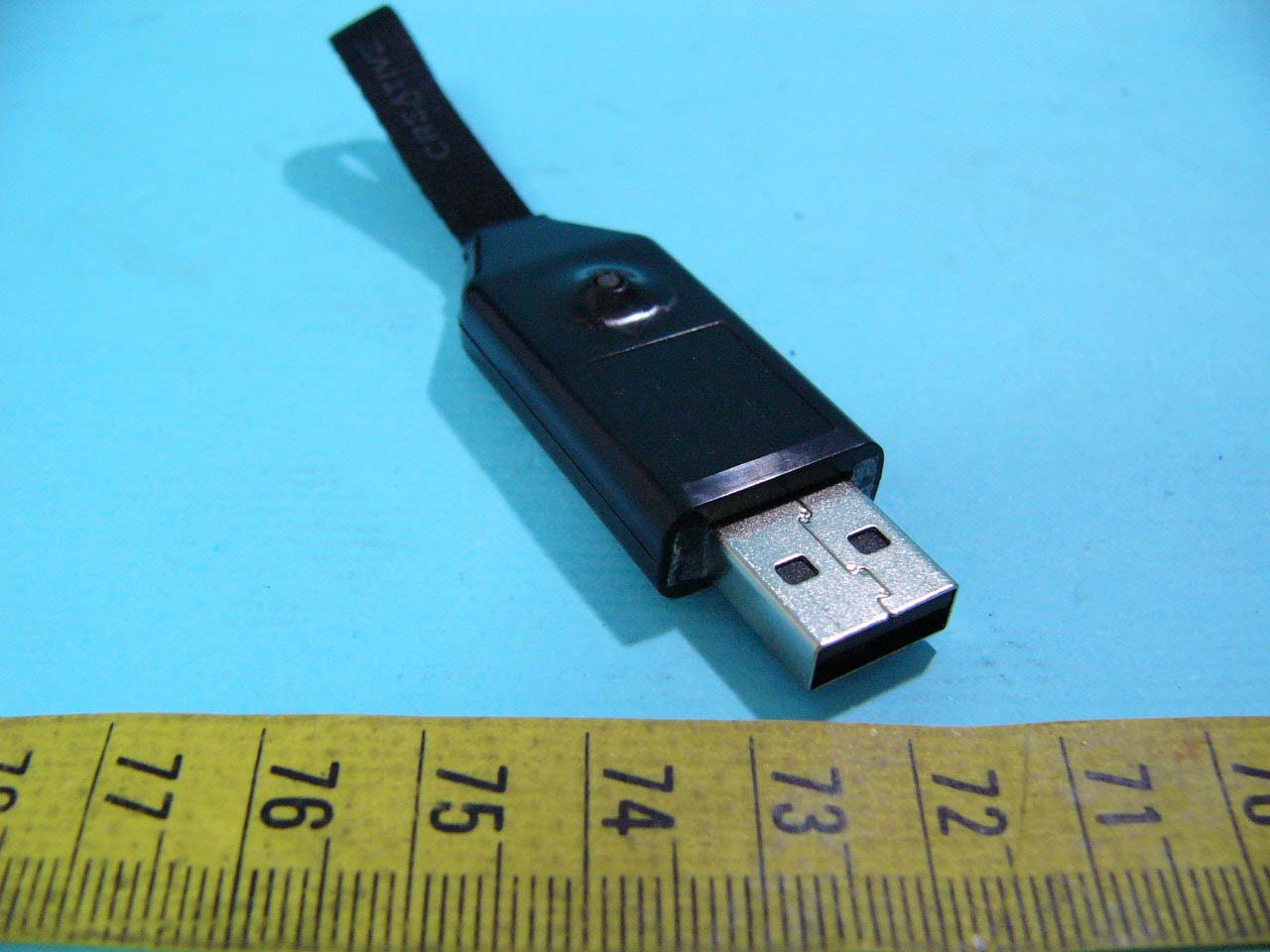

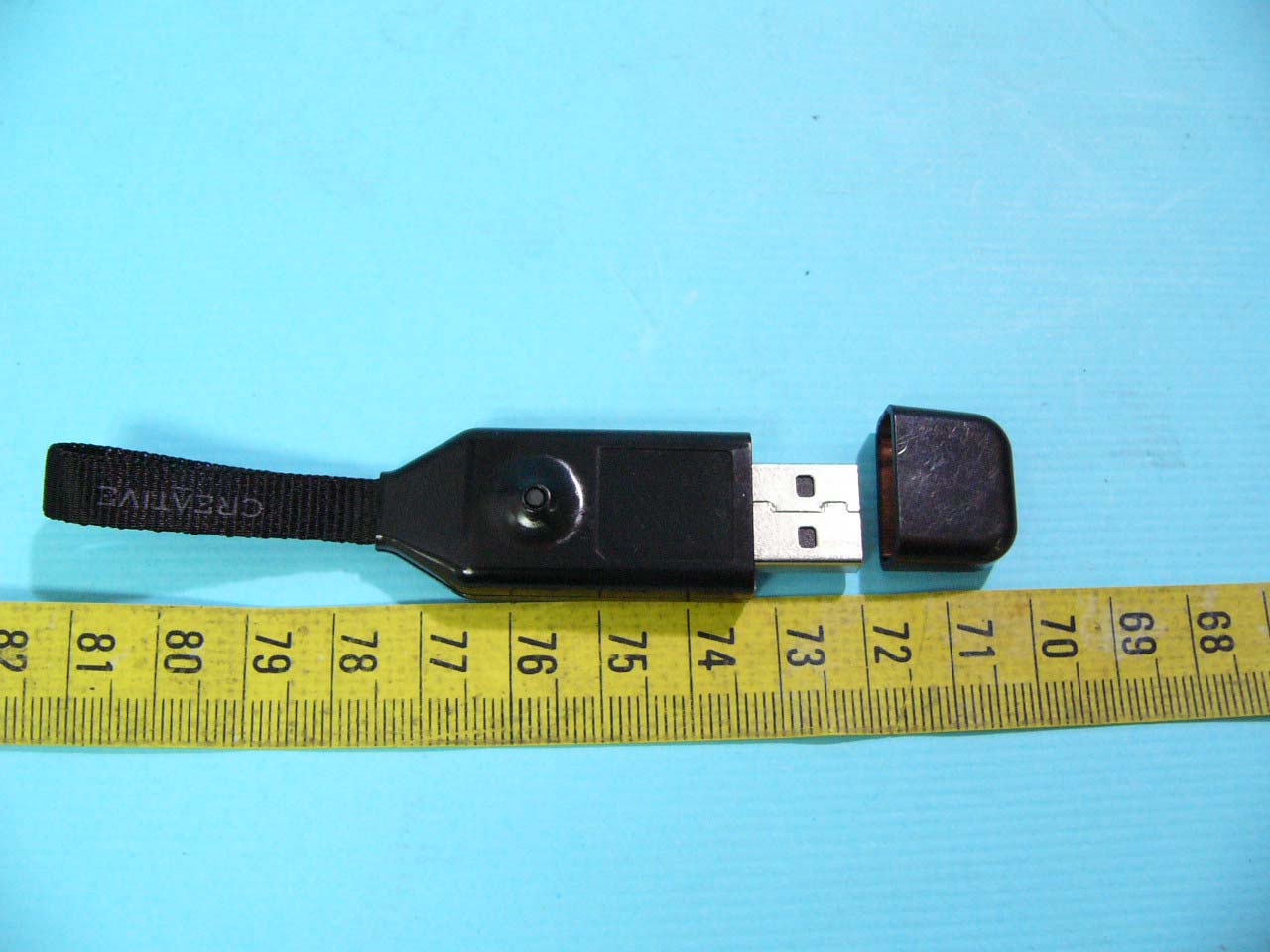

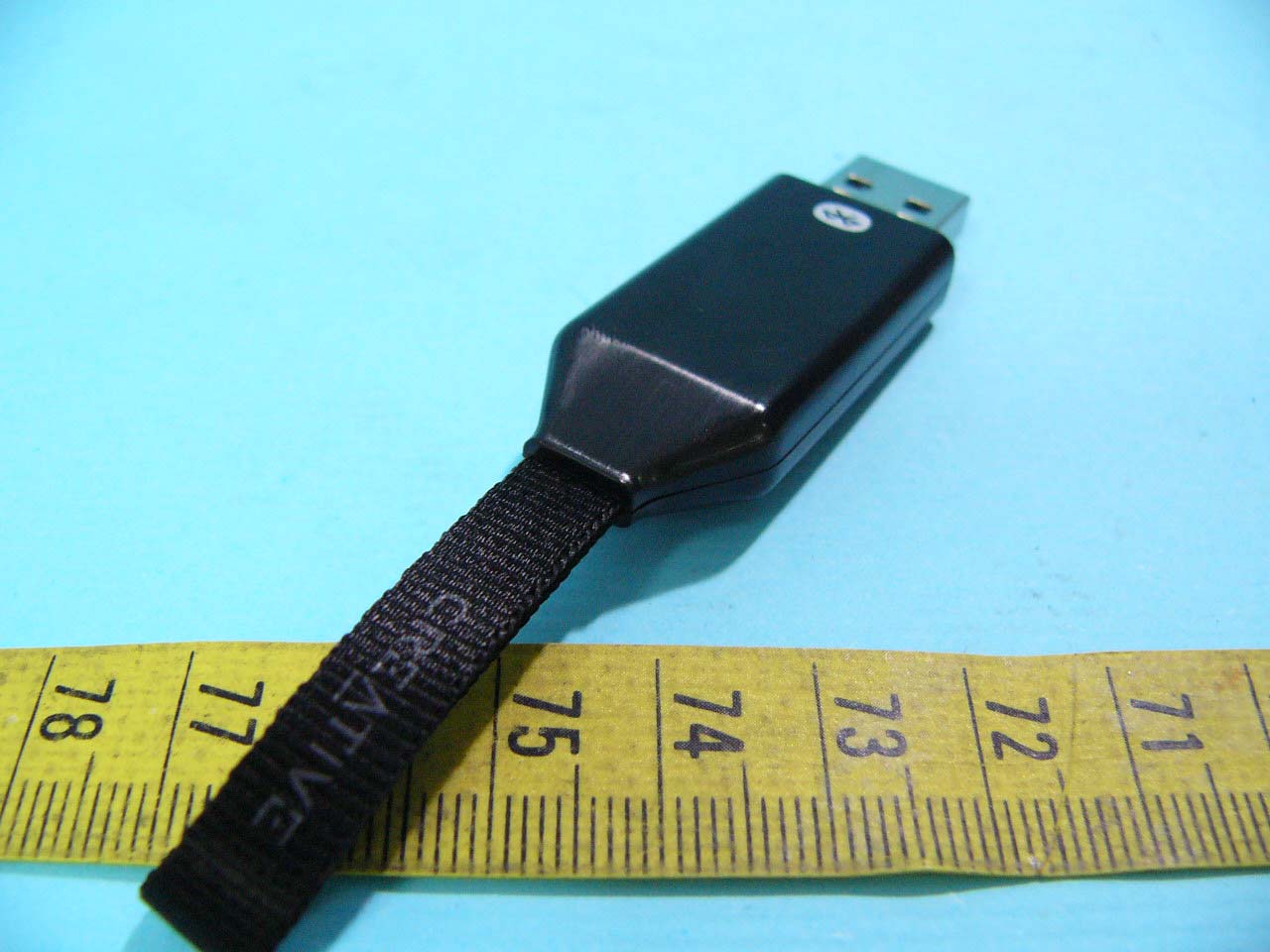

ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Sheet 1 of 3 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Sheet 2 of 3 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT

Bluetooth USB Dongle Model: CB3200 FCC ID: GX5-CB3200 Made in China 19mm 12mm 4-R0.5mm

ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Sheet 3 of 3 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Component View of the Main PCB 6. Solder View of the Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth USB Dongle Model : CB3200 FCC ID : GX5-CB3200 for APPLICANT : Broadxent Pte Ltd. ADDRESS : 31 International Business Park, Creative Resource, Singapore 609921 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5 , DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWA, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET94R-11-143-04 ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Broadxent Pte Ltd. 31 International Business Park, Creative Resource, Singapore 609921 Manufacture : Broadxent Pte Ltd. 31 International Business Park, Creative Resource, Singapore 609921 Description of Device : a) Type of EUT : Bluetooth USB Dongle b) Trade Name : Creative c) Model No. : CB3200 d) Power Supply : Power from PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Dec. 05, 2005 Test Engineer : ( falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System ........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT ............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure ............................................................................................................... 8 4.3 Measuring Instrument................................................................................................................. 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 Tx Portion .......................................................................................................................................... 11 4.4.2 Radiated Emissions in Restricted Bands ........................................................................................... 14 4.4.3 Other Emissions ................................................................................................................................. 15 4.5 Field Strength Calculation.......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup ........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 17 5.1 Standard Applicable ................................................................................................................... 17 5.2 Measurement Procedure ............................................................................................................. 17 5.3 Conducted Emission Data .......................................................................................................... 18 5.4 Result Data Calculation.............................................................................................................. 18 5.5 Conducted Measurement Equipment ......................................................................................... 19 5.6 Photos of Conduction Measuring Setup..................................................................................... 20 6 ANTENNA REQUIREMENT ..........................…

Text truncated - open the document above for the full version.

ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Sheet 16 of 37 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Sheet 20 of 37 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup ETC Report No. : ET94R-11-143-04 FCC ID.: GX5-CB3200 Sheet 23 of 37 Sheets Rev. No 2.1 Figure 4 : Measurement configuration. EUT Spectrum Analyzer 7.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Rohde & Schwarz FSP 06/30/2005 Attenuator Weinschel Engineering1 N/A 7.4 Measurement Data Test Date : MAY 20, 2005 Temperature : 20°C Humidity : 65% a) Channel Low : Adjacent Hopping Channel Separation is 1000 kHz b) Channel Middle : Adjacent Hopping Channel Separation is 1000 kHz c) Channel High : Adjacent Hopping Channel Separation is 1000 kHz Note : 1. Please see appendix 2 for Plotted Data 2. The expanded uncertainty of the hopping channel separation tests is 2dB.
