GX5-CB2470BLUETOOTH AUDIO TRANSMITTER

i CB2470 Bluetooth Wireless Audio Adapter User’s Guide ii FCC Caution 1.The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2.FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 3.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4.Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. FCC Statement This device is intended only for OEM integrators under the following 1)The antenna must be installed such that 20 cm is maintained between antenna and users, and 2)The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not required. However, the OEM integrator is still responsible for testing end-product for any additional compli- ance requirements required with module installed (for example, digital device emissions, PC peripheral requirements, etc.). Important Note In the event that these conditions can not be example certain laptop configurations or co- location with another transmitter), then the FCC authorization is no longer considered valid the FCC ID can not be used on the final product. In these circumstances, OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. iii End Product Labeling This transmitter module is authorized only for use in device where antenna may be installed such that 20 cm may be maintained between antenna and users (for example access points, routers, wireless ADSL and similar equipment). The final end product must be labeled in a area with the following: “ Contains TX FCC ID: I4L-MS6855”. Manual Information for End Users The end user must not have manual instructions to remove or install device. The user manual for end users must include the following information in a prominent location: “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located operating in conjunction with any other antenna or transmitter.” as a result of e-mail transmission.” Important Safety Precautions Always read and follow these basic safety precautions carefully when handling any piece of electronic component. 1.Keep this User’s Guide for future reference. 2.Keep this equipment away from humidity. 3.Lay this equipment on a reliable flat surface before setting it up. 4.The openings on the enclosure are for air convection hence protects the equipment from overheating. 5.All cautions and warnings on the equipment should be noted. 6.Never pour any liquid into the opening that could damage or cause electrical shock. 7.If any of the following situations arises, get the equipment checked by a service personnel: Liquid has penetrated into the equipment The equipment has been exposed to moisture The equipment has not work well or you can not get it work according to User’s Manual The equipment has dropped and damaged If the equipment has obvious sign of breakage 8.DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60 O C OR BELOW -20 O C, IT MAY DAMAGE THE EQUIPMENT. 1 Introduction The Bluetooth Wireless Audio Adapter - CB2470 (hereafter called CB2470), compliant with Bluetooth Specification v1.2, is a high-efficiency wireless audio adapter for MP3 players, mobile phones and PCs. The transmittion distance can be up to 30 meters. With CB2470, you can use MP3 players, mobile phones and PCs wirelessly through Bluetooth connection. The CB2470 is compatible with above devices wihout drivers needed. Just plug it into the to line-out and pair with your Bluetooth earphone, then you can get rid of the limitaion of the lines.. >>> 1.1 Bluetooth Wireless Audio Adapter 2 Press and hold the Power/Pair button for 3-secs irregardless of whether unit is in Stand-By mode or Pair and Connect mode. The Bicolor LED will then alternate between blue and green. When paired successfully, the LED will convert to blue colour and will start to blink once every 5-sec. Blue LED will blink once every 10-sec when audio streaming and once every 5-sec when not. When pairing fails, LED will switch to green (Standby Mode) two minutes later and will auto power off after 3 mins. If paired device is not within range, LED will turn to green colour and will blink once every 5 sec. >>> 1.2 How CB2470 Works 4 Step 1: Step 2: MP3 Player NB/Computer Mobile Phone 3 >>> 1.3 Product View LED Indicator Power/Pair Button Turning on the audio adapter Press and hold the Power/Pair button for five seconds. LED will light up for 0.3 sec. Thereafter the audio adapter will auto- detect and connect to the paired devices. Turning off the audio adapter Press and hold the Power/Pair button for five seconds. Thereafter, all LEDs will then turn off after lighting up for 0.3 sec. 4 >>> 1.4 Specifications 1.4.1 General Power Source1 x AAA Battery Storage Temperature0°C - 70°C Operating5°C - 55°C Temperature Firmware UpgradeTo be upgraded at Factory Level via contact points located at Batter Chamber. Low BatteryGreen LED will blink twice rapidly in Indicatorsuccession for every 5 sec interval. LEDOne Bi-Colour LED (Blue - Device in Bluetooth operation/Green - Stand- by stage) or Separated LEDs ButtonsPower / Pair Button Auto-Power OffDevice will auto-power off after 3 minutes in standby mode. 1…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title SizeDocument NumberR e v Date:Sheetof MS6868D100 Block Diagram A 16Thursday, February 24, 2005 ZEEVO-ZV4301 2.4GHz Antenna AAA Battery Power On/Off 8M Flash 0.9~1.5V 8739 Codec Pair/Mode 3.3V LED Stereo Headset- Source Side Power Hold 1.5V to 3.3V Regurator

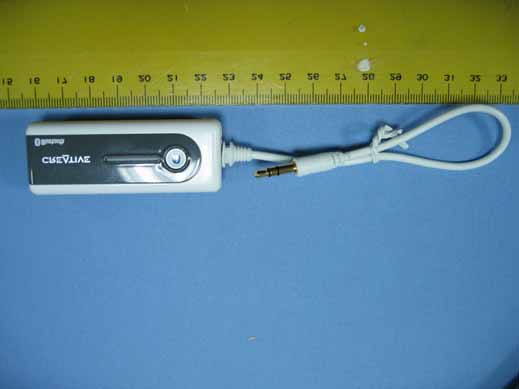

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 2 Part I: EUT 1 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 2 Part II: EUT 2 PHOTOS OF EUT

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :GX5-CB2470

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 Part I: EUT 1 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 4 Part II: EUT 2 PHOTOS OF EUT

FCC ID: GX5-CB2470 Operational Description of equipment The Bluetooth Wireless Audio Adapter, compliant with Bluetooth Specification v1.2, is a high-efficiency wireless audio adapter for MP3 players, mobile phones and PCs. The transmittion distance can be up to 30 meters. With 6868D, you can use MP3 players, mobile phones and PCs wirelessly through Bluetooth connection. The CB2470 is compatible with above devices without drivers needed. Just plug it into the to line-out and pair with your Bluetooth earphone, then you can get rid of the limitaion of the lines. PRODUCT Bluetooth Audio Transmitter MODEL NO. CB2470 POWER SUPPLY DC 0.9~1.6 V, 150~350mA FREQUENCY BAND 2.402~2.480GHz CARRIER FREQUENCY 2.402~2.480GHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1 MHz RATED RF OUTPUT POWER -6~+4 dBm (0.25~2.512mW) I.F. & L.O. I.F.:12 MHz MODULATION TYPE GFSK BIT RATE OF TRANSMISSION 1Mbps DUTY CYCLE Max 1600 hops/sec ANTENNA TYPE Multilayer Ceramic Antenna ANTENNA GAIN Max 2 dBi

5 5 4 4 3 3 2 2 1 1 DD CC BB AA SCLK CSB SDIN MCLK +2.8V +2.8V SPI_CS3 SPI_CLK3 GPIO83 Rin4 Lin4 GPIO43 GPIO53 GPIO73 SPI_DI3 Title SizeDocument NumberR ev Date:Sheet of MS6868D100 BT+MP3_CODEC B 26Thursday, February 24, 2005 Serial control mode select : 3 Wire interface format Resistor close to U3 C39 1u R30R C12 10u CP2 X_COPPER 12 R2 5k6 2 1 L2BEAD 12 D5 ESD Protection Diode CP3 X_COPPER 12 U1 WM8739 DBVDD 7 AVDD 14 DCVDD 5 CSB 20 SDIN 1 SCLK 2 AGND 15 BCLK 8 RLINEIN 17 LLINEIN 18 MODE 19 DGND 6 ADCLRC 12 ADCDAT 11 VMID 16 XTI/MCLK 3 XTO 4 DNC 9 DNC 10 NC 13 D6 ESD Protection Diode D7 ESD Protection Diode R5 5k6 21 L1 10u R7 10K C2 4.7u R48 x _0R C10 220p C1 0.1u C4 0.1u R6 5k6 2 1 R40R C5 4.7u C8 4.7u C11 0.1u R53 x_0R C38 0.1u R80 R R470R C9 10u R52 x _0R R510R R500R C7 0.1u R1 5k6 21 R490R C6 220p R54 x _0R C3 10u CP1 X_COPPER 12 5 5 4 4 3 3 2 2 1 1 DD CC BB AA G PIO6_LED ANT VDD UCTS CSB VDD VDD_USB URXD SCLK SPI_DI URTS SPI_CS VDD_USB SDIN VDD_ANG VDD_VCO VDD_RF MCLK VD D_RF G PIO6_LED VDD_ANG SPI_CLK UTXD VDD_VCO VDD +2.8V +2.8V +2.8V +2.8V +2.8V VBATT +2.8V SPI_CLK2 SPI_CS2 GPIO82 SPI_DI2 GPIO72 SW _detector4FW4 RW4 VOL-4 MODE4 PLAY4 VOL+4 GPIO42 GPIO52 LOCK4 PowerOn_14 RESET4 Title SizeDocument NumberR ev Date:Sheet of MS6868D 100 MAIN CHIP A3 36Thursday, February 24, 2005 C22 4.7pF R18 1k C15 X_0.5PF C19 10n Y212MHz 1 2 3 4 C18 10n L6BEAD 12 R 1110K C14 X_0.5PF C35 0.1u R20 121K C43 X_10n R45 10k +C40 100uF L4BEAD 12 C37 x_1u R440R C45 X_10n C23 4.7u C24 22pF R46x_0R R120R C46 X_10n Q1 2N7002 G D S A1 RF MAIN ANT_AT7635 GND1 1 GND2 3 IN 2 4 4 5 5 6 6 L7BEAD 12 R90R U2 SST39VF800A NC A3 VSS1 H1 VSS2 H6 VCC G4 A0 E1 A1 D1 A2 C1 A3 A1 A4 B1 A5 D2 A6 C2 A7 A2 A8 B5 A9 A5 A10 C5 A11 D5 A12 B6 A13 A6 A14 C6 A15 D6 A16 E6 A17 B2 A18 C3 NC D4 D0 E2 D1 H2 D2 E3 D3 H3 D4 H4 D5 E4 D6 H5 D7 E5 D8 F2 D9 G2 D10 F3 D11 G3 D12 F4 D13 G5 D14 F5 D15 G6 NC F6 NC B4 OE G1 WE A4 CE F1 NC B3 NC B4 NC C4 NC D3 NC D4 NC F6 L5BEAD 12 TP5 1 1 C25 22pF C42 X_10n C21 10n TP6 1 1 TP7 1 1 U6 XC61CN1802MRN Vout 2 Vss 1 VIN 3 C20 3.9pF TP8 1 1 C41 10n U5 XC61CN0902MRN Vout 2 Vss 1 VIN 3 TP9 1 1 R140R C44 10n C26 10p C27 12p Y1 32.768KHz OSC_CM130_32768 1 32 4 C17 0.1u U3 ZV4301 XTAL_IN K8 A10 F2 (GPIO10)PCM_OUT G9 GPIO4 B8 A12 F1 D11 H6 REF K4 NC A1 VSS_RF J10 NC1 A10 VDD_VCO K5 A14 G1 VSS_RF E6 VDD_ANG K2 VSS_RF B9 VDD A4 A16 J1 D6 F5 VSS_USB A9 (GPIO2)SPI_CS E8 VSS B3 CS_FLASH B6 A18 D4 (GPIO13)A22 B4 RAM_1 A6 (GPIO15)A20 C3 D13 F8 (GPIO0)SPI_DO E7 ATRST J9 (GPIO12)TX_EN D10 D1 H5 D8 G5 RESET J4 A1 G3 CTS D8 SLP_XTAL_IN B1 CS_0 C7 A3 C2 D15 H4 D3 F4 PA_CTRL F10 A5 E4 TXD E9 ATCK J6 (GPIO9)PCM_CLK G10 A7 D1 D10 E5 GPIO5 B7 XTAL_OUT K9 A9 D2 USB_DM A7 A11 G2 D5 F6 WE C5 VSS_RF K7 A13 E1 (GPIO8)PCM_IN H8 RAM_0 A5 MODE0 K1 VSS_RF J2 VDD A2 VDD_RF K6 MODE2(NC) K10 VSS_RF C10 A15 H1 VSS C9 VSS_RF B2 VDD_USB A3 D12 F7 A17 E3 VSS_ANG K3 (GPIO14)A21 D3 A19 H2 (GPIO3)SPI_CLK D6 SLP_XTAL_OUT C1 D0 G8 ATDI J8 D7 G6 CS_RAM C6 ANT B10 GPIO6 H10 D14 G7 ATMS J7 A0 H3 (GPIO1)SPI_DI D7 (GPIO11)RX_EN E10 D2 D5 A2 C4 D9 H7 RTS F9 (GPIO7)PCM_SYNC H9 A4 J3 RXD D9 ATDO J5 A6 F3 D4 G4 INT_0 C8 OE B5 USB_DP A8 A8 E2 R 1010K L3BEAD 12 R13100k D1 BLUE 5 5 4 4 3 3 2 2 1 1 DD CC BB AA CONTROL CONTROL VBATT VBATT +2.8V +2.8V VBATT PowerOn SW _detector3 PowerOn PowerOn_13 RESET3 Rin2 Lin2 PLAY3 MODE3 FW3 RW3 VOL-3 VOL+3 LOCK3 Title SizeDocument NumberR ev Date:Sheet of MS6868D 100 HEADPHONE_POW ER A3 46Thursday, February 24, 2005 2.8V converter TOKO #A914BYW-4R7M Power On/Off Ver : 0B Vs Vd J1P R33 x_37K4 2 1 R35 x_47K 2 1 D3 RB160M-30 J3N R38 x_620K 2 1 R43 1k TP11 1 1 Q9 x_2N7002 G DS R24 75K 1% 2 1 R26 59k 1% 2 1 R34 0R Q7 x_2N7002 G DS TP13 1 1 +C31 100uF U4LTC3401 PGOOD 6 SW 4 VIN 3 MODE 2 FB 8 VOUT 7 RT 1 GND 5 VC 9 SD 10 L94.7uH C29 10u R25 100k R36 100k 2 1 C34 470pF R27 100k 2 1 C33 4.7pF C36 1u Q3 SI2312DS D G S Q6 x_2N7002 G DS TP10 1 1 S1 1 2 3 4 TP12 1 1 R40 1M 2 1 TP14 1 1 R41 5.1M 21 TP15 1 1 TP16 1 1 TP17 1 1 R21 0R 21 Q10 x_2N7002 G D S TP19 1 1 J2 A1251W RO-3PS 1 1 2 2 3 3 4 4 5 5 6 6 R15 0R R39 x_180K Q5 x_2N7002 G DS R 42X_0R +C32 100uF R22 0R 21 G D S Q11 IRLML6401 G DS R23 x_0R 21 R28 x_12K 2 1 D8 BAT54C 2 3 1 C30 10nF R29 x_18K 2 1 TP18 1 1 R16 0R R32 1M 2 1 Q4 x_2N7002 G DS R30 x_20K 2 1 R37 100k 2 1 R31 x_30K 2 1 Q8 x_2N7002 G DS

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:2 of 49 Issued Date: Apr. 14, 2005 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT.................................................... 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION........................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF SUPPORT UNIT.................................................................. 5 2.3 DESCRIPTION OF TEST MODE........................................................................ 6 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 6 4 TECHNICAL CHARACTERISTICS TEST.............................................................. 7 4.1 CHANNEL SEPARATION TEST ......................................................................... 7 4.1.1 LIMIT .................................................................................................................. 7 4.1.2 TEST EQUIPMENT ......................................................................................... 7 4.1.3 TEST SET-UP.................................................................................................. 7 4.1.4 TEST PROCEDURE........................................................................................ 7 4.1.5 EUT OPERATING CONDITION....................................................................... 8 4.1.6 TEST RESULT................................................................................................. 8 4.2 20DB BANDWIDTH .......................................................................................... 12 4.2.1 LIMIT ............................................................................................................. 12 4.2.2 TEST EQUIPMENT ....................................................................................... 12 4.2.3 TEST SET-UP................................................................................................ 12 4.2.4 TEST PROCEDURE...................................................................................... 12 4.2.5 EUT OPERATING CONDITION..................................................................... 12 4.2.6 TEST RESULT............................................................................................... 13 4.3 QUANTITY OF HOPPING CHANNEL TEST .................................................... 17 4.3.1 LIMIT ................................................................................................................ 17 4.3.2 TEST EQUIPMENT ....................................................................................... 17 4.3.3 TEST SET-UP................................................................................................ 17 4.3.4 TEST PROCEDURE...................................................................................... 17 4.3.5 EUT OPERATING CONDITION..................................................................... 17 4.3.6 TEST RESULT............................................................................................... 18 4.4 TIME OF OCCUPANCY (DWELL TIME)........................................................... 19 4.4.1 LIMIT ................................................................................................................ 19 4.4.2 TEST EQUIPMENT ....................................................................................... 19 4.4.3 TEST SET-UP................................................................................................ 19 4.4.4 TEST PROCEDURE...................................................................................... 19 4.4.5 EUT OPERATING CONDITION..................................................................... 19 4.4.6 TEST RESULT............................................................................................... 20 4.5 PEAK POWER TEST........................................................................................ 24 4.5.1 LIMIT ................................................................................................................ 24 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:3 of 49 Issued Date: Apr. 14, 2005 4.5.2 TEST EQUIPMENT ....................................................................................... 24 4.5.3 TEST SET-UP................................................................................................ 25 4.5.4 TEST PROCEDURE...................................................................................... 25 4.5.5 EUT OPERATING CONDITION..................................................................... 25 4.5.6 TEST RESULT............................................................................................... 25 4.6 BAND EDGE TEST .......................................................................................... 28 4.6.1 LIMIT ................................................................................................................ 28 4.6.2 TEST EQUIPMENT ....................................................................................... 29 4.6.3 TEST SET-UP................................................................................................ 30 4.6.4 TEST PROCEDURE..........................................................................…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:21 of 49 Issued Date: Apr. 14, 2005 CH0: Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:22 of 49 Issued Date: Apr. 14, 2005 Ch39: Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:23 of 49 Issued Date: Apr. 14, 2005 CH78: Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:24 of 49 Issued Date: Apr. 14, 2005 4.5 PEAK POWER TEST 4.5.1 LIMIT FCC Part15, Subpart C Section 15.247. LIMIT (W) FREQUENCY RANGE (MHz) Quantity of Hopping Channel 50251575 902-9281(30dBm) 0.125(21dBm)NANA 2400-2483.5NANA 0.125(21dBm)1(30dBm) 5725-5850NANANA 1(30dBm) 4.5.2 TEST EQUIPMENT The following test equipment was used during the test EQUIPMENT/ FACILITIES SPECIFICATIONSMANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER SPECTRUM 9kHz-7GHz ROHDE & SCHWARZ FSP7/ 839511/010 MAR. 2005 ETC POWER METER N/ABOONTON 4232A/ 29001 MAY 2005 ETC POWER SENSOR DC-18GHz 0.3ȝW-100mW 50ȍ BOONTON 51011-EMC/ 31184 JUN. 2005 ETC NOTE:The calibration interval of the above test equipment is one year and the calibrations are traceable to NML/ROC and NIST/USA. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:25 of 49 Issued Date: Apr. 14, 2005 4.5.3 TEST SET-UP The EUT was connected to a spectrum through a 50ȍ RF cable. 4.5.4 TEST PROCEDURE The EUT was operating in hopping mode or could control its channel. Printed out the test result from the spectrum by hard copy function. Recorded the read value of the power meter. 4.5.5 EUT OPERATING CONDITION Same as section 4.1.5 of this report. 4.5.6 TEST RESULT Temperature:20°CHumidity: 55%RH Spectrum Detector: PKTested by: Hugo Yeh Test Result:PASSTested Date: Mar. 09, 2005 CHANNEL NUMBER CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 02402.0000-3.0230 392441.0000-5.7230 782480.0000-7.3430 EUT Spectrum EUT Power meter Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:26 of 49 Issued Date: Apr. 14, 2005 CH0: CH39: Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:27 of 49 Issued Date: Apr. 14, 2005 CH78: Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:28 of 49 Issued Date: Apr. 14, 2005 4.6 BAND EDGE TEST 4.6.1 LIMIT FCC Part15, Subpart C Section 15.247. In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). LIMIT OPERATING FREQUENCY RANGE (MHz) SPURIOUS EMISSION FREQUENCY (MHz) Peak power ration to emission(dBc) Emission level(dBuV/m) <902>20NA >928>20NA 902-928 960-1240NA54 <2400>20NA 2400-2483.5 >2483.5-2500NA54 <5350-5460NA54 <5725>20NA 5725-5850 >5850>20NA Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:29 of 49 Issued Date: Apr. 14, 2005 4.6.2 TEST EQUIPMENT The following test equipment was used during the test EQUIPMENT/ FACILITIES SPECIFICATIONSMANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER SPECTRUM 9kHz-7GHz ROHDE & SCHWARZ FSP7/ 839511/010 MAR. 2005 ETC EMI TEST RECEIVER 9 kHz TO 2750 MHz ROHDE & SCHWARZ ESCS30/ 830245/012 AUG. 2005 R&S SPECTRUM 9KHz-26.5GHz HP 8953E/ 3710A03220 MAY 2005 ETC PRE-AMPLIFIER 1GHz-26.5GHz Gain:30dB HP 8449B/ 3008A01019 NOV. 2005 ETC BI-LOG ANTENNA 25 MHz TO 2 GHz EMCO 3142/ 9701-1124 APR. 2005 SRT HORN ANTENNA1GHz to 18GHz EMCO 3115/ 9602-4681 DEC. 2005 ETC OATS 3 - 10 M measurement SRTSRT-1 APR. 2005 SRT NOTE:The calibration interval of the above test equipment is one year and the calibrations are traceable to NML/ROC and NIST/USA. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041401 Report No.:FCCC05022505-01 FCC ID:GX5-CB2470 Page:30 of 49 Issued Date: Apr. 14, 2005 4.6.3 TEST SET-UP FOR RF CONDUCTED TEST (dBc) The EUT was connected to the spectrum through a 50ȍ RF cable. FOR RADIATED EMISSION TEST NOTE : 1. The EUT system was put on a wooden table with 0.8m heights above a ground plane. 2. For the actual test configuration, please refer to the photos of testing. EUT Spectrum EMI Receiver Filter To Utility Power EUT Ground Plane 3/10m 0.8 m Coaxial Cable Turn Table 1m – 4m Power Cable Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung- Li City, Taoyuan, Taiwan TEST REPORT Reference No.:C05041…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Radiated test(RX) - Radiated test(TX) - Conducted test
