GX5-CW2202-4Wireless Access Point Router

User’s Guide Network Blaster Wireless Access Point Router CW2202 Information in this document is subject to change without notice and does not represent a commitment on the part of Creative Technology Ltd. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the written permission of Creative Technology Ltd. The software described in this document is furnished under a license agreement and may be used or copied only in accordance with the terms of the license agreement. It is against the law to copy the software on any other medium except as specifically allowed in the license agreement. The licensee may make one copy of the software for backup purposes only. The Software License Agreement is found in a separate folder on the Application CD. Copyright © 2004 by Creative Technology Ltd. All rights reserved. Version 1.1 July 2004 The Creative logo, Blaster, Network Blaster and Turbo-G are registered trademarks or trademarks of Creative Technology Ltd. in the United States and/or other countries. Microsoft, MS-DOS, Windows and the Windows logo are registered trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Corporation. All other products are trademarks or registered trademarks of their respective owners and are hereby recognized as such. All specifications are subject to change without prior notice. Actual contents may differ slightly from those pictured. Contents i i Contents Introduction Package Contents ........................................................................................................................... 1-1 System Requirements .................................................................................................................... 1-1 Model Number, Serial Number and MAC Address ............................................................ 1-2 More Help ......................................................................................................................................... 1-2 Product Registration ...................................................................................................................... 1-2 Customer Support Services and Warranty ........................................................................... 1-2 Document Conventions ............................................................................................................... 1-3 About Your Wireless AP Router Front Panel ................................................................................................................................................. 2-1 Rear Panel ................................................................................................................................................... 2-2 Setting Up Your Wireless AP Router Configuring Basic Settings Step 1: Preparing a client ...................................................................................................................... 4-2 Configuring your wired client ..................................................................................................... 4-2 Configuring your wireless client ................................................................................................ 4-4 Step 2: Configuring basic settings on your Wireless AP Router ............................................... 4-5 Disabling the proxy setting in your web browser ................................................................ 4-5 Accessing the configuration page ............................................................................................... 4-5 Configuring Internet connection settings ................................................................................ 4-8 Configuring Wireless LAN settings ........................................................................................ 4-12 Configuring Wireless Security settings .................................................................................. 4-13 ii ii Configuring Advanced Settings Configuring LAN settings ............................................................................................................. 5-1 Configuring Wireless MAC Address Access Control ........................................................ 5-2 Configuring Forwarding settings ................................................................................................ 5-3 Configuring Wireless Advanced settings ................................................................................ 5-4 Changing router web page access password ......................................................................... 5-5 Upgrading Firmware ...................................................................................................................... 5-6 Restoring or saving a profile ........................................................................................................ 5-7 Resetting the Wireless AP Router ............................................................................................ 5-8 Appendixes A About Wireless LANs Features and Benefits of Wireless LANs ......................................................................................... A-1 About Ad-Hoc Mode ............................................................................................................................. A-2 About Infrastructure Mode .................................................................................................................. A-3 Setting Up Wireless LANs ................................................................................................................... A-4 B Frequently Asked Questions Turbo-G ...................................................................................................................................................... B-1 C Technical Specifications Standa…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID Label Location

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

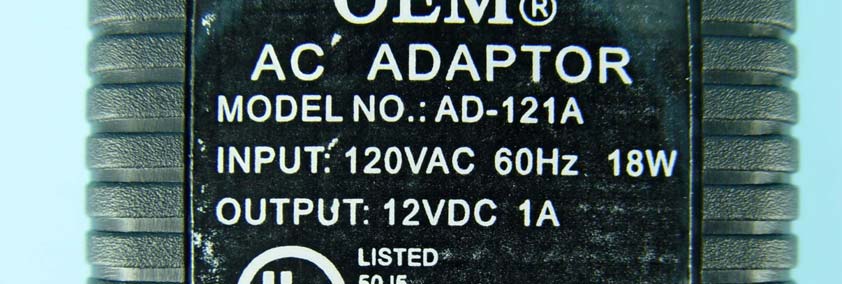

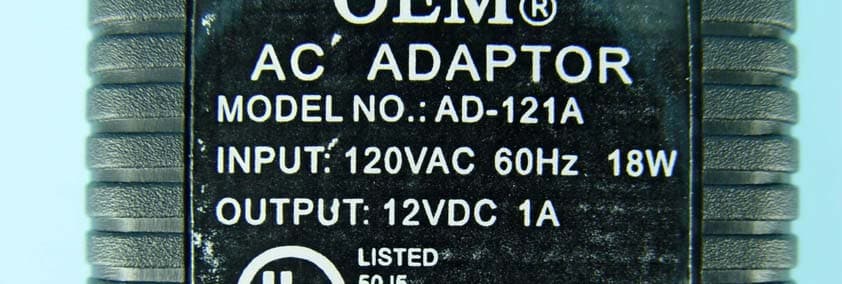

FCC ID: GX5-CW2202-4 Report No. RF930806L01 Operational Description This device operates in the 2.4GHz frequency band. The maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter. The antenna types are Printed and Dipole antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: GX5-CW2202-4 Report No: SA930806L01 1 RF EXPOSURE REPORT REPORT NO.: SA930806L01 MODEL NO.: CW2202-4 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Broadxent Pte Ltd ADDRESS: 31 International Business Park, Creative Resoun, Singapore 609921 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: GX5-CW2202-4 Report No: SA930806L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: GX5-CW2202-4 Report No: SA930806L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: GX5-CW2202-4 Report No: SA930806L01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 3dBi or 1.995(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For CCK technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.9530.0081.0 6243717.7830.0071.0 11246212.5890.0051.0 For OFDM technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.9530.0081.0 6243719.9530.0081.0 11246219.9530.0081.0

FCC ID: GX5-CW2202-4 Report No.: RF930806L011Issued: Aug. 13, 2004 FCC TEST REPORT REPORT NO.: RF930806L01 MODEL NO.: CW2202-4 RECEIVED: Aug. 06, 2004 TESTED: Aug. 09 ~ Aug. 12, 2004 APPLICANT: Broadxent Pte Ltd ADDRESS: 31 International Business Park, Creative Resoun, Singapore 609921 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: GX5-CW2202-4 Report No.: RF930806L012Issued: Aug. 13, 2004 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3GENERAL INFORMATION........................................................................................7 3.1GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2DESCRIPTION OF TEST MODES ............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................8 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 3.5CONFIGURATION OF SYSTEM UNDER TEST.....................................................10 4TEST TYPES AND RESULTS ................................................................................. 11 4.1CONDUCTED EMISSION MEASUREMENT .......................................................... 11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................ 11 4.1.2TEST INSTRUMENTS............................................................................................. 11 4.1.3TEST PROCEDURES .............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD ...................................................................12 4.1.5TEST SETUP...........................................................................................................13 4.1.6EUT OPERATING CONDITIONS ............................................................................14 4.1.7TEST RESULTS ......................................................................................................15 4.2RADIATED EMISSION MEASUREMENT ...............................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................21 4.2.2TEST INSTRUMENTS ............................................................................................22 4.2.3TEST PROCEDURES .............................................................................................23 4.2.4DEVIATION FROM TEST STANDARD ...................................................................23 4.2.5TEST SETUP...........................................................................................................24 4.2.6EUT OPERATING CONDITIONS ............................................................................24 4.2.7TEST RESULTS ......................................................................................................25 4.2.8TEST RESULTS (A) ................................................................................................26 4.2.9TEST RESULTS (B) ................................................................................................29 4.36dB BANDWIDTH MEASUREMENT.......................................................................32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................32 4.3.2TEST INSTRUMENTS.............................................................................................32 4.3.3TEST PROCEDURE................................................................................................33 4.3.4DEVIATION FROM TEST STANDARD ...................................................................33 4.3.5TEST SETUP...........................................................................................................33 4.3.6EUT OPERATING CONDITIONS ............................................................................33 4.3.7TEST RESULTS (A) ................................................................................................34 FCC ID: GX5-CW2202-4 Report No.: RF930806L013Issued: Aug. 13, 2004 4.3.8TEST RESULTS (B) ................................................................................................38 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................42 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................42 4.4.2TEST INSTRUMENTS.............................................................................................42 4.4.3TEST PROCEDURES .............................................................................................43 4.4.4DEVIATION FROM TEST STANDARD ...................................................................43 4.4.5TEST SETUP...........................................................................................................43 4.4.6EUT OPERATING CONDITIONS ............................................................................43 4.4.7TEST RESULTS (A) ................................................................................................44 4.4.8TEST RESULTS (B) ................................................................................…

Text truncated - open the document above for the full version.

FCC ID: GX5-CW2202-4 Report No.: RF930806L0151Issued: Aug. 13, 2004 4.5.8 TEST RESULTS (B) EUT Wireless Access Point Router MODEL CW2202-4 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24 deg. C, 64% RH, 991 hPa TESTED BY Leo Hung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-16.208PASS 62437-15.998PASS 112462-15.028PASS FCC ID: GX5-CW2202-4 Report No.: RF930806L0152Issued: Aug. 13, 2004 CH1 FCC ID: GX5-CW2202-4 Report No.: RF930806L0153Issued: Aug. 13, 2004 CH6 FCC ID: GX5-CW2202-4 Report No.: RF930806L0154Issued: Aug. 13, 2004 CH11 FCC ID: GX5-CW2202-4 Report No.: RF930806L0155Issued: Aug. 13, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: GX5-CW2202-4 Report No.: RF930806L0156Issued: Aug. 13, 2004 4.6.6 TEST RESULTS The spectrum plots are attached on the following 8 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). 4.6.7 TEST RESULTS(A) NOTE: The band edge emission plot of CCK technique on the following 1~2 pages show 52.49dB delta between carrier maximum power and local maximum emission in restrict band (2.3400GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 99.91dBuV/m, so the maximum field strength in restrict band is 99.91-52.49=47.42dBuV/m which is under 54dBuV/m limit. The band edge emission plot of CCK technique on the following 3~4 pages show 54.41dB delta between carrier maximum power and local maximum emission in restrict band (2.4847GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 97.58dBuV/m, so the maximum field strength in restrict band is 97.58-54.41=43.17dBuV/m which is under 54dBuV/m limit. 4.6.8 TEST RESULTS(B) NOTE: The band edge emission plot of OFDM technique on the following 5~6 pages show 51.20dB delta between carrier maximum power and local maximum emission in restrict band (2.3874GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 101.21dBuV/m, so the maximum field strength in restrict band is 101.21-51.20=50.01dBuV/m which is under 54dBuV/m limit. The band edge emission plot of OFDM technique on the following 7~8 pages show 50.84dB delta between carrier maximum power and local maximum emission in restrict band (2.4837GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 100.27dBuV/m, so the maximum field strength in restrict band is 100.27-50.84=49.43dBuV/m which is under 54dBuV/m limit. FCC ID: GX5-CW2202-4 Report No.: RF930806L0157Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0158Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0159Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0160Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0161Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0162Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0163Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0164Issued: Aug. 13, 2004 FCC ID: GX5-CW2202-4 Report No.: RF930806L0165Issued: Aug. 13, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antennas used in this product are printed and dipole antenna with UFL connector. And the maximum Gain of this antenna is 3dBi. FCC ID: GX5-CW2202-4 Report No.: RF930806L0166Issued: Aug. 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: GX5-CW2202-4 Report No.: RF930806L0167Issued: Aug. 13, 2004 RADIATED EMISSION TEST FCC ID: GX5-CW2202-4 Report No.: RF930806L0168Issued: Aug. 13, 2004 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP, UL GermanyTUV Rheinland JapanVCCI NorwayNEMKO CanadaINDUSTRY CANADA , CSA R.O.C.CNLA, BSMI, DGT NetherlandsTelefication SingaporePSB , GOST-ASIA(MOU) RussiaCERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety/Telecom Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Linko RF Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also…

Text truncated - open the document above for the full version.

FCC ID: GX5-CW2202-4 Report No.: RF930806L0166Issued: Aug. 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: GX5-CW2202-4 Report No.: RF930806L0167Issued: Aug. 13, 2004 RADIATED EMISSION TEST
