GXAHTEBT1000Bluetooth Wireless Stereo Speaker

HUNG TAT INTERNATIONAL (HONG KONG) LIMITED RM 205, 2/F., EASTERN CENTRE, 1065 KING’S ROAD, QUARRY BAY, HONG KONG TEL: 852-2565 5627 FAX 852-2565 7597 Date : 13 th September, 2013 Letter of Agency “I, an officer of Hung Tat Electronic Co., Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communication with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in ∮1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Date this 13 day September of 2013 By _ ________________________ ________ANDREWN C.Y. CHANG__________ _____GENERAL MANAGER__

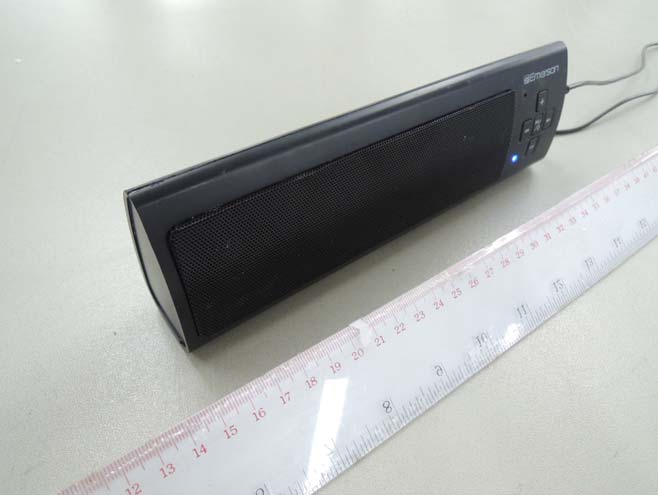

INTERTEK TESTING SERVICE Report No.: 13081175HKG-001 FCC ID: GXAHTEBT1000 Equipment Photographs Model: EBT1000 (External)

Label size: 40X30mm Label Artwork

INTERTEK TESTING SERVICE Report No.: 13081175HKG-001 FCC ID: GXAHTEBT1000 Equipment Photographs Model: EBT1000 (Internal) INTERTEK TESTING SERVICE Report No.: 13081175HKG-001 FCC ID: GXAHTEBT1000 Equipment Photographs Model: EBT1000 (Internal) INTERTEK TESTING SERVICE Report No.: 13081175HKG-001 FCC ID: GXAHTEBT1000 Equipment Photographs Model: EBT1000 (Internal) INTERTEK TESTING SERVICE Report No.: 13081175HKG-001 FCC ID: GXAHTEBT1000 Equipment Photographs Model: EBT1000 (Internal)

Technical Description The Equipment Under Test (EUT) is a portable 2.4GHz Bluetooth speaker. The EUT can accept line in analog audio source. The Bluetooth portion is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 3.7VDC (1 x 3.7V rechargeable battery) or powered by USB port. When the EUT is switched ON in Bluetooth mode, the light will be flashing. The corresponding Bluetooth device would be searched and connected to the EUT before playing audio. After pairing, the light will stay lit. The EUT is using non-adaptive frequency hopping as declared by applicant. 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 90.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 8dB The functions of main ICs are mentioned below. 1. Bluetooth module U3 (GWB005): 1) WS9622NLME (U1) acts as the 2.4GHz radio core of Bluetooth module 2) The 26MHz crystal provides system clock for WS9622NLME (U1). 2. Audio portion: 1) U1 and U2 (4871) is power amplifier driving 2 speakers (2W4R). 3. Power Management portion: 1) U4 (4054) is 3.3V regulator which is providing 3.3V to Bluetooth module. Bluetooth Headset IC - WS9622NLME Datasheet Version: V1.0, January 2013 7F,Shangfu Building,Dengliang Road,Nanshan,Shenzhen, China Tel : 86-755-86185999 Fax: 86-755-86038622 Web: www. db-tech.com.cn WS9622NLME Datasheet (V1.0) Copyright © Vimicro_wx, Inc. 1999-2013 2 Important Notice All rights about this document belong to Vimicro Wuxi Corporation (here after, refer as Vimicro Wuxi). All rights reserved. Vimicro Wuxi and its subsidiaries reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. Customers should c ontact Vimicro Wuxi’s sales department before purchasing the product described in this document. All products are sold subject to Vimicro Wuxi’s terms and conditions of sale supplied at the time of order acknowledgment. Vimicro Wuxi does not w arrant or represent that any lic ense, either explicit or implie d, is granted under any Vimicro Wuxi patent right, copyright, mask work right, or other Vimicro Wuxi intellectual property right relating to any combination, machine, or process in which Vimicro Wuxi products or services are used. Information published by Vimicro Wuxi regarding third-party products or services does not constitute a lic ense from Vimicro Wuxi to use such products or service or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Vimicro Wuxi under the patents or other intellectual property of Vimicro Wuxi. Vimicro Wuxi semiconductor devices are intended for standard uses (such as office equipment, computers, industrial/communications/measuring equipment, and personal/home equipment). Customers using semiconductor devices for special applications (including aerospace, nuclear, military and medical applications) in which a failure or malfunction might endanger life or limb and which require extremely high reliability must contact our Sales Department first. If damage is caused by su ch use of our semiconductor devices without first consulting our Sales Department, Vimicro Wuxi will not assume any responsibility for the loss. The contents of this document must not be reprinted or duplicated without written permission of Vimicro Wuxi. Information and circuit di agrams in this document are only examples of device application. They are not intended to be used in actual equipment. Vimicro Wuxi accepts no respon sibility for infringement of patents or other rights owned by third parties caused by use of the information and circuit diagrams in this document. Reproduction of information in Vimicro Wuxi data books or data sheets is permissible only if preproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. Vimicro Wuxi is not responsible or liable for such altered documentation. Resale of Vimicro Wuxi products or services with statements different from or beyond the parameters stated by Vimicro Wuxi for that product or service voids all explicit and any implied warranties for the associated Vimicro Wuxi product or service and is an unfair and deceptive business practice. Vimicro Wuxi is not responsible or liable for any such statements. WS9622NLME Datasheet (V1.0) Copyright © Vimicro_wx, Inc. 1999-2013 3 TABLE OF CONTENTS OVERVIEW ..................................................................................................................... 4 FEATURES...................................................................................................................... 4 PIN CONFIGURATIONS ................................................................................................. 5 PIN DESCRIPTION ......................................................................................................... 5 FUNCTIONAL BLOCK DESCRIPTION .......................................................................... 8 RF .....................................................................................................................8 RF Receiver ............................................................................................... 8 RF Transmitter ........................................................................................... 8 Modem .................…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13081175HKG-001 The Equipment Under Test (EUT) is a portable 2.4GHz Bluetooth speaker. The EUT can accept line in analog audio source. The Bluetooth portion is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 3.7VDC (1 x 3.7V rechargeable battery) or powered by USB port. When the EUT is switched ON in Bluetooth mode, the light will be flashing. The corresponding Bluetooth device would be searched and connected to the EUT before playing audio. After pairing, the light will stay lit. The EUT is using non-adaptive frequency hopping as declared by applicant. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 90.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 8dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 98.0dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.893mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.893mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

DOWN PALY/PAUSE VOL+ HT-EBT1000 2W4R R2 2K R3 47K C6 470UF/10V(6*8) C2 0.82UF C1 10UF C5 0.68UF C3 10UF 12345 678 U1 4871 R10 100K R7 0R C9 10UF 12 3 4 5 U4 4054 MIC C11 12P R13 10K 1 2 UP 1 GND 2 PWR 3 3V3 4 GND 5 VBAT 6 DGND 7 CHG 8 SPK+ 9 NC 10 GND 11 MIC 12 VOL+ 13 VOL- 14 FW 15 BW 16 BLUE 17 RED 18 MUTE U3 GWB005 USB FBI FB2 600R/100M R1 10K 1 2 VOL- 1 23 4 5 ER C10 104 Q1 9014 R16 47K R18 100K C8 102 FB3 D2 4148 Q39014 R5 10K C13 102 2W4R R12 47K C15 0.82UF 12345 678 U2 4871 R15 100K R17 27K R19 27K LED 6 VSS 5 VDD 4 DP 3 CO 2 VM 1 D0 U5 S-8261 C4 104 R4 470R R8 2K J1 BAT 1 2 34 5 6 U6 8205(SOT23-6) J2 BAT R9 470R Q2 9014 R6 10K R11 0R R14 102P D1 R20 390R HPOUTP VBAT 3V3 FW BW RED MUTE 3V3 BW PWR FW VBAT PWR VBAT VOL- VOL+ VOL- VOL+ VBAT HPOUTP MUTE RED CHG-LED VBAT VBAT BLUE CHG-LED VCAG VCAG BLUE CHG-LED

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13081175HKG-001 i FCC ID: GXAHTEBT1000 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Hung Tat Electronic Co., Ltd. BRAND NAME: EMERSON, MODEL: EBT1000 BRAND NAME: HUNG TAT, MODEL: HTBT1000 BRAND NAME: POLAROID, MODEL: PBT1000 BRAND NAME: AROC, MODEL: CRT1000 BRAND NAME: SHARPER IMAGE, MODEL: SPK1000 BRAND NAME: EMERSON, MODEL: EBT1100 BRAND NAME: SLICK, MODEL: BT1000 FCC ID: GXAHTEBT1000 Grantee: Hung Tat Electronic Co., Ltd. Grantee Address: Room 205, 2/F., Eastern Centre, 1065 King’s Road, Quarry Bay, Hong Kong. Contact Person: Angel Li Tel: (852) 2565-5627 Fax: (852) 2565-7597 e-mail: [email protected] Manufacturer: Dongguan Hung Tat Electronic Co., Ltd. Manufacturer Address: No. 1, 3/F., Tower A, Yifang Industrial Park, Hongye North 2 Road, Hongye Industrial Zone, Tangxia Zhen, Dongguan, China. Brand Name: EMERSON / HUNG TAT / POLAROID / AROC / SHARPER IMAGE Model: EBT1000 / HTBT1000 / PBT1000 / CRT1000 / SPK1000 / EBT1100 / BT1000 Type of EUT: Transceiver Description of EUT: Bluetooth Wireless Stereo Speaker Serial Number: N/A FCC ID: GXAHTEBT1000 Date of Sample Submitted: August 29, 2013 Date of Test: August 30, 2013 - September 06, 2013 Report No.: 13081175HKG-001 Report Date: September 27, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13081175HKG-001 ii FCC ID: GXAHTEBT1000 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Hung Tat Electronic Co., Ltd. BRAND NAME: EMERSON, MODEL: EBT1000 BRAND NAME: HUNG TAT, MODEL: HTBT1000 BRAND NAME: POLAROID, MODEL: PBT1000 BRAND NAME: AROC, MODEL: CRT1000 BRAND NAME: SHARPER IMAGE, MODEL: SPK1000 BRAND NAME: EMERSON, MODEL: EBT1100 BRAND NAME: SLICK, MODEL: BT1000 FCC ID: GXAHTEBT1000 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 Pass Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13081175HKG-001 iii FCC ID: GXAHTEBT1000 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ........................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13081175HKG-001 FCC ID: GXAHTEBT1000 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: EBT1000 Radiated Emission EBT1000 13081175HKG-001 A  B  INTERTEK TESTING SERVICE Report No: 13081175HKG-001 FCC ID: GXAHTEBT1000 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: EBT1000 Radiated Emission EBT1000 13081175HKG-001 A B 

INTERTEK TESTING SERVICE Report No: 13081175HKG-001 FCC ID: GXAHTEBT1000 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: EBT1000 INTERTEK TESTING SERVICE Report No: 13081175HKG-001 FCC ID: GXAHTEBT1000 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: EBT1000 INTERTEK TESTING SERVICE Report No: 13081175HKG-001 FCC ID: GXAHTEBT1000 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: EBT1000
