GXAHTPBT502Bluetooth Speaker

HUNG TAT INTERNATIONAL (HONG KONG) LIMITED RM 205, 2/F., EASTERN CENTRE, 1065 KING’S ROAD, QUARRY BAY, HONG KONG TEL: 852-2565 5627 FAX 852-2565 7597 Date : 29 th July, 2013 Letter of Agency “I, an officer of Hung Tat Electronic Co., Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communication with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in ∮1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Date this 29 day July of 2013/7/29 By _ ________________________ ________ANDREWN C.Y. CHANG__________ _____GENERAL MANAGER__

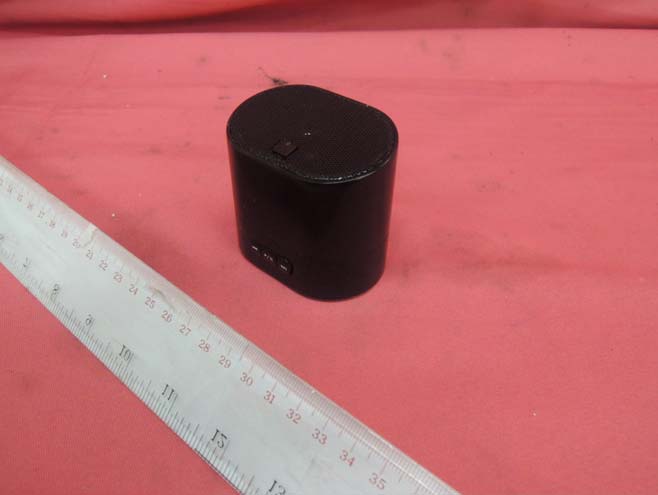

INTERTEK TESTING SERVICE Report No.: 13061298HKG-001 FCC ID: GXAHTPBT502 Equipment Photographs Model: PBT502 (External)

INTERTEK TESTING SERVICE Report No.: 13061298HKG-001 FCC ID: GXAHTPBT502 Equipment Photographs Model: PBT502 (Internal) INTERTEK TESTING SERVICE Report No.: 13061298HKG-001 FCC ID: GXAHTPBT502 Equipment Photographs Model: PBT502 (Internal) INTERTEK TESTING SERVICE Report No.: 13061298HKG-001 FCC ID: GXAHTPBT502 Equipment Photographs Model: PBT502 (Internal) INTERTEK TESTING SERVICE Report No.: 13061298HKG-001 FCC ID: GXAHTPBT502 Equipment Photographs Model: PBT502 (Internal)

Technical Description The Equipment Under Test (EUT) is a portable 2.4GHz Bluetooth speaker. The EUT can accept line in analog audio source. The Bluetooth portion is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 3.7VDC (1 x 3.7V rechargeable battery) or powered by USB port. When the EUT is switched ON in Bluetooth mode, the light will be flashing. The corresponding Bluetooth device would be searched and connected to the EUT before playing audio. After pairing, the light will stay lit.. The EUT is using non-adaptive frequency hopping as declared by applicant. 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 91.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 7dB The functions of main ICs are mentioned below. 1. Bluetooth module GWB005: 1) WS9622NLSC (U1) acts as the 2.4GHz radio core of Bluetooth module 2) The 26MHz crystal provides system clock for WS9622NLSC (U1). 2. Audio portion: 1) U1 (4871) is power amplifier driving speaker (SP1). 3. Power Management portion: 1) 4054 is 3.3V regulator which is providing 3.3V to Bluetooth module. Bluetooth Headset IC - WS9622NLME Datasheet Version: V1.0, January 2013 7F,Shangfu Building,Dengliang Road,Nanshan,Shenzhen, China Tel : 86-755-86185999 Fax: 86-755-86038622 Web: www.db-tech.com.cn WS9622NLME Datasheet (V1.0) Copyright © Vimicro_wx, Inc. 1999-2013 2 Important Notice All rights about this document belong to Vimicro Wuxi Corporation (here after, refer as Vimicro Wuxi). All rights reserved. Vimicro Wuxi and its subsidiaries reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. Customers should contact Vimicro Wuxi’s sales department before purchasing the product described in this document. All products are sold subject to Vimicro Wuxi’s terms and conditions of sale supplied at the time of order acknowledgment. Vimicro Wuxi does not warrant or represent that any license, either explicit or implied, is granted under any Vimicro Wuxi patent right, copyright, mask work right, or other Vimicro Wuxi intellectual property right relating to any combination, machine, or process in which Vimicro Wuxi products or services are used. Information published by Vimicro Wuxi regarding third-party products or services does not constitute a license from Vimicro Wuxi to use such products or service or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Vimicro Wuxi under the patents or other intellectual property of Vimicro Wuxi. Vimicro Wuxi semiconductor devices are intended for standard uses (such as office equipment, computers, industrial/communications/measuring equipment, and personal/home equipment). Customers using semiconductor devices for special applications (including aerospace, nuclear, military and medical applications) in which a failure or malfunction might endanger life or limb and which require extremely high reliability must contact our Sales Department first. If damage is caused by such use of our semiconductor devices without first consulting our Sales Department, Vimicro Wuxi will not assume any responsibility for the loss. The contents of this document must not be reprinted or duplicated without written permission of Vimicro Wuxi. Information and circuit diagrams in this document are only examples of device application. They are not intended to be used in actual equipment. Vimicro Wuxi accepts no responsibility for infringement of patents or other rights owned by third parties caused by use of the information and circuit diagrams in this document. Reproduction of information in Vimicro Wuxi data books or data sheets is permissible only if preproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. Vimicro Wuxi is not responsible or liable for such altered documentation. Resale of Vimicro Wuxi products or services with statements different from or beyond the parameters stated by Vimicro Wuxi for that product or service voids all explicit and any implied warranties for the associated Vimicro Wuxi product or service and is an unfair and deceptive business practice. Vimicro Wuxi is not responsible or liable for any such statements. WS9622NLME Datasheet (V1.0) Copyright © Vimicro_wx, Inc. 1999-2013 3 TABLE OF CONTENTS OVERVIEW ..................................................................................................................... 4 FEATURES...................................................................................................................... 4 PIN CONFIGURATIONS ................................................................................................. 5 PIN DESCRIPTION ......................................................................................................... 5 FUNCTIONAL BLOCK DESCRIPTION .......................................................................... 8 RF .....................................................................................................................8 RF Receiver ............................................................................................... 8 RF Transmitter ........................................................................................... 8 Modem ..............................................…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13061298HKG-001 The Equipment Under Test (EUT) is a portable 2.4GHz Bluetooth speaker. The EUT can accept line in analog audio source. The Bluetooth portion is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 3.7VDC (1 x 3.7V rechargeable battery) or powered by USB port. When the EUT is switched ON in Bluetooth mode, the light will be flashing. The corresponding Bluetooth device would be searched and connected to the EUT before playing audio. After pairing, the light will stay lit. The EUT is using non-adaptive frequency hopping as declared by applicant. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 91.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 7dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 98.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 2.276mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 2.276mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: LTR DATE: 1 2 3 4 5 6 DCBA CDBA UP DOWN PAUSE HUNG TAT ELECTRONIC CO LTD SP1 2W4R R1 10K R22K R3 47K R5 1K C6 470UF/10V(6*8) C2 0.82UF C1 10UF C5 0.68UF C3 10UF 12345 678 U1 4871 R10 100K C7 104 R7 0R R11 1K C9 10UF 12 3 4 5 4054 1 23 4 5 ER MIC C10 104 C11 12P R6 20K R13 10K LED1 Q1 9014 R16 47K R18 100K 1 GND 2 PWR 3 3V3 4 GND 5 VBAT 6 DGND 7 CHG 8 SPK+ 9 NC 10 GND 11 MIC 12 VOL+ 13 VOL- 14 FW 15 BW 16 BLUE 17 RED 18 MUTE GWB005 1 +5V 2 D- 3 D+ 4 G 6 7 8 9 5 GND SP7USB FBI FB2 600R/100M D2 C8 102 LED2 R8 470R FB3 R14 NC R15 NC R4 NC C4 NC V+ HPOUTP HPOUTP V+ LINE-DET 3V3 PFW BW RED MUTE 3V3 BW P FW V+ MUTE LINE-DET VCHG VCAG

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061298HKG-001 i FCC ID: GXAHTPBT502 I ntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Hung Tat Electronic Co., Ltd. BRAND NAME: Polaroid, MODEL: PBT502 BRAND NAME: HUNGTAT, MODEL: HT-502, HTPBT502 BRAND NAME: AROC, MODEL: CRT502 BRAND NAME: HYUNDAI, MODEL: HDT502 FCC ID: GXAHTPBT502 Grantee: Hung Tat Electronic Co Ltd Grantee Address: Room 205, 2/F., Eastern Center, 1065 King’s Road, Quarry Bay, Hong Kong. Contact Person: Andrew C.Y. Chang Tel: 852-2565 5627 Fax: 852-2565 7597 e-mail: N/A Manufacturer: Dongguan Hung Tat Electronic Co., Ltd. Manufacturer Address: No. 1, 3/F., Tower A, Yifang Industrial Park, Hongye North 2 Road, Hongye Industrial Zone, Tangxia Zhen, Dongguan, China. Brand Name: Polaroid / HUNGTAT / AROC / HYUNDAI Model: PBT502 Additional Model: HT-502, HTPBT502 / CRT502 / HDT502 Type of EUT: Transceiver Description of EUT: Bluetooth Speakerphone Serial Number: N/A FCC ID: GXAHTPBT502 Date of Sample Submitted: June 26, 2013 Date of Test: July 18, 2013 Report No.: 13061298HKG-001 Report Date: August 09, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061298HKG-001 ii FCC ID: GXAHTPBT502 I ntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Hung Tat Electronic Co., Ltd. BRAND NAME: Polaroid, MODEL: PBT502 BRAND NAME: HUNGTAT, MODEL: HT-502, HTPBT502 BRAND NAME: AROC, MODEL: CRT502 BRAND NAME: HYUNDAI, MODEL: HDT502 FCC ID: GXAHTPBT502 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 Pass Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061298HKG-001 iii FCC ID: GXAHTPBT502 I ntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results ........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emission Data.........................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13061298HKG-001 FCC ID: GXAHTPBT502 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: PBT502 INTERTEK TESTING SERVICE Report No: 13061298HKG-001 FCC ID: GXAHTPBT502 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: PBT502 INTERTEK TESTING SERVICE Report No: 13061298HKG-001 FCC ID: GXAHTPBT502 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: PBT502

INTERTEK TESTING SERVICE Report No: 13061298HKG-001 FCC ID: GXAHTPBT502 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: PBT502 INTERTEK TESTING SERVICE Report No: 13061298HKG-001 FCC ID: GXAHTPBT502 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model:
