GZ52108-N9Gigabit Ethernet Router with HPNA and 802.11n

User Manual 2 ENGLISH IMPORTANT SAFETY INSTRUCTIONS – POWER SUPPLY INSTALLATION. Connect the power supply cord to the power jack on the Motorola Netopia ® Gateway. Plug the power supply into an appropriate electri- cal outlet. CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply blades, power supply cord plug or the appliance coupler serves as the mains power disconnect. It is impor- tant that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily acces- sible. TELECOMMUNICATION INSTALLATION. When using your telephone equipment, basic safety precau- tions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. • Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning. • Do not use the telephone to report a gas leak in the vicinity of the leak. PRODUCT VENTILATION. The Motorola Netopia ® Gateway is intended for use in a consumer's home. Ambient temperatures around this product should not exceed 104°F (40°C). It should not be used in locations exposed to outside heat radiation or trapping of its own heat. The product should have at least one inch of clearance on all sides except the bottom when properly installed and should not be placed inside tightly enclosed spaces unless proper ventilation is provided. SAVE THESE INSTRUCTIONS Motorola Part Number: 578175-001-00 revision a Copyright © 2010 by Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Windows Me, and Windows NT are either trademarks or registered trademarks of Microsoft Corporation in the U.S and/or other countries. Macintosh is a registered trademark of Apple, Inc. Firefox is a registered trademark of the Mozilla Foundation. All other product or service names are the property of their respective owners. Safety Information 3 ENGLISH Thank you for selecting the Motorola Netopia ® 2108-D9 or -N9 Gigabit Ethernet Gateway. This guide will help you set up and configure your network. Check your package contents. It should contain the items shown here: If you don’t have everything, contact your supplier immediately. Checklist 1 User Manual Motorola Gateway Power Supply 1 Gray RJ-45 Ethernet Cable 1 Yellow RJ-45 Ethernet Cable Wallmounting Kit (2 screws + 2 anchors) W allmounti n g Kit 4 ENGLISH 1. Select a suitable place on the network to install the Wireless Gateway. You can stand it up in its stand; lay it flat on a desktop; or mount it on a wall using the included wall mounting kit hardware (see “Wall Mounting instructions (optional)” on page 15). 2. Use standard Cat5 Ethernet cables to connect PCs to the LAN ports on the rear of the Wireless Gateway. One is supplied with your Gateway (yellow cable). 3. Connect the DSL or Cable modem to the gray WAN port on the Wireless Gate- way. Use the cable supplied with your DSL/Cable modem. If the cable is missing, a standard Cat5 Ethernet cable can be used. 4. Connect the supplied power adapter to the Wireless Gateway. Use only the power adapter provided. Using a different one may cause hardware dam- age. Turn the power ON with the ON/OFF Power Switch. 5. Check the LEDs: • The Power LED should be ON. • The LAN LED(s) that have a cable connected should be ON when the connected device is also on. • The Wireless LED should be ON only when a wireless client is connected to this Gateway. • ( 2108-N9 HPNA model only ) The HPNA LED should be ON only when an HPNA device(s) is connected via coaxial cable. • The WAN LED should be ON when the WAN Port is connected via Cat5 cabling. Connections 2 5 ENGLISH • The Internet LED may initially be OFF. After proper configuration, it should come ON When all of your connections are made, your network may look like this: DC Power Rear View LAN Ports WAN Port Power Switch 6 ENGLISH The figure below shows how to connect a Motorola 2108-N9 HPNA-enabled Gateway to a home coaxial cable network using a Motorola HPNA Adaptor (purchased separately). Follow the same steps to connect any Ethernet device such as a hub or printer to a coax- ial cable network. 6. Enable Wireless devices. In order to use the Access Point in the Wireless Gateway, other Wireless devices must use the same SSID and Wireless Security settings as the Wireless Gateway. In-House Coax Wiring Ethernet wall jack wall jack Motorola HPNA Adapter settop box Motorola 2108-N9 Gateway HPNA port 7 ENGLISH The Wireless Gateway's default settings are as follows. Ensure the Wireless Gateway and the other Wireless Stations are using the same set- tings. • Use the Wireless setup screen to configure the Wireless Access Point in the Wireless Gateway. • Configure the Wireless stations (PCs) using your normal method for configuring their Wireless interface. • Wireless clients must also be set to use Infrastructure mode. SettingWireless Gateway SSID Default value: unique to your Gateway This may be changed on the Wireless screen, on the Wireless Gateway's ma…

Text truncated - open the document above for the full version.

Motorola, Inc. 1101 Marina Village Parkway, Alameda California, 94501 United States Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: July 2, 2010 Subject:Request for Confidentiality FCC ID:GZ52108-N9 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation ANT specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2010/12/31. External Photos Internal Photos Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours,

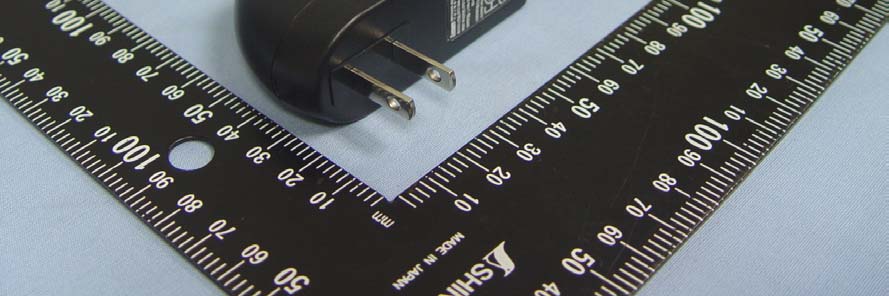

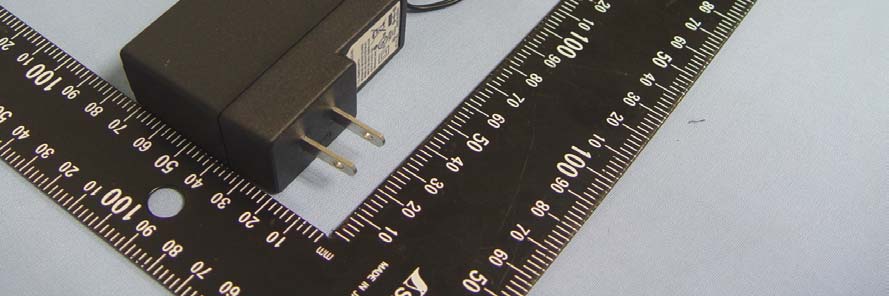

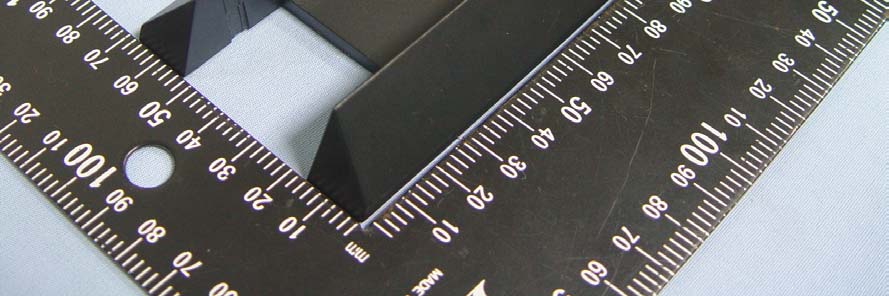

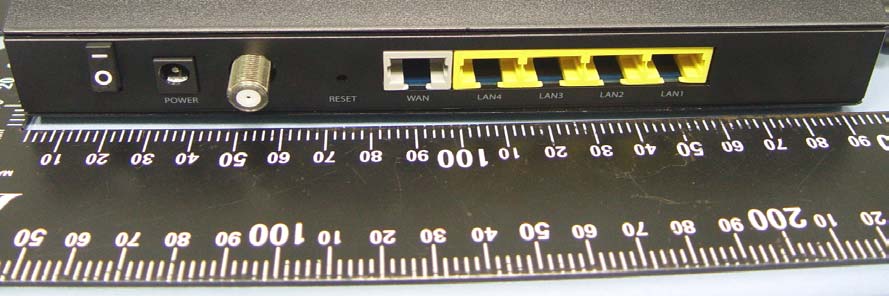

Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 1 Total Page: 17 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For 2108-N9 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 2 Total Page: 17 Rev. 00 For 2108-D9 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 3 Total Page: 17 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 7 Rev. 00

1RWHVᴤ䊾˖ⱑ0\ODUϞᠧᄫ⫼䳻3ˈ㚠ວ࡯ܟ㝴ॄࠋ㡆བ೪᠔冫໪ᔶ݀ᏂPP᠔Փ⫼ᴤ᭭䳔㽕ヺড়5RKV  0RWRUROD⍜䡔啡 ' ⱑ0\ODU    <7-%. ߎ㋭ᮍ৥ 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation FCC ID: GZ 52108 -N 9 FCC P 68 : US: 6 EDDL 00 B 21 08 -N 9 ᑩ㡆 %DFNJURXGFRORU 3DQWRQH&RRO*UD\&᭛ᄫॄࠋ㡆 7H[WXUHFRORU EODFN Notes:1.Material:#50 White Mylar,covered with Printing matt pp Adhesive backed: Acrylic 2.Printing color ˖ as the drawing shows 3.Tolerance:+/-0.2mm 4.All the material comply with Rohs Flow direction Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmfulinterference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 Gigabit Ethernet Router with HPNA and 802.11n DC Input: 12V 1.5A I C : 3 2 3 1A-21 08 N 9 Side for EUT Label Location

1RWHVᴤ䊾˖ⱑ0\ODUϞᠧᄫ⫼䳻3ˈ㚠ວ࡯ܟ㝴ॄࠋ㡆བ೪᠔冫໪ᔶ݀ᏂPP᠔Փ⫼ᴤ᭭䳔㽕ヺড়5RKV  0RWRUROD⍜䡔啡 ' ⱑ0\ODU    <7-%. ߎ㋭ᮍ৥ 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-D9 – Gigabit Ethernet Router with 802.11n FCC ID: GZ52108-N9 FCC P68: US: 6EDDL00B2108-N9 CA IC: XXXXX DC Input: 12V1.5A Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation FCC ID: GZ 52108 -N 9 FCC P 68 : US: 6 EDDL 00 B 21 08 -N 9 ᑩ㡆 %DFNJURXGFRORU 3DQWRQH&RRO*UD\&᭛ᄫॄࠋ㡆 7H[WXUHFRORU EODFN Notes:1.Material:#50 White Mylar,covered with Printing matt pp Adhesive backed: Acrylic 2.Printing color ˖ as the drawing shows 3.Tolerance:+/-0.2mm 4.All the material comply with Rohs Flow direction Made in china This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmfulinterference and (2) this device must accept any interference received, including interference that may cause undesired operation 2108-N9 Gigabit Ethernet Router with HPNA and 802.11n DC Input: 12V 1.5A I C : 3 2 3 1A-21 08 N 9 Side for EUT Label Location

Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT For 2108-N9 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 11 Rev. 00 For 2108-D9 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 15 Rev. 00 For C147-510634-A For C147-510635-A Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T100224206 Date of Issue: May 28, 2010 A1 - 17 Rev. 00

Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 93 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Gigabit Ethernet Router with HPNA and 802.11n Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 21.38 dBm (137.40 mW) IEEE 802.11g mode: 25.87 dBm (386.37 mW) draft 802.11n Standard-20 MHz Channel mode: 28.25dBm (668.34 mW) draft 802.11n Wide-40 MHz Channel mode: 23.96 dBm (248.89 mW) Antenna gain (Max) 1.8dBi (Numeric gain: 1.51) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 28.25dBm (668.3439 mW) at 2437MHz (with 1.51 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 94 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 95 Rev. 00 IEEE 802.11b mode: EUT output power = 137.40mW Numeric Antenna gain = 1.51 Æ Power density = 0.04128mW / cm 2 IEEE 802.11g mode: EUT output power = 386.37mW Numeric Antenna gain = 1.51 Æ Power density = 0.11610mW / cm 2 draft 802.11n Standard-20 MHz Channel mode: EUT output power = 668.34 mW Numeric Antenna gain = 1.51 Æ Power density = 0.20082mW / cm 2 draft 802.11n Wide-40 MHz Channel mode: EUT output power = 248.89 mW Numeric Antenna gain = 1.51 Æ Power density = 0.07478 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 98 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Gigabit Ethernet Router with HPNA and 802.11n Model: 2108-N9, 2108-D9 Tr a d e Na me : Mo to ro la Issued to Motorola, Inc. 1101 Marina Village Parkway, Alameda, California, United States 94501 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5. FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES .......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 LABORATORY ACCREDITATIONS AND LISTING................................................................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................24 7.3 AVERAGE POWER............................................................................................................................26 7.4 BAND EDGES MEASUREMENT ................................................................................................28 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................45 7.6 SPURIOUS EMISSIONS.................................................................................................................60 7.7 RADIATED EMISSIONS ..............................................................................................................73 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................90 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................93 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................96 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Motorola, Inc. 1101 Marina Village Parkway, Alameda, California, United States 94501 Equipment Under Test: Gigabit Ethernet Router with HPNA and 802.11n Trade Name: Motorola Model: 2108-N9, 2108-D9 Date of Test: May 21 ~ June 1, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C & Industry Canada RSS-210 Issue 7 June, 2007 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT te…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 96 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 97 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100224206-RP1 FCC ID: GZ52108-N9 Date of Issue: June 1, 2010 Page 98 Rev. 00 Powerline Conducted Emissions Setup Photos
