GZ52247N8ADSL2+ Router

Administrator’s Handbook Motorola Netopia ® Embedded Software Version 9.0.1 Motorola Netopia ® Gateways September 2010 Administrator’s Handbook Copyright Copyright © 2010 by Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Windows Me, and Windows NT are either trademarks or registered trademarks of Microsoft Corporation in the U.S and/or other countries. Macintosh is a registered trademark of Apple, Inc. Firefox is a registered trademark of the Mozilla Foundation. All other product or service names are the property of their respective owners. Motorola, Inc. 1303 East Algonquin Road Schaumburg, Illinois 60196 USA Part Number 580780-001-00 rev a V9.0.1-sku 1 Table of Contents Table of Contents CHAPTER 1 Setting up Your Motorola Netopia ® Modem or Gateway 7 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 POWER SUPPLY INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 TELECOMMUNICATION INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 8 PRODUCT VENTILATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wichtige Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . 9 NETZTEIL INSTALLIEREN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 INSTALLATION DER TELEKOMMUNIKATION . . . . . . . . . . . . . . . . . . . 9 Set up your Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Configure Your PC for Dynamic Addressing . . . . . . . . . . . . . . 11 Motorola Netopia ® Gateway Quickstart . . . . . . . . . . . . . . . . . . 14 CHAPTER 2 Web-based Device Management . . . . . . . . . . . . . . . . . . . . . . . 17 The Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Home Page Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Links Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 More IP Subnets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Router Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 DSL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 WAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Firewall Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Restart Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Reset Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Update Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 CHAPTER 3 Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Status Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 LED Function Summary Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Administrator’s Handbook Factory Reset Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 CHAPTER 4 Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Starting and Ending a CLI Session . . . . . . . . . . . . . . . . . . . . . 54 Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Ending a CLI Session . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Motorola, Inc., Insert Corporate Offices or Sector Name 1303 E. Algonquin Road, Schaumburg, IL 60196 U.S.A. Tel: +1 847 576 5000 FCC Confidential Authorization August 11, 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: GZ52247N8 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Motorola, Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Wilson Wang Systems Engineer 46653 Fremont Blvd. Fremont, CA 94538

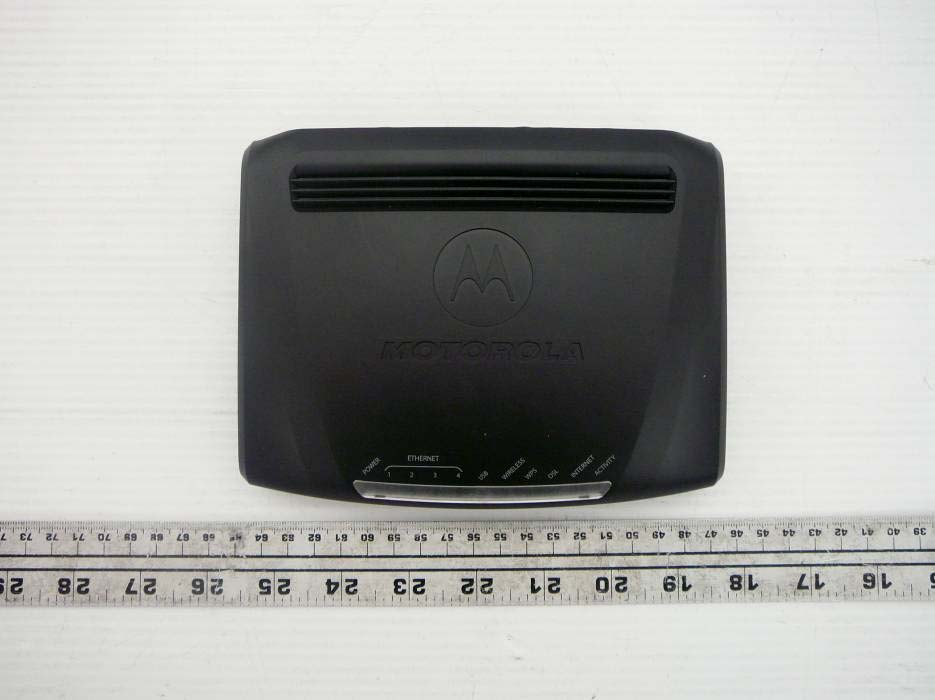

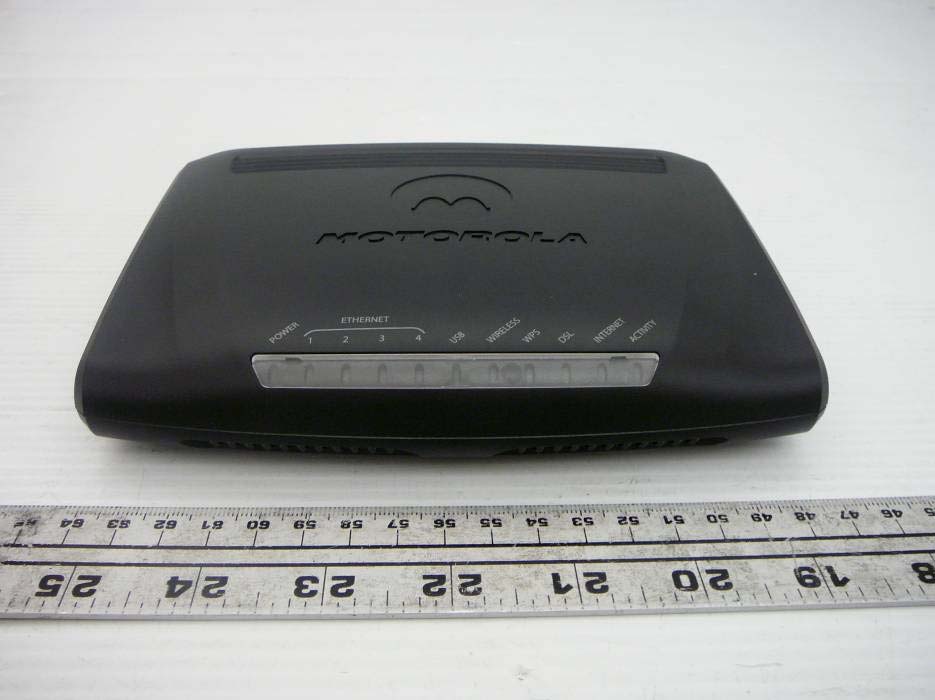

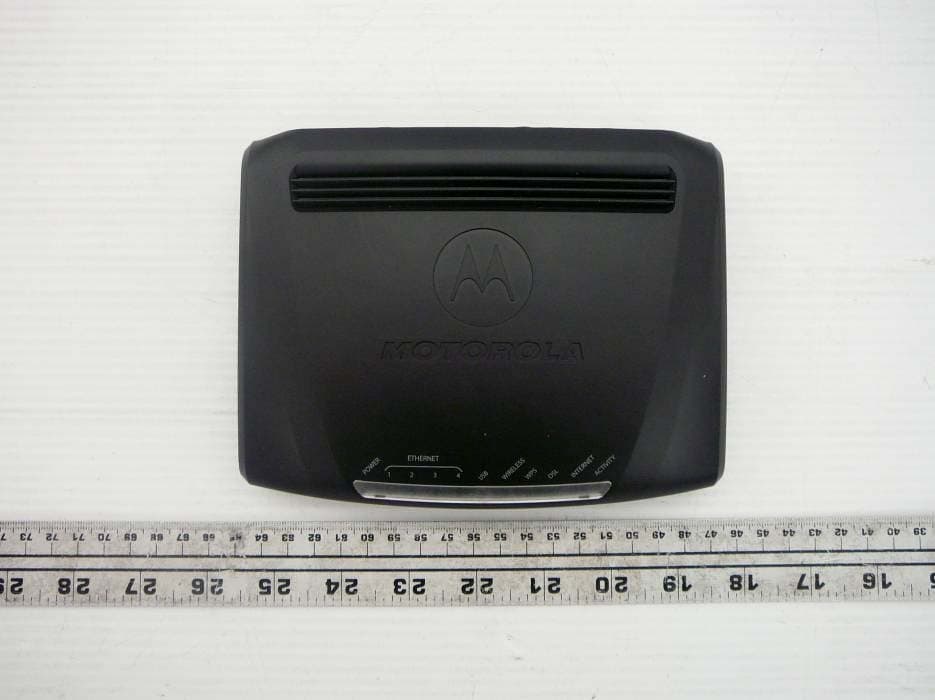

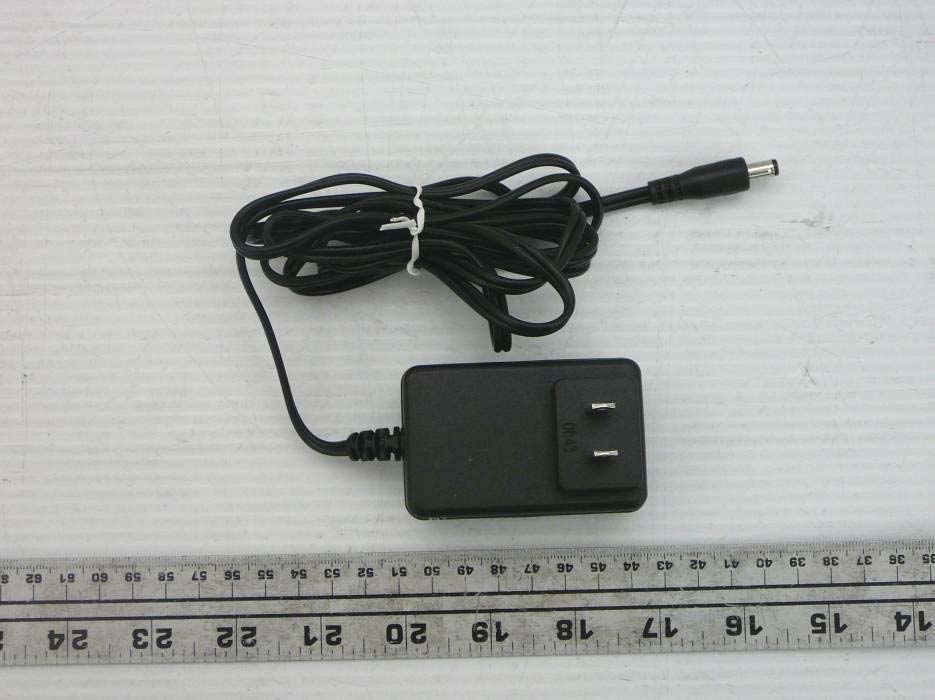

Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 129 of 133 FCC Part15.247 & IC RSS-210 Test Report 15 EXHIBIT C - EUT Photographs 15.1 EUT – Top View 15.2 EUT – Bottom View Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 130 of 133 FCC Part15.247 & IC RSS-210 Test Report 15.3 EUT – Front View 15.4 EUT Back View Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 131 of 133 FCC Part15.247 & IC RSS-210 Test Report 15.5 AC/DC Adaptor View 15.6 EUT Antenna View Antenna #0 Antenna #1

Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 132 of 133 FCC Part15.247 & IC RSS-210 Test Report 15.7 EUT Internal PCB View 1 15.8 EUT Internal PCB View 2 Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 133 of 133 FCC Part15.247 & IC RSS-210 Test Report 15.9 EUT Internal PCB View 3 ***** END OF REPORT *****

Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 122 of 133 FCC Part15.247 & IC RSS-210 Test Report 12 FCC §15.247(i), § 2.1093 & IC RSS-102 - RF Exposure Information 12.1 Applicable Standards According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2 (Note ¹) 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz Note ¹ = Power density limit is applicable at frequencies greater than 100 MHz Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 123 of 133 FCC Part15.247 & IC RSS-210 Test Report 12.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 12.3 MPE Results Mode Frequency Band MPE Distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density (mw/cm 2 ) Power Density Limit (mw/cm 2 ) Result WLAN 2.4 GHz 20 17.64 2.0 0.018 1.0 Compliance The predicted power density level at 20 cm is 0.018 mw/cm 2 which is below the uncontrolled exposure limit of 1.0 mW/cm 2 . The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 IC RSS-210, ISSUE 7, JUNE 2007 TEST AND MEASUREMENT REPORT For Motorola, Inc. 46653 Fremont Blvd., Fremont, CA 94538, USA FCC ID: GZ52247N8 IC: 2525A-2247N8 Model: 2247-N8 Report Type: Original Report Product Type: 802.11b/g/n Wireless Ethernet Modem Test Engineer: Jerry Huang Report Number: R1006242-247 Report Date: 2010-11-09 Reviewed By: Victor Zhang RF Lead Prepared By: (19) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 2 of 133 FCC Part15.247 & IC RSS-210 Test Report TABLE OF CONTENTS 1 General Information...............................................................................................................................................5 1.1 Product Description for Equipment under Test (EUT) ..............................................................................5 1.2 Mechanical Description of EUT ................................................................................................................ 5 1.3 Objective .................................................................................................................................................... 5 1.4 Related Submittal(s)/Grant(s) .................................................................................................................... 5 1.5 Test Methodology ...................................................................................................................................... 5 1.6 Measurement Uncertainty .......................................................................................................................... 6 1.7 Test Facility................................................................................................................................................ 6 2 System Test Configuration.....................................................................................................................................7 2.1 Justification ................................................................................................................................................ 7 2.2 EUT Exercise Software.............................................................................................................................. 7 2.3 Special Accessories .................................................................................................................................... 7 2.4 Equipment Modifications........................................................................................................................... 7 2.5 EUT Internal Configuration ....................................................................................................................... 7 2.6 Local /Remote Support Equipment ............................................................................................................ 7 2.7 Internal Parts List and Details .................................................................................................................... 8 2.8 Interface Ports and Cabling ........................................................................................................................ 8 3 Summary of Test Results........................................................................................................................................9 4 FCC §15.203 & IC RSS-Gen §7.1.4 – Antenna Requirement .............................................................................10 4.1 Applicable Standard ................................................................................................................................. 10 4.2 Result ....................................................................................................................................................... 10 5 FCC §15.207 & IC RSS-Gen §7.2.2 – AC Line Conducted Emissions ...............................................................11 5.1 Applicable Standards ............................................................................................................................... 11 5.2 Test Setup................................................................................................................................................. 11 5.3 Test Procedure.......................................................................................................................................... 11 5.4 Test Equipment List and Details .............................................................................................................. 11 5.5 Test Setup Block Diagrams...................................................................................................................... 12 5.6 Test Environmental Conditions................................................................................................................ 12 5.7 Test Results .............................................................................................................................................. 12 6 FCC §15.205, §15.209, §15.247(d) & IC RSS-210 §A8.5, §2.6 - Spurious Radiated Emissions........................17 6.1 Applicable Standards ............................................................................................................................... 17 6.2 EUT Setup..................................................…

Text truncated - open the document above for the full version.

Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 126 of 133 FCC Part15.247 & IC RSS-210 Test Report 14 EXHIBIT B – Test Setup Photographs 14.1 AC Line Conducted Emissions –Front View 14.2 AC Line Conducted Emissions – Side View Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 127 of 133 FCC Part15.247 & IC RSS-210 Test Report 14.3 Tx & Rx Spurious Radiated Emissions (Below 1 GHz) – Front View 14.4 Tx & Rx Spurious Radiated Emissions (Below 1 GHz) – Rear View Motorola, Inc. FCC ID: GZ52247N8, IC: 2525A-2247N8 Report Number: R1006242-247 Page 128 of 133 FCC Part15.247 & IC RSS-210 Test Report 14.5 Tx & Rx Spurious Radiated Emissions (Above 1 GHz) – Front View 14.6 Tx & Rx Spurious Radiated Emissions (Above 1 GHz) – Rear View
