GZ53347802.11b/g ADSL Router

3 Table of Contents Table of Contents Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 CHAPTER 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 What’s New in 7.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 About Netopia Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 15 Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Documentation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . 16 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Internal Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Command Line Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 A Word About Example Screens . . . . . . . . . . . . . . . . . . . . . . . 18 CHAPTER 2 Basic Mode Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 20 POWER SUPPLY INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 TELECOMMUNICATION INSTALLATION. . . . . . . . . . . . . . . . . . . . . . 20 PRODUCT VENTILATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wichtige Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . 21 NETZTEIL INSTALLIEREN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 INSTALLATION DER TELEKOMMUNIKATION . . . . . . . . . . . . . . . . . 21 Setting up the Netopia Gateway . . . . . . . . . . . . . . . . . . . . . . . . 22 Microsoft Windows: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Macintosh MacOS 8 or higher or Mac OS X: . . . . . . . . . . . . . . . 23 Configuring the Netopia Gateway . . . . . . . . . . . . . . . . . . . . . . 25 MiAVo VDSL and Ethernet WAN models Quickstart . . . . . . . . . . . . . . 26 PPPoE Quickstart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Set up the Netopia Pocket Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Netopia Gateway Status Indicator Lights . . . . . . . . . . . . . . . . . 31 Table of Contents 4 Home Page - Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Manage My Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Status Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Enable Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Update Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 CHAPTER 3 Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Accessing the Expert Web Interface . . . . . . . . . . . . . . . . . . . . . 41 Open the Web Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Home Page - Expert Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Home Page - Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Navigating the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Breadcrumb Trail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Quickstart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 How to Use the Quickstart Page . . . . . . . . . . . . . . . . . . . . . . . . . 49 Setup Your Gateway using a PPP Connection . . . . . . . . . . . . . . 49 LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 About Closed System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 WPA Version Allowed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Multiple SSIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 WiFi Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Wireless MAC Authorization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Use RADIUS Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 PPP over Ethernet interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Advanced: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Ethernet WAN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 WAN Ethernet and VDSL Gateways. . . . . . . . . . . . . . . . . . . . . . 81 ADSL Gateways . . . . . . . . . .…

Text truncated - open the document above for the full version.

6001 Shellmound Street, 4 th floof, Marketplace Tower, Emeryville, CA 94608 (510) 420-7400 September 5, 2007 Attention: Application Examiner Re: Request for confidentiality Applicant: Netopia, Inc. FCC ID: GZ5 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Netopia, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Technical Description • Parts list Rationale for request for confidentiality: Netopia, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Fazel Taslimi Hardware Engineering Manager Netopia, Inc

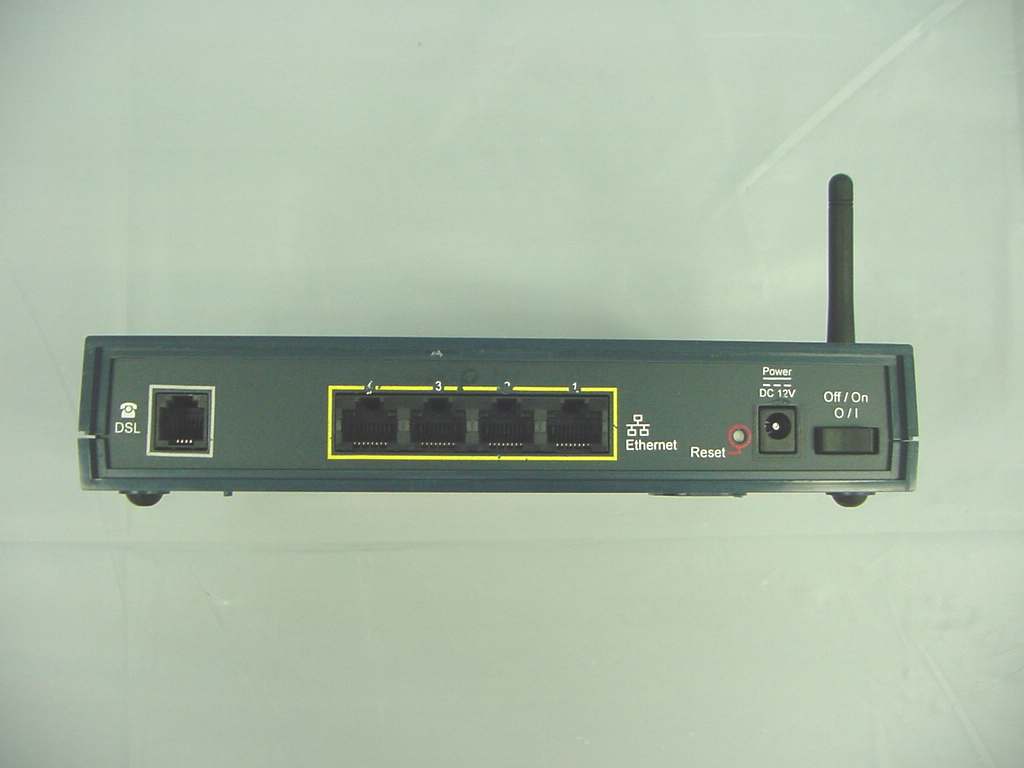

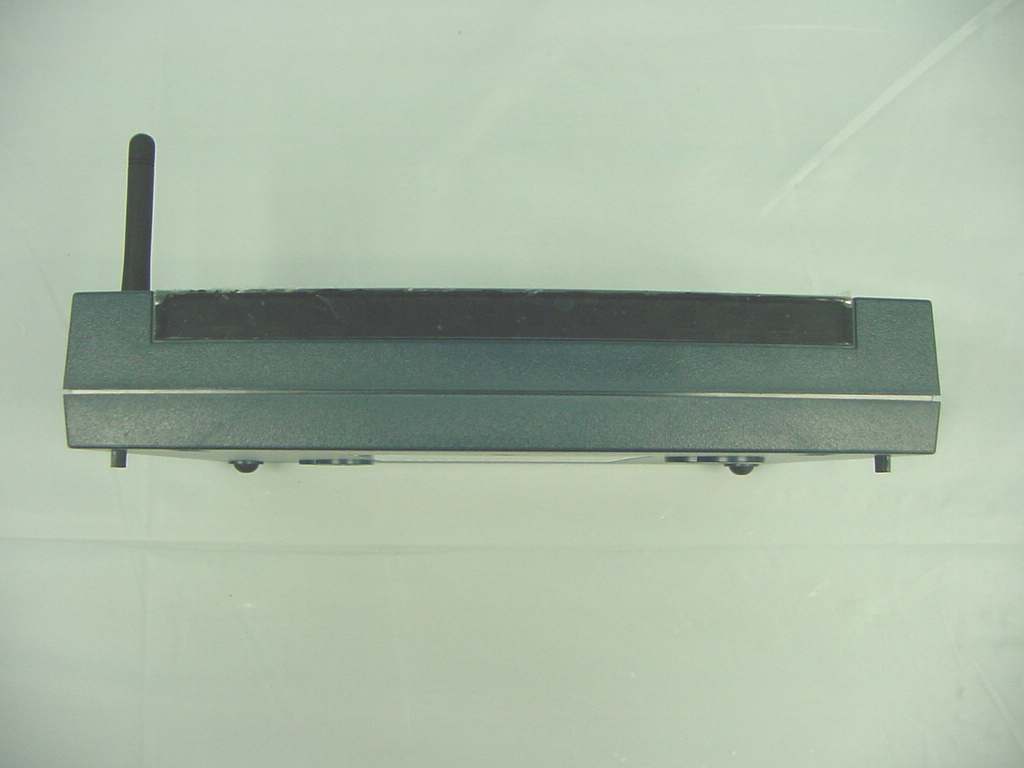

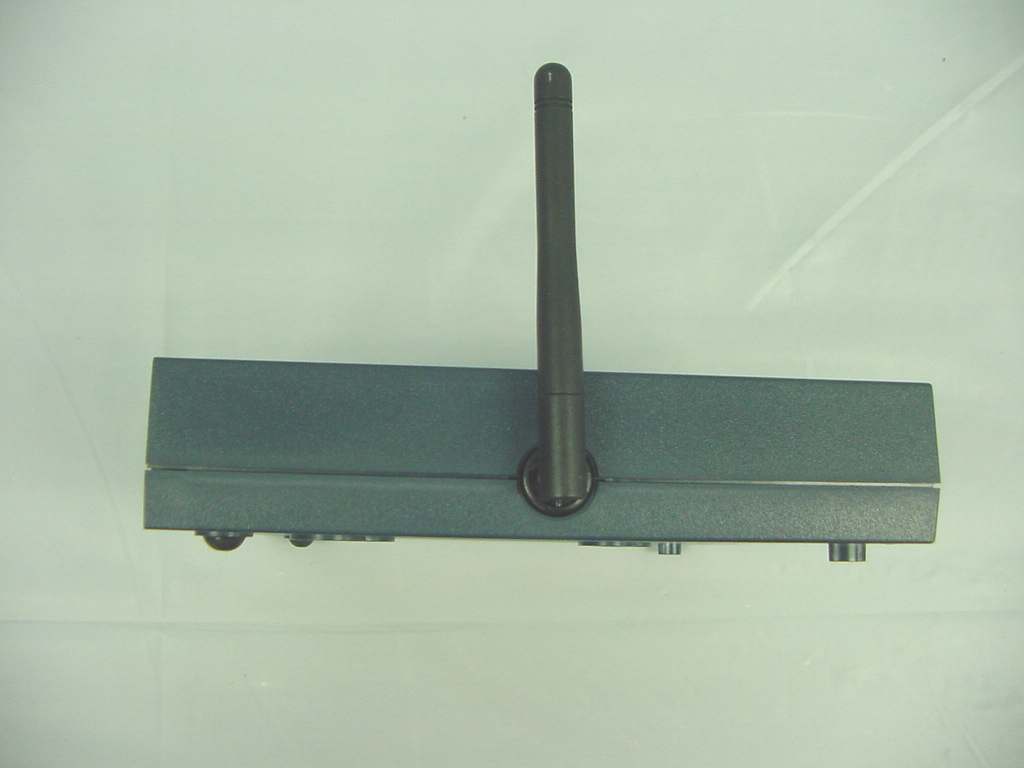

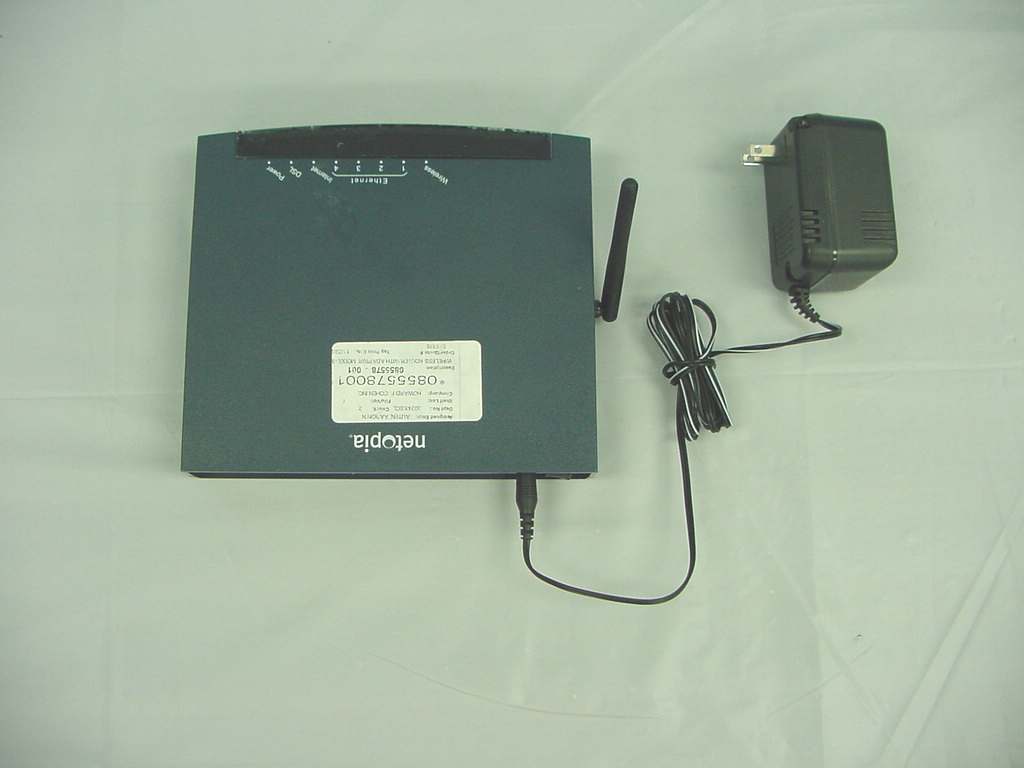

FCC ID: GZ53347 IC ID: 2525A-3347 External Photographs

FCC ID: GZ53347 IC ID: 2525A-3347 Internal Photographs

FCC ID: GZ53347 Radiation exposure evaluation The EUT is a Wireless ADSL Router. It is desktop or wall-mounted device used with AC power adapter in mobile application, at least 20 cm from any body part of the user or nearby persons. The maximum conducted average power is 26.0 dBm, antenna is fix-mounted, -2 dBi gain (maximum). Therefore, to comply with RF Exposure Requirement, the Power Density is calculated. The maximum Average EIRP calculated is 0.251 W. The Power Density can be calculated using the formula S = EIRP/ 4πD 2 Where: S is Power Density in W/m 2 D is the distance from the antenna. At distance of 0.2 m, S = 0.5 W/m 2 which is below MPE Limit of 10 W/m 2 The model 3347-02 complies with FCC and IC RF Exposure Requirements.

EMC Report for Netopia on the Holm (802.11b/g ADSL Routers) Model 3347-02 File: 3131941MPK-001 Page 1 of 111 TEST REPORT Report Number: 3131941MPK-001 Project Number: 3131941 September 19, 2007 Testing performed on the Holm (ADSL2+ Wireless Residential Gateway) Model Number: 3347-02 FCC ID: GZ53347 IC ID: 2525A-3347 to FCC Part 15 Subpart C (15.247) RSS-210 Annex 8 for Netopia Inc. A2LA Certificate Number: 1755-01 Test Performed by: Test Authorized by: Intertek Testing Services 1365 Adams Court Menlo Park, CA 94025 Netopia Inc. 46653 Fremont Blvd. Fremont, CA 94538 USA Prepared by: Date: September 19, 2007 David Chernomordik, EMC Technical Manager Reviewed by: Date: September 19, 2007 Ollie Moyrong, Operations Manager This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Netopia on the Holm (802.11b/g ADSL Routers) Model 3347-02 File: 3131941MPK-001 Page 2 of 111 TABLE OF CONTENTS 1.0 Summary of Tests .......................................................................................................................... 4 2.0 General Description ....................................................................................................................... 5 2.1 Product Description ............................................................................................................5 2.2 Related Submittal(s) Grants ................................................................................................ 5 2.3 Test Methodology ...............................................................................................................6 2.4 Test Facility ........................................................................................................................ 6 3.0 System Test Configuration............................................................................................................ 7 3.1 Support Equipment ............................................................................................................. 7 3.2 Block Diagram of Test Setup.............................................................................................. 7 3.3 Justification ......................................................................................................................... 8 3.4 Mode of Operation During Test.......................................................................................... 8 3.5 Modifications Required for Compliance ............................................................................ 8 3.6 Additions, deviations and exclusions from standards ......................................................... 8 4.0 Measurement Results..................................................................................................................... 9 4.1 Maximum Conducted Output Power at Antenna Terminals,.............................................. 9 4.1.1 Requirement........................................................................................................... 9 4.1.2 Procedure ............................................................................................................... 9 4.1.3 Test Result ............................................................................................................. 9 4.2 6-dB RF Bandwidth, ......................................................................................................... 19 4.2.1 Requirement......................................................................................................... 19 4.2.2 Procedure ............................................................................................................. 19 4.2.3 Test Result ........................................................................................................... 19 4.3 Power Spectral Density..................................................................................................... 29 4.3.1 Requirement......................................................................................................... 29 4.3.2 Procedure ............................................................................................................. 29 4.3.3 Test Result ........................................................................................................... 29 4.4 Out-of-Band Conducted Emissions, ................................................................................. 36 4.4.1 Requirement......................................................................................................... 36 4.4.2 Procedure ............................................................................................................. 36 4.4.3 Test Result ........................................................................................................... 36 4.5 Out of Band Radiated Emissions (except emissions in restricted bands) ......................... 57 4.5.1 Procedure ........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: GZ53347 IC ID: 2525A-3347 Radiated emission measurements Radiated emission measurements Radiated emission measurements Radiated emission measurements AC Line-conducted emission measurements
