GZ53347WWireless ADSL Router

Software User Guide Cayman ® Operating System Version 7.2 May 2003 Cayman ® 3300 Series Gateways by Netopia D D r r a a f f t t D D o o c c u u m m e e n n t t a a t t i i o o n n - - - - N N o o t t f f o o r r D D i i s s t t r r i i b b u u t t i i o o n n 2 Disclaimers Copyright © 2003 Netopia, Inc. All rights reserved, Printed in the USA. The information in this document is subject to change without notice. The statements, configurations, technical data, and recom- mendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsibility for the applications of any products specified in this document. Portions of this software are subject to the Mozilla Public License Version 1.1. Portions created by Netscape are copyright 1994-2000 Netscape Communications Corporation. You may obtain a copy of the license at http://www.mozilla.org/MPL/. Software distributed under the License is distributed on an “as is” basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License. Portions of this software copyright 1988, 1991 by Carnegie Mellon University. All rights reserved. Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copy- right notice and this permission notice appear in supporting documentation, and that the name of Carnegie Mellon University not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. CARNEGIE MELLON UNIVERSITY DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WAR- RANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU BE LIABLE FOR ANY SPECIAL, INDIRECT, OR CONSE- QUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA, OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE, OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE. The information in this document is proprietary to Netopia, Inc. Trademarks Netopia, Cayman, and “Making Broadband Work” are registered trademarks of Netopia, Inc. All rights reserved. Ethernet is a registered trademark of Xerox Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Netopia assumes no responsibility with regard to the performance or use of these products. Statement of Conditions In the interest of improving internal design, operational function, and /or reliability, Netopia, Inc. reserves the right to make changes to the products described in this document without notice. Netopia , Inc. does not assume any liability that may occur due to the use or application of the product(s) or network con- figurations described herein. Netopia, Inc. Part Number: 616XXXX-00-01d1 3 Table of Contents Table of Contents Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 CHAPTER 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 About Cayman Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9 Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Documentation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . 11 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Internal Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Organization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Overview of Major Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . 14 A Word About Example Screens . . . . . . . . . . . . . . . . . . . . . . . 15 CHAPTER 2 Basic Mode Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 18 POWER SUPPLY INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 TELECOMMUNICATION INSTALLATION . . . . . . . . . . . . . . . . . . . . . . 18 Set up the Cayman Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . 19 Configure the Cayman Gateway . . . . . . . . . . . . . . . . . . . . . . . 21 Cayman Gateway Status Indicator Lights . . . . . . . . . . . . . . . . 24 Home Page - Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Manage My Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Status Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Enable Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Update Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Table of Contents 4 CHAPTER 3 Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Overview of Major Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . 33 Wide Area Network Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 PPPoE/PPPoA (Point-to-Point Protocol over Ethernet/ATM) . . . . 34 Instant-On PPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3…

Text truncated - open the document above for the full version.

FCC ID: GZ53347W Block Diagram RF SWITCH RF SWITCH MAXIM MAX2242 TRANSMIT POWER AMPLIFIER MAXIM MAX2820 RADIO TI ACX100 802.11 MAC 22MHz Osc RX TX TX ANTENNAS FROM ACX100FROM ACX100 FEEDBACK TO ACX100 CF CONTROL CLOCK RX TX BALUN BALUN 2412 - 2462 MHz

-----Original Message----- From: David Chernomordik ITS/ES-Mpk Sent: Wednesday, June 18, 2003 3:14 PM To: Roland Gubisch ITS/ES-Box Cc: TCB_Admin ITS/ES-Crt Subject: RE: Netopia FCC ID: GZ33347W Roland I received the new label artwork from the client (attached), it looks better. I also made corrections on the report regarding the ferrite (page 6) and margin (page 33). Please disregard the previous report. The Netopia FRN is 0009146903. Thanks David << File: FCC 15.247 DS.pdf >> << File: Label rev.pdf >> -----Original Message----- From: Roland Gubisch ITS/ES-Box Sent: Monday, June 02, 2003 2:14 PM To: David Chernomordik ITS/ES-Mpk Cc: TCB_Admin ITS/ES-Crt Subject: Netopia FCC ID: GZ33347W David: Review of the above-referenced application has been completed, and the following points are noted: ADMINISTRATIVE 1. The applicant does not appear to have an FRN issued. Please have the client obtain FRN, or indicate what FRN to use. 2. Label FCC ID format is incorrect. It must conform exactly to 2.925(b). Please submit revised label art, showing: FCC ID: (FCC ID#). 3. Information only: This device requires certification in Canada, under RSS-210 section 6.2.2.(o). There is no certification number shown yet on the label. TECHNICAL 1. Test setup photos: A ferrite sleeve is shown on an I/O cable, but it is not referenced in the test report diagram nor description. Please explain. 2. A 0.6 dB margin is claimed in the test report for margin to the restricted band limits, but the data table for the marker-delta results shows 0.7 dB. Please clarify. Thank you, Roland

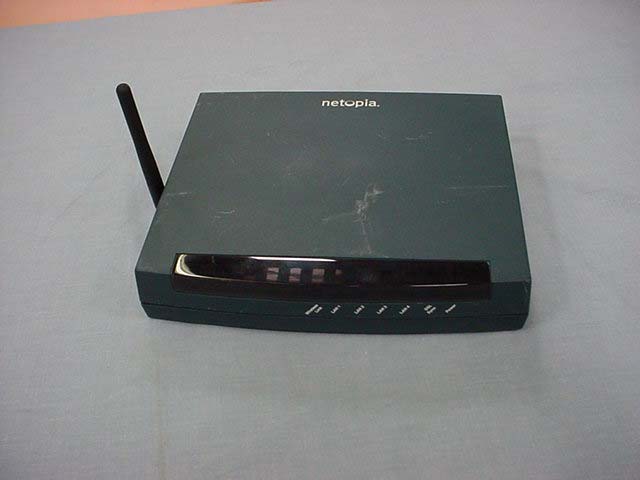

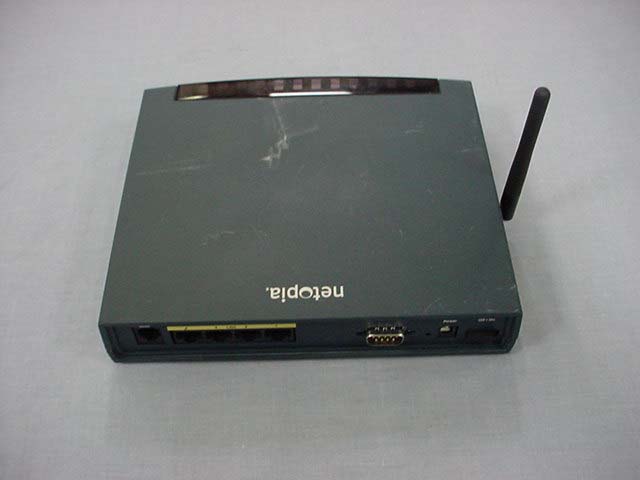

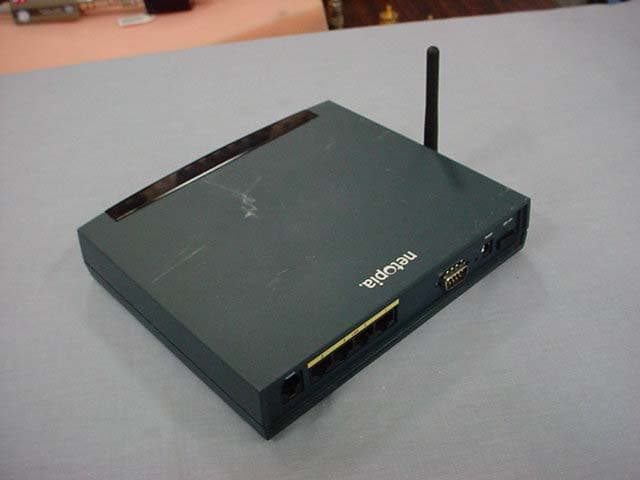

Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W EXTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W EXTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W EXTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W EXTERNAL Photo

12VDC, 1.0A FCC ID: GZ53347W This device complies with FCC part 68 rules. FCC Registration number US: 6EDDL00B3347W IC: 2525A-3347 This class B digital apparatus meets all requirements of the Canadian Interference-causing equipment regulations. Support Contact: www.netopia.com/support/ Cayman 3347W Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Made in Thailand LISTED UL-60950 8K67 2440149-00-01 Keyline does not print Class B Label

Printed By: Donna Tong Date Printed: 20-May-2003 09:13:07 Number: 8970939-00-P1 Rev: Status: Preliminary

Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W INTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W INTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W INTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W INTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W INTERNAL Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W INTERNAL Photo

Netopia, Model No. 3347W FCC ID: GZ53347W 4.10 Radiation exposure The 3347W is a Wireless ADSL Router. It is desktop or wall-mounted device used with AC power adapter in mobile application, at least 20 cm from any body part of the user or near by persons. The maximum conducted power is 20.0 dBm, antenna is fix-mounted, 3.75 dBi gain (maximum). Therefore, to comply with RF Exposure Requirement, the MPE is calculated. The maximum Peak EIRP calculated is 0.24 W. The Power Density can be calculated using the formula: S = EIRP/ 4πD 2 Where: S is Power Density in W/m2 D is the distance from the antenna. In the table below, the calculated Power Density at different distances and MPE Limit for general population/uncontrolled exposure are presented. Distance, m Power density, W/m 2 MPE, W/m 2 0.05 7.6 10.0 0.10 1.9 10.0 0.15 0.85 10.0 0.20 0.45 10.0 As can be seen from the data, the MPE is well below the limit at 10 cm and more.

1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 2 of 60 FCC Part 15.247 Direct Sequence TABLE OF CONTENTS 1.0 Summary of Tests ........................................................................................................................ 3 2.0 General Description ..................................................................................................................... 4 2.1 Product Description .......................................................................................................... 4 2.2 Related Submittal(s) Grants .............................................................................................. 4 2.3 Test Methodology ............................................................................................................. 5 2.4 Test Facility ...................................................................................................................... 5 3.0 System Test Configuration.......................................................................................................... 6 3.1 Support Equipment ........................................................................................................... 6 3.2 Block Diagram of Test Setup............................................................................................ 6 3.3 Justification ....................................................................................................................... 7 3.4 Software Exercise Program............................................................................................... 7 3.5 Mode of Operation During Test........................................................................................ 7 3.6 Modifications Required for Compliance .......................................................................... 7 3.7 Additions, deviations and exclusions from standards ....................................................... 8 4.0 Measurement Results................................................................................................................... 9 4.1 Maximum Conducted Output Power at Antenna Terminals,............................................ 9 4.2 6 dB RF Bandwidth, ....................................................................................................... 10 4.3 Power Density Reading, ................................................................................................. 17 4.4 Out-of-Band Conducted Emissions, ............................................................................... 30 4.5 Out of Band Radiated Emissions (except emissions in restricted bands) ....................... 31 4.6 Transmitter Radiated Emissions in Restricted Bands, .................................................... 32 4.7 AC Line Conducted Emission, ....................................................................................... 47 4.8 Radiated Emissions from Digital Section of Transceiver (Transmitter)......................... 51 4.9 Radiated Emissions from Receiver Section of Transceiver (L.O. Radiation), ............... 56 4.10 Radiation exposure ......................................................................................................... 57 5.0 List of Test Equipment .............................................................................................................. 58 6.0 Document History ...................................................................................................................... 59 Appendix A .............................................................................................................................................. 60 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 3 of 60 FCC Part 15.247 Direct Sequence 1.0 Summary of Tests MODEL: 3347W FCC ID: GZ53347W TEST REFERENCE RESULTS RF output power 15.247(b) Complies 6 dB Bandwidth 15.247(a)(2) Complies Power Density 15.247(d) Complies Out of Band Antenna Conducted Emission 15.247(c) Complies Out of Band Radiated Emission (except emissions in restricted bands) 15.247(c) Not performed. The EUT passed out- of-band antenna conducted emission Radiated Emission in Restricted Bands 15.35(b)(c) Complies AC Conducted Emission 15.207 Complies Radiated Emission from Digital Part 15.109 Complies Radiated Emission from Receiver L.O. 15.109 N/A. The receiver tuned frequency is above 960 MHz Antenna Requirement 15.203 Complies 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 4 of 60 FCC Part 15.247 Direct Sequence 2.0 General Description 2.1 Product Description The 3347W is an ADSL wireless router with a 4-port 10/100Base-T Ethernet switch and provision for multiple wireless data devices via 802.11b. Overview of Spokewave, Model: 3347W Applicant Netopia Trade Name & Model No. Netopia / 3347W FCC Identifier GZ53347W Use of Product The 3347W is a ADSL data router which is ITU compliant. It has an integrated 802.11b wireless LAN interface. Manufacturer & Model of Spread Spectrum Module Netopia Type of Transmission Direct Sequence Spread Spectrum Rated RF Output 100 mW Frequency Range 2412 - 2462 Type of modulation DBPSK, DQPSK, CCK, PBCC Number of Channel(s) 11 Antenna(s) & Gain, SkyCross SMT-2TO6-M Tri-Band Omni-directional Antenna mounted directly onto the PCB. gain of 3.75dBi. Nearson S131CL-L-RMM-2450S Half Wave Dipole Omni-directional Antenna, with a right angle male MMCX connector. gain of 2dBi. Antenna Requirement The EUT uses a permanently connected antennas. Manufacturer Name & Address Netopia, 46653 Fremont Blvd. Fremont, CA 94538 USA EUT receive date: April 8, 2003 EUT receive condition: The EUT was received in good condition with no apparent damage. Test start date: April 8, 2003 Test completion…

Text truncated - open the document above for the full version.

1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 1 of 16 FCC Part 15.247 Direct Sequence Appendix A Out-of-Band conducted emissions Plots 4a.1 - 4a.5 Out-of-band low Channel Emissions Plots 4b.1 - 4b.5 Out-of-band middle Channel Emissions Plots 4c.1 - 4c.5 Out-of-band high Channel Emissions 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 2 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 3 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 4 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 5 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 6 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 7 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 8 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 9 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 10 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 11 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 12 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 13 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 14 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 15 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court Menlo Park, CA 94025 Netopia, Model No. 3347W Date of Test: April 8 to May 6, 2003 FCC ID: GZ53347W File: 30413362 Page 16 of 16 FCC Part 15.247 Direct Sequence

Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W Radiated Emissions Test Setup Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W Radiated Emissions Test Setup Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W Radiated Emissions Test Setup Photo Spokewave (802.11B ADSL Router) Model Numbers: 3347W FCC ID: GZ53347W Line Conducted Emissions Test Setup Photo
