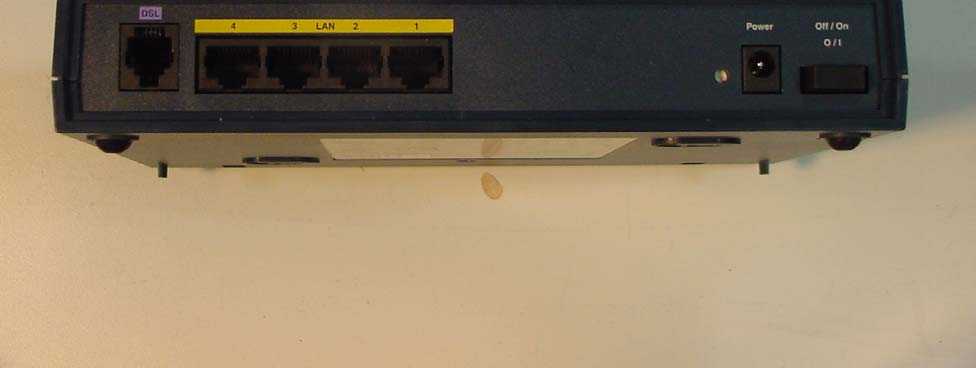

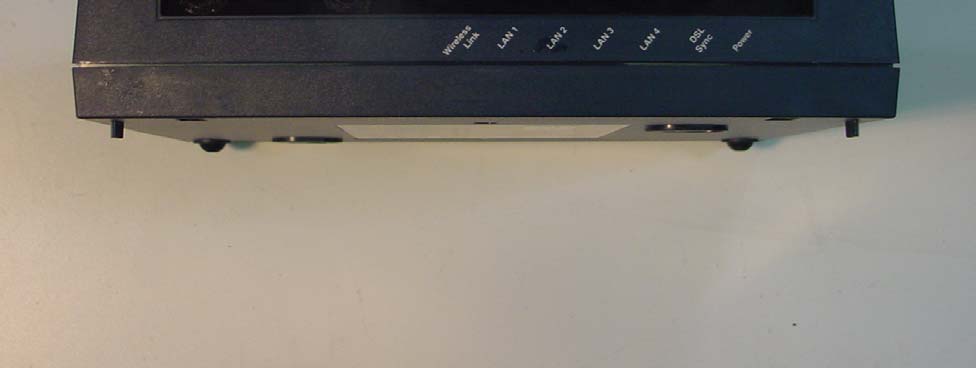

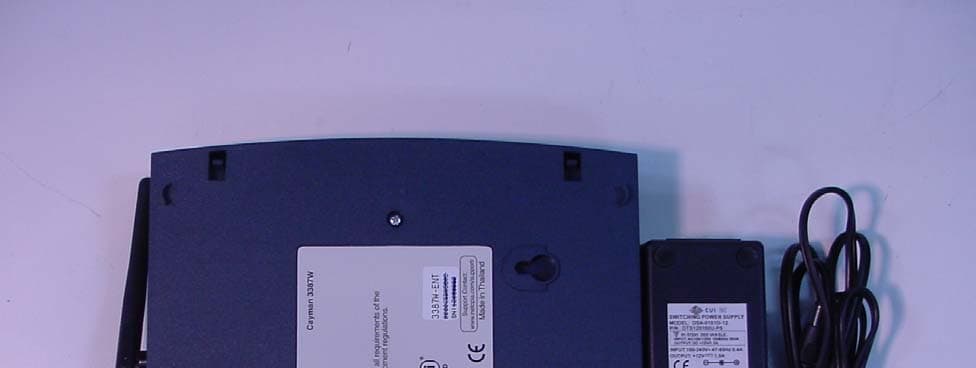

GZ53347WG802.11b/g ADSL Router

Agency approvals North America Safety Approvals: ■ United States – UL 60950, Third Edition ■ Canada – CSA: CAN/CSA-C22.2 No. 60950-00 EMC: ■ United States – FCC Part 15 Class B ■ Canada – ICES-003 Telecom: ■ United States – FCC Part 68 ■ Canada – CS-03 International Safety Approvals: ■ Low Voltage (European directive) 73/23 ■ EN60950 (Europe) EMI Compatibility: ■ 89/336/EEC (European directive) ■ EN55022:1994 CISPR22 Class B ■ EN300 386 V1.2.1 (non-wireless products) ■ EN 301-489 (wireless products) Regulatory notices European Community. This Netopia product conforms to the European Community CE Mark standard for the design and manufacturing of information technology equipment. This standard covers a broad area of product design, including RF emissions and immunity from electrical disturbances. The Netopia 3300-Series complies with the following EU directives: ■ Low Voltage, 73/23/EEC ■ EMC Compatibility, 89/336/EEC, conforming to EN 55 022 Manufacturer’s Declaration of Conformance ☛ Warnings: This is a Class B product. In a domestic environment this product may cause radio inter ference, in which case the user may be required to take adequate measures. Ade- quate measures include increasing the physical distance between this product and other electrical devices. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. United States. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter ference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter ference to radio communications. However, there is no guarantee that inter ference will not occur in a particular installation. If this equipment does cause harmful inter ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tr y to correct the inter ference by one or more of the following measures: ■ Reorient or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced radio TV technician for help. Service requirements. In the event of equipment malfunction, all repairs should be per formed by our Company or an authorized agent. Under FCC rules, no customer is authorized to repair this equipment. This restriction applies regardless of whether the equipment is in or our of warranty. It is the responsibility of users requiring ser vice to report the need for ser vice to our Company or to one of our authorized agents. Ser vice can be obtained at Netopia, Inc., 6001 Shellmound Street, Emer yville, California, 94608. Telephone: 510-597-5400. ☛ Important This product was tested for FCC compliance under conditions that included the use of shielded cables and connectors between system components. Changes or modifica- tions to this product not authorized by the manufacturer could void your authority to operate the equipment. Canada. This Class B digital apparatus meets all requirements of the Canadian Inter ference - Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. Declaration for Canadian users NOTICE: The Canadian Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line individual service may be extended by means of a certified connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to the certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone inter face. The termination on an inter face may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. Important Safety Instructions Australian Safety Information The following safety information is provided in conformance with Australian safety requirements: Caution DO NOT USE BEFORE READING THE INSTRUCTIONS: Do not connect the Ethernet ports to a carrier or carriage ser vice provider’s telecommunications network or facility unless: a) you have the written consent of the network or facility manager, or b…

Text truncated - open the document above for the full version.

Netopia, Inc. Marketplace Tower 6001 Shellmound Street. 4 th Floor Emeryville California 94608 March 30th, 2004 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Mills Road Colombia. MD21046 Re: Request For Withholding From Public Disclosure Proprietary Information FCC ID: GZ53347WG Dear Sir or Madam: Netopia, Inc. requests that certain materials submitted with this application for certification be withheld from public disclosure. This request is made under the provision of Section 0.457 (d) of the Commission's Rule and Section 522 (b) (4) of the Freedom of Information Act, Trade Secrets. The items marked "Confidential" contain detailed schematic diagrams, a list of parts, and a detailed theory of operation submitted to the FCC for review with this application. The information contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture), which are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerably more time to assess and develop a workable competitive product. As a result, we believe that disclosure of these company-guarded materials would compromise our leading position in this market. We therefore formally request that the materials marked "Confidential" be kept strictly confidential and not made available for inspection by any other party, except on a need to know basis for the sole purpose of the certification process. Philip 6immons Director, Hardware Netopia, Inc

FCC ID: GZ53347WG

Printed By: Donna Tong Date Printed: 20-May-2003 09:13:07 Number: 8970939-00-P1 Rev: Status: Preliminary

FCC ID: GZ53347WG

EMC Report for Netopia on the Runic (802.11b/g ADSL Routers) Models: 3347WG & 3357WG File: 30548021 Page 65 of 65 4.8 Radiation exposure evaluation The 3347W is a Wireless ADSL Router. It is desktop or wall-mounted device used with AC power adapter in mobile application, at least 20 cm from any body part of the user or nearby persons. The maximum conducted power is 20.0 dBm, antenna is fix-mounted, 3.75 dBi gain (maximum). Therefore, to comply with RF Exposure Requirement, the MPE is calculated. The maximum Peak EIRP calculated is 0.24 W. The Power Density can be calculated using the formula S = EIRP/ 4πD 2 Where: S is Power Density in W/m 2 D is the distance from the antenna. In the table below, the calculated Power Density at different distances and MPE Limit for general population/uncontrolled exposure are presented. Distance, m Power Density, W/m 2 MPE, W/m 2 0.05 7.6 10.0 0.10 1.9 10.0 0.15 0.85 10.0 0.20 0.45 10.0 As can be seen from the data, the MPE is well below the limit at 10 cm and more.

EMC Report for Netopia on the Runic (802.11b/g ADSL Routers) Models: 3347WG & 3357WG File: 30548021 Page 1 of 65 TEST REPORT Report Number: 30548021 Project Number: 3054802 April 27, 2004 Testing performed on the Runic (802.11b/g ADSL Routers) Model Numbers: 3347WG & 3357WG FCC ID: GZ53347WG IC ID: 2525A-3347WG to FCC Part 15 Subpart C (15.247) for Netopia A2LA Certificate Number: 1755-01 Test Performed by: Test Authorized by: Intertek Testing Services 1365 Adams Court Menlo Park, CA 94025 Netopia 46653 Fremont Blvd. Fremont, CA 94538 USA Prepared by: Date: 4/27/04 David Chernomordik, EMC Technical Manager Reviewed by: Date: 4/27/04 Ollie Moyrong, EMC Manager This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Netopia on the Runic (802.11b/g ADSL Routers) Models: 3347WG & 3357WG File: 30548021 Page 2 of 65 TABLE OF CONTENTS 1.0 Summary of Tests .......................................................................................................................... 3 2.0 General Description ....................................................................................................................... 4 2.1 Product Description ............................................................................................................4 2.2 Related Submittal(s) Grants ................................................................................................ 5 2.3 Test Methodology ...............................................................................................................6 2.4 Test Facility ........................................................................................................................ 6 3.0 System Test Configuration............................................................................................................ 7 3.1 Support Equipment ............................................................................................................. 7 3.2 Block Diagram of Test Setup.............................................................................................. 7 3.3 Justification ......................................................................................................................... 8 3.4 Software Exercise Program................................................................................................. 8 3.5 Mode of Operation During Test.......................................................................................... 8 3.6 Modifications Required for Compliance ............................................................................ 8 3.7 Additions, deviations and exclusions from standards ......................................................... 9 4.0 Measurement Results................................................................................................................... 10 4.1 Maximum Conducted Output Power at Antenna Terminals,............................................ 10 4.2 6 dB RF Bandwidth, ......................................................................................................... 11 4.3 Power Density...................................................................................................................21 4.4 Out-of-Band Conducted Emissions, ................................................................................. 31 4.5 Out of Band Radiated Emissions (except emissions in restricted bands) ......................... 54 4.6 Transmitter Radiated Emissions in Restricted Bands, ...................................................... 55 4.7 AC Line Conducted Emission, ......................................................................................... 62 4.8 Radiation exposure evaluation .......................................................................................... 65 5.0 List of Test Equipment ................................................................................................................ 66 6.0 Document History ........................................................................................................................ 67 EMC Report for Netopia on the Runic (802.11b/g ADSL Routers) Models: 3347WG & 3357WG File: 30548021 Page 3 of 65 1.0 Summary of Tests FCC ID: GZ53347WG TEST REFERENCE RESULTS RF output power 15.247(b) Complies 6 dB Bandwidth 15.247(a)(2) Complies Power Density 15.247(d) Complies Out of Band Antenna Conducted Emission 15.247(c) Complies Out of Band Radiated Emission (except emissions in restricted bands) 15.247(c) Not performed. The EUT passed out- of-band antenna conducted emission Radiated Emission in Restricted Bands 15.247(c), 15.209, 15.205 Complies AC Conducted Emission 15.207 Complies Radiated Emission from Digital Part and Receiver 15.109 Complies. A separate DOC report is issued Antenna Requirement 15.203 Complies. Antenna is integral part of the EUT EMC Report for Netopia on the Runic (802.11b/g ADSL Routers) Models: 3347WG & 3357WG File: 30548021 Page 4 of 65 2.0 General Description 2.1 Product Description…

Text truncated - open the document above for the full version.

FCC ID: GZ53347WG Radiated emission test AC line conducted emission test
