GZ53387WEthernet to Ethernet Router with 802.11b

Software User Guide Cayman ® Operating System Version 7.2 July 2003 Cayman ® 3300 Series Gateways by Netopia D D r r a a f f t t D D o o c c u u m m e e n n t t a a t t i i o o n n - - - - N N o o t t f f o o r r D D i i s s t t r r i i b b u u t t i i o o n n 2 Disclaimers Copyright © 2003 Netopia, Inc. All rights reserved, Printed in the USA. The information in this document is subject to change without notice. The statements, configurations, technical data, and recom- mendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsibility for the applications of any products specified in this document. Portions of this software are subject to the Mozilla Public License Version 1.1. Portions created by Netscape are copyright 1994-2000 Netscape Communications Corporation. You may obtain a copy of the license at http://www.mozilla.org/MPL/. Software distributed under the License is distributed on an “as is” basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License. Portions of this software copyright 1988, 1991 by Carnegie Mellon University. All rights reserved. Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copy- right notice and this permission notice appear in supporting documentation, and that the name of Carnegie Mellon University not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. CARNEGIE MELLON UNIVERSITY DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WAR- RANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU BE LIABLE FOR ANY SPECIAL, INDIRECT, OR CONSE- QUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA, OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE, OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE. The information in this document is proprietary to Netopia, Inc. Trademarks Netopia, Cayman, and “Making Broadband Work” are registered trademarks of Netopia, Inc. All rights reserved. Ethernet is a registered trademark of Xerox Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Netopia assumes no responsibility with regard to the performance or use of these products. Statement of Conditions In the interest of improving internal design, operational function, and /or reliability, Netopia, Inc. reserves the right to make changes to the products described in this document without notice. Netopia , Inc. does not assume any liability that may occur due to the use or application of the product(s) or network con- figurations described herein. Netopia, Inc. Part Number: 6161158-00-01d5 v071403 3 Table of Contents Table of Contents Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 CHAPTER 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 About Cayman Documentation . . . . . . . . . . . . . . . . . . . . . . . . 11 Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Documentation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . 13 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Internal Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Overview of Major Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . 16 A Word About Example Screens . . . . . . . . . . . . . . . . . . . . . . . 17 CHAPTER 2 Basic Mode Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 20 POWER SUPPLY INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 TELECOMMUNICATION INSTALLATION . . . . . . . . . . . . . . . . . . . . . . 20 Set up the Cayman Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Configure the Cayman Gateway . . . . . . . . . . . . . . . . . . . . . . . 23 Cayman Gateway Status Indicator Lights . . . . . . . . . . . . . . . . 26 Home Page - Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Manage My Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Status Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Enable Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Update Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Table of Contents 4 CHAPTER 3 Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Overview of Major Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . 35 Wide Area Network Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 PPPoE/PPPoA (Point-to-Point Protocol over Ethernet/ATM) . . . . 36 Instant-On PPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

From: David Chernomordik ES-Mpk Sent: Thursday, August 14, 2003 5:52 PM To: Roland Gubisch ES-Box Cc: Danielle Fontaine ES-Box Subject: RE: Netopia, FCC ID: GZ53387W Roland 1) The device is considered as a PC peripheral, therefore the digital part is authorized under Declaration of Conformity and have the FCC logo per 15.19 (b)(1)(i). 2) The RF exposure evaluation is located in section 4.10 of the report (page 52). Regarding the manual, please see the following comment/question from the Applicant. As far as the manual goes, this same manual is used for the whole 3300 series of products. We include the text for Part 68 in the manual to cover those products which include an adsl interface. In your opinion, can we continue to ship the same manual with both adsl and ethernet-only product types? Thanks David -----Original Message----- From: Roland Gubisch ES-Box Sent: Wednesday, August 13, 2003 2:39 PM To: David Chernomordik ES-Mpk Cc: Danielle Fontaine ES-Box Subject: Netopia, FCC ID: GZ53387W David: Review of this application is complete, and we note the following: ADMINISTRATIVE 1) The label contains Canadian compliance information for a digital device, but does not contain the corresponding FCC statement from 15.19(a)(3). Please comment. 2) No RF safety evaluation for MPE of this mobile device can be located. Please indicate where it can be found, or provide the exhibit. TECHNICAL 1) The device meets the technical criteria for certification. COMMENT 1) The User Manual contains Part 68 compliance information, but there does not appear to be a public network interface. The client may wish to delete this information. If there is a public network interface, Part 68/ACTA approval would be required, and the label would need to show a corresponding ACTA Product ID. Roland Gubisch

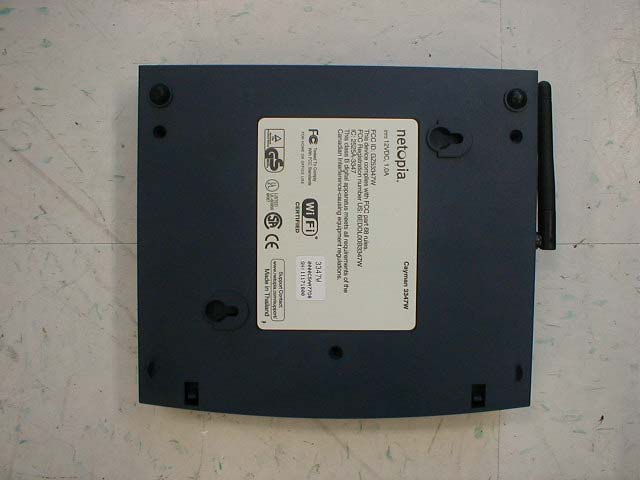

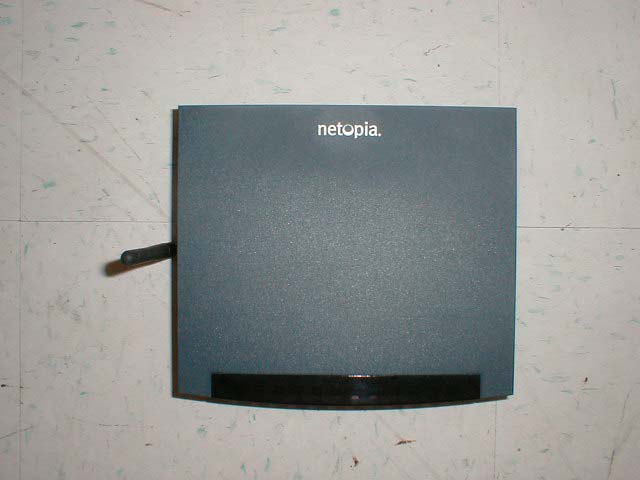

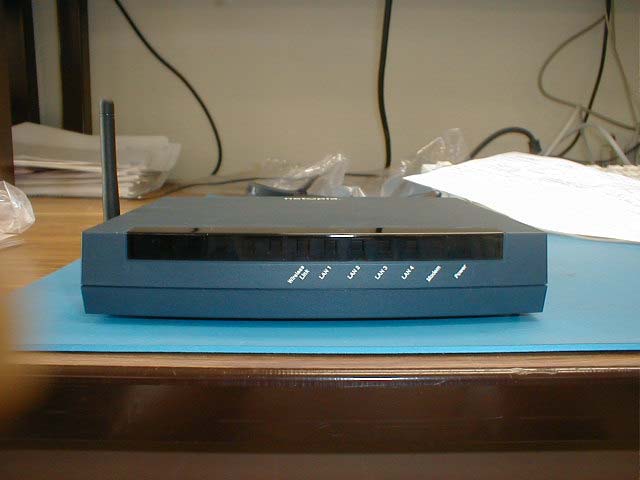

FCC ID: GZ53387W External Photo FCC ID: GZ53387W External Photo FCC ID: GZ53387W External Photo FCC ID: GZ53387W External Photo Label

FCC ID: GZ53387W Internal Photo FCC ID: GZ53387W Internal Photo FCC ID: GZ53387W Internal Photo FCC ID: GZ53387W Internal Photo

1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 52 of 55 FCC Part 15.247 DS Spread Spectrum 4.10 Radiation exposure The 3387W is a Wireless Ethernet Router. It is desktop or wall-mounted device used with AC power adapter in mobile application, at least 20 cm from any body part of the user or near by persons. The maximum conducted power is 20.0 dBm, antenna is fix-mounted, 3.75 dBi gain (maximum). Therefore, to comply with RF Exposure Requirement, the MPE is calculated. The maximum Peak EIRP calculated is 0.24 W. The Power Density can be calculated using the formula S = EIRP/ 4πD 2 Where: S is Power Density in W/m 2 D is the distance from the antenna. In the table below, the calculated Power Density at different distances and MPE Limit for general population/uncontrolled exposure are presented. Distance, m Power Density, W/m 2 MPE, W/m 2 0.05 7.6 10.0 0.10 1.9 10.0 0.15 0.85 10.0 0.20 0.45 10.0 As can be seen from the data, the MPE is well below the limit at 10 cm and more.

1365 Adams Court, Menlo Park, CA 94025 TEST REPORT Report Number: 30451631 Project Number: 3045163 Report Date: August 4, 2003 Testing performed on the Ethernet to Ethernet Router with 802.11b Model Number: 3387W FCC ID: GZ53387W to FCC Part 15.247 Direct Sequence for Netopia Test Performed by: Test Authorized by: Intertek Testing Services 1365 Adams Court Menlo Park, CA 94025 Netopia 46653 Fremont Blvd. Fremont, CA 94538 USA Prepared by: Date: 8/4/03 David Chernomordik, EMC Technical Manager All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 2 of 55 FCC Part 15.247 DS Spread Spectrum TABLE OF CONTENTS 1.0 Summary of Tests ........................................................................................................................ 3 2.0 General Description ..................................................................................................................... 4 2.1 Product Description .......................................................................................................... 4 2.2 Related Submittal(s) Grants .............................................................................................. 4 2.3 Test Methodology ............................................................................................................. 5 2.4 Test Facility ...................................................................................................................... 5 3.0 System Test Configuration.......................................................................................................... 6 3.1 Support Equipment ........................................................................................................... 6 3.2 Block Diagram of Test Setup............................................................................................ 6 3.3 Justification ....................................................................................................................... 7 3.4 Software Exercise Program............................................................................................... 7 3.5 Mode of Operation During Test........................................................................................ 7 3.6 Modifications Required for Compliance .......................................................................... 7 3.7 Additions, deviations and exclusions from standards ....................................................... 7 4.0 Measurement Results................................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals,............................................ 8 4.2 6 dB RF Bandwidth, ......................................................................................................... 9 4.3 Power Density Reading, ................................................................................................. 16 4.4 Out-of-Band Conducted Emissions, ............................................................................... 29 4.5 Out of Band Radiated Emissions (except emissions in restricted bands) ....................... 30 4.6 Transmitter Radiated Emissions in Restricted Bands, .................................................... 31 4.7 AC Line Conducted Emission, ....................................................................................... 46 4.8 Radiated Emissions from Digital Section of Transceiver (Transmitter)......................... 49 4.10 Radiation exposure ......................................................................................................... 52 5.0 List of Test Equipment .............................................................................................................. 53 6.0 Document History ...................................................................................................................... 54 Appendix A .............................................................................................................................................. 55 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 3 of 55 FCC Part 15.247 DS Spread Spectrum 1.0 Summary of Tests MODEL: 3387W FCC ID: GZ53387W TEST REFERENCE RESULTS RF output power 15.247(b) Complies 6 dB Bandwidth 15.247(a)(2) Complies Power Density 15.247(d) Complies Out of Band Antenna Conducted Emission 15.247(c) Complies Out of Band Radiated Emission (except emissions in restricted bands) 15.247(c) Not performed. The EUT passed out- of-band antenna conducted emission Radiated Emission in Restricted Bands 15.35(b)(c) Complies AC Conducted Emission 15.207 Complies Radiated Emission from Digital Part 15.109 Complies Radiated Emission from Receiver L.O. 15.109 N/A. The receiver tuned frequency is above 960 MHz Antenna Requirement 15.203 Complies 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 4 of 55 FCC Part 15.247 DS Spread Spectrum 2.0 General Description 2.1 Product Description The 3387W is an IP Router, with four 10/100BASE-T Switched Ethernet LAN ports, a single 10/100BASE-T WAN interface, and an integrated 802.11b LAN interface. Overview of the model 3387W Applicant Netopia Trade Name & Model No. Netopia / 3387W FCC Identifier GZ53387W Use of Product Ethernet to Ethernet Router with an integrated 802.11b wirele…

Text truncated - open the document above for the full version.

1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 1 of 16 FCC Part 15.247 Direct Sequence Appendix A Out-of-Band conducted emissions Plots 4a.1 - 4a.5 Out-of-band low Channel Emissions Plots 4b.1 - 4b.5 Out-of-band middle Channel Emissions Plots 4c.1 - 4c.5 Out-of-band high Channel Emissions 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 2 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 3 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 4 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 5 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 6 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 7 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 8 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 9 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 10 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 11 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 12 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 13 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 14 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 15 of 16 FCC Part 15.247 Direct Sequence 1365 Adams Court, Menlo Park, CA 94025 Netopia, Model No. 3387W FCC ID: GZ53387W File: 30451631 Page 16 of 16 FCC Part 15.247 Direct Sequence

FCC ID: GZ53387W Radiated Emissions Test Setup Photo Radiated Emission Test Setup FCC ID: GZ53387W Line Conducted Emissions Test Setup Photo AC Line-Conducted Emission Test Setup
