H38U-899HWireless Microphone

566

Declaration Letter Product Name: wireless microphone Model: U-899H FCC ID: H38U-899H We, SEIKAKU TECHNICAL GROUP LIMITED, hereby declare that only the tested US channels are available to the product marketed in the US for wireless microphone product, all non-US channels will be disabled by the company proprietary software and cannot be changed by the end-user. Company Name: SEIKAKU TECHNICAL GROUP LIMITED Address: Offshore Chambers, P.O. Box 217, Apia, Samoa Contact person: Henry Li Authorized Signature: Date:2014-1-8

SEIKAKU TECHNICAL GROUP LIMITED Date: 11/21/2013 Federal Communications Commission Authorization and Evaluation Division FCC ID: H38U-899H Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. BOM , Tune up -Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name:Henry Lee Company name: SEIKAKU TECHNICAL GROUP LIMITED Tel:86-769-88977068 Fax:86-769-83371915

SEIKAKU TECHNICAL GROUP LIMITED FCC ID:H38U-899H Date: 11/21/2013 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Shenzhen Co. Ltd Dongguan Branch., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BVDG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name Henry Lee Company name: SEIKAKU TECHNICAL GROUP LIMITED Tel. 86-769-88977068 Fax 86-769-83371915

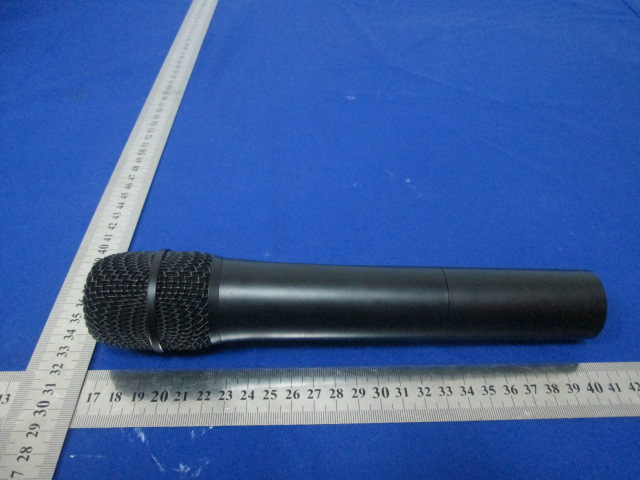

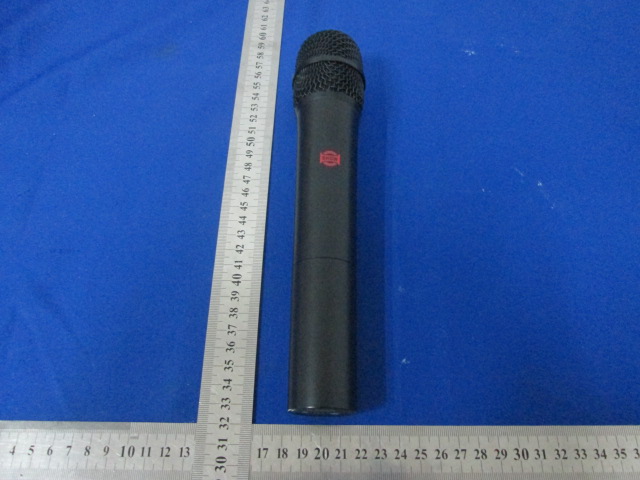

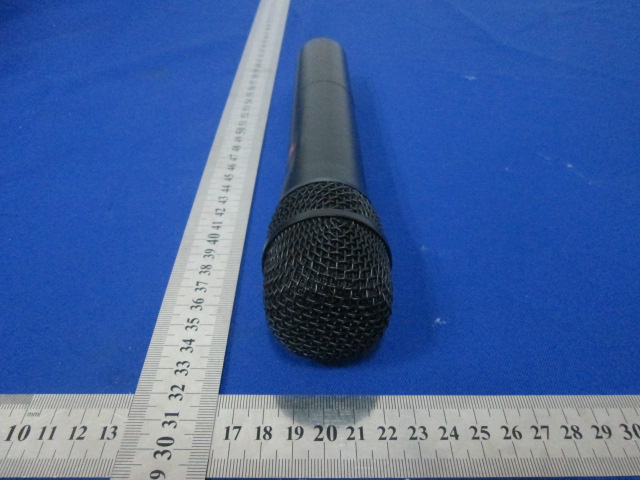

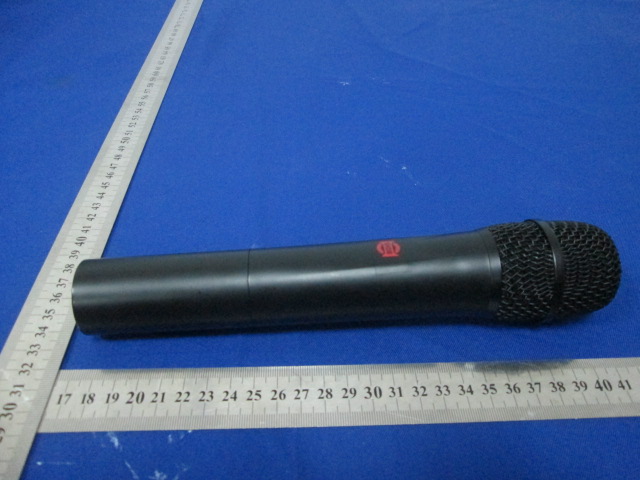

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 131121N042-1 PHOTOGRAPHS OF THE EUT’S EXTERNAL VIEWS Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 131121N042-1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 131121N042-1

U-899H FCC ID Label or Label size : 38mm X 10mm

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: 131121N042-1 PHOTOGRAPHS OF THE EUT’S INTERNAL VIEWS Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: 131121N042-1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: 131121N042-1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: 131121N042-1 ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] No SAR justification for FCC ID: H38U-899H Following FCC KDB 447498 D01 “General SAR test exclusion guidance” The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where
 f(GHz) is the RF channel transmit frequency in GHz
 Power and distance are rounded to the nearest mW and mm before calculation
 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW, at 100MHz to 1500 MHz b) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 3) At frequencies below 100 MHz, the following may be considered for SAR test exclusion. a) The threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm. b) The threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm. c) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test results to be acceptable. Smallest distance from the antenna and radiating structures or outer surface of the device The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] SAR Test Exclusion Thresholds Channel and Mode Frequency (MHz) Maximum source-based time averaged conducted output power including tune-up tolerance (mW) Minimum separation distance (mm) Result of Eq. 1 Limit for 1-g SAR Limit for 10-g extremity SAR Verdict CH 0 542.125 15.85 5mm 2.334 3.0 7.5 Exempt from SAR CH 46 552.475 15.85 5mm 2.355 3.0 7.5 Exempt from SAR CH 49 564.400 15.85 5mm 2.381 3.0 7.5 Exempt from SAR Channel and Mode Frequency (MHz) Maximum source-based time averaged conducted output power including tune-up tolerance (mW) Minimum separation distance (mm) Result of Eq. 1 Limit for 1-g SAR Limit for 10-g extremity SAR Verdict CH 0 638.125 15.85 5mm 2.532 3.0 7.5 Exempt from SAR CH 46 648.475 15.85 5mm 2.552 3.0 7.5 Exempt from SAR CH 49 660.400 15.85 5mm 2.575 3.0 7.5 Exempt from SAR Conclusion Since Source-base time average power is below SAR test exclusion power thresholds, the SAR evaluation is not required.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 on 48 Report Version 1 Test Report No.: RF131121N042-1 TEST REPORT Applicant SEIKAKU TECHNICAL GROUP LIMITED Address Offshore Chambers, P.O. Box 217, Apia, Samoa Manufacturer or Supplier SEIKAKU TECHNICAL GROUP LIMITED Address Offshore Chambers, P.O. Box 217, Apia, Samoa Product wireless microphone Brand Name SHOW Model U-899H Additional Model & Model Difference N/A Date of tests Nov. 21 ~ Dec. 05, 2013 The tests have been carried out according to the requirements of the following standards: FCC Part 74, Subpart H (Section 74.861e) )) ) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Venless Long Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 on 48 Report Version 1 Test Report No.: RF131121N042-1 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1. SUMMARY OF TEST RESULTS.................................................................................................... 5 2. MEASUREMENT UNCERTAINTY ................................................................................................. 5 3. GENERAL INFORMATION ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 7 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 7 4. TEST TYPES AND RESULTS........................................................................................................ 8 4.1 CONDUCTED POWER OUTPUT MEASUREMENT.................................................................. 8 4.1.1 LIMITS OF CONDUCTED POWER OUTPUT MEASUREMENT ..................................... 8 4.1.2 TEST INSTRUMENTS....................................................................................................... 8 4.1.3 TEST PROCEDURES ....................................................................................................... 8 4.1.4 TEST SETUP..................................................................................................................... 9 4.1.5 EUT OPERATING CONDITIONS ...................................................................................... 9 4.1.6 TEST RESULTS ................................................................................................................ 9 4.2 SPURIOUS RADIATION MEASUREMENT.............................................................................. 10 4.2.1 LIMITS OF SPURIOUS RADIATION MEASUREMENT .................................................. 10 4.2.2 TEST INSTRUMENTS..................................................................................................... 10 4.2.3 TEST PROCEDURE.........................................................................................................11 4.2.4 TEST SETUP................................................................................................................... 12 4.2.5 TEST RESULTS .............................................................................................................. 13 4.3 CONDUCTED SPURIOUS MEASUREMENT .......................................................................... 19 4.3.1 LIMITS OF CONDUCTED SPURIOUS MEASUREMENT .............................................. 19 4.3.2 TEST INSTRUMENTS..................................................................................................... 19 4.3.3 TEST PROCEDURE........................................................................................................ 19 4.3.4 TEST SETUP................................................................................................................... 19 4.3.5 TEST RESULTS .............................................................................................................. 20 4.4 OCCUPIED BA…

Text truncated - open the document above for the full version.

Set-up for radiated emission test
