H38UEM-8DRReceiver

RR UEM-8DR/8T SERIES No.1, Lane 17, Sec. 2, Han Shi West Road, Taichung, 401 TAIWAN Tel:886-4-22313737 Fax:886-4-22346757 http://www.show-pa.com e-mail: [email protected] All rights reserved to SEIKAKU. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2005 SEIKAKU GROUP cc NF03356-1.0 IMPORTANT! Please read this manual carefully before operating this unit for the first time. All rights reserved to SHOW. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. SAFETY RELATED SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions. The symbol is used in the service do- cumentation to indicate that specific component shall be only replaced by the component specified in that docu- mentation for safety reasons. Protective grounding terminal. Alternating current /voltage. ON: Denotes the apparatus turns on. OFF: Denotes the apparatus turns off, be- cause of using the single pole switch, be sure to unplug the AC power to prevent any ele- ctric shock before you proceed your service. WARNING: Describes precautions that should be observed to prevent the danger of injury or death to the user. CAUTION: Describes precautions that should be observed to prevent danger of the apparatus. WARNING Power Supply Ensure the source voltage matches the voltage of the power supply before turning ON the apparatus. Unplug this apparatus during lightning storms or when unused for long periods of time. External Connection The external wiring connected to the out- put hazardous live terminals requires installation by an instructed person, or the use of ready-made leads or cords. Do not Remove any Cover There are maybe some areas with high voltages inside, to reduce the risk of electric shock, do not remove any cover if the power supply is connected. The cover should be removed by the qual- ified personnel only. No user serviceable parts inside. Fuse To prevent a fire, make sure to use fuses with specified standard (current, voltage, type). Do not use a different fuse or short circuit the fuse holder. Before replacing the fuse, turn OFF the apparatus and disconnected the power source. Protective Grounding Make sure to connect the protective grounding to prevent any electric shock before turning ON the apparatus. Never cut off the internal or external pro- tective grounding wire or disconnect the wiring of protective grounding terminal. Operating Conditions This apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on this apparatus. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water. Install in accordance with the manufacturer's Hazardous live terminal . Disposing of this product should not be placed in municipal waste and should be separate collection. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Only use attachments/accessories spec- ified by the manufacturer. Power Cord and Plug Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace- ment of the obsolete outlet. Protect the power cord from being walk- ed on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Cleaning When the apparatus needs a cleaning, you can blow off dust from the apparatus with a blower or clean with rag etc. Don't use solvents such as benzol, alcohol, or other fluids with very strong volatility and flammability for cleaning the apparatus body. Clean only with dry cloth. Servicing Refer all servicing to qualified personnel. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so . Servicing is required when the apparatus has been damaged in any way ,such as power supply cord or plug is damaged , liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Follow all instructions. instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including am- plifiers) that produce heat. Do not block any ventilation openings. No naked flame sources, such as lighted candles, should be placed on the apparatus. WARNING: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. TABLE OF CONTENTS 1. ...1INTRODUCTION................................................................................... 2. ................................................2FEATURES.............................................. 3. .................................2CONTROL ELEMENTS.......................................... 4. .....................................4OPERATION....................................................... 5. SPECIFICATIONS..................................................................................6 6. ANNEX....................................................................................................7 6. ANNEX The frequencies which corresponds to the channels are as follows. 12 3 4 56 78 910 11 12 702.125702.875703.775705.875 724.875 730.125 714.725714.925 702.500 703.2507…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:2-Jul-2008 Sheet of File:D:\ICQ\442818613\UEM-8T.DDBDrawn By: RF FILTER RF AMPLIFIER RF FILTERMIXER 1ST1ST IF FILTER 1ST IF AMPLIFIER (T1)(Q1) (T2)(IC1)(IFT2)(Q22) 2ST MIXER (IC9) 1ST VCO (Q26) 2ST IF FILTER 2ST IF AMPLIFIER (IFT1) (Q20) 2ST IF FILTER (IFT4) FM DEMODULATOR (IC9,T5) 2ST VCO (Q25) RF FILTER RF AMPLIFIER RF FILTERMIXER 1ST1ST IF FILTER 1ST IF AMPLIFIER (T3)(Q16) (T4)(IC2)(IFT3)(Q23) 2ST MIXER (IC6) 2ST IF FILTER 2ST IF AMPLIFIER (IFT5) (Q17) 2ST IF FILTER (IFT7) FM DEMODULATOR (IC6,T6) ANT.A ANT.B FREQUENCY SYNTHESIZER (IC3) MULTIPLEXER (IC15C) COMPARATOR (IC4D) VOLTAGE VOLTAGE MIXER (D5,D6) (IC12B.C.D) AF EXPANDER (IC7B) FILTER LOW PASSAF AMPLIFIER (IC12A) MUTE SWITCH (Q11) CN7 AF POWER OUTPUT PLL X1 12M AMPLIFIER (IC13) AF AMPLIFIER (IC10) AF 2ST IF AMPLIFIER (Q18) 2ST IF AMPLIFIER (Q8) 2ST IF FILTER (IFT6) 2ST IF FILTER (IFT8) AMPLIFIER (IC8) STEREO O/P MUTE (Q12,Q13,Q19) AF POWER CONTROL (VR1) TONE MCU (IC16) (IC59) +3V REGULATOR +5V REGULATOR (TR7) +5V REGULATOR (TR4) ENCODER (SW3) BAT & RX INDICATOR (LED1) BAT & ST/MONO SWITCH (SW4) CONNECTER (CN5) CONNECTER (CN3) (IC11) STEREO DEMODULATOR MULTIPLEXER (IC15A.B) (IC5D.C.B) AF EXPANDER (IC7A) FILTER LOW PASSAF AMPLIFIER (IC5A) MUTE SWITCH (Q15) MUTE SWITCH (Q10) MUTE SWITCH (Q14) AMPLIFIER (TR2) RSSI AMPLIFIER (TR1) RSSI COMPARATOR (IC4B) VOLTAGE VOLTAGE (VR8) SQ PRESET MUTE SWITCH (Q4) COMPARATOR (IC4C) VOLTAGE COMPARATOR (IC4A) VOLTAGE INDICATOR (Q9) BAT.LO INDICATOR (Q7) RECEIVE CONNECTER (CN4) CONNECTER (CN6) CN1 BAT9V GND HECHANGZHI 1 VER080322 1 UEM-8DR-

11/2008 - 1 E-MAIL:sekaku @ sekaku.com TEL:886-4-22313737 FAX:886-4-22346757 http://www.seikaku.hk R Authority to Act as Agent Date: __16 September 2009 ______ American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______TUV Rheinland (Guangdong) Ltd.______ is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(16 September 2010)_____ By: __________________________ _________ Henry Lee __________ (Signature 1 ) (Print name) Title: __________________________ On behalf of: _____ SEIKAKU TECHNICAL GROUP LIMITED ___________ (Company Name) Telephone: ______+86-769-88977068__________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

11/2008 - 1 Request for Confidentiality Date: _2010.02.10_______ Subject: Confidentiality Request for FCC ID: ______FCC ID :H38UEM-8DR______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term ID Label and Location Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ___ SEIKAKU TECHNICAL GROUP LIMITED ___ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ __________ Henry Lee ______________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. E-MAIL:sekaku @seka ku .c om TEL:886-4-22313737 FAX:886-4-22346757 http://www.seikaku.hk R

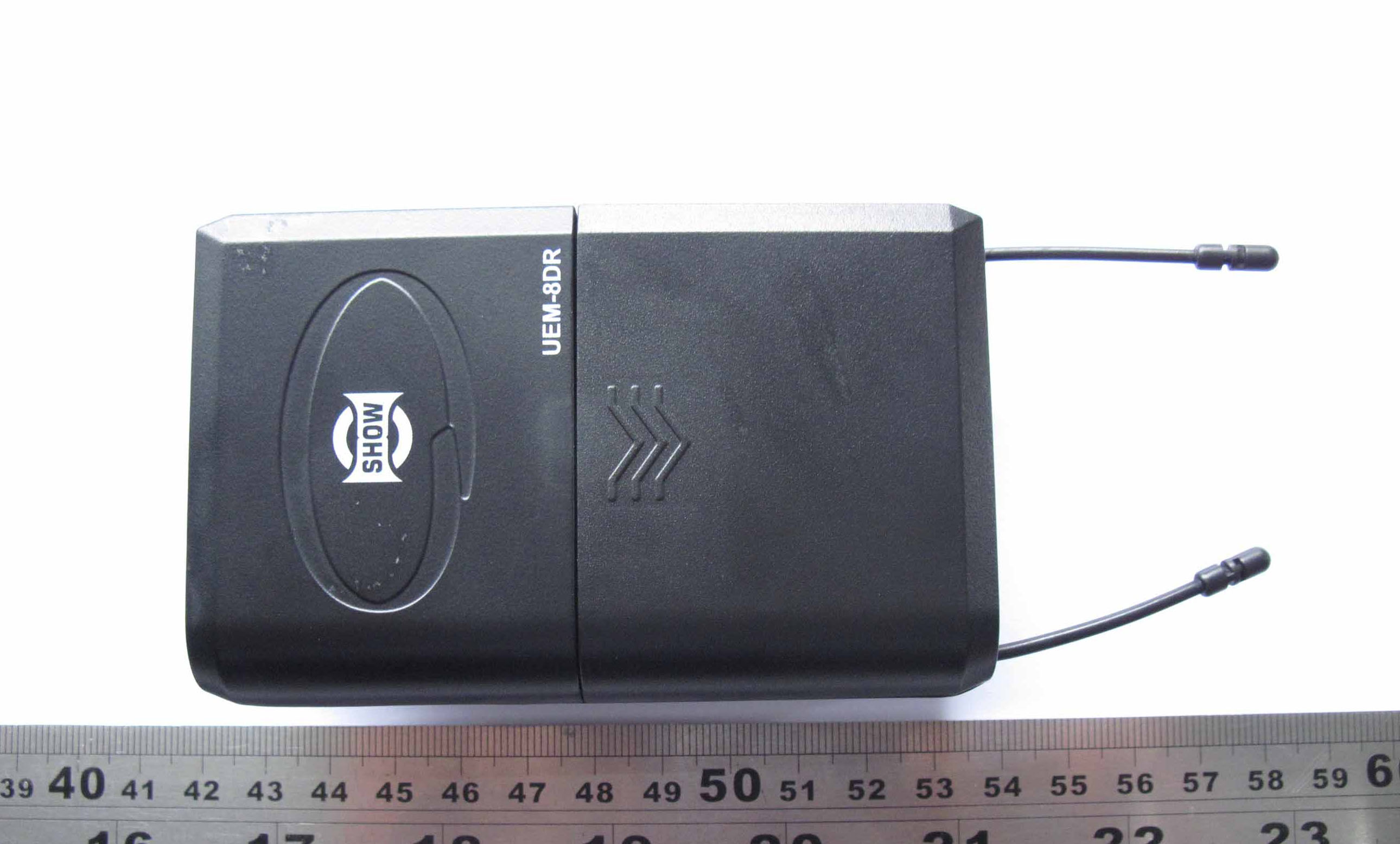

External photos for UEM-8DR

FC C I D:H 38UEM-8 DR

Internal photo for UEM-8DR

Circuit Explanation: How each operations of each section based on the block diagram. 1. ANT A and ANT B. ANT A and ANT B receive the RF signal then send to RF filter to filter the selected frequency. 2. RF Filter RF Filter on channel A and B consists of T1 and T3 units, which separately select the RF signals that ANT A and ANT B received. 3. RF Amplifier Q1 and Q16 make up RF Amplifier circuit to amplify RF signals. The outputs are filtered the selected frequency through T2 and T4 then to the 1 ST MIXER. 4. 1 ST MIXER IC1 and IC2 separately mix the channel A and channel B for the first time. The first middle frequency is 110.6MHz. 5. 1 ST VCO and PLL FREQUENCY SYNTHESIZER 1 ST VCO circuit is made up of Q26, which mixes the RF signals from channel A and B. After that, the outputs send to IFT2 and IFT3 filters. PLL FREQUENCY SYNTHESIZER circuit is made up of IC3,X1(12MHz) and peripheral circuit and in charge of controlling the frequency stability of 1 ST VCO and 2 ST VCO. 6. 1 ST IF AMPLIFIER After receiving the 1 ST mixed RF signals, Q22 and Q23 will amplify the RF signals. 7. 2 ST VCO and 2 ST MIXER 2 ST VCO circuit is made up of Q25, which is mixing the 1 ST middle frequency RF signals on channel A and B. 2 ST MIXER circuit is made up of IC9 and IC6, mixing with the 1 ST middle frequency RF signals on channel A and B to generate the 2 ST middle frequency 10.7MHz RF signals on channel A and B, then output to IFT1 and IFT5 filters. 8. 2 ST IF AMPLIFIER After receiving the 2 ST mixed RF signals, Q20,IFT4,Q8,IFT6,Q17,IFT7,Q18 and IFT8 will amplify and filter the RF signals. 9. FM DEMODULATOR IC6, T6, IC9, T5 and peripheral circuit consist of FM demodulator and output to AF signal amplifier (IC10, IC13),using IC15C to mix then output to stereo demodulator. 10. STEREO DEMODULATIOR. STEREO DEMODULATIOR is made up of IC11 and peripheral components, which demodulates AF signals. 11. AF AMPLIFIER The demodulated stereo signals through Q11,IC12B.C.D, IC7B, IC12A Q15,IC5D.C.B,IC7A,IC5A,IC15A.B.Q10 and Q14 units to finish the low pass filter, expander, amplify send to Tone control (VR1). After that, the output signals will do stereo amplifier (IC8) and power amplifier (Q12, Q13, Q19) once again to have enough power to drive earphone. 12. Battery power switch and Supply power circuit SW4 is used to setting up the Battery power switch to ON or OFF. The whole unit power supply is using TR4,Q7, Q9, Q4,IC4B, IC4C, IC4A, IC4D, D5 and D6 to control and supplied +5V to the whole unit.

料號 品名規格使用量 插件位置 PE03490 UEM-8DRUEM-8DR_F2_SHOW_120V_美規_CHINA NI03542 ZC-上蓋-RS-ACT-黑色UEM-8DR SHOW_V1.21 NI00713 N-電池蓋-RS-C-ABSVT-26P 黑色1 NI00573 彈簧夾-RS-C-ABSVT-26P 50.1*12mm 黑1 NI00013 調整棒-RS-C-PCφ6*60 雙頭1 NI03483 ZD-下蓋-RS-ACT-UEM-8RX-01 UEM-8RX 11.5*66*106_V1.11 NI02037 固定片-RS-ACT-ABSφ18.3*18.3*1t UEM-8R_V1.01 NE02717 ZC-產地標誌-RS-ACT 10*15mm MADE IN CHINA1 MK00041 彈片-RS-電池接點10.5*15.5mm VT-26P2 MG00041 鍍黑螺絲-RS-丸M3*61 MG00188 鎳螺絲-RS-C-丸M2*6 B型3 HG00002 耳機-立體式-RSEB-10 KOSS-the plug1 HA02340 單玻線-RS UL1007 28AWG 64mm 黑 L3R31 HA01795 單玻線-RS UL1007 28AWG 44mm 紅 L3R31 HF00052 天線-RSYH940805 φ4*82.4mm2 NE16542 SW標誌-RS 30.8*9.8mmUEM-8DR 16CH_V1.11 NA00855 PE袋-RS0.04t*170*100mm_V1.01 MI04321 ZD-隔離罩-RS-UEM8DR-01 UEM-8DR 0.2t *12.2*9.6*2.3_V1.0 2 MI04323 ZD-隔離罩上蓋-RS-UEM8DR-03 UEM-8DR 0.2t*2.4*29.1*54.6_V1.0 1 HK11991 K-PC板-RSP-UEM-8DR-RF-F2-DIP1 NE19950 ZC-頻率標誌-RS 39.8*23.8mm UEM-8DR(535~565)16CH_V1.01 HK10312 K-PC板-RSP-UEM-8DR-AF-DIP(RM2000)1 NI03542 ZC-上蓋-RS-ACT-黑色UEM-8DR SHOW_V1.2 NI00719 N-上蓋-RS-C-ABSVT-26P 黑色1 NI03483 ZD-下蓋-RS-ACT-UEM-8RX-01 UEM-8RX 11.5*66*106_V1.1 NI02747 K-下蓋-RS-ACT-ABSVT-26P 黑色_V1.31 NI02747 K-下蓋-RS-ACT-ABSVT-26P 黑色_V1.3 NI00715 N-下蓋-RS-C-ABSVT-26P 黑1 ME00047 銅螺帽-RSM3*0.5PH*5 φ61 NE02717 ZC-產地標誌-RS-ACT 10*15mm MADE IN CHINA NI00028 R-上光膜-RS0.110*1M1 NH00038 R-消金箔紙-RS0.115*1M1 MI04321 ZD-隔離罩-RS-UEM8DR-01 UEM-8DR 0.2t *12.2*9.6*2.3_V1.0 MJ01521 R-馬口鐵-RS-CT0.2t*820mm*50m 65kg_V1.01 MI04323 ZD-隔離罩上蓋-RS-UEM8DR-03 UEM-8DR 0.2t*2.4*29.1*54.6_V1.0 MJ01521 R-馬口鐵-RS-CT0.2t*820mm*50m 65kg_V1.01 HK11991 K-PC板-RSP-UEM-8DR-RF-F2-DIP TB00022 中周變壓器-RS-ACTT-1146N2 T5,T6 RC00373 半可調電阻-RS-C20KΩ TSR-6-530-51 VR5 RC00057 電位器-RSB10KΩ RV102-30-4K1B-B14-B301 14φ 1 VR1 SC00398 石英晶體-RS-DT-3812.000MHZ1 X1 RD00083 SMD固定電阻-RS 1/10W1.0KΩ ±5% 06032 SA00051 發光二極體-RSφ3 橙綠 (BOG303b)1 LED1 RD00116 SMD固定電阻-RS 1/10W100KΩ ±5% 06031 HI00127 滑動SW-RS-ACT3段8P SK-23DO7-G41 SW4 HC00565 排針座(單排)-RS2.0 180° 8P(鍍金) 4.3mm2 CN3,CN5 HC00151 排針(單排)-RS #51002.0 180° 5P(鍍金) 3.8/8.5mm1 CN2 HC00104 MIC座-RSST-0011 CN11 CI00175 SMD陶質電容-RS-ACT 0603 1.0uF/16V X7R±10%(C1608X7R1C105KT) /1 HA01920 跳線-RS6mm2 IFT6,IFT8 CB00062 電解電容-RS220uF/6.3V φ6*7mm2 C91,C92 CG00102 聲表濾波器-RS110.6MHz2 IFT2,IFT3 HC01090 排針座-RS(單排)2.0 180° 2P(鍍金) 4.3mm2 CN8,CN9 AC00603 無鉛錫條S1001.926 HA05325 並排線-RS5P 16mm UL2651 28AWG 紅灰並排 1 CG00109 陶質濾波器-RS-ACTSK107M4N-AO-20 150kHz4 IFT1,IFT4,IFT5,IFT7 HK11998 K-PC板-RSP-UEM-8DR-RF-F2-SMD1 HA01920 跳線-RS6mm HA02249 裸銅線-RSφ0.6_鍍錫0.016 HK11998 K-PC板-RSP-UEM-8DR-RF-F2-SMD SG00313 SMD積體電路-RS-ACTUPC2757TB/(NEC)2 IC1,IC2 SG00034 即將停產090428SMD積體電路-RS- ATA31161FN(EL)2 IC6,IC9 SF00042 SMD場效電晶體-RSXP151A13A0MR(SOT23)/(TOREX) 2 Q12,Q13 SF00010 SMD電晶體-RS2SC2412K(SC59)/(ROHM)1 Q19 SF00018 SMD電晶體-RS-ACTIMX5 T108(SC74)/(ROHM)2 Q25,Q26 SF00020 SMD穩壓電晶體-RS3.0V XC62FP3002MR(SOT23)/(TOREX) 1 IC59 RD00068 SMD固定電阻-RS 1/10W100Ω ±5% 06032 R67,R68 RD00072 SMD固定電阻-RS 1/10W200Ω ±5% 06034 R3,R8,R33,R94 SF00067 SMD電晶體-RS-ACTBFG425W/(PHI)2 Q1,Q16 SF00062 SMD電晶體-RS-ACT2SC4226-T1B(R25)(SC70)/(NEC)4 Q17,Q20,Q22,Q23 SG00356 SMD積體電路-RS-ACTP89LPC921FDH(TSSOP20)/(PHI)1 IC16 SF00071 SMD穩壓電晶體-RS5.0V XC6203E502PR(SOT89)/(TOREX) 2 TR4,TR7 SE00006 SMD變容二極體-RS-ACT1SV2701 VD3 SE00045 SMD蕭特基二極體-RS-ACT 1A/30V FS1J31 D2 RD00353 SMD固定電阻-RS 1/10W36KΩ ±5% 06034 R1,R5,R23,R30 RD00059 SMD固定電阻-RS 1/10W0.0Ω ±5% 06035 L6,L9,R18,R19,R20 RD00065 SMD固定電阻-RS 1/10W47Ω ±5% 06035 R12,R16,R82,R91,R92 RD00085 SMD固定電阻-RS 1/10W1.5KΩ ±5% 06031 R25 RD00083 SMD固定電阻-RS 1/10W1.0KΩ ±5% 06033 R52,R73,R158 RD00101 SMD固定電阻-RS 1/10W10KΩ ±5% 06037 R24,R64,R90,R137,R138, R139,R140 RD00093 SMD固定電阻-RS 1/10W4.7KΩ ±5% 06032 R104,R105 RD00121 SMD固定電阻-RS 1/10W270KΩ ±5% 06032 R43,R126 RD00102 SMD固定電阻-RS 1/10W12KΩ ±5% 06032 R141,R142 RD00125 SMD固定電阻-RS 1/10W1.0MΩ ±5% 06032 R26,R107 RD00116 SMD固定電阻-RS 1/10W100KΩ ±5% 06035 R36,R37,R38,R39,R99 HL00001 SMD波段SW-RS16段 RSM526 紅1 SW3 HB01579 PC板-RS-FR4/2L 58*66.5*1.6 UEM-8DR-RF(1*4)_VER0808011 CO00076 SMD晶片電感-RS 060318nH±5%(MLG1608B18NJT)/(TDK) 3 L7,L10,L26 CO00067 SMD晶片電感-RS 060310nH±5%(MLG1608B10NJT)/(TDK) 4 L19,L20,L21,L38 CO00069 SMD晶片電感-RS 060315nH±5%(MLG1608B15NJT)/(TDK) 3 L4,L16,R35 CO00072 SMD晶片電感-RS 060368nH±5%(MLG1608B68NJT)/(TDK) 2 L1,L5 CO00073 SMD晶片電感-RS-ACT 0603 27nH ±5%(MLG1608B27NJT)/(TDK) 2 L12,L37 CO00068 SMD晶片電感-RS-ACT 0603 12nH±5%(MLG1608B12NJT)/(TDK) 1 R6 CO00071 SMD晶片電感-RS 060347nH±5%(MLG1608B47NJT)/(TDK) 1 L25 CI00132 SMD陶質電容-RS 06032PF/50V C0G±0.25PF(C1608C0G1H020CT )2 C45,C51 CI00177 SMD陶質電容-RS 120622uF/10V Y5V +80;-20%4 C69,C83,C95,C96 CI00185 SMD陶質電容-RS-ACT 0603 0.1uF/50V X7R±10%(C1608X7R1H104KT) /25 C21,C32,C47,C56,C57,C6 4,C65,C72,C82,C93,C103, C105,C113,C117,C123,C1 39,C143,C161,C173,C174, C180,C195,C204,C220,C2 41 CI00189 SMD陶質電容-RS-ACT 0603 4PF/50V C0G±0.25PF(C1608C0G1H040CT )2 C151,C205 CO00088 SMD晶片電感-RS 06031.0uH±5%(MLF1608A1R0J)/(TDK) 2 L13,L18 CI00047 SMD陶質電容-RS-ACT 0603 10PF/50V C0G±0.25PF(C1608C0G1H100C T5 C2,C6,C54,L2,L8 CI00196 SMD陶質電容-RS 08054.7uF/16V Y5V +80;-20%3 C198,C201,C202 CK00010 SMD半可調電容-RS-ACT4.5-20PF N750 TZY2R200A001R00 1 VC1 CI00188 SMD陶質電容-RS-ACT 0603 3PF/50V C0G±0.25PF(C1608C0G1H030CT )2 C137,C185 CK00005 SMD半可調電容-RS-ACTV6P TZVY2Z060A1101 C125 CL00008 SMD鉭質電容-RS-ACT47uF/10V case B23 C9,C203,C212 CI00049 SMD陶質電容-RS-ACT 0603 15PF/50V C0G±5%(C1608C0G1H150JT)/T D2 C11,C255 CI00051 SMD陶質電容-RS-ACT 0603 22PF/50V C0G±5%(C1608C0G1H220JT)/T D2 C50,C61 CI00055 SMD陶質電容-RS-ACT 0603 47PF/50V C0G±5%(C1608C0G1H470JT)/TD5 C109,C110,C111,C171,C1 72 CI00083 SMD陶質電容-RS-ACT 0603 3.9PF/50VC0G±0.25PF(C1608C0G1H3R9C T2 C1,C90 CI00076 SMD陶質電容-RS-ACT 0603 1PF/50V C0G±0.25PF(C1608C0G1H010CT )2 C142,C206 CO00113 SMD繞線電感-RS-ACT 0603 10nH±2%(LQW18AN10NG00D)/(MURAT A1 L24 CI00201 SMD陶質電容-RS-ACT 0603 0.01uF/50V ±10%(C1608X7R1H103KT)/T D2 C163,C191 CI00228 SMD陶質電容-RS-ACT 0603 0.001uF/50V C0G±5%(C1608C0G1H102JT )6 C7,C22,C48,C184,C213,C 214 RD00542 SMD精密電阻-RS 1/10W220Ω±1% 06036 R42,R80,R81,R121,R130, R1 69 RD00567 SMD固定電阻-RS 1/16W4.7KΩ ±5% 04022 R112,R116 RD00558 SMD固定電阻-RS 1/16W470Ω ±5% 04022 R61,R62 RD00568 SMD固定電阻-RS 1/16W5.1KΩ ±5% 04022 L11,L…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 2 von 35 Page 2 of 35 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.107(A) RESULT: N/A 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.109(A) RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 3 von 35 Page 3 of 35 Contents 1 GENERAL REMARKS........................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS........................................................................................... 4 2 TEST SITES......................................................................................................................... 4 2.1 TEST FACILITIES................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................ 5 2.3 TRACE ABILITY.................................................................................................................... 5 2.4 CALIBRATION...................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA............................................................................................ 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3 GENERAL PRODUCT INFORMATION.................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE.......................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS......................................................................................... 7 3.3 INDEPENDENT OPERATION MODES.................................................................................... 7 3.4 SUBMITTED DOCUMENTS.................................................................................................... 7 4 TEST SET-UP AND OPERATION MODE................................................................................ 8 4.1 PRINCIPLE OF CONFIGURATION SELECTION...................................................................... 8 4.2 TEST OPERATION AND TEST SOFTWARE........................................................................... 8 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT....................................................... 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE...................................................... 8 4.5 TEST SET-UP....................................................................................................................... 9 5 TEST RESULTS EMISSION..................................................................................... 11 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.107(A)........................... 11 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.109(A)............................... 12 6 PHOTOGRAPHS OF THE TEST SET-UP............................................................................. 32 7 LIST OF TABLES................................................................................................................ 35 8 LIST OF PHOTOGRAPHS.................................................................................................... 35 Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 4 von 35 Page 4 of 35 1 General Remarks 1.1 Complementary Materials No appendix attached in this report. 2 Test Sites 2.1 Test Facilities TÜV Rheinland (Guangdong) Ltd. EMC Laboratory Guangzhou Auto Market, Yuan Gang Section of Guangshan Road Guangzhou 510650 P. R. China Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 5 von 35 Page 5 of 35 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Equipment Manufacturer Type Serial No. Calibrated until TÜV Rheinland (Guangdong) Ltd. EMI Test Receiver Rohde & Schwarz ESCI-3 100216 16.Mar.2011 Spectrum Analyzer Rohde & Schwarz FSP30 100286 16.Mar.2011 Trilog-Broadband Antenna SCHWARZBECK MESS- ELEKTRONIK VULB9168 209 07.Nov.2010 Trilog-Broadband Antenna SCHWARZBECK MESS- ELEKTRONIK VULB9168 210 26.Jun.2011 Double-Ridged Waveguide Horn Antenna Rohde & Schwarz HF906 100385 18.Jul.2011 Double-Ridged Waveguide Horn Antenna Rohde & Schwarz HF906 100407 26.Jun.2011 Pre-amplifier MITEQ AFS42-00101800- 25-S-42 1101599 31.Jul.2010 Standard Gain Horn Antenna EMCO 3160-09 21642 26.Jun.2014 Standard Gain Horn Antenna EMCO 3160-09 21645 N/A Pre-amplifier MITEQ AFS33-18002650- 30-8P-44 1108282 16.Mar.2011 3m Anechoic Chamber Albatross Project GmbH N/A N/A 16.Apr.2011 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 6 von 35 Page 6 of 35 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. 2.5 Measurement Uncertainty Uncertainty for conducted emissions measurements is ± 2.51dB. Uncertainty for radiated emissions measurements is ± 4.9dB (30MHz-1GHz), ± 4.84dB (>1GHz). The reported expanded uncertainty is based on a standard uncertainty multiply by a coverage factor k=2, providing a level of confidence of approximately 95%. 2.6 Location of original data The original copies of all test data taken during actual testing were attached at Appendix 1 of this report and delivered to the applicant. A copy has b…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 32 von 35 Page 32 of 35 6 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement Below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 33 von 35 Page 33 of 35 Photograph 2: Set-up for Radiation Measurement Above 1GHz Produkte Products Prüfbericht - Nr.: Test Report No.: 16014488 001 Seite 34 von 35 Page 34 of 35 Transmitter
