H38UEM-8TWireless Microphone System

RR UEM-8DR/8T SERIES No.1, Lane 17, Sec. 2, Han Shi West Road, Taichung, 401 TAIWAN Tel:886-4-22313737 Fax:886-4-22346757 http://www.show-pa.com e-mail: [email protected] All rights reserved to SEIKAKU. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2005 SEIKAKU GROUP cc NF03356-1.0 IMPORTANT! Please read this manual carefully before operating this unit for the first time. All rights reserved to SHOW. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. SAFETY RELATED SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions. The symbol is used in the service do- cumentation to indicate that specific component shall be only replaced by the component specified in that docu- mentation for safety reasons. Protective grounding terminal. Alternating current /voltage. ON: Denotes the apparatus turns on. OFF: Denotes the apparatus turns off, be- cause of using the single pole switch, be sure to unplug the AC power to prevent any ele- ctric shock before you proceed your service. WARNING: Describes precautions that should be observed to prevent the danger of injury or death to the user. CAUTION: Describes precautions that should be observed to prevent danger of the apparatus. WARNING Power Supply Ensure the source voltage matches the voltage of the power supply before turning ON the apparatus. Unplug this apparatus during lightning storms or when unused for long periods of time. External Connection The external wiring connected to the out- put hazardous live terminals requires installation by an instructed person, or the use of ready-made leads or cords. Do not Remove any Cover There are maybe some areas with high voltages inside, to reduce the risk of electric shock, do not remove any cover if the power supply is connected. The cover should be removed by the qual- ified personnel only. No user serviceable parts inside. Fuse To prevent a fire, make sure to use fuses with specified standard (current, voltage, type). Do not use a different fuse or short circuit the fuse holder. Before replacing the fuse, turn OFF the apparatus and disconnected the power source. Protective Grounding Make sure to connect the protective grounding to prevent any electric shock before turning ON the apparatus. Never cut off the internal or external pro- tective grounding wire or disconnect the wiring of protective grounding terminal. Operating Conditions This apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on this apparatus. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water. Install in accordance with the manufacturer's Hazardous live terminal . Disposing of this product should not be placed in municipal waste and should be separate collection. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Only use attachments/accessories spec- ified by the manufacturer. Power Cord and Plug Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace- ment of the obsolete outlet. Protect the power cord from being walk- ed on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Cleaning When the apparatus needs a cleaning, you can blow off dust from the apparatus with a blower or clean with rag etc. Don't use solvents such as benzol, alcohol, or other fluids with very strong volatility and flammability for cleaning the apparatus body. Clean only with dry cloth. Servicing Refer all servicing to qualified personnel. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so . Servicing is required when the apparatus has been damaged in any way ,such as power supply cord or plug is damaged , liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Follow all instructions. instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including am- plifiers) that produce heat. Do not block any ventilation openings. No naked flame sources, such as lighted candles, should be placed on the apparatus. WARNING: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. TABLE OF CONTENTS 1. ...1INTRODUCTION................................................................................... 2. ................................................2FEATURES.............................................. 3. .................................2CONTROL ELEMENTS.......................................... 4. .....................................4OPERATION....................................................... 5. SPECIFICATIONS..................................................................................6 6. ANNEX....................................................................................................7 6. ANNEX The frequencies which corresponds to the channels are as follows. 12 3 4 56 78 910 11 12 702.125702.875703.775705.875 724.875 730.125 714.725714.925 702.500 703.2507…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:2-Jul-2008 Sheet of File:D:\ICQ\442818613\UEM-8T.DDBDrawn By: 38kHz CN3 DC INPUT BALANCED INPUT (CN1) AF AMPLIFIER (IC8B) AF MULTIPLEXER (IC20,Q18,Q22) AF AMPLIFIER (IC4B) AF COMPRESSION (IC4A,IC11A) AF PEAK CHECKER (IC10) BALANCED INPUT (CN2) AF AMPLIFIER (IC8A) AF AMPLIFIER (IC12A) AF COMPRESSION (IC12B,IC11B) AF AMPLIFIER (Q26) VOLTAGE AMPLIFIER (IC19A) AF PEAK CHECKER (IC5) AF AMPLIFIER (Q27) VOLTAGE AMPLIFIER (IC19B) AF LOW PASS FILTER (IC9) AF LOW PASS FILTER (IC6) STEREO MODULATOR (IC2,X2,T2) AF LOW PASS FILTER (IC9) AF LEVEL (Q11) AF LEVEL (Q12) AF AMPLIFIER (IC18B) AF AMPLIFIER (IC18A) AF MUTE (TR7) AF MUTE (TR8) 5 1 4 3 2 CN6 AF MUTE (Q15) AF VOLUMN (VR3) AF AMPLIFIER (IC7A) AF AMPLIFIER (IC7B) AF VOLUMN (VR3) AF MUTE (Q21) AF AMPLIFIER (IC3A) AF AMPLIFIER (IC3B) AF MUTE (Q20) VCO (Q4,Q6) FREQUENCY SYNTHESIZER (IC3) PLL X1 12M RF AMPLIFIER (Q5,Q7) RF AMPLIFIER (TR2) RF POWER CONTROL (Q8,Q14) RF POWER AMPLIFIER (TR4) TRANSMITTER CONTROL (Q8,Q10,Q14) MCU (QU54,IC16) X1 16M DC POWER SWITCH POWER FILTER RF SUPPLY DELAY SWITCH (Q1,Q2,Q3) +8V REGULATOR (TR5) +5V REGULATOR (IC14,IC15) TRANSMITTER CONTROL (Q17) TRANSMITTER CONTROL (Q9,Q16) AF STE/MONO SWITCH (Q25) FUNCTION DISPLAY (LCD1) FUNCTION KEY (S1,S2,S3,S4) RF TX 2-Jul-2008 UEM-8T- HECHANGZHI 1 1

Attestation Letter Attn: Federal Communication Commission Date: Mar.26.2010 We attest that the device of this filing FCC ID: H38UEM-8T is sold only to broadcasters and motion picture performers in accordance with Part 74.831. Sincerely, By__________________________ __________ Henry Lee _______ (Signature/Title 1 ) (Print name) E-MAIL:sekaku @seka ku .c om TEL:886-4-22313737 FAX:886-4-22346757 http://www.seikaku.hk R

11/2008 - 1 E-MAIL:sekaku @ sekaku.com TEL:886-4-22313737 FAX:886-4-22346757 http://www.seikaku.hk R Authority to Act as Agent Date: __16 September 2009 ______ American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______TUV Rheinland (Guangdong) Ltd.______ is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(16 September 2010)_____ By: __________________________ _________ Henry Lee __________ (Signature 1 ) (Print name) Title: __________________________ On behalf of: _____ SEIKAKU TECHNICAL GROUP LIMITED ___________ (Company Name) Telephone: ______+86-769-88977068__________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

11/2008 - 1 Request for Confidentiality Date: ________ Subject: Confidentiality Request for FCC ID: ______FCC ID :H38UEM-8T______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term ID Label and Location Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ___ SEIKAKU TECHNICAL GROUP LIMITED ___ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ __________ Henry Lee ______________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. E-MAIL:sekaku @seka ku .c om TEL:886-4-22313737 FAX:886-4-22346757 http://www.seikaku.hk R

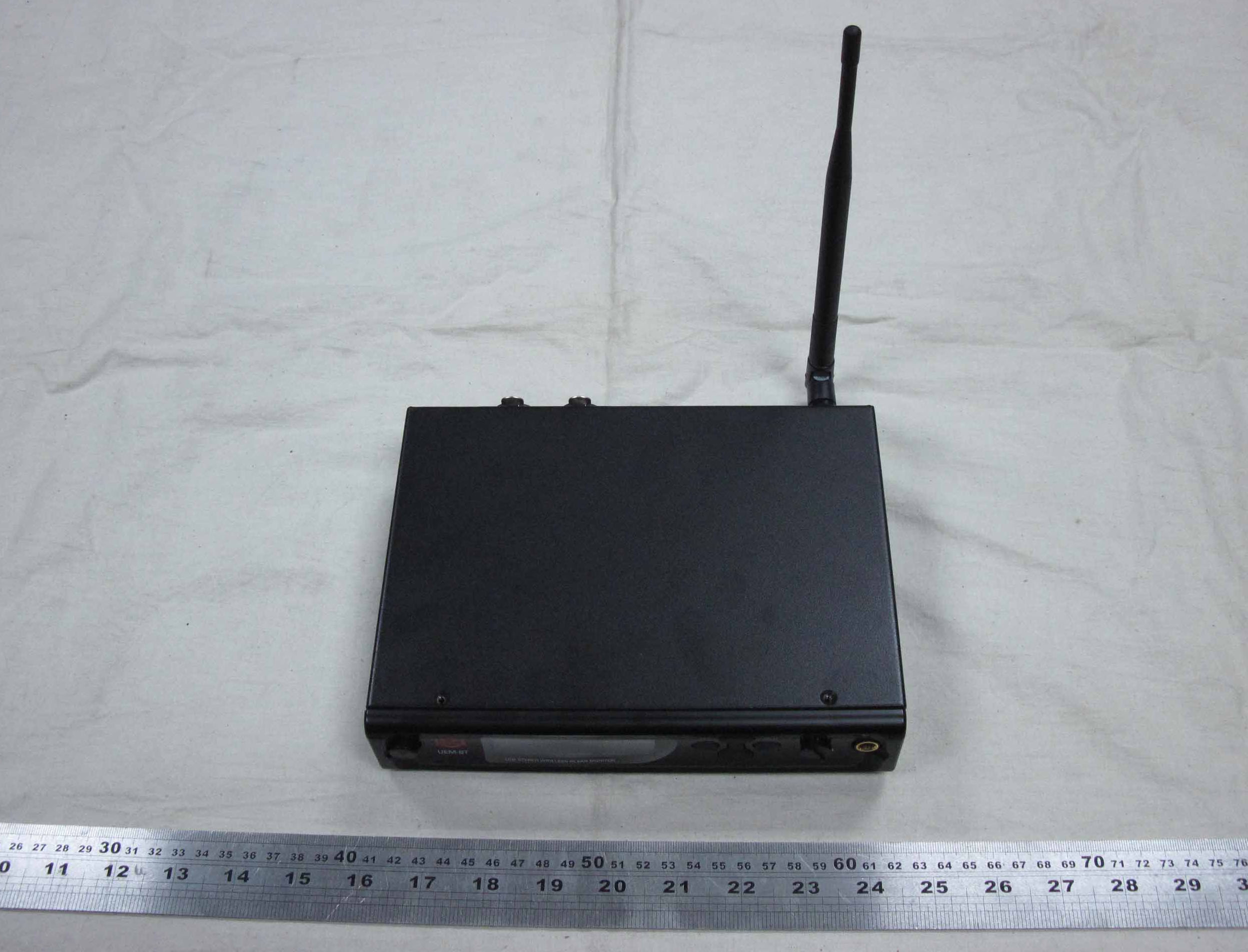

External photos for UEM-8T

FCC ID :H38UEM-8T

Internal photo for UEM-8T

Operation description NAME OF PART Front panel : Rear panel : INSTRUCTION MANUAL

UEM-8T Circuit Explanation: How each operations of each section based on the block diagram. 1. Audio signal input connect Two way balanced inputs CN1and CN2 Impedance: 680 ohm 2. AF AMPLIFIER There are two channel (CN1&CN2) audio signals.CN1 is using OP amp IC8B while CN2 using OP amp IC8A. Audio signals output to AF multiplexer circuit. 3. AF MULTIPLEXER The audio signals of the CN1 and CN2 channel through multiplex circuit IC20, Q18 and Q22 separately send the signals to the channel of OP amp IC18B and IC18A.Then one signal is sent from IC7A, IC7B, TR8 and TR7 to the output port of CN6.The other signal is sent from Q15, Q21, VR3, IC3A and IC3B to the output port of CN0. The rest two signals are sent to stereo modulator through IC4B, IC4A, IC11A, IC6 and IC12A, IC12B, IC11B, IC9. 4. STEREO MODULATOR STEREO MODULATOR circuit is made up of IC2, X2(38kHz) and T2, which modulate its input signal. Its output signal sends to IC9 and Q20 then to VCO for frequency modulation. Besides, the signal through Q12 and Q11 is sent to MCU for controlling. 5. MCU MCU is the key part circuit of the whole apparatus, which consists of QU54, IC16 and X1(16MHz), and the MCU separately control PLL FREQUENCY SYNTHESIZER , function key(S1,S2,S3,S4) and LCD1 function display, RF transmit (Q17,Q8,Q10,Q14,Q9,Q16)and function adjustment. 6. VCO and PLL FREQUENCY SYNTHESIZER VCO circuit is made up of Q4 and Q6, which modulate the signal came from STEREO MODULATOR. Then the signal output to RF amplifier circuit.
     !  "!!" # $%&'!& 7. RF amplifier RF amplifier circuit is made up of Q5, Q7, TR2, TR4 etc. It amplifies the RF signal and output to antenna. 8. DC power switch and Supply power circuit Set up the DC power switch to ON or OFF. The whole apparatus power supply is through Q1, Q2, Q3 delaying then to TR5, IC14, IC15 to supply +8V and +5V for the whole apparatus separately.

料號 品名規格使用量 插件位置 PE03493 UEM-8TUEM-8T(new)_F2_SHOW_120V_美規_CHINA TG00046 電壓轉換器-RS120V/60Hz_DC15V/500mA_EI-41_CE_( 含電容1 NI01090 塑膠盒-RS-C-PP耐衝P1 小 黑色_V 1.12 NI01091 塑膠扣-RS-C-PEP1,P2 黑2 NI01092 連接片-RS-C-PPP1,P2 原色2 NI00498 自粘腳墊-RS12.7*7*6mm(SF-005)4 NI00309 電源SW按鈕-RS-Cφ12*121 NI00349 塑膠旋鈕-RS-Cφ12.5*13.3 (白點) 黑色_V1.11 NE02717 ZC-產地標誌-RS-ACT 10*15mm MADE IN CHINA1 NB01299 紙外箱-RS 6入P1 小塑膠盒_V1.01 NB00630 隔板-RSP1小塑膠盒用_V1.05 NA00073 珍珠絲綿-RSIEM-516/P1上下_V1.02 MG00025 鍍黑螺絲-RS-皿M3*6電泳6 MG00297 鍍黑螺絲-RS-皿-鐵板M2.3*10 B型2 MG00038 鍍黑螺絲-RS-皿-自攻牙M3*64 MG00061 鍍三價鉻黑鋅螺絲-RS-丸-鐵板 M3*10(加硬處理)4 ME00199 T-螺帽-RS-HC00364六角14(對邊)1/2"-28牙1 MF00108 T-華司-RS-HC00364圓形 5TR-41031用2 MG00269 鎳螺絲-RS-扁丁M3*611 HA03924 排線座連線-RS JST2.02P 250mm UL1007 26AWG 紅白1 HI00023 電源SW-RSSDDLB 1007U1 HA03734 FFC軟性排線-RS10P 200mm UL20798 PH:1.25mm 白1 MI03096 ZD-隔離罩上蓋-RS-UP8P-12 UP-8P 0.2t*2.4*14.6*14.7_V2.01 NA00861 PE袋-RS0.04t*350*230mm_V1.01 NE02253 ZC-CE/R&TTE標誌-RS-ACT 38*10m mCE01971 NA00854 PE袋-RS0.04t*300*80mm_V1.01 NA00864 PE袋-RS0.04t*580*400 mm1 NE16686 ZC-條碼貼紙-RS 30*11mmUEM-8T機種條碼_V1.02 NA00933 珍珠絲綿-RS-CTUEM-8T 中_V1.01 NA00932 珍珠絲綿-RS-CTUEM-8T 中上_V1.01 MI04889 ZD-隔離罩上蓋-RS-UEM8T-03 UEM-8T 0.2t*44.5*30.4*3_V1.01 MI02601 ZD-隔離罩上蓋-RS-ACT-UP-8DR-04 UP81-DR 31.1*27.1*3.5_V1.11 MC01135 ZB-上蓋-RS-黑細砂粒UEM-8T_V1.01 HK11992 K-PC板-RSP-UEM-8TX_F2-DIP1 HK11990 K-PC板-RSP-UEM-8T_EARPHONE_B-DIP1 NE19945 面板標誌-RS-CT 183.868*31mm UEM-8T SHOW 新_V1.01 NE19946 塑膠盒標誌-RS-CT 215*145mm UEM-8T/UEM-8DR SHOW 新_V1.02 NE19944 ZC-規格標誌-RS 39.8*23.8mm UEM-8T(535~564)16CH_V1.02 NF03356 說明書-RS-英文UEM-8DR/8T SHOW 新_V1.01 MB06482 ZC-底後板-RS-黑細砂粒UEM-8T新_V1.01 HF00077 主機天線-RSTNC頭 TLB-650-JWTR230(535~565MHz) 1 NI05863 壓克力-RS-CT-透明UEM-8T 70*21mm_V1.01 NI05862 橡膠按鍵-RS-CTUEM-8T 40*30*8.35mm_V1.02 NI05865 ZB-塑膠面板-RS-黑平光UEM-8T_V1.11 HK11989 K-PC板-RSP-UEM-8T-LCD-V2-DIP1 NE02717 ZC-產地標誌-RS-ACT 10*15mm MADE IN CHINA NI00028 R-上光膜-RS0.110*1M1 NH00038 R-消金箔紙-RS0.115*1M1 MI03096 ZD-隔離罩上蓋-RS-UP8P-12 UP-8P 0.2t*2.4*14.6*14.7_V2.0 MJ01461 R-馬口鐵-RS-CT0.2t*40*1M(1M/0.0628kg)_V1.01 NE02253 ZC-CE/R&TTE標誌-RS-ACT 38*10m mCE0197 NI00037 R-25#消銀龍-RS0.05*1M1 NI00016 R-上光膜-RS0.05*1M1 NE16686 ZC-條碼貼紙-RS 30*11mmUEM-8T機種條碼_V1.0 NH00012 R-銅板紙-RS0.04*1M1 NI00015 R-上光膜-RS0.04*1M1 MI04889 ZD-隔離罩上蓋-RS-UEM8T-03 UEM-8T 0.2t*44.5*30.4*3_V1.0 MJ01521 R-馬口鐵-RS-CT0.2t*820mm*50m 65kg_V1.01 MI02601 ZD-隔離罩上蓋-RS-ACT-UP-8DR-04 UP81-DR 31.1*27.1*3.5_V1.1 MJ01406 R-馬口鐵-RS-CT0.33t*1000*1000mm 2.59kg_V1.01 MC01135 ZB-上蓋-RS-黑細砂粒UEM-8T_V1.0 AE00343 溶劑-RSNO. 3308 AE00239 油漆-RS-SR#2000-金屬5252黑砂粒16 MC01134 D-上蓋-RS-UEM8T-02UEM-8T 210*149.2*21.34mm_V1.01 MC01134 D-上蓋-RS-UEM8T-02UEM-8T 210*149.2*21.34mm_V1.0 MJ00058 R-單光板-RS1.0t*2135*1220mm 20.45kg1 HK11992 K-PC板-RSP-UEM-8TX_F2-DIP TB00034 中周變壓器-RSDS-033K1T2 SD00072 積體電路-RS-ACTL7808CV(TO220)/(ST)1TR5 SC00268 石英晶體-RS-DT-3838.000KHZ1X2 SC00398 石英晶體-RS-DT-3812.000MHZ1X1 RG00019 限流元件-RS0.4A/60V PFR60V0401F1 SC00004 石英晶體-RS-LP-3.5S(HC-49US) 16.00MHZ1X54 MI00256 散熱片-RS25*15*10.6-1PIN SCL-20201 MF00037 彈簧華司-RS-ACT-鍍鋅φ3.2*φ5*0.8t1 MG00269 鎳螺絲-RS-扁丁M3*61 HC00364 TNC座-RSφ12.8*33.45 5TR-41031 90° R/A PCB 1IFT2 HC00739 排線母座-RS(FPC/FFC)10P 1.25mm 180°1CN56 HC00151 排針(單排)-RS #51002.0 180° 5P(鍍金) 3.8/8.5mm1J54 HC00183 DC座-RSDJ-005A1CN3 HC00113 混合平衡式MIC插座-RS97M-1007P-H 90°2CN1,CN2 HC00202 立體耳機座-RSSJ-500-0 φ3.51CN6 HA01457 排線座連線-RS 2.06P-6P 120mm UL1007 26AWG 紅白1CN7 ND00778 EV泡棉-RS-雙面背膠7*3*1 黑色_V1.01 MI04888 ZD-隔離罩-RS-UEM8T-02UEM-8T 0.33t*44.1*30*19_V1.01 AC00603 無鉛錫條S1006.138 HK12004 K-PC板-RSP-UEM-8T_F2-AI1 MI04888 ZD-隔離罩-RS-UEM8T-02UEM-8T 0.33t*44.1*30*19_V1.0 MJ01406 R-馬口鐵-RS-CT0.33t*1000*1000mm 2.59kg_V1.01 HK12004 K-PC板-RSP-UEM-8T_F2-AI SB00081 穩壓電晶體-RS-ACTUTC78L05(TO92)/(UTC) 帶狀2IC14,IC15 CB00256 電解電容-RS1000uF/25V φ10*20mm 帶狀 腳距5mm 2C166,C167 CB00190 電解電容-RS4.7uF/25V ψ4*7mm 腳距2.5mm 帶狀 17 C14,C16,C22,C23,C32,C33,C87 ,C160,C161,C174,C192,C195,C 326,C327,C364,C365,C389 CB00192 電解電容-RS10uF/16V ψ4*7mm 腳距2.5mm 帶狀 27 C8,C9,C10,C21,C34,C35,C37,C 55,C133,C162,C163,C164,C165 ,C184,C212,C225,C228,C229,C 252,C254,C257,C295,C324,C32 5C351C387C388 CB00195 電解電容-RS100uF/16V φ6*7mm 腳距2.5mm 帶狀 1C173 CB00194 電解電容-RS47uF/25V φ5*11mm 腳距2.5mm 帶狀 低漏電7 C190,C211,C296,C299,C369,C3 7 0,C377 CB00248 電解電容-RS2.2uF/50V ψ4*5mm 腳距2.5mm 帶狀 1C40 CB00240 電解電容-RS4.7uF/100V φ5*11mm 腳距2.5mm 帶狀 6 C157,C158,C171,C213,C214,C3 66 CB00273 電解電容-RS22uF/16V φ5*11mm 帶狀 腳距2.5mm 3C189,C217,C315 HK11999 K-PC板-RSP-UEM-8TX_F2-SMD1 HK11999 K-PC板-RSP-UEM-8TX_F2-SMD SG00022 SMD積體電路-RS-ACTNJM2035-TE11IC2 SG00303 SMD積體電路-RSSA571DR2(SO16)/(ON)1IC11 SG00315 SMD積體電路-RS-ACTPIC16F74-I/PT(TQFP44)/(MICROCHIP) 1U54 SG00207 SMD積體電路-RS-ACT24LC00T/OT(SOT23)/(MICROCHIP) 1IC16 SF00042 SMD場效電晶體-RSXP151A13A0MR(SOT23)/(TOREX)3Q18,Q17,Q22 SF00010 SMD電晶體-RS2SC2412K(SC59)/(ROHM)2Q11,Q12 SF00004 SMD電晶體-RS-ACT2SA1036K(SC59)/(ROHM)4Q3,Q13,Q26,Q27 SF00014 SMD電晶體-RS-ACT2SC3357-RF(SOT89)/(NEC)1TR4 SF00020 SMD穩壓電晶體-RS3.0V XC62FP3002MR(SOT23)/(TOREX) 1IC3 RD00298 SMD精密電阻-RS 1/10W47.0Ω ±1% 06032R254,R255 RD00002 SMD固定電阻-RS 1/8W0.0Ω ±5% 08051C271 RD00292 SMD精密電阻-RS 1/10W1.00MΩ ±1% 06034R4,R18,R21,R84 RD00068 SMD固定電阻-RS 1/10W100Ω ±5% 06033R29,R220,R267 RD00062 SMD固定電阻-RS 1/10W18Ω ±5% 06033R175,R178,C148 RD00076 SMD固定電阻-RS 1/10W330Ω ±5% 06031R11 SF00078 SMD電晶體-RS-ACTDTC614TU(UMT3)/(ROHM)2Q8,Q14 SG00218 SMD積體電路-RSNJM2068MD/(JRC)2IC4,IC12 SF00069 SMD電晶體-RSRTR030P02-TL(TSMT3)/(ROHM)1Q2 SG00005 SMD積體電路-RS-ACTBA10393F(SO8)/(ROHM)2IC5,IC10 SG00122 SMD積體電路-RS-ACTNJM4580M-TE3(SOP8)/(JRC)7 IC6,IC7,IC8,IC9,IC13,IC18,IC1 9 SE00045 SMD蕭特基二極體-RS-ACT 1A/30V FS1J31D2 SE00061 SMD整流二極體-RS1SS355-TE17/(ROHM)10 D1,D3,D4,D5,D6,D7,D8,D9,D1 0,D11 SG00044 SMD積體電路-RS-ACTBU4066F(SOT73)/(PHI)1IC20 RF00002 SMD半可調電阻-RS-ACT20KΩ EVN5ES X50B243VR10,VR4,VR5 RF00001 SMD半可調電阻-RS-ACT50KΩ EVN5ES X50B542VR3,VR6 RD00329 SMD精密電阻-RS 1/10W30.0KΩ ±1% 06036 R112,R113,R114,R115,R239,C1 72 RD00318 SMD精密電阻-RS 1/10W200KΩ ±1% 06031R54 RD00339 SMD精密電阻-RS 1/10W47.0KΩ ±1% 06032R9,R128 RD00461 SMD精密電阻-RS 1/10W220KΩ ±1% 06033C382,R187,R188 RD00332 SMD精密電阻-RS 1/10W680Ω ±1% 06035R25,R34,R63,R94,R95 RD00061 SMD固定電阻-RS 1/10W10Ω ±5% 06033R…

Text truncated - open the document above for the full version.

FCC ID: H38UEM-8T Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The calculation was done for required safe distance. Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 -1500 MHz frequency range: For operating frequency range 535 - 546 MHz, the limit for power density is (535/1500) mW/cm 2 . The power density P (mW/cm 2 ) = PT / 4p r 2 , where P (535/1500) = 0.357 mW/cm 2 for operating frequency range 535 - 546 MHz; P T is the maximum equivalent isotropically radiated power (EIRP). The peak output power of 16.213 dBm (ERP), The equivalent isotropically radiated power (EIRP) = Power(ERP)+ 2.15 dB = 16.213 dBm +2.15 dB= 18.363 dBm (EIRP) = 68.6 mW (EIRP) The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4P)} = sqrt {68.6 / (0.357x4P)} = 3.91 cm.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 2 von 37 Page 2 of 37 TEST SUMMARY 5.1 CONDUCTED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) RESULT: Pass 5.2 CONDUCTED SPURIOUS EMISSIONS MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) RESULT: Pass 5.3 RADIATED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) RESULT: Pass 5.4 SPURIOUS RADIATION MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(6)(III) RESULT: Pass 5.5 MODULATION CHARACTERISTICS MEASUREMENT RESULT: Pass 5.6 OCCUPIED BANDWIDTH FOR FCC PART 74 PER SECTION 74.861(E)(3), 74.861(E)(5) AND 74.861(E)(6) RESULT: Pass 5.7 FREQUENCY TOLERANCE FOR FCC PART 74 PER SECTION 74.861(E)(4) RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 3 von 37 Page 3 of 37 Contents 1 GENERAL REMARKS................................................................................................................ 5 1.1 COMPLEMENTARY MATERIALS................................................................................................ 5 2 TEST SITES.............................................................................................................................. 5 2.1 TEST FACILITIES...................................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................. 6 2.3 TRACE ABILITY......................................................................................................................... 7 2.4 CALIBRATION........................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY................................................................................................ 7 2.6 LOCATION OF ORIGINAL DATA.................................................................................................. 7 2.7 STATUS OF FACILITY USED FOR TESTING................................................................................ 7 3 GENERAL PRODUCT INFORMATION......................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE............................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS.............................................................................................. 8 3.3 INDEPENDENT OPERATION MODES......................................................................................... 9 3.4 SUBMITTED DOCUMENTS........................................................................................................ 9 4 TEST SET-UP AND OPERATION MODE................................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION......................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE.............................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT........................................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE......................................................... 10 4.5 TEST SET-UP........................................................................................................................... 11 5 TEST RESULTS EMISSION.................................................................................................. 14 5.1 CONDUCTED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) 14 5.2 CONDUCTED SPURIOUS EMISSIONS MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1)...................................................................................................................................... 15 5.3 RADIATED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1)19 5.4 SPURIOUS RADIATION MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(6)(III)21 5.5 MODULATION CHARACTERISTICS MEASUREMENT................................................................ 26 Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 4 von 37 Page 4 of 37 5.6 OCCUPIED BANDWIDTH AND EMISSION MASK FOR FCC PART 74 PER SECTION 74.861(E)(3), 74.861(E)(5) AND 74.861(E)(6)....................................................................................................... 30 5.7 FREQUENCY TOLERANCE FOR FCC PART 74 PER SECTION 74.861(E)(4)........................ 31 6 PHOTOGRAPHS OF THE TEST SET-UP.................................................................................. 34 7 LIST OF TABLES..................................................................................................................... 37 8 LIST OF PHOTOGRAPHS......................................................................................................... 37 Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 5 von 37 Page 5 of 37 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities TÜV Rheinland (Guangdong) Ltd. EMC Laboratory Guangzhou Auto Market, Yuan Gang Section of Guangshan Road Guangzhou 510650 P. R. China Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 6 von 37 Page 6 of 37 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Equipment Manufacturer Type Serial No. Calibrated until TÜV Rheinland (Guangdong) Ltd. EMI Test Receiver Rohde & Schwarz ESCI-3 100216 16.Mar.2011 Spectrum Analyzer Rohde & Schwarz FSP30 100286 16.Mar.2011 Trilog-Broadband Antenna SCHWARZBECK MESS- ELEKTRONIK VULB9168 209 07.Nov.2011 Trilog-Broadband Antenna SCHWARZBECK MESS- ELEKTRONIK VULB9168 210 26.Jun.2011 Double-Ridged Waveguide Horn Antenna R…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 34 von 37 Page 34 of 37 6 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 35 von 37 Page 35 of 37 Substitute antenna Produkte Products Prüfbericht - Nr.: Test Report No.: 16011768 001 Seite 36 von 37 Page 36 of 37 Photograph 2: Set-up for Radiation Measurement above 1GHz Substitute antenna
