H38UP-83HWireless Microphone

RR UP-81DR/8H/8P SERIES No.1, Lane 17, Sec. 2, Han Shi West Road, Taichung, 401 TAIWAN Tel:886-4-22313737 Fax:886-4-22346757 http://www.show-pa.com e-mail: [email protected] All rights reserved to SEIKAKU. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2006 SEIKAKU GROUP cc NF02715-1.0 IMPORTANT! Please read this manual carefully before operating this unit for the first time. All rights reserved to SHOW. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. SAFETY RELATED SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions. The symbol is used in the service do- cumentation to indicate that specific component shall be only replaced by the component specified in that docu- mentation for safety reasons. Protective grounding terminal. Alternating current /voltage. ON: Denotes the apparatus turns on. OFF: Denotes the apparatus turns off, be- cause of using the single pole switch, be sure to unplug the AC power to prevent any ele- ctric shock before you proceed your service. WARNING: Describes precautions that should be observed to prevent the danger of injury or death to the user. CAUTION: Describes precautions that should be observed to prevent danger of the apparatus. WARNING Power Supply Ensure the source voltage matches the voltage of the power supply before turning ON the apparatus. Unplug this apparatus during lightning storms or when unused for long periods of time. External Connection The external wiring connected to the out- put hazardous live terminals requires installation by an instructed person, or the use of ready-made leads or cords. Do not Remove any Cover There are maybe some areas with high voltages inside, to reduce the risk of electric shock, do not remove any cover if the power supply is connected. The cover should be removed by the qual- ified personnel only. No user serviceable parts inside. Fuse To prevent a fire, make sure to use fuses with specified standard (current, voltage, type). Do not use a different fuse or short circuit the fuse holder. Before replacing the fuse, turn OFF the apparatus and disconnected the power source. Protective Grounding Make sure to connect the protective grounding to prevent any electric shock before turning ON the apparatus. Never cut off the internal or external pro- tective grounding wire or disconnect the wiring of protective grounding terminal. Operating Conditions This apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on this apparatus. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water. Install in accordance with the manufacturer's Hazardous live terminal . Disposing of this product should not be placed in municipal waste and should be separate collection. Remark: 1. The values with underlines should be scanned manually by adjusting UP/DOWN key. 2. The following channels can be used simultaneously without any interference. Group 1-1: 798.125 Group 2-1: 798.325 Group 2-2: 800.725 Group 2-5: 807.925 Group 3-4: 805.725 Group 5-1: 798.925 Group 5-8: 815.725 Group 7-1: 799.325 Group 8-6: 811.525 Group 12-2: 802.725 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Only use attachments/accessories spec- ified by the manufacturer. Power Cord and Plug Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace- ment of the obsolete outlet. Protect the power cord from being walk- ed on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Cleaning When the apparatus needs a cleaning, you can blow off dust from the apparatus with a blower or clean with rag etc. Don't use solvents such as benzol, alcohol, or other fluids with very strong volatility and flammability for cleaning the apparatus body. Clean only with dry cloth. Servicing Refer all servicing to qualified personnel. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so . Servicing is required when the apparatus has been damaged in any way ,such as power supply cord or plug is damaged , liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Follow all instructions. instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including am- plifiers) that produce heat. Do not block any ventilation openings. No naked flame sources, such as lighted candles, should be placed on the apparatus. 20 F8: 850.000-874.000(850-879)MHz F8: 850.000-874.000(850-879)MHz 1 2 3 4 5 6 7 8 9 10 11 12 Group1Group2Group3Group4Group5Group6Group7Group8Group9Group10Group11Group12 850.125 850.325 850.525 850.725 850.925 851.125 851.325 851.525 851.725 851.925 852.125 852.325 852.525 852.725 852.925 853.125 853.325 853.525 853.725 853.925 854.125 854.325 854.525 854.725 854.925 855.125 855.325 855.525 855.725 855.925 856.125 856.325 856.525 856.725 856.925 857.125 857.325 857.525 857.725 857.925 858.125 858.325 858.525 858.725 858.925 859.125 859.325 859.525 859.725 859.925 860.125 860.325 860.525 860.725 860.…

Text truncated - open the document above for the full version.

F4:638.00~662.00 0 638.125MHz 1 638.325MHz 2 638.925MHz 3 639.325MHz 4 640.725MHz 5 642.725MHz 6 645.725MHz 7 647.925MHz 651.525MHz655.725MHz 656.925MHz 658.825MHz 659.325MHz660.725MHz661.525MHz662.725MHz F4:638.00~662.00 0 638.125MHz 1 638.325MHz 2 638.925MHz 3 639.325MHz 4 640.725MHz 5 642.725MHz 6 645.725MHz 7 647.925MHz 651.525MHz655.725MHz 656.925MHz 658.825MHz 659.325MHz660.725MHz661.525MHz662.725MHz 638~827 638~827 638~827

TMW-9144R/T/P User's Manual WIRELESS MICROPHONE SYSTEM NF03662-1.1 17 SPANISH F7: 798.000-822.000(798-827)MHzF7: 798.000-822.000(798-827)MHz 123456789 10 11 12 Group1 Group2 Group3 Group4 Group5 Group6 Group7 Group8 Group9 Group10 Group11 Group12 798.125 798.325 798.525 798.725 798.925 799.125 799.325 799.525 799.725 799.925 800.125 800.325 800.525 800.725 800.925 801.125 801.325 801.525 801.725 801.925 802.125 802.325 802.525 802.725 802.925 803.125 803.325 803.525 803.725 803.925 804.125 804.325 804.525 804.725 804.925 805.125 805.325 805.525 805.725 805.925 806.125 806.325 806.525 806.725 806.925 807.125 807.325 807.525 807.725 807.925 808.125 808.325 808.525 808.725 808.925 809.125 809.325 809.525 809.725 809.925 810.125 810.325 810.525 810.725 810.925 811.125 811.325 811.525 811.725 811.925 812.125 812.325 812.525 812.725 812.925 813.125 813.325 813.525 813.725 813.925 814.125 814.325 814.525 814.725 814.925 815.125 815.325 815.525 815.725 815.925 816.125 816.325 816.525 816.725 816.925 817.125 817.325 817.525 817.725 817.925 818.125 818.325 818.525 818.725 818.925 819.125 819.325 819.525 819.725 819.925 820.125 820.325 820.525 820.725 820.925 821.125 821.325 821.525 821.725 821.925 822.125 822.325 822.525 822.725 822.925 823.125 823.325 823.525 823.725 823.925 824.125 824.325 824.525 824.725 824.925 825.125 825.325 825.525 825.725 825.925 826.125 826.325 826.525 826.725 F8: 850.000-874.000(850-879)MHzF8: 850.000-874.000(850-879)MHz 123456789 101112 Group1 Group2 Group3 Group4 Group5 Group6 Group7 Group8 Group9 Group10 Group11 Group12 850.125 850.325 850.525 850.725 850.925 851.125 851.325 851.525 851.725 851.925 852.125 852.325 852.525 852.725 852.925 853.125 853.325 853.525 853.725 853.925 854.125 854.325 854.525 854.725 854.925 855.125 855.325 855.525 855.725 855.925 856.125 856.325 856.525 856.725 856.925 857.125 857.325 857.525 857.725 857.925 858.125 858.325 858.525 858.725 858.925 859.125 859.325 859.525 859.725 859.925 860.125 860.325 860.525 860.725 860.925 861.125 861.325 861.525 861.725 861.925 862.125 862.325 862.525 862.725 862.925 863.125 863.325 863.525 863.725 863.925 864.125 864.325 864.525 864.725 864.925 865.125 865.325 865.525 865.725 865.925 866.125 866.325 866.525 866.725 866.925 867.125 867.325 867.525 867.725 867.925 868.125 868.325 868.525 868.725 868.925 869.125 869.325 869.525 869.725 869.925 870.125 870.325 870.525 870.725 870.925 871.125 871.325 871.525 871.725 871.925 872.125 872.325 872.525 872.725 872.925 873.125 873.325 873.525 873.725 873.925 874.125 874.325 874.525 874.725 874.925 875.125 875.325 875.525 875.725 875.925 876.125 876.325 876.525 876.725 876.925 877.125 877.325 877.525 877.725 877.925 878.125 878.325 878.525 878.725 SAFETY RELATED SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol, wherever used, alerts you to the pre-sence of un-insulated and dangerous voltages with-in the product enclosure. These are voltages thatmay be sufficient to constitute the risk of electricshock or death.Protective Ground Terminal AC mains (Alternating Current) Hazardous Live Terminal ON: Denotes the product is turned on. This symbol, wherever used, alerts you to impo-rtant operating and maintenance instructions.Please read. OFF: Denotes the product is turned off. WARNINGDescribes precautions that should be observed toprevent the possibility of death or injury to the user.CAUTIONDescribes precautions that should be observed toprevent damage to the product. Protective GroundOperating Conditions IMPORTANT SAFETY INSTRUCTIONS CleaningServicingPower Cord and Plug the recommended fuse type as indicated in thismanual. Do not short-circuit the fuse holder. Beforereplacing the fuse, make sure that the product isOFF and disconnected from the AC outlet.Before turning the product ON, make sure that it isconnected to Ground. This is to prevent the risk ofelectric shock.Never cut internal or external Ground wires. Likewise,never remove Ground wiring from the ProtectiveGround Terminal. Always install in accordance with the manufacturer's instructions.To avoid the risk of electric shock and damage, donot subject this product to any liquid/rain or moisture.Do not use this product when in close proximity towater.Do not install this product near any direct heat source.Do not block areas of ventilation. Failure to do socould result in fire.Keep product away from naked flames. Read these instructionsFollow all instructionsKeep these instructions. Do not discard.Heed all warnings.Only use attachments/accessories specified by themanufacturer.Do not tamper with the power cord or plug. These aredesigned for your safety.Do not remove Ground connections!If the plug does not fit your AC outlet seek advice froma qualified electrician.Protect the power cord and plug from any physicalstress to avoid risk of electric shock.Do not place heavy objects on the power cord. Thiscould cause electric shock or fire. When required, either blow off dust from the productor use a dry cloth.Do not use any solvents such as Benzol or Alcohol.For safety, keep product clean and free from dust. Refer all servicing to qualified service personnel only.Do not perform any servicing other than those instruc-tions contained within the User's Manual. Fuse To prevent fire and damage to the product, use only No user serviceable parts inside. Power Supply Ensure that the mains source voltage (AC outlet)matches the voltage rating of the product. Failureto do so could result in damage to the product andpossibly the user.Unplug the product before electrical storms occurand when unused for long periods of time to reducethe risk of electric shock or fire. External Connection Always use proper ready-made insulated mains cabling (power cord). Failure to do so could resultin shock/death or fire. If in doubt, seek advice froma registered electrician. Do Not Remove Any Covers Within the product are areas where high voltagesmay present. To reduce the risk of electric shock donot remove any covers unless the AC mains…

Text truncated - open the document above for the full version.

T ECHNI CAL G ROUP LIMITED QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 2013.06.06__ _ TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint _____ _ TUV Rheinland (Shenzhen) Co., Ltd.________ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with _ SEIKAKU TECHNICAL GROUP LIMITED ; Offshore Chambers, P. O. Box 217 Apia, Samoa ___. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________________________ ____ Mr Henry Li _________ (Signature) (Print name) Title: __________________________ Telephone:__________________________ On behalf of: ___ SEIKAKU TECHNICAL GROUP LIMITED ___________ (Company Name)

TECHNICAL GROUP LIMITED Confidentiality Letter Date: _2013/5/3_______ Subject: Confidentiality Request for FCC ID: H38UP-83H Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term User’s Manual __SEIKAKU TECHNICAL GROUP LIMITED ___ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ ____ Mr Henry Li __________ (Signature/Title) (Print name)

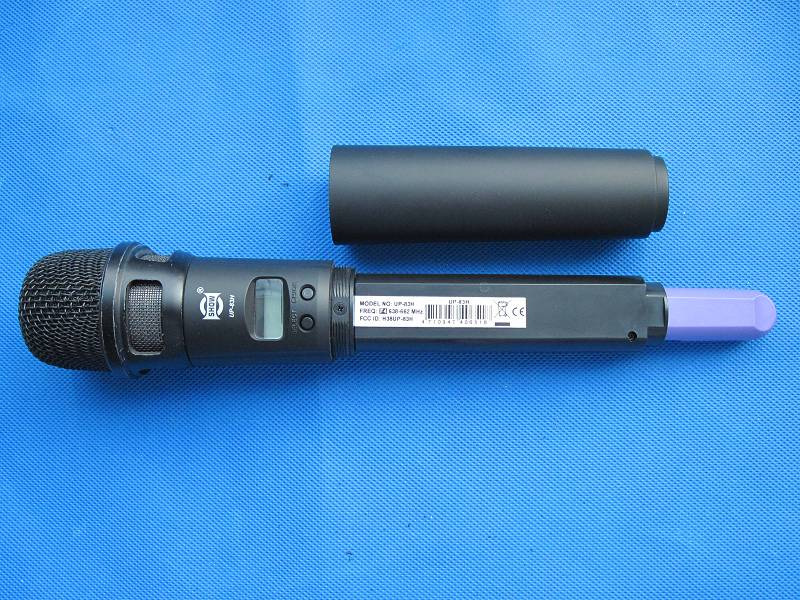

Page 1 of 1 Type Designation: UP-83H, UP-81H, UP- 881H, UP-86H, TMW- 9144T External Photo Report Number: 17029714 001

MODEL NO: UP-83H FREQ: 638 FCC ID: H38UP-83H -662 MHz F4 4 7 109 4 7 4 0 6 518 UP-83H MODEL NO: UP-881H FREQ: 638 FCC ID: H38UP-83H -662 MHz F4 4 7 109 4 7 4 0 6 518 UP-881H MODEL NO: UP-86H FREQ: 638 FCC ID: H38UP-83H -662 MHz F4 4 7 109 4 7 4 0 6 518 UP-86H MODEL NO: UP-81H FREQ: 638 FCC ID: H38UP-83H -662 MHz F4 4 7 109 4 7 4 0 6 518 UP-81H MODEL NO: TMW-9144T FREQ: 638 FCC ID: H38UP-83H -662 MHz F4 4 7 109 4 7 4 0 6 518 TMW-9144T UP-81H SHOW_V1.1 UP-81H UP8H-03/NI03450 34.850mm 1:1 ABS/ SHOW NI03566 JAN.11.2006 A B C D / E SEIKAKU TECHNICAL GROUP LIMITED : SELECT CH/ON RR UP-81H UP-83H SHOW_V1.2 UP-83H UP8H-03/NI03450 34.850mm 1:1 ABS/ SHOW NI03596 F200509007RF PGBAA102-20050900014 RR UP-83H JAN.11.2006 A B C D / E SEIKAKU TECHNICAL GROUP LIMITED : UP-86H SHOW_V1.1 UP-86H UP8H-03/NI03450 34.850mm 1:1 ABS/ SHOW NI02130 SELECT CH/ON RR UP-86H JAN.11.2006 A B C D / E SEIKAKU TECHNICAL GROUP LIMITED : A B C D / / / E SEKAKU ELECTRON INDUSTRY (H.K.) CO., LTD. UP-881H SHOW_V1.0 UP-881H UP88H-02/NI03462 40209mm 1:1 NI03748 ABS/ SHOW MAY.18.2005 S E L E C T C H / O N U P - 8 8 1 H

Page 1 of 3 Type Designation: UP-83H, UP-81H, UP- 881H, UP-86H, TMW- 9144T Internal Photo Report Number: 17029714 001 Page 2 of 3 Type Designation: UP-83H, UP-81H, UP- 881H, UP-86H, TMW- 9144T Internal Photo Report Number: 17029714 001 Page 3 of 3 Type Designation: UP-83H, UP-81H, UP- 881H, UP-86H, TMW- 9144T Internal Photo Report Number: 17029714 001

Produkte Products Prüfbericht - Nr.: Test Report No. 17029714 001 Seite 47 von 49 Page 47 of 49 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 D01 v05 The minimum user distance to the EUT is 100mm, since maximum peak output power of the transmitter is 15mW < 344mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Produkte Products Prüfbericht - Nr.: Test Report No. 17029714 001 Seite 2 von 49 Page 2 of 49 TEST SUMMARY 5.1.1 TRANSMITTER OUTPUT POWER RESULT: Passed 5.1.2 SPURIOUS RADIATION EMISSIONS RESULT: Passed 5.1.3 OPERATING BANDWIDTH AND EMISSIONS MASK RESULT: Passed 5.1.4 FREQUENCY TOLERANCE RESULT: Passed 5.1.5 M ODULATION CHARACTERISTICS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17029714 001 Seite 3 von 49 Page 3 of 49 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 T EST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 L OCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 P RODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 N OISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 T EST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 T EST SETUP DIAGRAM .................................................................................................... 10 5. TEST RESULTS ............................................................................................................... 12 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 12 5.1.1 Transmitter Output Power .......................................................................................................... 12 5.1.2 Spurious Radiation Emissions ................................................................................................... 15 5.1.3 Operating Bandwidth and Emissions Mask ............................................................................... 17 5.1.4 Frequency Tolerance ................................................................................................................. 41 5.1.5 Modulation Characteristics ......................................................................................................... 42 6. SAFETY HUMAN EXPOSURE ............................................................................................. 47 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 47 6.1.1 Electromagnetic Fields ............................................................................................................... 47 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 48 8. LIST OF TABLES ............................................................................................................. 49 9. L IST OF PHOTOGRAPHS .................................................................................................. 49 Produkte Products Prüfbericht - Nr.: Test Report No. 17029714 001 Seite 4 von 49 Page 4 of 49 1. General Remarks 1.1 Complementary Materials None. 2. Test Sites 2.1 Test Facilities Shenzhen Huatongwei International Inspection Co., Ltd (FCC Registration No.: 662850 & Test Site Industry Canada No.: 5377A-1) Keji Nan No. 12 Road, Hi-tech Park, Shenzhen, China The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17029714 001 Seite 5 von 49 Page 5 of 49 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type No. Serial No. Calibrated until Modulation Characteristics Test (Shenzhen Huatongwei International Inspection Co., Ltd. EMC Laboratory) RF Communication Test Set HP 8920A 3813A10206 2013-10-23 Spurious Emissions & Radio Spectrum (Shenzhen Huatongwei International Inspection Co., Ltd. EMC Laboratory) EMI TEST RECEIVER Rohde & Schwarz ESI 26 100009 2013-10-27 RF TEST PANEL Rohde & Schwarz TS / RSP 335015/ 0017 2013-10-27 EMI TEST SOFTWARE Rohde & Schwarz ESK1 N/A 2013-10-27 Ultra-B…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17029714 001 Seite 48 von 49 Page 48 of 49 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (30MHz-1GHz) Photograph 2: Set-up for Spurious Emissions (1GHz-6GHz)
