H4JAMP-4-15030W VHF POWER AMPLIFIER

Power Amplifier AMP-4-150-30-00 User Manual 1. General parameters. - Frequency range, MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136 – 174; - Output power, W; o nominal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 30; o minimum set by local or remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 20; o in stand-by mode operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.2; - Harmonic level at the output, dBc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < -70; - Reversed intermodulation attenuation, dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 40; - Input power, W: o nominal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4; o maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0; o guaranteeing the stand-by mode operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.5; - Input VSWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.8; - Carrier attack time, ms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 5.0; - Remote control voltage, V: o working range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 – 9.5; o guaranteeing the nominal output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 7.0; o guaranteeing the stand-by mode operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.0; - Enhancer: o nominal passband gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7 dB; o nominal bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136-174 MHz; o rated mean output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7 dB; o input and output impedances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 ohms; The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. 2 3 - Current consumption by the remote control input, mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.5; - Fan rotation thresholds: heatsink temperature, °C: o activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +(60+5); o reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > + 40; - Overheat protection thresholds: heatsink temperature, °C: o activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +(85+5); o reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +(70+7); - Overvoltage protection thresholds, V; o activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.8+0.2; o reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.3+0.2; - Load mismatch protection activation threshold, VSWR . . . . . . . . . . . . . . . . . . . . . . . . 2.1 – 4.0; - LOW level voltage at remote monitoring output, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 2.0; - Current, allowed for incoming in any remote monitoring output, mA . . . . . . . . . . . . . . . . . . <10; - Power supply voltage, V: o working range . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.0 – 17.0; o allowed voltage increase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 24.0; o guaranteeing the nominal output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.8 – 17.0; - DC current, A: o nominal . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3; o maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0; o in stand-by mode operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.0025; - Input and output RF connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N-type (F); - DC connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 pin (M). 2. Construction. Unit is realized as a plug in module – see Fig. 2. Front panel items: - RF connectors - Fan, which brings in air from the front and across the internal heat sink - Status LEDs - Access hole to the power set potentiometer - Handle for moving the unit into/from a subrack - Four quick release fasteners for fastening the unit in the subrack. - The front panel dimensions are 5.585”(W) x 5.055”(H). The full length of PA does not exceed 8.2”. The PA module contains two PCB assemblies: the Main Board Assembly and the DC Connector Board. The Main Board is placed inside a shielded compartment and is fastened on the flat metal surface of Main Plate. T…

Text truncated - open the document above for the full version.

Dec 06, 2011 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 FCC ID : H4JAMP-4-150 Subject: FCC ID justification letter for expanded frequency range 136 to 174 MHz Gentlemen, The H4JAMP-4-150 amplifier was designed for use in the 136 to 174 MHz bands. To assist Daniels Electronics in selling this equipment in other countries which accept FCC certification we request you list the frequencies from 136 to 174 MHz under the FCC Rules (Parts 22, 80, and 90) on the FCC Grant. For the FCC’s Rule Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated by the table below. Equipment programming is the responsibility of Authorized Service Personnel. In addition, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, “as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range (MHz) Rule Part Rule Part (if applicable) FEDS Emission Designators 136-150.8 X F1D, F1E, F3D, F3E, G3E 150.8-161.6250 22, 90 80 F1D, F1E, F3D, F3E, G3E 161.6250-161.7750 F1D, F1E, F3D, F3E, G3E 161.7750-173.4 22, 90 X F1D, F1E, F3D, F3E, G3E 173.4-174 X F1D, F1E, F3D, F3E, G3E Sincerely, Michael J Cyr MC/amc

November 7, 2011 Federal Communications Commission, Equipment Approval Services, P.O. Box 358315 Pittsburgh, PA 15251-5315 FCC ID: H4JAMP-4-150 Model #: AMP-4-150-30-00 Product Name: MT-4E VHF 30 W Power Amplifier Request for Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Operational Description • All Schematics • Parts Listings • Block Diagram • Tune Up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 17 Day of November 20 11 By: MICHAEL J CYR Signature Printed Title: COMMUNICATION SYSTEMS DESIGNER On behalf of : DANIELS ELECTRONICS LTD Telephone: (250)382-8268 MC/amc

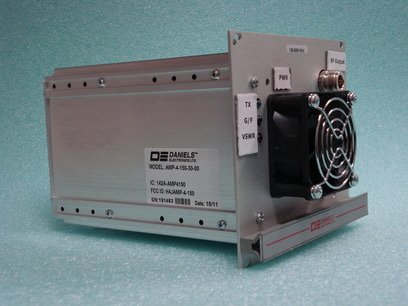

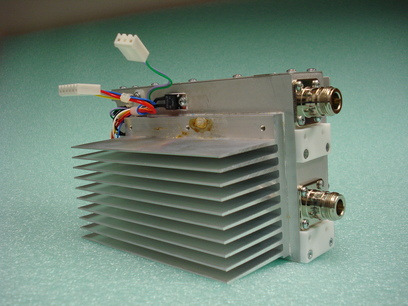

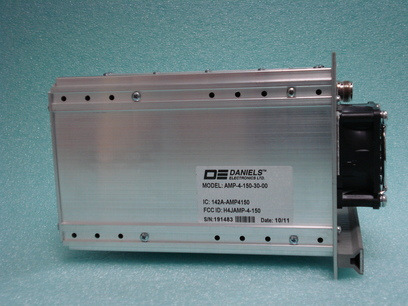

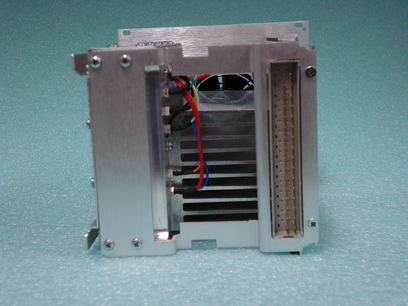

AMP-4-150-30-00 – External Photos 1 - PA Front AMP-4-150-30-00 – External Photos 2 - PA RF Side AMP-4-150-30-00 – External Photos 3 - PA Front Side / Label AMP-4-150-30-00 – External Photos 4 - PA Side View / Label AMP-4-150-30-00 – External Photos 5 - PA Rear View AMP-4-150-30-00 – External Photos 6 - PA Front / RF Side AMP-4-150-30-00 – External Photos 7 - RF Section Side Front

FRONT PANEL BOTTOM TOP LEFT SIDE COVER EQUIPMENT ID LABEL FORMAT & LOCATION AMP-4/150 30 Watt VHF Power Amplifier MODEL: IC: FCC ID: SERIAL #: DATE: TM DATE: 18 Nov 2011 TITLE: AMP-4-150-30-000 Label Format and Location DRAWN BY: REV DATE: 18 Nov 2011DWG No: DANIELS ELECTRONICS LTD. TM 1 11 21 2 12 22 3 13 23 4 14 24 5 15 25 6 16 26 7 17 27 8 18 28 9 19 29 10 20 30 A A. McLENNAN 2.25" 1.375"
























!



"


12/15/2011 Page 1 of 3 FCC ID: H4JAMP-4-150 FCC RF Exposure Requirements General information: FCCID: H4JAMP-4-150 Device category: Mobile per Part 2.1091 Environment: Controlled Exposure Mobile devices that operate under Part 90 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more. However, compliance with the power density limits of 1.1310 is not required. Antenna: The manufacturer does not specify an antenna for this device and the device is fixed mounted type designed for 19 inch racks. Configuration Antenna p/n Type Max. Gain (dBi) Fixed Any omni 0 to7 Operating configuration and exposure conditions: The conducted output power is 30 Watts. In typical use the duty cycle can approach 100%. The manufacturer also markets this device only for occupation use. The general population limit will be used as exposure cannot be controlled. - Part 2.1091 states that devices are excluded from routine evaluation if the EIRP is less than 2.46Watt (or 1.5WERP). A coaxial cable of the type RG 8 has a loss of 1dB for a length of 30 feet. A typical installation would have at least 30 ft of coaxial cable. MPE Calculation: The minimum separation distance is calculated as follows: The limit for occupation/controlled exposure environment below 300 MHz is 0.2 mW/cm 2 . 12/15/2011 Page 2 of 3 FCC ID: H4JAMP-4-150 Channel frequency: 150-174 MHz The conducted power output is: 30 Watts The coax loss was taken as: 1 dB. Antenna gain was taken as: 7 dBi 100% talk time in 30 minutes 12/15/2011 Page 3 of 3 FCC ID: H4JAMP-4-150 Proposed RF exposure safety information to include in User’s Manual: “FCC RF Exposure Requirements: CAUTION: The antennas used for this Amplifier must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of Section 1.1307(b)(3). Failure to observe these restrictions will result in exceeding the FCC RF exposure limits.

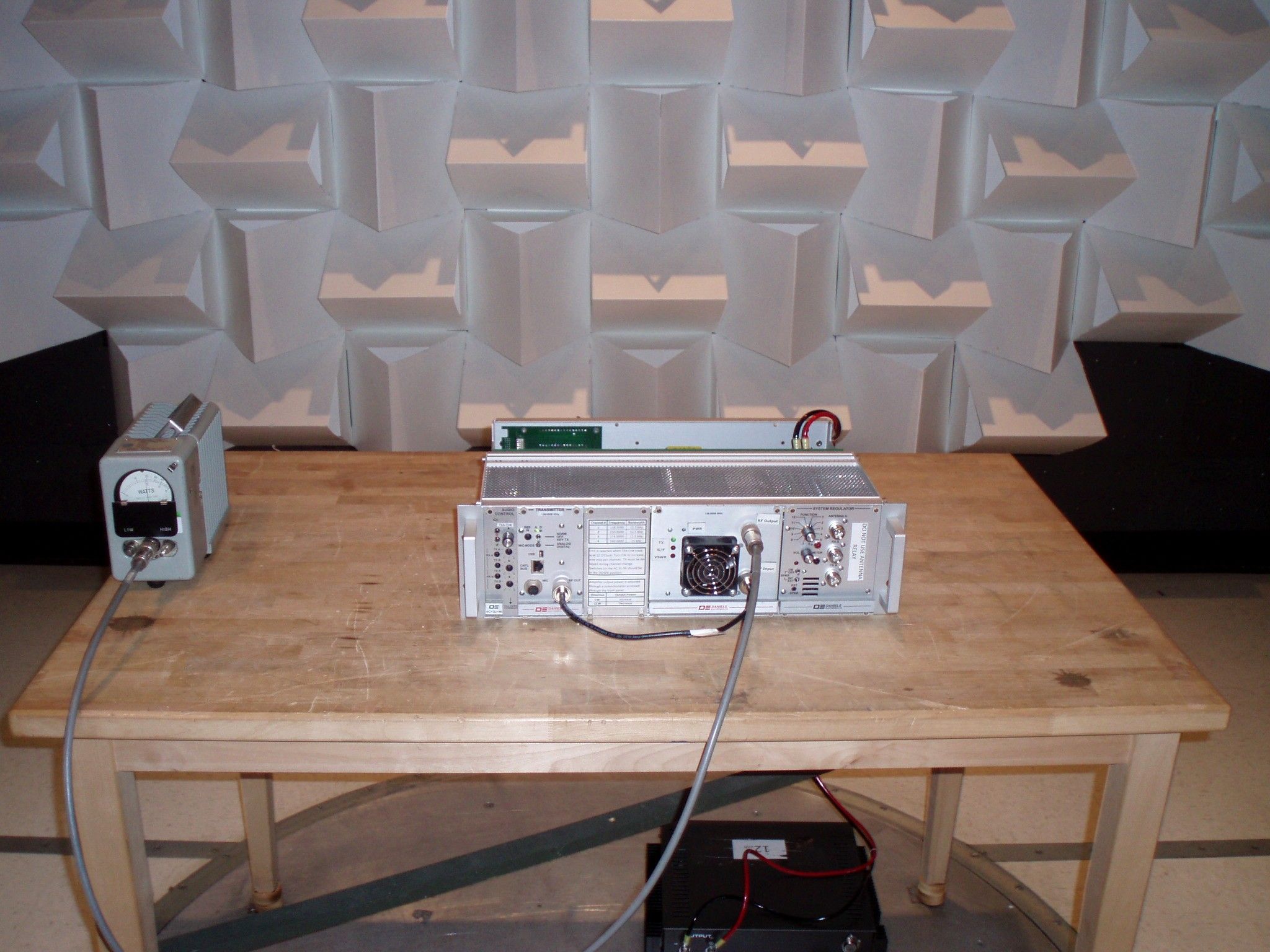

FCC PT 90 AMPLIFIER AND IC RSS-131, RSS-GEN TEST REPORT APPLICANT DANIELS ELECTRONICS LTD. ADDRESS 43 ERIE STREET VICTORIA BC V8V 1P8 CANADA FCC ID H4JAMP-4-150 IC LABEL 1412A-AMP4150 MODEL NUMBER AMP-4-150-30-00 PRODUCT DESCRIPTION 30W VHF POWER AMPLIFIER DATE SAMPLE RECEIVED 10/19/2011 DATE TESTED 11/3/2011 TESTED BY Nam Nguyen APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 2430AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: DANIELS ELECTRONICS LTD. FCC ID: H4JAMP-4-150 IC: 142A -AMP4150 MODEL #: AMP-4-150-30-00 Report: D\Danelec\2430AT11\2430AT11TestReport.doc Page 2 of 17 TABLE OF CONTENTS ATTESTATION STATEMENT ............................................................................ 3 REPORT SUMMARY ........................................................................................ 4 TEST ENVIRONMENT AND TEST SETUP ......................................................... 4 DUT DESCRIPTION ......................................................................................... 5 TEST EQUIPMENT .......................................................................................... 6 TEST PROCEDURES ....................................................................................... 7 TEST RESULTS ............................................................................................... 9 RF POWER OUTPUT ............................................................................................................. 9 INPUT/OUTPUT COMPARISON ........................................................................................... 10 OCCUPIED BANDWIDTH .................................................................................................... 14 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ..................................... 15 FIELD STRENGTH OF SPURIOUS EMISSIONS (RADIATED) ................................................ 16 POWER LINE CONDUCTED INTERFERENCE ..................................................................... 17 Applicant: DANIELS ELECTRONICS LTD. FCC ID: H4JAMP-4-150 IC: 142A -AMP4150 MODEL #: AMP-4-150-30-00 Report: D\Danelec\2430AT11\2430AT11TestReport.doc Page 3 of 17 ATTESTATION STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. Test Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario R. de Aranzeta Signature: Function: Test Lab Supervisor / Engineer Date: 11/4/11 Applicant: DANIELS ELECTRONICS LTD. FCC ID: H4JAMP-4-150 IC: 142A -AMP4150 MODEL #: AMP-4-150-30-00 Report: D\Danelec\2430AT11\2430AT11TestReport.doc Page 4 of 17 REPORT SUMMARY Disclaimer The test results relate only to the items tested. Purpose of Test To show the DUT in compliance with FCC CFR 47, Part 90 and IC RSS-131 requirements for amplifiers Test Procedures ANSI/TIA 603-C: 2004 FCC CFR 47 Part 90 IC RSS-131 ANSI C63.4: 2003 Related Approval N/A TEST ENVIRONMENT AND TEST SETUP Test Facility All tests were conducted by Timco Engineering Inc. located at 849 NW State Road 45, Newberry, FL 32669 USA Laboratory Test Condition Temperature: 26ºC Relative humidity: 50%. Deviation from the standards No deviation Modification to the DUT No modification was made. Test Exercise (software etc.) The DUT was placed in continuous transmitting mode of operation. System Setup Stand alone device. Applicant: DANIELS ELECTRONICS LTD. FCC ID: H4JAMP-4-150 IC: 142A -AMP4150 MODEL #: AMP-4-150-30-00 Report: D\Danelec\2430AT11\2430AT11TestReport.doc Page 5 of 17 DUT DESCRIPTION Manufactured by DANIELS ELECTRONICS LTD. Product Description 30W VHF POWER AMPLIFIER FCC ID H4JAMP-4-150 IC Label 142A-AMP4150 M/N AMP-4-150-30-00 Operating Freq (136 -174) MHz Max. Output Power 30.0 Watts Modulation N/A Amplifier Power Source 13.8V DC Test Item Preproduction Type of DUT Fixed Amplifier Applicant: DANIELS ELECTRONICS LTD. FCC ID: H4JAMP-4-150 IC: 142A -AMP4150 MODEL #: AMP-4-150-30-00 Report: D\Danelec\2430AT11\2430AT11TestReport.doc Page 6 of 17 TEST EQUIPMENT Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Active Loop ETS-Lindgren 6502 00062529 CAL 9/23/10 9/23/12 Frequency Counter HP 5385A 2730A03025 CAL 8/17/11 8/17/13 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 7/18/11 7/18/13 Digital Multimeter Fluke FLUKE-77 35053830 CAL 9/9/11 9/9/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 10/28/11 10/28/13 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 10/28/11 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 10/28/11 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 10/28/11 10/28/13 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 Antenna ETS 3117 41534 9/22/2010 9/22/2012 Antenna Electro metrics LPA-25 1122 5/04/2011 5/04/2013 Antenna Electro metrics BIA-25 1171 1/15/2010 1/15/2012 Applicant: DANIELS ELECTRONICS LTD. FCC ID: H4JAMP-4-150 IC: 142A -AMP4150 MODEL #: AMP-4-150-30-00 Report: D\Danelec\2430AT11\2430AT11TestReport.doc Page 7 of 17 TEST PROCEDURES Power Line Conducted I…
