  1. Home/
  2. Puretek Industrial Co Ltd/
  3. H52PT-8030

H52PT-8030MP3 PLAYER

Puretek Industrial Co Ltd
MP3 PLAYER - FCC ID H52PT-8030 - Puretek Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Date of Grant
Jul 10, 2000
Application Purpose
Original Equipment
Date of Application
Jun 25, 2000
Equipment Note
MP3 PLAYER
Company
Puretek Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗
↗

Test Report

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Phanta-Music Ver. A 8030 - 0005 User’s Manual FCC Compliance To comply with the applicable sections of FCC Rules and Regulations, Parts 68 and 15, please follow these instructions: ßDo not connect your modem to a party line or to a coin-operated telephone. ßIf your modem should cause a problem on the telephone line, it should be disconnected from the line until it can be determined whether the modem or another device on the phone line caused the problem. ßOnly the manufacturer can make repairs to the modem. Other repair methods will void your warranty. ßIf you have an external modem, use a properly constructed shielded cable to connect it to your computer. ßIf your telephone company asks for the following information, please make it available: -Modem manufacturer -Model of modem i FCC Part 15 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ßReorient or relocate the receiving antenna. ßIncrease the separation between the equipment and receiver. ii If the telephone company suspects a problem with your telephone line is related to an add-on electronic device, such as your modem, they have the right to temporarily suspend your service. It is your responsibility to remove from the telephone line any malfunctioning electronic communications equipment to avoid damage to the telephone system. If your equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, you will be notified as soon as possible. You will be informed of your right to file a com- plaint with the FCC. Your telephone company may make changes to its facilities, equipment, oper- ations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. The telephone company may ask that you discon- nect this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subjected to state tariffs. If you experience trouble with this telephone equipment, please contact your place of purchase for information on obtaining service or repairs. iv Table of Contents Chapter 1 Introduction Features ......................................... System Requirements ..................... Chapter 2 Installations Phanta-Music package ..................... Hardware Installation ....................... The Installation of Smart Media Card (Option) ................................... Installation Procedures for Win 98 ............................................... Chapter 3 Phanta-Music Package Phanta-Music application program.. Phanta-Music Description................ Phanta-Music LED Display................. Phanta-Music Precautions................ 1 2 4 6 12 14 3 7 16 10 1 Introduction Features  Palm-sized and Shock Resistant  CD Digital-quality music  Anti-Noise capability  Stereo surround sound  Repeat Playing  High Speed transfer rate with USB port (12Mbps Max)  Low power consumption z z z z z z z Chapter 1 Welcome to the Phanta-Music World. Phanta-Music brings you the latest melody feeling, its sound quality brings you the most fantastic experience on having a portable walkman. Instead of buying a cassette, Phanta-Music’s provide you a way to download the songs from Internet, no more cassette is needed. With Anti- shocking features, Phanta-Music can bring along with you in anyway, anytime. Phanta-Music satisfies on all your music requirement. 2 System Requirements  Pentium 166MHz or faster  Windows 98  20MB free hard disk space  One available USB port (USB driver version 1.0 above)  One installed sound card  CD-ROM drive z z z z Chapter 1 z z Installations This chapter is the description of the package contents, software and hardware installation procedure, beside that there is a description about the Smart Media Card, please read it carefully. Phanta-Music package: Phanta-Music USB Cable Stereo Earphones Installation & Phanta-Music Software Disk Holster User Manual AA type DC battery Smart Media Card(Option) Pouch(Option) 3 Chapter 2   4 Hardware Installation Step1: Switch on your computer. Step2: Place the battery properly on the right place, shown as figure. Step3: After the computer enter to the win98 Plug in the transmission line to Phanta-Music’s USB port which is located on the side panel, shown as figure 1, the other side of the transmission line has to connect to the USB port of the computer, shown as figure 2. Chapter 2 )) )) ) Place the batteries into the battery slot properly Please aware that you have to reverse the USB adapter ( ) just show as figure ( ). Remarks Step4: At the mean time, the windows will notify that there is a new hardware found, please refer to Page 7(Installation Procedures for Windows 98) 5 figure 1 figure 2 Chapter 2 6 The Installation of Smart Media Card (Option) 1. Insert the Smart Medi…

Text truncated - open the document above for the full version.

Block Diagram

FCC ID : H52PT-8030

External Photos

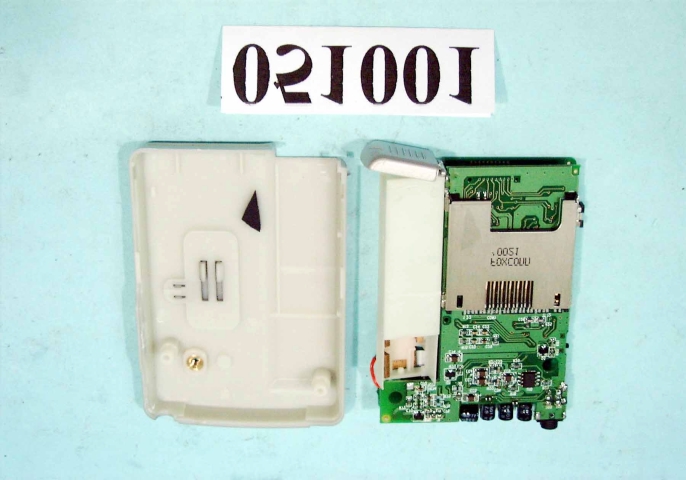

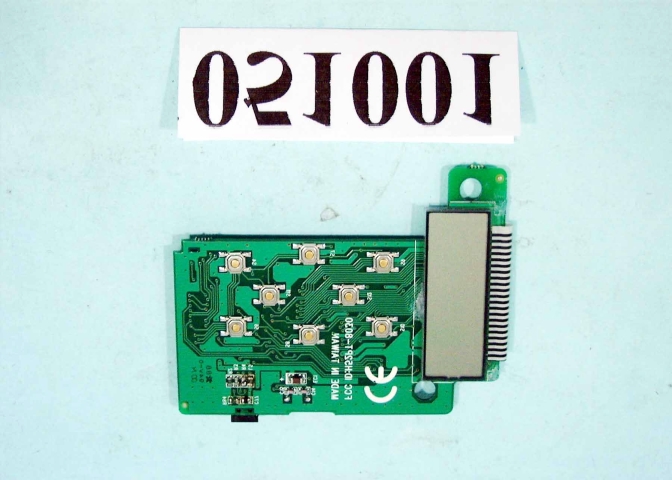

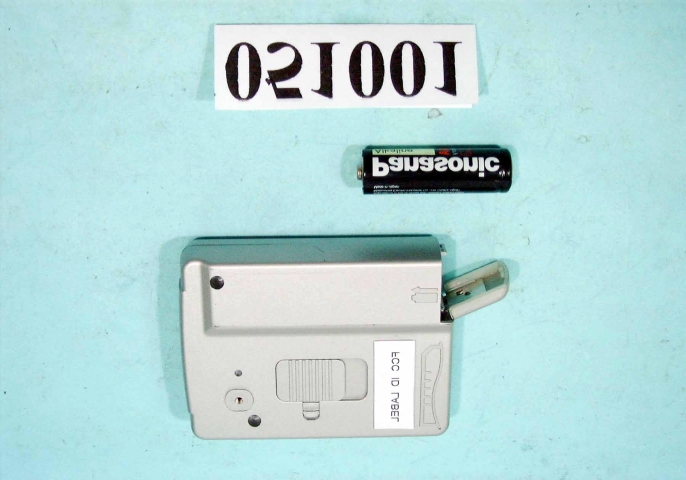

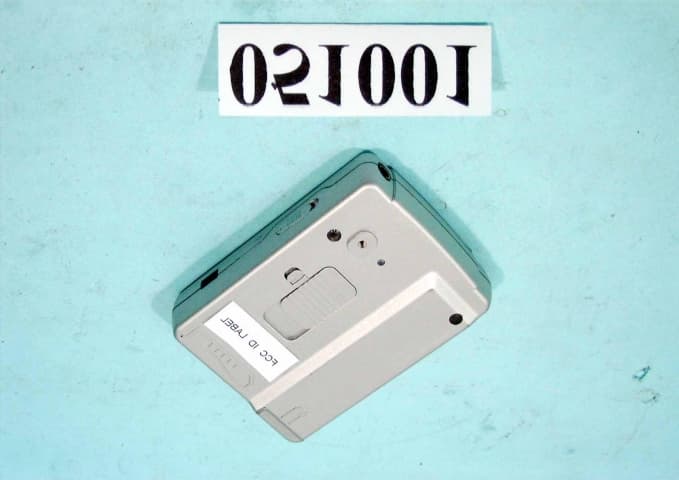

FCC ID : H52PT-8030Front side of EUT Number 1 051001-01.jpg FCC ID : H52PT-8030Front side of EUT Number 2 051001-02.jpg FCC ID : H52PT-8030Rear side of EUT Number 3 051001-03.jpg FCC ID : H52PT-8030Rear side of EUT Number 4 051001-05.jpg FCC ID : H52PT-8030Mechanical Construction Number 5 051001-06.jpg FCC ID : H52PT-8030Mechanical Construction Number 6 051001-07.jpg FCC ID : H52PT-8030MP3 PLAYER Number 7 051001-08.jpg FCC ID : H52PT-8030MP3 PLAYER Number 8 051001-09.jpg FCC ID : H52PT-8030Front side of main board Number 9 051001-10.jpg FCC ID : H52PT-8030Rear side of main board Number 10 051001-11.jpg FCC ID : H52PT-8030USB Cable and Earphone Cable Number 11 051001-12.jpg 1

ID Label/Location Info

EXHIBIT A. FCC ID LABEL FCC ID:H52PT-8030 The next page shows the location of FCC ID on EUT. The following statement will be placed in the User’s Manual. EUT : MP3 PLAYER FCC ID : H52PT-8030 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: 1. Material and thickness:2 mi 1, white 2. Glue information : Permanent adhesive 3. Text color is black 4. Scale: 1:1

ID Label/Location Info

FCC ID LOCATION

Test Report

FCC TEST REPORT Report No. : F051001 SPORTON International Inc. FCC ID: H52PT-8030 TEL : 886-2-2696-2468Page No.: 1 of 24 FAX : 886-2-2696-2255Issued Date : May. 23, 2000 FCC TEST REPORT for CISPR PUB. 22 Class B Equipment: MP3 PLAYER Model No.: PT-8030 FCC ID: H52PT-8030 Filing Type: Original Grant Applicant: PURETEK INDUSTRIAL CO., LTD. 4F, NO. 12, LANE 235, PAO-CHIAO RD., HSINTIEN CITY, TAIPEI, TAIWAN, R.O.C. ! The test result refers exclusively to the test presented test model / sample. ! Without the written authorization of the test lab., the Test Report may not be copied. ! Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F051001 SPORTON International Inc. FCC ID: H52PT-8030 TEL : 886-2-2696-2468Page No.: 2 of 24 FAX : 886-2-2696-2255Issued Date : May. 23, 2000 Table of Contents CERTIFICATE OF COMPLIANCE.............................................................................................................. 3 1. General Description of Equipment under Test..................................................................................... 4 1.1. Applicant.............................................................................................................................................................................................................. 4 1.2. Manufacturer....................................................................................................................................................................................................... 4 1.3. Basic Description of Equipment under Test................................................................................................................................................... 4 1.4. Feature of Equipment under Test.................................................................................................................................................................... 4 2. Test Configuration of Equipment under Test....................................................................................... 5 2.1. Test Manner........................................................................................................................................................................................................ 5 2.2. Description of Test System............................................................................................................................................................................... 5 2.3. Connection Diagram of Test System.............................................................................................................................................................. 7 3. Test Software....................................................................................................................................... 8 4. General Information of Test................................................................................................................. 9 4.1. Test Facility......................................................................................................................................................................................................... 9 4.2. Standard for Methods of Measurement.......................................................................................................................................................... 9 4.3. Test in Compliance with.................................................................................................................................................................................... 9 4.4. Frequency Range Investigated........................................................................................................................................................................ 9 4.5. Test Distance...................................................................................................................................................................................................... 9 5. Test of Conducted Powerline............................................................................................................. 10 5.1. Major Measuring Instruments.........................................................................................................................................................................10 5.2. Test Procedures...............................................................................................................................................................................................11 5.3. Typical Test Setup Layout of Conducted Powerline...................................................................................................................................12 5.4. Test Result of AC Powerline Conducted Emission.....................................................................................................................................13 5.5. Photographs of Conducted Powerline Test Configuration.........................................................................................................................15 6. Test of Radiated Emission.................................................................................................................. 17 6.1. Major Measuring Instruments.........................................................................................................................................................................17 6.2. Test Procedures...............................................................................................................................................................................................18 6.3. Typical Test Setup Layout of Radiated Emission....…

Text truncated - open the document above for the full version.

Test Report

FEDERAL COMMUNICATIONS COMMISSIONFCC ID:H52PT-8030 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Re: About the modification of MP3 PLAYER Gentlemen: I, hereby, declare that all modification on the E.U.T., FCC ID: H52PT-8023, will be added or layout on the mass production products. Modifications are shown as below: 1. Added a ferrite core on the USB cable near EUT. (As the photo No.11) Sincerely yours Yu-Hong Lee R&D Manager
