H5P-RF102.4GHz BAND DATA COMMUNICATION MODULE

10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 1 of 8 RF-10 User Manual Confidential 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 2 of 8 List of Contents 1. General 1.1 Overview 1.2 Features 1.3 Application 1.4 Interface connecter pin assignment 1.5 Outline View 1.6 Package Dimensions 2. Characteristics 2.1 Electrical Characteristics 2.2 RF Characteristics 3. Notes 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 3 of 8 1 General 1.1 Overview This specification covers RF-10 Data Radio Unit, which complies with ARIB STD T-66, FCC Part 15 247 RSS-210 and ETSI EN 300 400. This unit consist of Texas CC2500 radio IC and for Radio Data communication in 2.4GHz band. All detailed specification may be changed without notice. CC2500 TEXAS RADIO IC UART Interface 2.4GHz Antenna 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 4 of 8 1.2 Features • Radio Data rate up to 32kbps. • Support Slow Hopping 22channels in 2.401GHz ~ 2.479.75GHz • Ultra Low Power Consumption • RoHS Compliant • Support USART connection speed up to 115.2kbps • Small Package Size (38.7 x 19.0 x 5.9) • Integrated 26MHz Crystal Unit 1.3 Application • Radio Data Modem • Wireless Controller • Wireless Data Logger • Wireless Security Sensor 1.4 Interface connecter pin assignment TOP Side View of RF-10 1.2. VB (Power In) 3.4. GND (Power GND) 5.6. PWR CONT (Unit Power Control) 7.8. RXD(UART RXD) 9.10. SCLK(Clock In) 11.12. TXD(UART TXD) 13.14. GDO2 MONI(Not Used) 15.16. GDO0 MONI(Not Used) 17. CS (Chip Select) 18. Cont1(RF In / Out Select) 1.5 19. Cont2(RF In / Out Select) 20. Cont3(RF Amp Switch)) 12 19 20 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 5 of 8 1.5 Outline View 1.6 Package Dimensions Left Side View Top View Right Side View Side View Weight 6g 38.7 19.0 5.9 Interface connector Pattern Antenna 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 6 of 8 2. Characteristics 2.1 Electrical Characteristics Absolute Maximum Rating Rating Minimum Typical Maximum Unit Supply Voltage 3.2 3.5 6.5 V Operating Temperature Range -20 25 55 C RX Current consumption 36 mA TX Current consumption 40 mA 2.2 RF Characteristics Transmitter Specification Condition Min. Typ. Max. Output Transmit Power Normal -1dBm Frequency Range Normal GHz2.401 2.47975 20dB Bandwidth Normal MHz 0.1 Modulation Characteristics Normal MHz 0.05 Carrier Frequency Drift -20 ~ +50 C 2.5ppm Receiver Specification Condition Min. Typ. Max. Sensitivity BER 0.1% -90dBm Maximum Input Level Normal -20dBm Adjacent Channel rejection Normal 18dB 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 7 of 8 3. Notes FCC Statements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT CAUTION: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End user cannot modify this transmitter device. Any unauthorized modification made on the device could avoid the user's authority to operate this device. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. The following sentence has to be displayed on the outside of the device in which the transmitter module is installed: “Contains FCC ID:H5P-RF10 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 10-JUNE-2011 TOPCON CORPORATION RF-10 User Manual Rev. 1 Page 8 of 8 IC Statements: The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This device complies with RSS 210 of Industry Canada “IC”. “Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” "The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb" L’ utililisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. "The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada li…

Text truncated - open the document above for the full version.

RF-10 Label Location

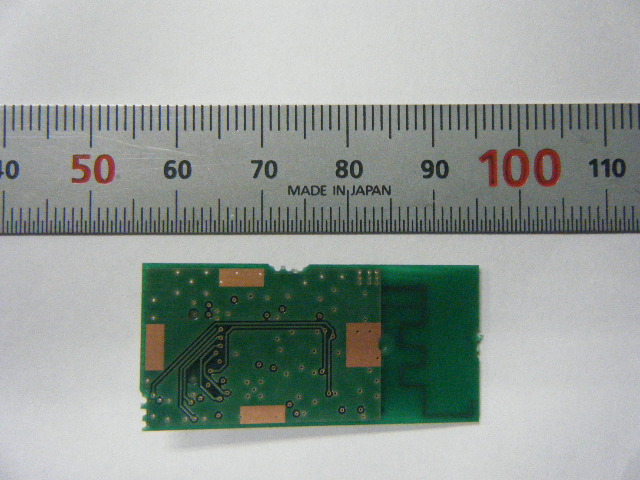

RF-10 June 10, 2011 PCB Topside View PCB Backside View

Issue Date: June 10, 2011 Report No.: RY1106J10R2 Model: RF-10 RF Technologies Ltd. Page 1 of 40 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT TEST REPORT For 2.4GHz BAND DATA COMMUNICATION MODULE In conformity with FCC CFR 47 Part15 (October 1, 2009) / RSS-210 Issue 8, RSS-Gen Issue 3 Model: RF-10 FCC ID/ IC Certification No.: H5P-RF10 / 6050A-RF10 Test Item: 2.4GHz BAND DATA COMMUNICATION MODULE Report No: RY1106J10R2 Issue Date: June 10, 2011 This report shall not be reproduced, except in full, without the written permission of RF Technologies Ltd. The test results in this report apply only to the sample tested. RF Technologies Ltd. is managed to ISO17025 and has the necessary knowledge and test facilities for testing according to the referenced standards. Prepared for TOPCON CORPORATION 75-1, Hasumura-cho, Itabashi-ku, TOKYO, JAPAN Prepared by RF Technologies Ltd. 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645 FAX: +81+(0)45- 534-0646 Issue Date: June 10, 2011 Report No.: RY1106J10R2 Model: RF-10 RF Technologies Ltd. Page 2 of 40 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT Table of contents 1 General information...................................................................................................................... 3 1.1 Product description ................................................................................................................................................ 3 1.2 Test(s) performed/ Summary of test result ............................................................................................................ 3 1.3 Test facility............................................................................................................................................................ 4 1.4 Measurement uncertainty....................................................................................................................................... 4 1.5 Summary of test results.......................................................................................................................................... 5 1.5.1 Table of test summary.................................................................................................................................... 5 1.6 Setup of equipment under test (EUT) .................................................................................................................... 5 1.6.1 Test configuration of EUT ............................................................................................................................. 5 1.6.2 Operating condition: ...................................................................................................................................... 6 1.6.3 Setup diagram of tested system:..................................................................................................................... 6 1.7 Equipment modifications ....................................................................................................................................... 6 1.8 Deviation from the standard .................................................................................................................................. 6 2 Test procedure and test data ........................................................................................................ 7 2.1 Occupied Bandwidth (20 dB / 99%) ...................................................................................................................... 7 2.2 Hopping Carrier Frequency Separation ................................................................................................................. 9 2.3 Number of Hopping Channel............................................................................................................................... 11 2.4 Average Time of Occupancy ............................................................................................................................... 13 2.5 Peak Output Power .............................................................................................................................................. 15 2.6 Conducted Spurious Emissions (Antenna Port) ................................................................................................... 17 2.7 Transmitter Radiated spurious emissions ............................................................................................................ 20 2.7.1 Below 30 MHz............................................................................................................................................. 22 2.7.2 Between 30 – 1000 MHz ............................................................................................................................. 23 2.7.3 Above 1000 MHz......................................................................................................................................... 25 2.8 Transmitter AC power line conducted emissions ................................................................................................ 27 2.9 Receiver Radiated spurious emissions ................................................................................................................. 30 2.9.1 Between 30 – 1000 MHz ............................................................................................................................. 30 2.9.2 Above 1000 MHz......................................................................................................................................... 32 2.10 Receiver AC power line conducted emissions..................................................................................................... 33 3 Test setup photographs ....................…

Text truncated - open the document above for the full version.

Issue Date: June 10, 2011 Report No.: RY1106J10R2 Model: RF-10 RF Technologies Ltd. Page 36 of 40 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3 Test setup photographs 3.1 Definition of the EUT axis The following configuration is defined as X-Axis The following configuration is defined as Y-Axis Issue Date: June 10, 2011 Report No.: RY1106J10R2 Model: RF-10 RF Technologies Ltd. Page 37 of 40 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT The following configuration is defined as Z-Axis Issue Date: June 10, 2011 Report No.: RY1106J10R2 Model: RF-10 RF Technologies Ltd. Page 38 of 40 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3.2 Antenna Port Measurements Issue Date: June 10, 2011 Report No.: RY1106J10R2 Model: RF-10 RF Technologies Ltd. Page 39 of 40 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3.3 Radiated spurious emissions
