H5P-WT100Wireless Terminal

INSTRUCTION MANUALWIRELESS TERMINALWT-100 • Thank you for purchasing the TO PCON WT-100 Wireless terminal. • Please read this operator's manual ca refully before using this product. • The specifications and general appearance of the instrument, and the content of this manual are s ubject to change without notice. • Some of the diagrams shown in this manual may be simplified for easier understanding. For the safe use of the product and prevention of injury to operators and other persons as well as prevention of property damage, items which should be observed are indicated by an exclamati on point within a triangle used with WARNING and CAUTION statements in this instruction manual.The definitions of the indications are listed below. Be sure you understand them before reading the manual's main text.Definition of IndicationDefinition of Indication GeneralC WARNING Power SupplyC WARNING C CAUTION Wireless technologyC WARNING Precautions• Confirm battery remaining level before operating.• Do not leave the instrument under strong sunlight for a long time. It may cause the instrument to malfunction. • When transporting the instrument, provi de some protection to minimize the risk of shocks. Heavy shocks may ca use the measurement to be faulty. • The instrument can not be submerged underwater. WT-100 is designed based on the International Standard IP54, therefore it is protected from thenormal rainfall. • Remove the battery from the instrument when you would not use it for long period. If this instrument with the battery set in it is stored, the electrolyte may leak to cause a trouble. • Always clean the instrument after use. If the instrument becomes wet from rain, dry moisture. To clean the instrument, dust off well and then wipe cleanwith a soft cloth. • To remove the dust on the surface of the parts made by plastic, never use thinner or benzine. Use a clean cloth moistened with neutral detergent. • This product is for professional use only! The user is required to be a qualif ied surveyor or have a good knowledge of surveying, in order to understand the user and safety instructions, before operating, inspecting or adjusting. • Wear the required protectors (safet y shoes, helmet, etc.) when operating. • The user of this product is expected to follow all operating instructions and make periodic checks (hardware only ) of the product's performance. • The manufacturer, or its representative s, assumes no responsibility for results of faulty or intentional usage or mi suse including any direct, indirect, consequential damage, or loss of profits. • The manufacturer, or its representat ives, assumes no responsibility for consequential damage, or loss of profits due to any natural disaster,(earthquake, storms, floods etc.), fire, accident, or an act of a third party and/ or usage under unusual conditions. • The manufacturer, or its representatives, assumes no responsibility for any damage (change of data, loss of data, loss of profits, an interruption ofbusiness etc.) caused by use of the product or an unusable product. • The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits caused by usage different to that explained in theoperator's manual. • The manufacturer, or its representat ives, assumes no responsibility for damage caused by incorrect operation, or action resulting from connecting to other products. • Wireless terminal WT-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 unit• Battery BT-66Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.• Instruction manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 sheet• Battery Charger BC-30D, AC/DC Converter AD-14, AC cable• Tilt holder model-4• Cable for connection to an external battery 1. Push down the battery cover lug to remove the battery cover.2. As illustrated, load the battery BT -66Q along the contact's direction. 3. Fit the lugs of the battery cover to the holes first. Then, push the battery cover lug until the cover is locked. $ : • Attach a ferrite clamp filter (ZCAT2035-0930 or equivalent) to the power cable when using an external battery. Always wind the cable through the clamp filter in a single loop. Do not remove the ferrite clamp filter from the cable. Removal of the ferrite clamp filter may cause harmful interferen ce and will void the user’s authority to operate this equipment. 1. Turn on the power. Press the power switch.Power LED lights. Make sure Wireless LED, System LED and Power LED light up on the front surface. $ : • When the LED does not light or flash, check if the battery is securely inserted.2. Wireless LAN connection „ Connecting to Imaging Station IS series C Refer to the description about setup of wireless LAN in the IS series instruction manual. „ Connecting to Data Collector FC-250 C Refer to the description about use of wireless LAN in the FC-250 instruction manual. $ : The factory default setting of WT-100 is shown below. • SSID1: WT-100-W6 zzzz • Encryption key: Not used.• Encryption scheme: Not used.• Wireless channel: Auto *"W6 zzzz " is the same as the serial number on the bottom of the instru- ment. In the following cases, it is necessary to initialize WT-100.• Can't connect even after checking how to connect or the setting of the product (IS series, FC-250, etc.) that should be connected to WT-100. • When you change IP address of this instrument and forget the IP address. • When you want to change the setting back. G : • All setting contents will be deleted upon initialization. So please write down any necessary information beforehand. z When you want to carry out initialization, contact the Topcon head office or your local Topcon dealer. Wireless functionCommunication range: Approx. 300m (This is applied when IS2 is used. This can be changed depending on any obstacle between the communicating instruments or ambi-ent conditions.) Support format: IEEE802.11g, IEEE802.11b Ch…

Text truncated - open the document above for the full version.

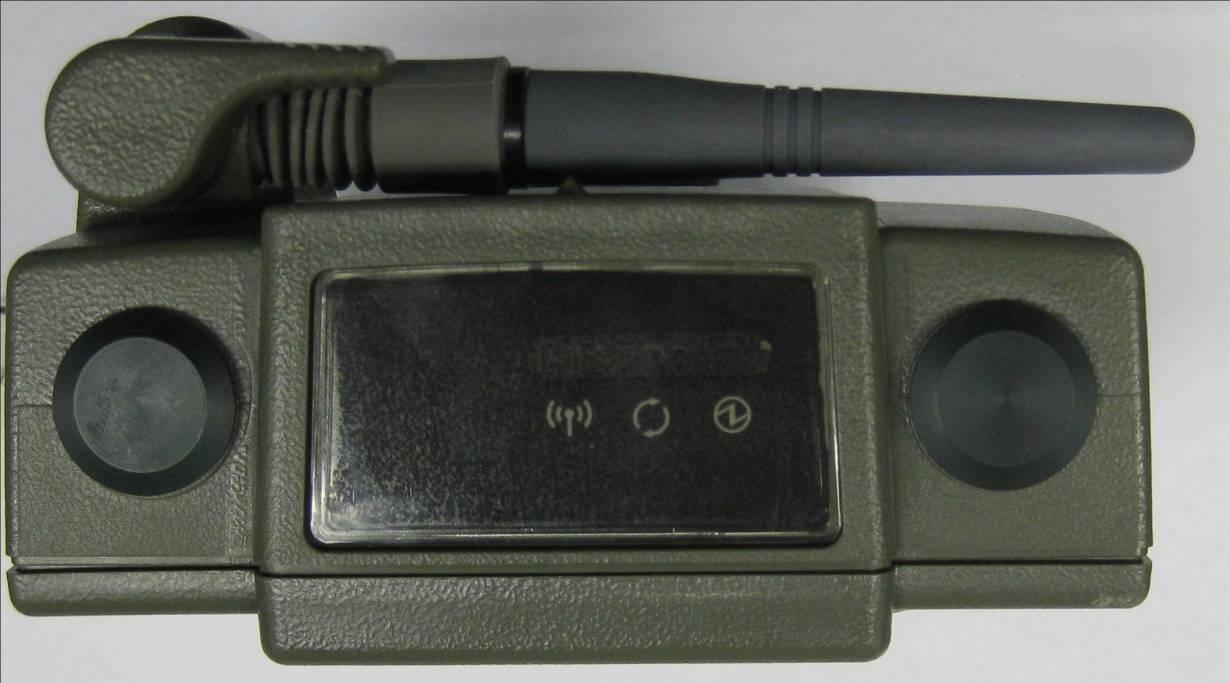

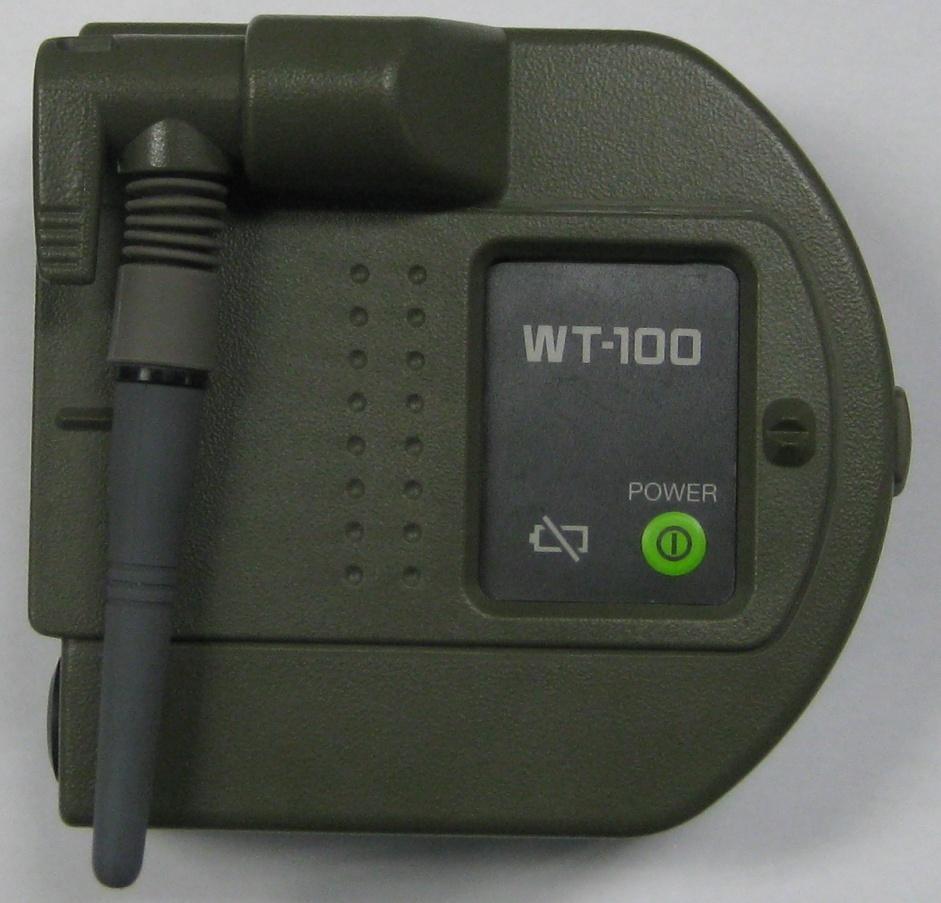

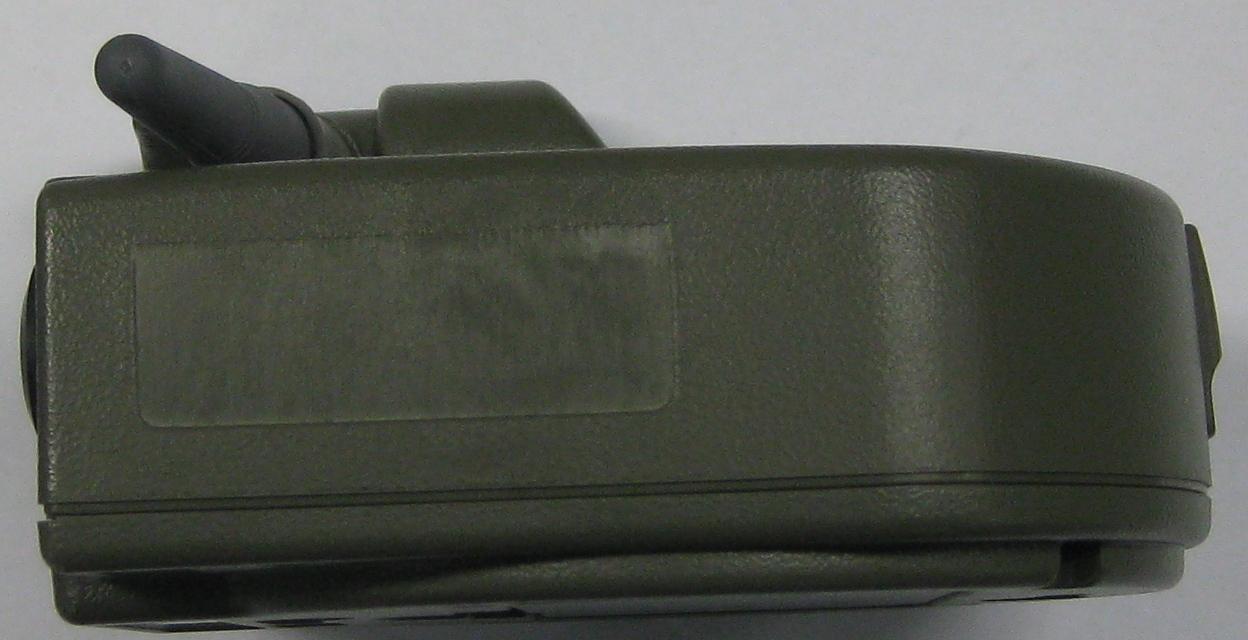

[WT-100] External Photographs Top side Bottom side Case external Front side Rear side Right side Left side

Power board upper side [WT-100] Internal Photographs Power board bottom side WLAN board top side WLAN board upper side (without shield) WLAN board bottom side Case internal

FCC ID: H5P-WT100 IC: 6050A-WT100 Produkte Products RF Exposure Statement: 12022407 002 Page 1 of 1 Client: Topcon Corporation 75-1, Hasunuma-cho, Itabashi-ku, Tokyo 174-8580, Japan Test item: Wireless Terminal Identification: WT-100 FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 6 IC Requirement According to RSS-102 (Issue 4), clause 2.5.2, no routine RF exposure evaluation is required if the transmitter has a minimum separation distance to the user greater than 20cm and has an output power (e.i.r.p.) below the following threshold: Frequency Range RF Exp. Evaluation Threshold [W] Above 1.5GHz 5 Measurement Result The maximum measured transmitter power is given in the following table: Conducted Output Power P out [mW] Maximum Antenna Gain [dBi] EIRP Output Power [mW] Power Density at 20cm [mW/cm 2 ] 188.52 2 298.54 0.06 Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = (P out · G) / (4π · D 2 ), where P out = antenna conducted output power in mW, G = antenna gain in linear scale (here: 2dBi = 1.58 linear), D = distance between observation point and radiating structure in cm (here: 20cm). Conclusion The device complies with the FCC and IC RF exposure requirements since the maximum transmitter power density is below the FCC limit and the e.i.r.p. output power is below the IC RF exposure evaluation exemption threshold. Refer to test report 12022407 001 for more details. TÜV Rheinland Japan Ltd. – Global Technology Assessment Center 4-25-2 Kita-Yamata, Tsuzuki-ku, Yokohama 224-0021, Japan

FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 2 von 75 Page 2 of 75 TEST SUMMARY 3.2.1 V OLTAGE REQUIREMENTS RESULT: PASS 3.2.2 ANTENNA REQUIREMENTS RESULT: PASS 5.1.1 C ONDUCTED OUTPUT POWER RESULT: PASS 5.1.2 6DB BANDWIDTH RESULT: PASS 5.1.3 99% BANDWIDTH 5.1.4 CONDUCTED SPURIOUS EMISSION RESULT: PASS 5.1.5 PEAK POWER SPECTRAL DENSITY RESULT: PASS 6.1.1 BAND EDGE RADIATED EMISSION RESULT: Pass 6.1.2 RADIATED SPURIOUS EMISSION OF TRANSMITTER RESULT: PASS 7.1.1 AC POWER LINE CONDUCTED EMISSION OF TRANSMITTER RESULT: N/A FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 3 von 75 Page 3 of 75 Contents 1. GENERAL REMARKS...............................................................................................5 1.1 C OMPLEMENTARY MATERIALS.................................................................................5 2. TEST SITES............................................................................................................5 2.1 TEST FACILITIES.....................................................................................................5 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS......................................................6 2.3 MEASUREMENT UNCERTAINTY.................................................................................7 3. G ENERAL PRODUCT INFORMATION...........................................................................8 3.1 PRODUCT FUNCTION AND INTENDED USE..................................................................8 3.2 SYSTEM DETAILS....................................................................................................8 3.2.1 Voltage Requirements..................................................................................................................9 3.2.2 Antenna Requirements ................................................................................................................9 3.3 CLOCK FREQUENCIES AND NOISE SUPPRESSING PARTS............................................9 4. TEST SET-UP AND OPERATION MODES...................................................................10 4.1 TEST METHODOLOGY............................................................................................10 4.2 OPERATION MODES..............................................................................................10 4.3 P HYSICAL CONFIGURATION FOR TESTING...............................................................11 4.4 TEST SOFTWARE..................................................................................................11 4.5 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT...............................................12 4.6 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE..............................................13 5. TEST RESULTS OF CONDUCTED MEASUREMENTS AT ANTENNA PORT.......................14 5.1 T RANSMITTER PARAMETERS..................................................................................14 5.1.1 Conducted Output Power...........................................................................................................14 5.1.2 6dB Bandwidth...........................................................................................................................20 5.1.3 99% Bandwidth ..........................................................................................................................25 5.1.4 Conducted Spurious Emission...................................................................................................30 5.1.5 Peak Power Spectral Density ....................................................................................................49 6. TEST RESULTS OF RADIATED MEASUREMENTS.......................................................54 6.1 T RANSMITTER PARAMETERS..................................................................................54 6.1.1 Band Edge Radiated Emission ..................................................................................................54 6.1.2 Radiated Spurious Emission of Transmitter ..............................................................................59 7. TEST RESULTS OF AC POWER LINE CONDUCTED MEASUREMENTS..........................67 7.1 T RANSMITTER PARAMETERS..................................................................................67 7.1.1 AC Power Line Conducted Emission of Transmitter..................................................................67 8. PHOTOGRAPHS OF THE TEST SETUP.......................................................................68 FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 4 von 75 Page 4 of 75 9. LIST OF TABLES....................................................................................................73 10. LIST OF FIGURES..................................................................................................74 11. L IST OF PHOTOGRAPHS.........................................................................................75 FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 5 von 75 Page 5 of 75 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. 2. Test Sites 2.1 Test Facilities TÜV Rheinland Japan Ltd. – Global Technology Assessment Center 4 25 2 Kita Yamata, Tsuzuki ku, Yokohama 224 0021, Japan The used test equipment is in accordance with CISPR 16 for measurement of radio interference. The Federal Communications Commission has reviewed the technical characteristics of the radiated and conducted emission facilities and has found these test sites to be in compliance with the requirements of section 2.948 of the FCC rules. The description of the test facility is listed under FCC registration number 299054. The Industry Canada has reviewed the technical char…

Text truncated - open the document above for the full version.

FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 40 von 75 Page 40 of 75 Table 23: Conducted Spurious Emission, Mode A2x (2412MHz, Radio 802.11g, DC 7.4V Input Voltage) Frequency [MHz] Reading [dBm] Correction Factor [dB] Emission Level [dBm] Limit [dBm] Margin [dB] 2416.10 4.86 2.27 2.59 N/A N/A 1667.7 56.66 2.01 54.65 22.59 32.05 2091.4 56.76 2.13 54.63 22.59 32.04 2449.8 53.36 2.26 51.11 22.59 28.51 2832.0 54.58 2.43 52.15 22.59 29.56 4452.5 54.77 2.93 51.84 22.59 29.25 7089.8 54.53 3.57 50.96 22.59 28.37 8889.4 54.67 4.13 50.55 22.59 27.95 11893.0 54.82 4.52 50.31 22.59 27.71 12249.6 54.87 4.54 50.33 22.59 27.74 14939.0 54.82 5.21 49.61 22.59 27.02 16285.3 53.37 5.24 48.13 22.59 25.54 19236.2 54.44 5.68 48.76 22.59 26.17 20704.4 53.67 5.72 47.94 22.59 25.35 23728.9 53.88 6.04 47.84 22.59 25.25 24190.5 54.04 6.12 47.91 22.59 25.32 Notes: Limit = Reading of fundamental + Correction factor – 20dB Emission level = Reading + Correction factor Correction factor = Total cable loss Figure 23: Conducted Spurious Emission, 30MHz – 4GHz, Mode A2x (2412MHz, Radio 802.11g, DC 7.4V Input Voltage) Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW 197 MHz/Start 30 MHzStop 2 GHz AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !56.66 dBm 1.667661000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:24:31 Ref 20 dBmAtt 30 dB * * * 1 PK VIEW A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms AC Start 2 GHzStop 4 GHz200 MHz/ !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !4.86 dBm 2.416100000 GHz 2 Marker 2 [T1 ] !56.76 dBm 2.091400000 GHz 3 Marker 3 [T1 ] !53.36 dB m 2.449800000 GHz 4 Marker 4 [T1 ] !54.58 dB m 2.832000000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:24:00 FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 41 von 75 Page 41 of 75 Figure 24: Conducted Spurious Emission, 4 – 16GHz, Mode A2x (2412MHz, Radio 802.11g, DC 7.4V Input Voltage) Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW 200 MHz/Start 4 GHzStop 6 GHz AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.77 dBm 4.452500000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:25:03 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 6 GHzStop 8 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.53 dBm 7.089800000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:25:26 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 8 GHzStop 10 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.67 dBm 8.889400000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:25:50 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 10 GHzStop 12 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.82 dBm 11.893000000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:26:13 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 12 GHzStop 14 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.87 dBm 12.249600000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:26:39 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 14 GHzStop 16 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.82 dBm 14.939000000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:27:05 FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 42 von 75 Page 42 of 75 Figure 25: Conducted Spurious Emission, 16 – 25GHz, Mode A2x (2412MHz, Radio 802.11g, DC 7.4V Input Voltage) Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 16 GHzStop 18 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !53.37 dBm 16.285300000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:27:34 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 18 GHzStop 20 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.44 dBm 19.236200000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:28:00 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 20 GHzStop 22 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !53.67 dBm 20.704400000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:28:25 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 200 ms 1 PK VIEW Start 22 GHzStop 24 GHz200 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !53.88 dBm 23.728900000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:28:52 Ref 20 dBmAtt 30 dB * * * A PS 3DB RBW 100 kHz VBW 300 kHz SWT 100 ms 1 PK VIEW Start 24 GHzStop 25 GHz100 MHz/ AC !80 !70 !60 !50 !40 !30 !20 !10 0 10 20 1 Marker 1 [T1 ] !54.04 dBm 24.190450000 GHz D1 !4.86 dBm D2 !24.86 dBm Conducted Spurious Emissions, Mode A2x Date: 3.FEB.2011 17:29:31 FCC ID: H5P WT100 IC: 6050A WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 43 von 75 Page 43 of 75 Table 24: Conducted Spurious Emission, Mode B2x (2437MHz, Radio 802.11g, DC 7.4V Input Voltage) Frequency [MHz] Reading [dBm] Correction Factor [dB] Emission Level [dBm] Limit [dBm] Margin [dB] 2441.10 4.23 2.32 1.92 N/A N/A 1904.6 57.10 2.07 55.02 21.92 33.11 2431.0 4.47 2.29 2.18 21.92 19.73 3458.8 53.60 2.60…

Text truncated - open the document above for the full version.

FCC ID: H5P-WT100 IC: 6050A-WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 68 von 75 Page 68 of 75 8. Photographs of the Test Setup Photograph 1: Set-up for Conducted Emissions at Antenna Port FCC ID: H5P-WT100 IC: 6050A-WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 69 von 75 Page 69 of 75 Photograph 2: Set-up for Radiated Emission of Transmitter, Power Input Method “x”, Front View Photograph 3: Set-up for Radiated Emission of Transmitter, Power Input Method “x”, Rear View FCC ID: H5P-WT100 IC: 6050A-WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 70 von 75 Page 70 of 75 Photograph 4: Set-up for Radiated Emission of Transmitter, Power Input Method “y”, Front View Photograph 5: Set-up for Radiated Emission of Transmitter, Power Input Method “y”, Rear View FCC ID: H5P-WT100 IC: 6050A-WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 71 von 75 Page 71 of 75 Photograph 6: Set-up for Radiated Emission, EUT Configuration X-Axis Photograph 7: Set-up for Radiated Emission, EUT Configuration Y-Axis FCC ID: H5P-WT100 IC: 6050A-WT100 Produkte Products Prüfbericht - Nr.: Test Report No.: 12022407 001 Seite 72 von 75 Page 72 of 75 Photograph 8: Set-up for Radiated Emission, EUT Configuration Z-Axis
