HCQ3B6ETICRMMotion Sensor

EchoStream TM Select ES1260 Passive Infrared Motion Detector Installation and Operation Manual - 03900B IMPORTANT NOTES iThese products are designed to be installed and maintained by professional security technicians. iProducts, unless specifically noted, are intended for indoor use. iManually test all products regularly. OVERVIEW The ES1260 is a low-current motion detector highly sensitive to moving heat (infrared radiation) sources. It features increased immunity to radio frequency interference (RFI), vibration, static, lightning, ambient temperature changes, and other common causes of false alarms. FEATURES iInovonics Wireless radio link, with selectable frequency bands. iSpectrum analysis embedded in VLSI electronics. iHard full-pattern spherical lens. iDiffractive reflection mirror for Creep Zones. iStandard wide-angle lens; special detection pattern lenses available. CHANGING THE BATTERY 1. Carefully remove old battery. 2. Install new battery. IIMMPPOORRTTAANNTT:: Press reset button to re-initialize the transmitter. Discard old battery in accordance to the local laws and practices. Inovonics Wireless does not take responsibility for batteries that are not discarded properly. INSTALLATION General Mounting Advice iThe ES1260 functions best when areas being protected are bounded by solid barriers. Walls and floors provide good backdrops for detecting changes in infrared energy. iFor best detection, locate ES1260s so that intruders move across detection zone patterns, rather than toward or away from the sensor. iCheck areas for potential sources of false alarms. Remember that the sensor responds to quick changes in heat patterns within its coverage pattern. Avoid placing in direct or reflected sunlight, or near objects that can be heated quickly by sunlight. Do not place the ES1260 looking at windows. Don't place it near heat or cold sources, like heater ducts or air conditioners, which might direct hot or cold air onto the sensor. Look for appliances such as space heaters which can rapidly heat up. If necessary, mask the lens to eliminate potential sources of false alarms. iFind out about normal use of the area. Are there pets or other animals? For example, in a warehouse application, are there birds, bats, mice? iWhen the sensor might detect users who enter the protected area through a delayed door, program the sensor as a "Follower" device. The PIR will not go into alarm during the entry delay period, but will trip instantly otherwise. iMake end-users aware of the location of the ES1260 and caution them about obstructing the coverage pattern when re-arranging furniture or stock. MOUNTING The ES1260 may be mounted with screws directly on walls and corners through the direct mounting knockouts shown in Figure 2, or can be mounted on walls, ceilings or corners by using the appropriate SRB Swivel Mounting Bracket adapters (available separately from Inovonics Wireless). PULSE COUNT VS. AUTOMATIC PULSE COUNT The Pulse Count jumper setting provides control for normal or difficult operating environments. Automatic Pulse Count is recommended for reliable operation in environments which may be subject to temperature fluctuations that might cause false alarms. The Single Pulse Count mode is more sensitive to minor temperature variations, and should be used in sites where variant heat sources will not cause alarms (See Figure 3). REGISTERING Transmitters must be registered with the system receiver in order to be monitored and supervised. Each transmitter has a unique factory-programmed identification number. Refer to the receiver installation instructions for details on registering a transmitter. 1. To remove the ES1260 cover, insert a small flat-blade screwdriver about 6 mm (.25”) at the tab on the bottom of the unit. The screwdriver will enter the slot at about a 45° angle. Pry downward on the handle of the screwdriver until the latch holding the cover to the housing base releases (Figure 4). 2. To register a transmitter: when prompted by the receiver to "Reset Transmitter", press the Reset button. Replace the ES1260 cover. Follow instructions to test the transmitter. Note: The ES1260 retains programming data in non-volatile memory. It does not require re-programming after loss of power. Install a new battery and press the reset button to re-initialize the transmitter and restore programming. WWaallkk tteesstt With the cover on the unit, quickly (less than ½ second) pass a magnet near the Test Mode Reed Switch. This activates a 1-minute walk test mode. Within this period, the LED will light every time the PIR senses motion. The unit will not transmit alarm signals during this test period. TTrraannssmmiissssiioonn tteesstt With the cover on the unit, hold a magnet near the Test Mode Reed Switch for at least 1 second. This activates a 1-minute transmission test mode. Within this period, the unit will transmit alarm and restoral cycles at regular intervals for approximately one minute. The LED will light every time the unit transmits. OOppeerraattiioonn The ES1260 transmitter signals an alarm condition when motion is detected by the sensor. Once an alarm condition is signaled, further alarms are inhibited until no motion is sensed for a period of more than 90 seconds. ZZoonnee ppaatttteerrnn ffoorr ssttaannddaarrdd lleennss The standard wide-angle lens has a coverage pattern of 105°, and covers an area 18 m x 18 m (60 ft x 60 ft). It has a total of 52 zones: (18 long range + 16 intermediate + 10 short range + 6 nearest range + 2 creep zones). Optional lenses are available. Contact Inovonics Wireless Technical Support. Note: Mounting height of the ES1260 with standard lens may be anywhere within a range of 1.5 to 2.4 m (5 to 8 ft). Technical Specifications Dimensions:71 mm (w) x 137 mm (l) x 56 mm (d) (2.8" (w) x 5.4" (l) x 2.2" (d)) Operating temperature:0°C to 50°C (32°F to 120°F) Humidity:10% to 90% non-condensing Battery:Inovonics Wireless BAT604 (3.0V lithium Panasonic CR123A, or equivalent)…

Text truncated - open the document above for the full version.

FCC ID: HCQ3B6ETICRM ES1260 1. Attestation Statements: There are no attestation statements relevant to this device.

May 25, 2004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for FCC ID# HCQ3B6ETICRM Gentlemen: The following reports are marked confidential, and should be maintained in the non- public file. This confidentiality is necessary to protect proprietary information contained within these sections of the application for Certification. 1) Operational Description 2) Schematics 3) Block Diagram Thanks for your help. Sincerely, Donald J. Hume President

July 19, 2004 Applicant: Inovonics Wireless Corp. FCC ID: HCQ3B6ETICRM Correspondence Reference Number: 27228 731 Confirmation Number: EA689243 Re: Action Items regarding Grant approval 1) Please provide average radiated measurements for harmonic and spurious emissons that fall in the restricted bands of section 15.205 of the FCC Rules. The test report shows only peak measurements were made. As the device in question uses pulsed operation, section 15.35(c) states, “Unless otherwise specified, e.g.§ 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds.” This device transmits for 20 ms out of every 100 ms and therefore has a duty cycle of 20%. Per section 15.35 the peak harmonic and spurious emissions may exceed the General Radiation Limit found in 15.209(a) by the ratio of the duty cycle, which in this case results in a 14 dB relaxation of the limit from 54
V/m to 68 dB
V/m (above 1000 MHz) for the peak measurements shown in the report. 2) Please provide peak conducted RF power output measurements. Pursuant to FCC Public Notice DA 00-705, the following measurements were made using an Agilent 8594E spectrum analyzer having the following settings: Span: 1250 kHz (approximately 5 times the 20 dB bandwidth) RBW: 300 kHz (RBW > the 20 dB bandwidth) VBW: 300 kHz (VBW  RBW) Sweep: auto Detector: peak Trace: max hold The device is modified so that the antenna is removed and a 3” semi-rigid coaxial cable having negligible insertion loss connects it to the spectrum analyzer. Please note that the device in question is designed to have an output power of +17 dBm (50 mW) however a variation of +1, -2 dB is anticipated. Plot 1: RF output at the low channel Plot 2: RF output at the middle channel Plot 3: RF output at the high channel 3) Please provide conducted spurious and harmonic emissions measurements. There is no way to measure conducted spurious and harmonic emissions without altering the device. The device was taken to an accredited and listed lab, International Approvals Laboratories, and the relevant radiated measurements were taken using their 3-meter Open-Air Test Site.

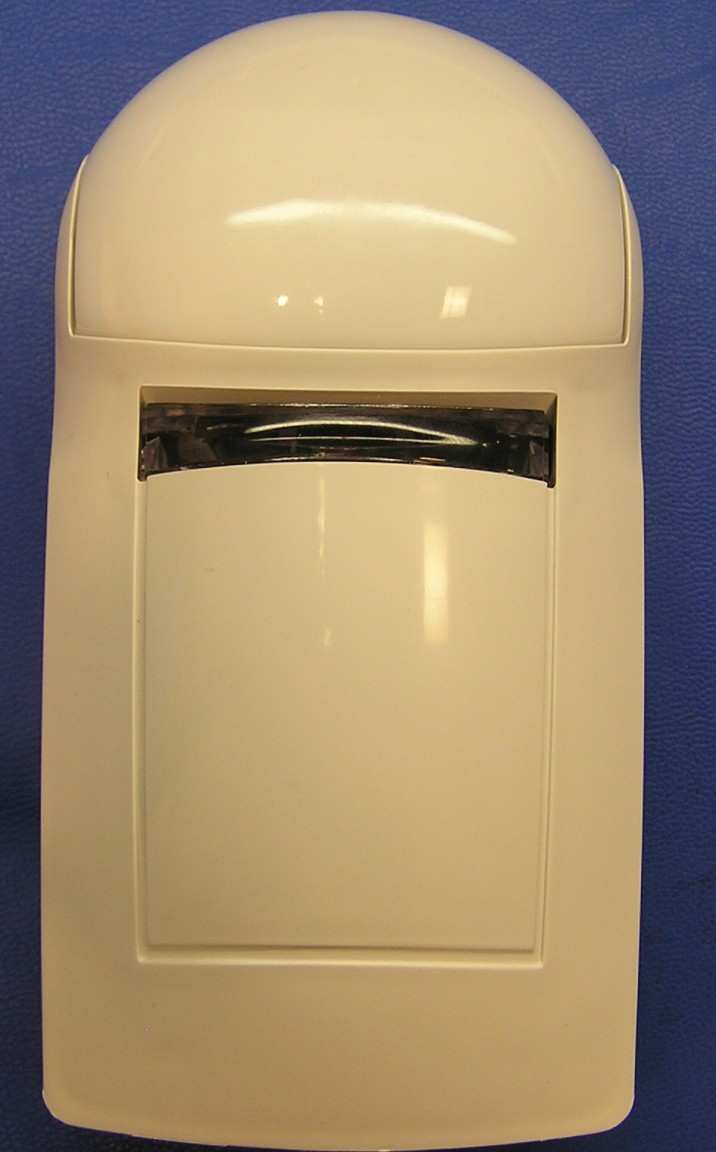

FCC ID: HCQ3B6ETICRM ES1260 4. External Photos: Top side view Bottom side view FCC Label

FCC ID HCQ3B6ETICRM -- , This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation . ES1260 CONFIDENTIAL DOCUMENT ES1260 CE Label 03929A CONFIDENTIAL DOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non Disclosure Agreement signed by the Inovonics Corporation and the Recipient. This documentation is not to be reproduced or redistributed except as provided in the Non Disclosure Agreement. MATERIAL:.002" THICK CLEAR MYLAR WITH .001" GLOSSY LAMINATION (FOR PROTEC- TION FROM INK SMEARING) AND PERMANENT ADHESIVE APPLIED TO THE BACKSIDE ARTWORK:SUPPLIED BY INOVONICS TEXT: BLACK LABEL SIZE: 1.062" X .1.062" (SHOWN TO 3 TIMES SCALE) WITH .125 RADIUS ON EACH COR- NER AND NO BORDER PACKAGING AND LABEL ORIENTATION:LABELS TO BE SUPPLIED ON TOP SIDE OF ROLL STOCK WITH TEXT READABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL Rev. Level DescriptionDate AInitial Release6/25/2003 Confidential to InovonicsES1260Rev A FCC ID HCQ3B6ETICRM -- , This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . ES1260

FCC ID: HCQ3B6ETICRM ES1260 6. Internal photos: Cover Removed PCB topside PCB bottomside Integrated Antenna RF Shielding

FCC ID: HCQ3B6ETICRM ES1260 8. Parts List/Tune Up Info: This exhibit does not apply to this device.

FCC ID: HCQ3B6ETICRM ES1260 9. RF Exposure Information: The device is compliant with both MPE requirements (47CFR2.1091) as well as SAR requirements (47CFR2.1093). Calculation for compliance with MPE requirements (47CFR2.1091) is done using a worst-case transmitter power of 50 mW, assumption of a unity gain antenna, and an exposure limit of 0.6 mW/cm 2 (f/1500 mW/cm 2 at 20 cm per 47CFR1.1310) for general applications. This device is not carried or worn by the user. It has an extremely low duty cycle and a low rate of transmission that dramatically reduces the average power level that could pose an exposure hazard. The PIR sensor initiates an alarm transmission upon sensing motion. To prevent rapid discharge of the battery, firmware within the transmitter prevents transmitting more frequently than 1 message every 90 seconds. In addition, the ES1260 is configured to transmit a supervisory message once every 3 minutes. The averaging interval specified in Table 1(B) of 47CFR1.1310 is 30 minutes. For the purposes of this calculation, it is assumed that ten supervisory and 20 alarm messages will be sent in the 30-minute interval. Each supervisory message contains 3 packets, and each alarm message contains 21 packets, for a total of 450 packets in the 30-minute interval. A packet is 20 ms in length. The worst-case average power density at a distance of 20 cm is then, 223 7.49 )20(4 1 1060 min120 min30 450 50 cm nW cmms packet mspackets mW=¥ ¥ ¥¥¥ p This is well below the 0.6 mW/cm 2 MPE limit. Calculation for compliance with SAR requirements (47CFR2.1093) is done using a worst-case transmitter power of 50 mW time-averaged by the duty cycle of the transmitter, and the assumption that all RF energy could be absorbed in 1 gram of tissue. The peak exposure limit is 1.6 mW/g (equivalent to 1.6 W/kg per 47CFR2.1093) in any 1 gram of tissue for General Population/Uncontrolled applications. In any 3-minute interval, worst-case the device may transmit up to 2 alarm messages and a supervision message for a total of 45 packets. The maximum duty cycle of the device is, %5.0005.0 1060 min120 min3 45 3 == ¥ ¥¥ ms packet mspackets FCC ID: HCQ3B6ETICRM ES1260 The time-averaged RF transmitted power is then, mWW25.0005.005.0=¥ If all of the transmitted power were absorbed in a 1-gram sample of tissue, the resulting power density is 0.25 mW/gram and is well below the 1.6 mW/gram limit.

EMC EMISSIONS - TEST REPORT (In-Part) Test Report No. BC300339-1d Issue Date: Thu 11/Sep/2003 Model / Serial No. ES1260 / SN: 1 Product Type Larger Pendent Client Inovonics Wireless Manufacturer Inovonics Wireless License holder Inovonics Wireless 315 CTC Boulevard Address Louisville, CO 80027 Test Criteria Applied FCC Part 15.247 Test Result PASS Test Project Number References BC300339-1d Total Pages Including Appendices: 23 FCC CFR47 Part 15: Radio Frequency Devices Reviewed By : Todd Seeley Approved By : Robert Cresswell INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, and VCCI. Project File: BC300339 -1d_ES1260 Page 2 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 23 Directory 2 Test Regulations 3 General Remarks 3 Test-setup Photographs 4 - 7 Appendix A Test Data Sheets and Test Equipment Used 8 - 17 Appendix B Test Plan/Constructional Data Form 18 - 18 Appendix C Measurement Protocol/Test Procedures 19 - 23 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 2-Sep-2003 Testing Start Date: 2-Sep-2003 Testing End Date: 11-Sep-2003 Project File: BC300339 -1d_ES1260 Page 3 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. FCC CFR47 Part 15.209 2. FCC CFR47 Part 15.205 3. FCC CFR47 Part 15.247 (b) & (c) Emission Test Results: Conducted Emissions, Powerline - 15.207 (not applicable) Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - 15.209 - PASS Test Result Minimum limit margin 16.70 dB at 811.66 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - 15.247(b) - PASS Test Result Minimum limit margin 20.48 dB at 927.633 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - 15.247(c) - PASS Test Result Minimum limit margin 6.98 dB at 2782.799 MHz Maximum limit exceeding dB at MHz Remarks: GENERAL REMARKS: None Modifications required to pass: None Test Specification Deviations: Additions to or Exclusions from: None Project File: BC300339 -1d_ES1260 Page 4 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Unintentional Radiated Emissions Project File: BC300339 -1d_ES1260 Page 5 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Unintentional Radiated Emissions Project File: BC300339 -1d_ES1260 Page 6 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Intentional Radiated Emissions Project File: BC300339 -1d_ES1260 Page 7 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Intentional Radiated Emissions Project File: BC300339 -1d_ES1260 Page 8 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Appendix A Test Data Sheets and Test Equipment Used Unintentional Radiated Emissions Test Report #: BC300339 Run 10 Test Area: Pinewood Site 1 (3m) Temperature: 21.6 °C Test Method: FCC Part 15.209 Test Date: 11-Sep-2003 Relative Humidity: 54 % EUT Model #: ES1223, ES1233, ES1260, ES1247 EUT Power: 3 VDC Air Pressure: 81 kPa EUT Serial #: 1, 1, 1, 1 Page: 1 of 5 Manufacturer: Inovonics Level Key EUT Description: Security Transmitters Pk – Peak Nb – Narrow Band Notes: All four units are being tested simultaneously Qp – QuasiPeak Bb – Broad Band All tranmitters are hopping, normal operation Av - Average FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dB\m) (dB) (dBuV/m) (m) (DEG) FCC B (< 1GHz) FCC B (> 1GHz) Log Antenna, Vertical, 200-1,000 MHz 0 degrees No emissions detected 90 degrees No emissions detected 180 degrees No emissions detected 270 degrees No emissions detected The following reading is a noise floor measurement 760.36 21.6 Qp 2.4 / 21.2 / 28.2 17.0 V / 1.0 / 0.0 -29.0 N/A 0 degrees No emissions detected 90 degrees 811.66 32.3 Qp 2.4 / 21.7 / 28.3 28.1 H / 1.0 / 0.0 -17.9 N/A 180 degrees No emissions detected 270 degrees No emissions detected Maximized emissions, Horizontal from 200-1,000 MHz 811.66 33.5 Qp 2.4 / 21.…

Text truncated - open the document above for the full version.

FCC ID: HCQ3B6ETICRM ES1260 11. Test Report The test report containing intentional/unintentional emissions data is attached as “BC300339-1d_ES1260_.pdf”. International Approvals Laboratories generated this report. Additional data demonstrating compliance with 47CFR15.247 follows. For the following measurements, the antenna was replaced by a coaxial connection to an HP8594E spectrum analyzer. Plot 1 is a spectrum plot showing a minimum channel separation of 800 kHz. Compliance with section 15.247(a)(1) is demonstrated by capturing several transmissions over a small portion of the 902-928 MHz ISM band. Plot 1: Demonstration of channel spacing requirement. FCC ID: HCQ3B6ETICRM ES1260 Plot 2 demonstrates compliance with 15.247(a)(1)(i) — Number of hopping channels. This is a stored display of many sequential transmissions to show the overall band occupied by the transmitter. The marker at 919.35 MHz represents the maximum conducted transmitter power across the band. Plot 2: Demonstration of 25 hopping channels. Plot 3 shows the 20 dB bandwidth of a single channel to demonstrate compliance with 15.247(a)(1)(i). The 20 dB occupied bandwidth is 258 kHz. Plot 3: Demonstration of occupied bandwidth.

FCC ID: HCQ3B6ETICRM ES1260 12. Test Setup Photos The test setup photos are contained within the test report of the previous section.
