HCQTBATBA Module

TBA Module Installation Guide 08/11/22 357-00062-01 Rev A Overview The TBA module is a highly reliable, frequency hopping, spread-spectrum radio transceiver that operates within the 902 to 928 MHz license-free band. In order to ensure proper integration into the final product and maintain compliance with the rules and regulations under which this module has been granted certification, the requirements listed below must be followed. Compliance Requirements: The TBA module complies with FCC, Title 47, Chapter 1, Subchapter A, Part 15, Subpart C, Section 15.212 (a)(1)(i through viii). The final host/module combination may also need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device. Additional Compliance Information per FCC 47 CFR, Section 2.1077: 1. Product Identification – TBA (T = Transmitter-Receiver Module; B = Second generation TRM; A = First FCC/IC revision) 2. The TBA module is in compliance with 47 CFR, Section 15.19(a)(3) as follows: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. Responsible party for Supplier’s Declaration of Conformity: a. Name of Responsible Party: Inovonics Corporation b. Address of Responsible Party: 11000 Westmoor Dr, Building 10, Suite 250, Westminster CO 80021 c. Telephone Numbers: (800) 782-2709; (303) 939-9336 d. E-mail: [email protected] - The TBA module is intended only for use in products installed and maintained by professional security technicians. - Manually test all TBA module based products weekly. NOTE: It is Inovonics policy to maintain complete control of all firmware associated with this device. - The TBA module can operate only with the built-in ceramic chip antenna. - When installed in a host’s end-device, the antenna must maintain a minimum separation distance of 20 cm from all persons. - In accordance with FCC multi-transmitter product procedures, the TBA module must not transmit simultaneously with any other co-located or transmitter, except in accordance with FCC multi-transmitter product procedures. TBA Module Installation Guide 08/11/22 357-00062-01 Rev A - The TBA module does not contain any user serviceable components. - A label must be affixed to the outside of the host product with the following statements: Contains FCC ID: HCQTBA Contains IC: 2309A-TBA FCC and Industry Canada Compliance FCC Part 15 and Industry Canada Statements: a. CFR 47 Part 15.19 Labeling Requirements – Host product must bear the following in a conspicuous location on the device. This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. b. Part 15.21 Information to the user – The user’s manual shall contain the following caution: This device complies with part 15 of the FCC Rules, and any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC and Industry Canada RF Exposure Requirements The user’s manual for the host product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF exposure guidelines. IMPORTANT: The following statements must be included in the User’s Manual: FCC Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm during normal operation and must not be co-located or operating in conjunction with any other antenna or transmitter. The TBA module must not transmit simultaneously with any other co-located or transmitter, except in accordance with FCC multi-transmitter product procedures. TBA Module Installation Guide 08/11/22 357-00062-01 Rev A Industry Canada Statement: This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The TBA module must not transmit simultaneously with any other co-located or transmitter, except in accordance with ISED multi-transmitter product procedures. Cet équipement est conforme avec ISED RSS-102 des limites d'exposition aux rayonnements définies pour un environnement non contrôlé. Cet émetteur doit être installé à au moins 20 cm de toute personne et ne doit pas être colocalisé ou fonctionner en association avec une autre antenne ou émetteur. Le module TBA ne doit pas émettre simultanément avec tout autre co-localisé ou émetteur, sauf conformément aux procédures des produits multi-émetteurs ISED. IMPORTANT: The Integrator’s Manual must include the appropriate language relating to the specific Class of Unintentional Radiation: Specifications Model # TBA Frequency Range 902-928 MHz ISM Band Power Supply 2.5-5.5 Vdc Tx Power 93 mW (19.68 dBm) Conducted Antenna Type Ceramic Chip Antenna Gain <0 dBi Tx Current 100 mA, typical Rx Current <50 mA RF Technology Frequency Hopping Sp…

Text truncated - open the document above for the full version.

Attention: Application Examiner August 11, 2022 Subject: Firmware – TBA Module Transmitter Applicant: Inovonics Corporation FCC ID: HCQTBA IC: 2309A-TBA To whom it may concern: This is to inform you that the firmware of the subject module cannot be modified or adjusted by the end user. A flash locking mechanism is in place which prevents any third party modification. Any attempt to modify flash will erase all the flash content. Thank you for your assistance with this submittal. Sincerely, ___________________ Corey Leavitt Senior Regulatory Compliance Engineer Inovonics 11000 Westmoor Cir., Bldg 10, Suite 250 Westminster, CO 80021 800.782.2709 ext. 7143 303.209.7143 (direct) 303.209.7243 (fax) www.inovonics.com

Attention: Application Examiner August 11, 2022 Subject: Model – TBA Module Applicant: Inovonics Corporation FCC ID: HCQTBA IC ID: 2309A-TBA To whom it may concern: Pursuant to Sections 0.457(d) and 0.459 of the FCC Rules, as specified in KDB 726920, request is hereby submitted by Inovonics Wireless Corporation to withhold permanently from public review certain portions of this application for equipment certification. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Parts List Rationale for request for confidentiality: Inovonics Wireless Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by Inovonics. ___________________ Corey Leavitt Regulatory Compliance Engineer Inovonics 11000 Westmoor Cir., Bldg 10, Suite 250 Westminster, CO 80021 800.782.2709 ext. 7143 303.209.7143 (direct) 303.209.7243 (fax) www.inovonics.com

Attention: Application Examiner August 11, 2022 Subject: New Model – TBA Module Transmitter Applicant: Inovonics Corporation FCC ID: HCQTBA IC ID: 2309A-TBA To whom it may concern: This is to inform you that the following new wireless module is being added to Inovonics product offering of wireless products: • TBA Module All required test documentation and other requested information is included with this submittal for this product. Please contact me directly if there are any questions or concerns. Thank you for your assistance with this submittal. ___________________ Corey Leavitt Regulatory Compliance Engineer Inovonics 11000 Westmoor Cir., Bldg 10, Suite 250 Westminster, CO 80021 800.782.2709 ext. 7143 303.209.7143 (direct) 303.209.7243 (fax) www.inovonics.com

Request for Modular/Limited Modular Approval Date: August 11, 2022 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______(HCQTBA)______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: The module has buffered data inputs. It is integrated in IC EFR32FG23 MCU 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: The module contains its own power supply regulation. Please refer to schematic filed with this application. 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: The module utilizes an integral antenna that is permanently attached. A description of the ceramic chip antenna tested and approved with this device may be found in the users manual provided with the application. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply ☒ - YES ☐ - NO(*) with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) Details: The module was tested stand-alone as shown in test setup photographs filed with this application. Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: The module printed circuit assembly is stenciled with the FCC/IC designations as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual filed with this application. 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions pro…

Text truncated - open the document above for the full version.

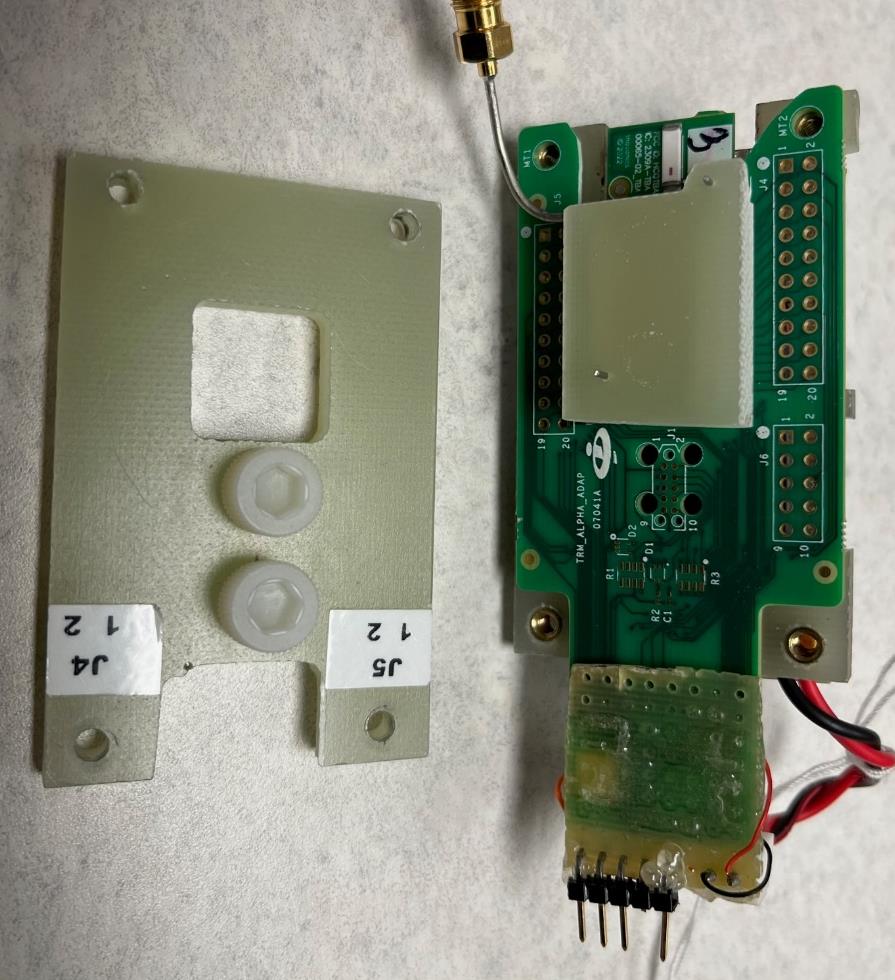

Test fixture for the EUT details: Antenna port conducted sample is shown Cover removed Module cover/spacer removed. Module shown in red box Test fixture with module daughter board removed Test Fixture back Fixture back with spacer and battery compartment removed Module on daughter board Back of daughter board

TBA Label Artwork FCC ID: HCQTBA IC ID: 2309A-TBA HVIN: 00065-02 Product: TBA Module TBA Silkscreen Label - Top TBA Silkscreen Label – Bottom

TBA Label Location FCC ID: HCQTBA IC ID: 2309A-TBA HVIN: 00065-02 Product: TBA Module TBA Module - Topside Label Location

TBA Module Photos FCC ID: HCQTBA IC ID: 2309A-TBA HVIN: 00065-02 Product: TBA Module TBA Module – Topside without Can TBA Module – Topside with Can Trace Antenna TBA Module Photos FCC ID: HCQTBA IC ID: 2309A-TBA HVIN: 00065-02 Product: TBA Module TBA Module – Backside

Page 1 of 4 MPE Evaluation FCC Maximum exposure limits from CFR 47, FCC Part 1.1310: Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 Page 2 of 4 Occupational/Controlled General Population/uncontrolled YES TBA Module Frequency Peak Power Conducted* Peak Power Conducted +10% for tolerance Power Density Limit at specified distance % of limit Result MHz mW mW mW/cm^2 mW/cm^2 902.4 92.47 101.72 0.020246 0.601600 3.37% PASS 914.8 91.20 100.32 0.019968 0.609867 3.27% PASS 927.6 89.33 98.26 0.019559 0.618400 3.16% PASS *Peak Power Conducted is the worst case vs. EIRP. Antenna gain is less than 0 dBi. Distance 20 cm Note: The user’s manual will stipulate that a 20cm distance from the user is to be maintained. Power values in mW were multiplied by 1.1 to account for a 10% tolerance The power density is calculated as shown below: S = (P x G)/(4 x π x D^2) – used to calculate exposure at 20 cm EIRP = P x G, measured as field strength d = √(S/(P x G) x 4 X π) – used to calculate minimum distance to meet limits S= power density P = transmitter conducted power (in mW) G = antenna numeric gain (Set to 1 when Conducted Power is used.) D = distance to radiation center (20 cm) Page 3 of 4 IC / ISED Using RSS-102, Issue 5, Section 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz6 and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10-2 ƒ^(0.6834) W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). In these cases, the information contained in the RF exposure Page 4 of 4 Table 1 - Power Density Calculations, IC/ISED TBA Module Frequency Peak Conducted Power* Peak Conducted Power +10% for tolerance Exemption Limit Compliant MHz mW mW mW 902.4 92.47 101.72 1370.853 YES 915.0 91.20 100.32 1383.689 YES 927.6 89.33 98.26 1396.901 YES *Peak power was used to show compliance, as it would be equal to or higher than the source-based, time averaged maximum EIRP. Antenna gain is less than 0 dBi.

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Amended Test Report Prepared for: Inovonics Address: 11000 Westmoor Circle Building 10, Suite 250 Westminster, CO 80021 Product: TBA Module Test Report No: R20220223-21-E1B Approved by: ______________________ Mahendra Karthik Vepuri, NCE EMC Test Engineer, iNARTE Certified EMC Engineer #EMC-041453-E DATE: 24 August 2022 Total Pages: 48 Report Number: R20220223-21-E1B Rev B Prepared for: Inovonics The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 48 REVISION PAGE Rev. No. Date Description Original 30 June 2022 Original – KVepuri Prepared by BWinter/Flane A 10 August 2022 Changed EIRP to Maximum Conducted Power in Section 4 and 4.3 -BW B 24 August 2022 Added Conducted Emissions Results- BW/KV Report Number: R20220223-21-E1B Rev B Prepared for: Inovonics The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 48 CONT EN TS Revision Page .............................................................................................................................................................. 2 1.0 Summary of test results ....................................................................................................................................... 4 2.0 EUT Description .................................................................................................................................................... 5 2.1 Equipment under test ........................................................................................................................................ 5 2.2 Description of test modes ................................................................................................................................ 6 2.3 Description of support units ............................................................................................................................ 6 3.0 Laboratory description ......................................................................................................................................... 7 3.1 Laboratory description ...................................................................................................................................... 7 3.2 Test personnel ..................................................................................................................................................... 7 3.3 Test equipment.................................................................................................................................................... 8 3.4 GEN ERAL T EST PRO C ED UR E AN D SETU P F OR R AD IO MEA SU R EMENT S ..................... 9 4.0 Detailed results .................................................................................................................................................... 10 4.1 Duty Cycle .......................................................................................................................................................... 12 4.2 Radiated emissions .......................................................................................................................................... 13 4.3 Peak Output Power .......................................................................................................................................... 20 4.4 Bandwidth ........................................................................................................................................................... 21 4.5 Bandedges ......................................................................................................................................................... 22 4.6 Carrier frequency separation, number of hopping channels, time of occupancy ........................... 23 4.7 Conducted AC Mains Emissions .................................................................................................................. 24 Appendix A: Sample Calculation ................................................................................................................................... 27 Appendix B – Measurement Uncertainty ...................................................................................................................... 29 Appendix C – Graphs and Tables .................................................................................................................................. 30 REPORT END ..................................................................................................................................................................... 48 Report Number: R20220223-21-E1B Rev B Prepared for: Inovonics The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 48 1.0 SU MMAR Y OF TEST R ESULT S The EUT has been tested according to the following specifications: (1) US Code of Federal Regulations, Title 47, Part 15 (2) ISED RSS-Gen, Issue 5 (3) ISED RSS-247, Issue 2 SUMMARY Standard Section Test Type and Limit Result Remark FCC 15.203 Unique Antenna Requirement Pass PCB antenna FCC 15.35 RSS-Gen, 6.10 Duty cycle of pulsed emissions Pass Pulsed emissions duty cycle was applied FCC 15.209 RSS-Gen, 7.1 Receiver Radiated Emissions Pass Meets the requirement of the limit. FCC 15.247(a)(1)(i) RSS-247, 5.1(c) Minimum Bandwidth, Limit: Min. 250kHz, Frequency Separation Pass Meets the requirement of the limit. FCC 15.247(…

Text truncated - open the document above for the full version.

Test Setup Photos Note: Test Photos below show how the device is installed in the test fixture and the AC powerline emissions photos. Test Setup Photos Test Setup Photos Test Setup Photos Test Setup Photos Test Setup Photos AC Powerline Emissions Photos: Test Setup Photos Test Setup Photos Test fixture details: Antenna port conducted sample is shown Cover removed Test Setup Photos Module cover/spacer removed. Module shown in red box Test fixture with module daughter board removed Test Setup Photos Test Fixture back Fixture back with spacer and battery compartment removed Test Setup Photos Module on daughter board Back of daughter board
