HCQ3B6ETRTXMPendant Transmitter

email: [email protected] iwww.inovonicswireless.com © 2003 Inovonics Wireless Corporation EchoStream™ Select ES1233S - Single-Button Pendant Transmitter ES1233D - Double-Button Pendant Transmitter ES1235S - Single-Button Belt Clip Transmitter ES1235D - Double-Button Belt Clip Transmitter IMPORTANT NOTES iTransmitters are designed to be installed and maintained by professional security technicians. iTransmitters should also be tested at least once per week. REGISTERING THE TRANSMITTER Transmitters must be registered with the system receiver in order to be monitored and supervised. Each transmitter has a unique factory- programmed identification number. Refer to the receiver installation instructions for details on registering a transmitter. 1. To remove the transmitter cover, insert a small flat-blade screw- driver at the tab on the bottom of the unit. 2. When prompted by the receiver to "Reset Transmitter", press the Reset button. Replace the cover. Refer to OPERATION section for testing instructions. Note:Transmitters retain programming data in non-volatile mem- ory. It does not require re-programming after loss of power. Install a new battery and press the Reset button to re-initialise the transmit- ter and restore programming. OPERATION To activate single-button transmitters, press and hold the button. To activate double-button transmitters, press and hold both buttons simultaneously. Alarm signals are transmitted multiple times and are indicated by the blinking transmission indicator LED. Holding the button results in continuous alarm transmission. When the buttons are released, transmitters will send an alarm restoral signal.To test a transmitter, activate the alarm by pressing the button(s). RECOMMENDED: Test transmitters at least once per week. ES1233 PENDANT CHAIN SAFETY WARNING! Substituting stronger cords or chains may result in injury to the wearer. CONVERTING ES1235 FROM BELT CLIP TO BELT LOOP (see Figure 3) Secure the bottom of the belt clip with the optional machine screw as shown to the right. (A 4-40 x .250" screw is sup- plied with the transmitter.) CHANGING THE BATTERY IMPORTANT:Press reset button to re-initialise the trans- mitter.Batteries should be discarded in accordance to the local laws and practices in the area of use. Inovonics Wireless does not take responsibility for batteries that are not discarded in this manner. A. Transmission Indicator LED B. Reset Button C. Mounting Screw Drill-out Wells (Max size: #8 screw)(Figure 2) D. Add Screw for ES1235 Belt Loop (Figure 3) E. Frequency Band Selector (Figure 1) SPECIFICATIONS Dimensions:76 x 41 x 18 mm (3 x 1.6 x 0.72") Typical battery life:3 to 5 years Battery (BAT608):3.0V lithium Panasonic CR2 Operating environment:0 o - 60 o C (32 o - 140 o F), non-condensing RF frequency range:Selectable (see Figure 1) , , Figure 1 Figure 2 Fig EchoStream™ Select ES1233S - Emetteur pendantif version un bouton ES1233D - Emetteur pendantif version deux bouton bouton ES1235S - Emetteur a clip de ceinture) (un bouton) ES1235D - Emetteur a clip de ceinture (deux bouton) NOTES IMPORTANTES iLes emetteurs ES1235 sont conçus pour être installés et entretenus par des techniciens de sécurité professionnels. iLes emetteurs ES1235 doivent être testés au moins une fois par semaine. ENREGISTREMENT D’EMETTEUR Les emetteurs doivent être enregistrés auprès du récepteur système afin de pou- voir être contrôlés et supervisés. Chaque emetteur possède un numéro d'identifi- cation unique programmé en usine. Consultez les instructions d'installation du récepteur pour plus d'informations sur l'enregistrement d'un emetteur. 1. Pour retirer la protection du ES1233, insérez un petit tournevis à lame plate sur l'onglet se trouvant au bas de boitier. 2. Lorsque le récepteur vous demande de réinitialiser l’emetteur (" Reset Transmitter "), appuyez sur le bouton Reset. Replacez la protection. Consultez la section OPERATION pour les instructions de test. N.B. :Le ES1233 sauvegarde les données de programmation en mémoire réma- nente. Il ne requiert pas de re-programmation après une coupure de courant. Installez une nouvelle pile et appuyez sur le bouton “ Reset “ pour réinitialiser l’emetteur et restaurer la programmation. OPÉRATION Pour activer le ES1233S, appuyez et maintenez appuyé le bouton ES1233S. Pour activer le ES1233D, appuyez et maintenez appuyés les deux boutons simultané- ment. Les signaux d'alarmes sont transmis plusieurs fois et sont indiqués par le voyant LED clignotant de transmission. Le fait de maintenir le bouton appuyé provoquera une transmission d'alarme continue. Lorsque les boutons sont relâchés, le ES1233 enverra un signal de restauration d'alarme. Pour tester l’emetteur, activez l'alarme en appuyant sur le(s) bouton(s). RECOMMANDATION : Testez l’emetteur au moins une fois par semaine. CONVERSION POUR CLIP DE CEINTURE(voir Figure 3) Pour porter le ES1235 à la ceinture, bloquez le bas de l'attache ceinture à l'aide de la vis machine optionnelle, tel qu'indiqué à droite. (une vis de a 4-40 x .250" est fournie avec l’emetteur.) CHANGEMENT DE LA PILE Retirez l’ancienne pile avec précaution. Installez la nouvelle pile. IMPORTANT: Appuyez sur le bouton “ reset “ pour réinitialiser l’emet- teur. Ce produit contient une pile ; celle-ci devra être détruite conformé- ment aux lois locales et aux pratiques de la région d'utilisation. Inovonics Wireless décline toute responsabilité pour les piles qui n'auront pas été détruites de manière adéquate. A. LED indicateur de transmission B. Bouton de réinitialisation C. Trous pour les vis de montage (taille maximum : vis #8) D. Ajoutez une vis pour clip de ceinture E. Sélecteur de bande de fréquence CARACTÉRISTIQUES Dimensions :76 x 41 x 18 mm Durée de vie de la pile :3 à 5 ans Pile (BAT608) :3.0V lithium Panasonic CR2 Temperature de fonctionnement : 0° - 60°C (32° - 140°F), non-condensé Gamme de fréquences RF:(voir Figure 1) , EchoStream™ Select ES1233S - Trasmettitore palmare a pulsante singolo ES1233D…

Text truncated - open the document above for the full version.

FCC ID: HCQ3B6ETRTXM ES1233 1. Attestation Statements: There are no attestation statements relevant to this device.

April 6, 2004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for FCC ID# HCQ3B6ETRTXM Gentlemen: The following reports are marked confidential, and should be maintained in the non- public file. This confidentiality is necessary to protect proprietary information contained within these sections of the application for Certification. 1) Operational Description 2) Schematics 3) Block Diagram Thanks for your help. Sincerely, Donald J. Hume President

June 18, 2004 Applicant: Inovonics Wireless Corp. FCC ID: HCQ3B6ETRTXM Correspondence Reference Number: 26950 731 Confirmation Number: EA969371 Re: Action Items regarding Grant approval 1) How did you determine that the RF output power is 50 mW as shown on Form 731? Please provide measurement and calculation of the RF output power. Be sure to provide RF output power measurements at low, middle and high frequency bands. Pursuant to FCC Public Notice DA 00-705, the following measurements were made using an Agilent 8594E spectrum analyzer having the following settings: Span: 1250 kHz (approximately 5 times the 20 dB bandwidth) RBW: 300 kHz (RBW > the 20 dB bandwidth) VBW: 300 kHz (VBW
RBW) Sweep: auto Detector: peak Trace: max hold The antenna is removed and a 3” semi-rigid coaxial cable having negligible insertion loss connects the DUT to the spectrum analyzer. Please note that the device in question is designed to have an output power of +17 dBm (50 mW) however a variation of +1, -2 dB is anticipated. Plot 1: RF output at the low channel Plot 2: RF output at the middle channel Plot 3: RF output at the high channel 2) Please submit the average time of occupancy measurement per Section 15.247(a)(1)(i) and FCC Public Notice DA00-705 Section 15.247(a)(1)(i) states, “...if the 20 dB bandwidth of the hopping channel is 250 kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 10 second period.” To effectively obtain this measurement, FCC Public Notice DA 00-705 requires the following spectrum analyzer settings: Span: 0 RBW: 1 MHz VBW: 1 MHz (VBW
RBW) Sweep: 60 ms (as necessary to capture the entire dwell time per hopping channel) Detector: peak Trace: max hold Plot 4 below clearly shows the dwell time is less than the 0.4 seconds required by 15.247(a)(1)(i). Plot 4: Channel Occupancy

July 12, 2004 Applicant: Inovonics Wireless Corp. FCC ID: HCQ3B6ETRTXM Correspondence Reference Number: 27087 731 Confirmation Number: EA969371 Re: Action Item regarding Grant approval 1) Provide component values on schematics. Please find attached the schematic with component values included.

July 26, 2004 Applicant: Inovonics Wireless Corp. FCC ID: HCQ3B6ETRTXM Correspondence Reference Number: 27290 731 Confirmation Number: EA969371 Re: Action Items regarding Grant approval 1) Please provide average radiated measurements for harmonic and spurious emissions that fall in the restricted bands of section 15.205 of the FCC Rules. The test report shows only peak measurements were made. As the device in question uses pulsed operation, section 15.35(c) states, “Unless otherwise specified, e.g.§ 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds.” This device transmits for 20 ms out of every 100 ms and therefore has a duty cycle of 20%. Per section 15.35 the peak harmonic and spurious emissions may exceed the General Radiation Limit found in 15.209(a) by the ratio of the duty cycle, which in this case results in a 14 dB relaxation of the limit from 54
V/m to 68 dB
V/m (above 1000 MHz) for the peak measurements shown in the report. 2) Please provide conducted spurious and harmonic emissions measurements. There is no way to measure conducted spurious and harmonic emissions without altering the device. The device was taken to an accredited and listed lab, International Approvals Laboratories, and the relevant radiated measurements were taken using their 3-meter Open-Air Test Site.

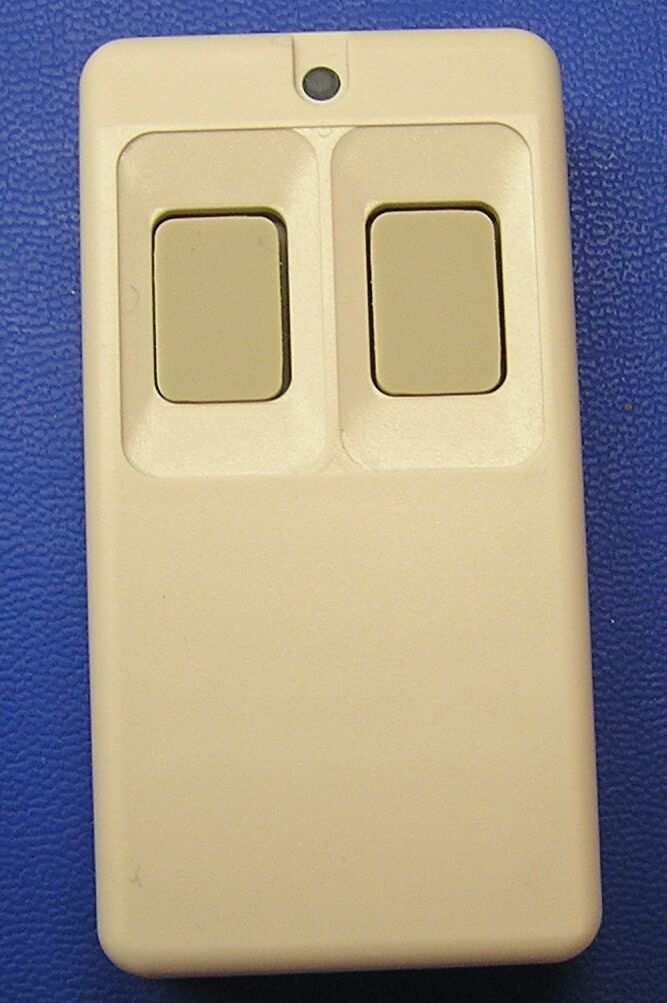

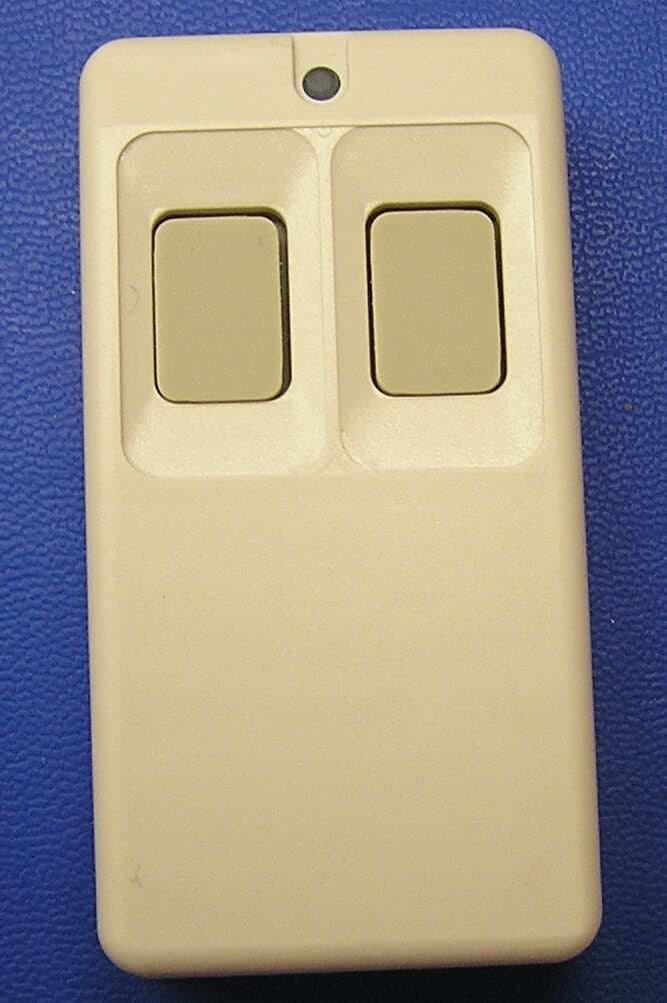

FCC ID: HCQ3B6ETRTXM ES1233 4. External Photos: Topside view. Bottom side view

FCC ID HCQ3B6ETRTXM -- , This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . ES1233D EchoStream™ — www.inovonics.com CONFIDENTIAL DOCUMENT ES1233D CE Label 03859C CONFIDENTIAL DOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non Disclosure Agreement signed by the Inovonics Corporation and the Recipient. This documentation is not to be reproduced or redistributed except as provided in the Non Disclosure Agreement. MATERIAL:.002" THICK CLEAR MYLAR WITH .001" GLOSSY LAMINATION (FOR PROTEC- TION FROM INK SMEARING) AND PERMANENT ADHESIVE APPLIED TO THE BACKSIDE ARTWORK:SUPPLIED BY INOVONICS TEXT: BLACK LABEL SIZE: 1.062" X .1.062" (SHOWN TO 3 TIMES SCALE) WITH .125 RADIUS ON EACH COR- NER AND NO BORDER PACKAGING AND LABEL ORIENTATION:LABELS TO BE SUPPLIED ON TOP SIDE OF ROLL STOCK WITH TEXT READABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL Rev. LevelDescriptionDate AInitial Release3/31//2003 BChange Description and Artwork4/8/2003 CChange label size, add FCC Part 15 text. Quark doc.7/14/03 Confidential to InovonicsES1233DRev C FCC ID HCQ3B6ETRTXM - , This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harm- ful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . ES1233D EchoStream™ — www.inovonics.com

FCC ID: HCQ3B6ETRTXM ES1233 6. Internal photos: PCB Topside PCB bottomside Internal Antenna

FCC ID: HCQ3B6ETRTXM ES1233 8. Parts List/Tune Up Info: This exhibit does not apply to this device.

FCC ID: HCQ3B6ETRTXM ES1233 9. RF Exposure Information: Calculation for compliance with SAR requirements (47CFR2.1093) is done using a worst-case transmitter power of 50 mW time-averaged by the duty cycle of the transmitter, and the assumption that all RF energy could be absorbed in 1 gram of tissue. The peak exposure limit is 1.6 mW/g (equivalent to 1.6 W/kg per 47CFR2.1093) in any 1 gram of tissue for General Population/Uncontrolled applications. This device has an extremely low duty cycle that dramatically reduces the average power level that could pose an exposure hazard. The user only activates the transmitter during a duress or panic situation, which is a very rare event. The transmitter is also configured to transmit a supervisory message once every 3 minutes. For a worst-case calculation, we assume 1 panic transmission and a supervision transmission in a 3-minute interval. A panic message consists of 21 redundant packets and a supervisory message consists of 3 redundant packets for a total of 24 packets in the interval. Each packet has duration of 20 ms. The time-averaged RF transmit power is then, mW ms packet mspackets W133.0 1060 min120 min3 24 05.0 3 = ¥ ¥¥¥ If all of the transmitted power were absorbed in a 1-gram sample of tissue, the power density is 0.133 mW/gram and is well below the 1.6 mW/gram limit.

EMC EMISSIONS - TEST REPORT (In-Part) Test Report No. BC300339-1b Issue Date: Thu 11/Sep/2003 Model / Serial No. ES1233 / SN: 1 Product Type Large Pendent Client Inovonics Wireless Manufacturer Inovonics Wireless License holder Inovonics Wireless 315 CTC Boulevard Address Louisville, CO 80027 Test Criteria Applied FCC Part 15.247 Test Result PASS Test Project Number References BC300339-1b Total Pages Including Appendices: 23 FCC CFR47 Part 15: Radio Frequency Devices Reviewed By : Todd Seeley Approved By : Robert Cresswell INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, and VCCI. Project File: BC300339 -1b_ES123 3 Page 2 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 23 Directory 2 Test Regulations 3 General Remarks 3 Test-setup Photographs 4 - 7 Appendix A Test Data Sheets and Test Equipment Used 8 - 17 Appendix B Test Plan/Constructional Data Form 18 - 18 Appendix C Measurement Protocol/Test Procedures 19 - 23 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 2-Sep-2003 Testing Start Date: 2-Sep-2003 Testing End Date: 11-Sep-2003 Project File: BC300339 -1b_ES123 3 Page 3 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. FCC CFR47 Part 15.209 2. FCC CFR47 Part 15.205 3. FCC CFR47 Part 15.247 (b) & (c) Emission Test Results: Conducted Emissions, Powerline - 15.207 (not applicable) Test Result Minimum limit margin dB at MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - 15.209 - PASS Test Result Minimum limit margin 16.70 dB at 0811.66 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - 15.247(b) - PASS Test Result Minimum limit margin 26.58 dB at 902.411 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (Electric Field) - 15.247(c) - PASS Test Result Minimum limit margin 8.18 dB at 3609.51 MHz Maximum limit exceeding dB at MHz Remarks: GENERAL REMARKS: None Modifications required to pass: None Test Specification Deviations: Additions to or Exclusions from: None Project File: BC300339 -1b_ES123 3 Page 4 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Unintentional Radiated Emissions Project File: BC300339 -1b_ES123 3 Page 5 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Unintentional Radiated Emissions Project File: BC300339 -1b_ES123 3 Page 6 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Intentional Radiated Emissions Project File: BC300339 -1b_ES123 3 Page 7 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Intentional Radiated Emissions Project File: BC300339 -1b_ES123 3 Page 8 of 23 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Appendix A Test Data Sheets and Test Equipment Used Unintentional Radiated Emissions Test Report #: BC300339 Run 10 Test Area: Pinewood Site 1 (3m) Temperature: 21.6 °C Test Method: FCC Part 15.209 Test Date: 11-Sep-2003 Relative Humidity: 54 % EUT Model #: ES1223, ES1233, ES1260, ES1247 EUT Power: 3 VDC Air Pressure: 81 kPa EUT Serial #: 1, 1, 1, 1 Page: 1 of 5 Manufacturer: Inovonics Level Key EUT Description: Security Transmitters Pk – Peak Nb – Narrow Band Notes: All four units are being tested simultaneously Qp – QuasiPeak Bb – Broad Band All tranmitters are hopping, normal operation Av - Average FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dB\m) (dB) (dBuV/m) (m) (DEG) FCC B (< 1GHz) FCC B (> 1GHz) Log Antenna, Vertical, 200-1,000 MHz 0 degrees No emissions detected 90 degrees No emissions detected 180 degrees No emissions detected 270 degrees No emissions detected The following reading is a noise floor measurement 760.36 21.6 Qp 2.4 / 21.2 / 28.2 17.0 V / 1.0 / 0.0 -29.0 N/A 0 degrees No emissions detected 90 degrees 811.66 32.3 Qp 2.4 / 21.7 / 28.3 28.1 H / 1.0 / 0.0 -17.9 N/A 180 degrees No emissions detected 270 degrees No emissions detected Maximized emissions, Horizontal from 200-1,000 MHz 811.66 33.5 Qp 2.4…

Text truncated - open the document above for the full version.

FCC ID: HCQ3B6ETRTXM ES1233 11. Test Report The test report containing intentional/unintentional emissions data is attached as “BC300339-1b_ES1233_.pdf”. International Approvals Laboratories generated this report. Additional data demonstrating compliance with 47CFR15.247 follows. For the following plots, the antenna was replaced by a coaxial connection to an HP8594E spectrum analyzer. Plot 1 is a spectrum plot showing a minimum channel separation of 800 kHz. Compliance with section 15.247(a)(1) is demonstrated by capturing several transmissions over a small portion of the 902-928 MHz ISM band. Plot 1: Demonstration of channel spacing requirement. FCC ID: HCQ3B6ETRTXM ES1233 Plot 2 demonstrates compliance with 15.247(a)(1)(i) — Number of hopping channels. This is a stored display of many sequential transmissions to show the overall band occupied by the transmitter. Plot 2: Demonstration of 25 hopping channels. Plots shows the 20 dB bandwidth of a single channel to demonstrate compliance with 15.247(a)(1)(i). The 20 dB occupied bandwidth is 258 kHz. Plot 3: Demonstration of occupied bandwidth.

FCC ID: HCQ3B6ETRTXM ES1233 12. Test Setup Photos The test setup photos are contained within the test report of the previous section.
