© 2004 Inovonics Wireless - www.inovonicswireless.com EN3954/EE3954 EchoStream™ Portable Communication Assistant Installation Instructions - 04479A Inovonics Wireless Contact Information If you have any problems with this procedure, contact Inovonics technical support: • E-mail: [email protected] • Phone: (800) 782-2709; (303) 939-9336 Install / Replace the Battery The PCA uses standard alkaline or rechargeable NiMH AA batteries. To install or replace the battery: 1. Disengage the battery release catch located on the back of the unit, next to the battery cover. 2. Remove the battery cover. 3. Install a new battery, making sure battery polarity matches the figure next to the battery well. 4. Replace the battery cover. 5. Engage the battery release catch. Power on the PCA To power on the PCA: 1. Press and hold the oval main selection button, located on the front of the unit, until the unit beeps. 2. The PCA will take a few seconds to power on. Warranty / Disclaimer Inovonics Wireless Corporation ("Inovonics") warrants its products ("Product" or "Products") to conform to its own specifications and to be free of defects in materials and workmanship under normal use for a period of twenty-four (24) months from the date of manufacture. Within the warranty period, Inovonics will repair or replace, at its option, all or any part of the warranted Product. Inovonics will not be responsible for dismantling and/or reinstallation charges. To exercise the warranty, the User ("User", "Installer" or "Consumer") must work directly through their authorized distributor who will be given a Return Material Authorization ("RMA") number by Inovonics. Details of shipment will be arranged directly through the authorized distributor. This warranty is void in cases of improper installation, misuse, failure to follow installation and operating instructions, alteration, accident or tampering, and repair by anyone other than Inovonics. This warranty is exclusive and expressly in lieu of all other warranties, obligations or liabilities, whether written, oral, express, or implied. There is no warranty by Inovonics that Inovonics product will be merchantable or fit for any particular purpose, nor is there any other warranty, expressed or implied, except as such is expressly set forth herein. In no event shall Inovonics be liable for an incidental, consequential, indirect, special, or exemplary damages, including but not limited to loss of profit, revenue, or contract, loss of use, cost of down time, or interruption of business, nor any claim made by distributor's customers or any other person or entity. This warranty will not be modified or extended. Inovonics does not authorize any person to act on its behalf to modify or extend this warranty. This warranty will apply only to Inovonics Products. Inovonics will not be liable for any direct, incidental, or consequential damage or loss whatsoever, caused by the malfunction of Product due to products, accessories, or attachments of other manufacturers, including batteries, used in conjunction with Inovonics Products. E-mail [email protected] for a copy of the CE “Declaration of Conformity”. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Assistant de communication portable EN3954/EE3954 EchoStream™ Instructions d'installation - 04479A Informations de contact de Inovonics Wireless En cas de doute quant à cette procédure, veuillez contacter le support technique d'Inovonics: • E-mail: [email protected] • Téléphone: (800) 782-2709; (303) 939-9336 Installation / Remplacement de la pile Ce PCA (assistant de communication portable) utilise des piles NiMH AA alcalines ou rechargeables. Pour installer ou remplacer la pile : 1. Débloquez le couvercle du logement des piles situé à l'arrière de l'appareil. 2. Retirez le couvercle. 3. Placez une nouvelle pile en vous assurant que la polarité de la pile respecte l'illustration. 4. Replacez le couvercle. 5. Bloquez le couvercle. Allumer le PCA Pour allumer le PCA : 1. Appuyez et maintenez enfoncée la touche ovale de sélection située à l'avant de l'appareil jusqu'à entendre un bip. 2. Le PCA s'allume au bout de quelques secondes. Garantie / Décharge Inovonics Wireless Corporation ("Inovonics") garantit que ses produits ("Produit" ou "Produits") sont conformes aux caractéristiques indiquées et qu'ils ne présentent pas de défaut de matériel ou de main-d'œuvre dans des conditions d'utilisation normale pendant une période de 24 mois à partir de la date de fabrication. Au cours de la période de garantie, Inovonics réparera ou remplacera, à son choix, la totalité ou partie du Produit sous garantie. Inovonics ne sera pas responsable des coûts de montage et/ou réinstallation. Pour bénéficier de sa garantie, l'Utilisateur ("Utilisateur", "Installateur" où "Consommateur") devra traiter directement avec son distributeur agréé à qui Inovonics fournira un numéro d'autorisation de retour de matériel ("RMA"). L'organisation de l'envoi sera effectuée directement par le biais du distributeur agréé. Cette garantie est nulle dans le cas d'une installation incorrecte, d'une mauvaise utilisation, d'un non respect des instructions d'installation et d'opération, d'altérations, d'accidents ou d'anti-sabotage, et de réparations par quiconque autre qu'Inovonics. Cette garantie est exclusive et remplace expressément toute autre garantie, obligation ou responsabilité, qu'elles soient écrites, orales, explicites ou implicites. Inovonics ne fournit aucune garantie sur le fait que le produit Inovonics sera commercialisable ou adéquat pour une utilisation spécifique, ni ne fournit de garantie, explicite ou implicite, autres que celles fournies expressément dans le document ci-inclus. En aucun cas Inovonics ne sera responsable de domma…

Text truncated - open the document above for the full version.

March 3, 2005 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for FCC ID# HCQ3B6EXTWC Gentlemen: The following reports are marked confidential, and should be maintained in the non- public file. This confidentiality is necessary to protect proprietary information contained within these sections of the application for Certification. 1) Operational Description 2) Schematics 3) Block Diagram Thanks for your help. Sincerely, Joni Ripper Engineering Assistant

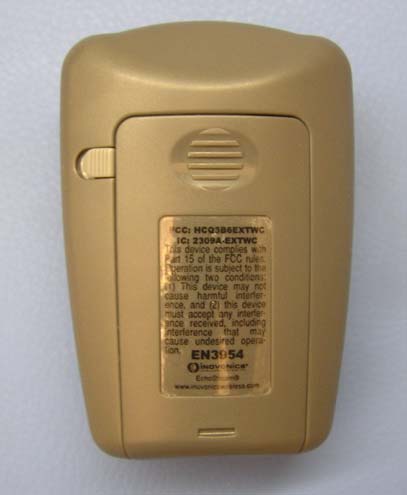

FCC ID: HCQ3B6EXTWC EN3954 4. External Photos: Front View Back View FCC Number

FCC: HCQ3B6EXTWC IC: 2309A-EXTWC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interfer- ence received, including interference that may cause undesired opera- tion. EN3954 EchoStream® www.inovonicswireless.com CONFIDENTIAL DOCUMENT LBL-FCC-EN3954 04327A CONFIDENTIAL DOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non Disclosure Agreement signed by the Inovonics Corporation and the Recipient. This documentation is not to be reproduced or redistributed except as provided in the Non Disclosure Agreement. MATERIAL:.002" THICK CLEAR MYLAR WITH .001" GLOSSY LAMINATION (FOR PROTEC- TION FROM INK SMEARING) AND PERMANENT ADHESIVE APPLIED TO THE BACKSIDE ARTWORK:SUPPLIED BY INOVONICS TEXT: BLACK LABEL SIZE: .740" X 1.185" (SHOWN TO 3 TIMES SCALE) WITH .040' RADIUS ON EACH CORNER AND NO BORDER PACKAGING AND LABEL ORIENTATION:LABELS TO BE SUPPLIED ON TOP SIDE OF ROLL STOCK WITH TEXT READABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL Rev. Level DescriptionDate AInitial Release7/13/04 © Inovonics Wireless Corporation 2004

FCC ID: HCQ3B6EXTWC EN3954 6. Internal photos: Shown with housing open and back of PCB Front of PCB showing LCD Graphics Display FCC ID: HCQ3B6EXTWC EN3954 Page 2 Front of PCB with LCD Graphics Display removed Front of PCB with LCD and RF shielding removed

FCC ID: HCQ3B6EXTWC EN3954 9. RF Exposure Information: Calculation for compliance with SAR requirements (47CFR2.1093) is done by applying a maximum transmitter power of 50 mW time averaged by the duty cycle of the transmitter, and the absolute worst case assumption that all of the RF energy is absorbed in the tissue. The EN3954 operates in two modes, periodic check-in and user initiated pages. The unit would typically be in a holster or on a lanyard during the periodic check-in mode. In this case the peak exposure limit is 1.6 mW/g (equivalent to 1.6 W/kg, 47CFR2.1093). The quickest check-in interval is one minute. During a check-in 3 redundant packets are sent. Each packet has transmission duration of 22ms. The time-averaged power (over a 30 minute interval) is then: mW ms packet mspackets mW055.0 1060 min122 min30 )330( 50 3 = × ×× × × If all of the transmitted power were absorbed in a 1-gram sample of tissue, the power density is 0.055mW/g and is well below the 1.6W/kg (1.6mW/g) limit. For user initiated pages the device would be held in the users hand while the pages are initiated by navigating through a menu structure. In this case the peak exposure limit is 4.0 W/kg as averaged of any 10 grams of tissue. For worst case analysis, assume that the user sends 1 page every 10 seconds (about the time it takes to execute a typical page). Each page consists of 3 redundant packets of 22ms duration. mW ms packet ms page packets s pages mW66.0 1060 min1223 5 1 min1 60 min3050 3 = × ×××××× If all of the transmitted power is absorbed in the 10 grams of tissue, the power density would be 0.066mW/g (0.66mW/10grams). This is well below the 4.0W/kg (4mW/g) limit.

EMC EMISSIONS - TEST REPORT (In-Part) Test Report No. BC400278 -1 Issue Date: July 18, 2004 Model / Serial No. EN3954 / proto #1 Product Type Intentional Transmitter Client Inovonics Wireless Corp. Manufacturer Inovonics Wireless Corp. License holder Inovonics Wireless Corp. 315 CTC Blvd Address Louisville, CO 80027 Test Criteria Applied FCC CFR47 Part 15.247 Test Result PASS Test Project Number References BC400278-1 Total Pages Including Appendices: 37 Title 47 CFR 15: RADIO FREQUENCY DEVICES Reviewed By : Approved By : INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, and VCCI. Project File: BC400278 Page 2 of 37 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 37 Directory 2 Test Regulations 3 General Remarks 4-5 Test-setup Photographs 6-10 Appendix A Test Data Sheets and Test Equipment Used 11-29 Appendix B Test Plan/Constructional Data Form 30-32 Appendix C Measurement Protocol/Test Procedures 33-37 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 3-June-2004 Testing Start Date: 3-June-2004 Testing End Date: 6-July-2004 Project File: BC400278 Page 3 of 37 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. FCC CFR47 Part 15.205 2. FCC CFR47 Part 15.207 3. FCC CFR47 Part 15.209 4. FCC CFR47 Part 15.247 5. ICES-003 Emission Test Results: Conducted Emissions, Powerline (15.207) - Not Applicable Test Result Minimum limit margin NA dB at NA MHz Maximum limit exceeding dB at MHz Remarks: Battery operated device. Radiated Emissions (15.209) - PASS Test Result Minimum limit margin -13.3 dB at 10045.4 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (15.205)/(15.247)(c) - PASS Test Result Minimum limit margin -6.98 dB at 8121.2 MHz Maximum limit exceeding dB at MHz Remarks: Peak Output Power (15.247) (b)(1) - PASS Test Result Minimum limit margin -24.58 dB at 902.18 MHz Maximum limit exceeding dB at MHz Remarks: This measurement was taken from the IFA antenna. Project File: BC400278 Page 4 of 37 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 GENERAL REMARKS: The following remarks are to be considered as “where applicable“ and are taken into account while completing any FCC/IC/ETSI radio tests at International Approvals Laboratories, LLC. Testing was performed in 3 different orthogonal axis to determine the worst case emissions from the device. The worst case emissions measurements are shown in this report. FCC CFR47 Part 15.31: Measurement Standards: In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was varied per Part 15.31 to find worst case emissions. FCC CFR47 Part 15.35: Measurement Detector Functions and Bandwidths: FCC Part 15.35 was utilized when performing the measurements within this report. In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was verified per Part 15.31 to find worst case emissions. The actual test distance for the FCC Part 15.209 testing was conducted at 10m for the fact that the device was being tested to EN55022 Class B from 30 MHz to 1000 MHz (meets/exceeds the FCC Part 15.209 & 109B limits) The data is automatically extrapolated back to the FCC 3m limits and measurements are corrected to better show the compliance to FCC requirements and reduce confusion. A correction factor of 10.54dB is used in cases of 30MHz and up for a difference between 10m and 3m measurement distances. All measurements that are lesser than 30MHz where applicable are accompanied with the fall of measurements and calculations to support the interpolation. Modifications required to pass: Test Specification Deviations: Additions to or Exclusions from This test report is in-part, International Approvals Laboratories, LLC was asked to test only the field strength of the fundamental and harmonics as well as the unintentional radiated and conducted emissions when applicable. Project File: BC400278 Page 5 of 37 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Required Information In Accordance to FCC CFR 47 Part 2.1033: Exhibits Including (where applicable): 1. Users Manual 2. Operation Description 3. Block Diagram 4. Report of Measurement 5. External & Internal Photogra…

Text truncated - open the document above for the full version.

FCC ID: HCQ3B6EXTWC EN3954 12. Test Report Additional Information The test report containing intentional/unintentional emissions data is attached as “11-TestReportIALabs-EN3954.pdf”. International Approvals Laboratories generated this report. Additional data demonstrating compliance with 47CFR15.247 follows. For the following measurements, the antenna was replaced by a coaxial connection to an HP8594E spectrum analyzer. Minimum Channel Separation: Plot 1 is a spectrum plot showing a minimum channel separation of 800 kHz. Compliance with section 15.247(a)(1) is demonstrated by capturing several transmissions over a small portion of the 902-928 MHz ISM band. Plot 1: Demonstration of channel spacing requirement. FCC ID: HCQ3B6EXTWC EN3954 Number of hopping Channels: Plot 2 demonstrates compliance with 15.247(a)(1)(i) — Number of hopping channels. This is a stored display of many sequential transmissions to show the overall band occupied by the transmitter. The marker at 919.20 MHz represents the maximum conducted transmitter power across the band. Plot 2: Demonstration of 25 hopping channels. 20 dB bandwidth of a single channel: Plot 3 shows the 20 dB bandwidth of a single channel to demonstrate compliance with 15.247(a)(1)(i). The 20 dB occupied bandwidth is 253.8 kHz. Plot 3: Demonstration of occupied bandwidth. FCC ID: HCQ3B6EXTWC EN3954 Average radiated measurements for harmonic and spurious emissions: With regards to average radiated measurements for harmonic and spurious emissions that fall in the restricted bands of section 15.205 of the FCC Rules. This device uses pulsed operation, section 15.35(c) states, “Unless otherwise specified, e.g.§ 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds.” This device transmits for 20ms out of every 100ms and therefore has a duty cycle of 20%. Per section 15.35 the peak harmonic and spurious emissions may exceed the General Radiation Limit found in 15.209(a) by the ratio of the duty cycle, which in this case results in a 14 dB relaxation of the limit from 54 dB μV/m to 68 dB μV/m (above 1000 MHz) for the peak measurements shown in the report. Peak conducted RF power output measurements: Pursuant to FCC Public Notice DA 00-705, the following measurements were made using an Agilent 8594E spectrum analyzer having the following settings: Span: 1250 kHz (approximately 5 times the 20dB bandwidth) RBW: 300 kHz (RBW > the 20dB bandwidth) VBW: 300 kHz (VWB ≥ RBW) Sweep: auto Detector: peak Trace: max hold The device is modified so that the antenna is removed and a 3” semi-rigid coaxial cable having negligible insertion loss connects it to the spectrum analyzer. Please note that the device is designed to have an output power of +17dBm however a variation of +1, -2dB is anticipated. FCC ID: HCQ3B6EXTWC EN3954 Plot 4: RF output at the low channel Plot 5: RF output at the middle channel FCC ID: HCQ3B6EXTWC EN3954 Plot 6: RF output at the high channel Conducted spurious and harmonic emissions measurements: There is no way to measure conducted spurious and harmonic emissions without altering the device. The device was taken to an accredited and listed lab, International Approvals Laboratories, and the relevant radiated measurements were taken using their 3-meter Open-Air Test Site. Average time of occupancy measurement: Section 15.247(a)(1)(i) stated, “...if the 20 dB bandwidth of the hopping channel is 250kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 10 second period” To effectively obtain this measurement, FCC Public Notice DA 00-705 requires the following spectrum analyzer settings: Span: 0 RBW: 1MHz VBW: 1MHz (VBW ≥ RBW) Sweep: 60ms (as necessary to capture the entire dwell time per hopping channel) Detector: peak Trace: max hold Plot 6 below clearly shows the dwell time is less than the 0.4 seconds required by 15.247(a)(1)(i). FCC ID: HCQ3B6EXTWC EN3954

FCC ID: HCQ3B6EXTWC EN3954 13. Test Setup Photos The test setup photos are contained within the test report of the previous section entitled “11-TestReportIALabs-EN3954”.
