HCQ3B6OT9ICRMotion Detector

© Inovonics, 2011 - www.inovonics.com EN1260 EchoStream® Passive Infrared Motion Detector Installation and Operation Manual - 05379B 1 Overview The EN1260 is a low-current motion detector highly sensitive to moving heat (infrared radiation) sources. It features increased immunity to radio frequency interference, vibration, static, lightning, ambient temperature changes, and other common causes of false alarms. The EN1260 includes a range of features, including a wall tamper capability for increased security, and a fixed or variable sleep time option for normal or high-traffic applications. Caution: The EN1260 needs one minute for stabilization after power up. During the stabilization period, the LED will blink twice per second, and the EN1260 will not be operational. 1.1 Inovonics Wireless Contact Information If you have any problems with this procedure, contact Inovonics Wireless technical services: • E-mail: [email protected] • Phone: (800) 782-2709; (303) 939-9336 2 Installation and Startup 2.1 Install/Replace Battery To install the battery: 1.Insert a small flat-blade screwdriver at the tab on the bottom of the unit. The screwdriver will enter the slot at about a 45° angle. Press downward on the handle of the screwdriver until the latch holding the cover to the housing base releases. Figure 1 Open the housing 2.Install/replace the battery. 3.Press the Reset button to initialize the transmitter. 2.2 Select Frequency Band EchoStream products are able to use a range of radio frequencies, and must be configured for your geographic area. To configure the EN1260: 1.Place a selection jumper on the appropriate frequency band selection pins (Fig. 2). • Place the jumper on the left two pins to select 915-928 MHz for Australia. • Place the jumper on the right two pins to select 921-928 MHz for New Zealand. • Leave the jumper off the pins to select 902-928 MHz for North America. 2.Press the Reset button. Caution: When pressing the Reset button, make sure you don’t also touch the frequency band selection pins. Touching the frequency band selection pins while pressing the Reset button can inadvertently set the EN1260 to the wrong frequency band. Figure 2 EN1260 components 2.3 Select Automatic/Pulse Count The pulse count jumper setting provides control for normal or difficult operating environments. Automatic pulse count is recommended for reliable operation in environments subject to temperature fluctuations that may cause false alarms. The single pulse count mode is more sensitive to minor temperature variations, and should be used in sites where variant heat sources will not cause false alarms. 1.Place a selection jumper on the appropriate pulse count selection pins. • Place the jumper on the left two pins to select automatic pulse count. • Place the jumper on the right two pins to select single pulse count. 2.Press the Reset button to complete configuration. 2.4 Select Fixed/Variable Sleep Time The sleep time jumper setting provides control for normal or high-traffic operating environments. When set to fixed, if the EN1260 senses motion, it will transmit an alarm, then enter sleep mode for 180 seconds; if motion is sensed when the sleep time has expired, the EN1260 will transmit another alarm. Fixed sleep time is recommended for normal operating environments. When set to variable, if the EN1260 senses motion, it will transmit an alarm, then enter sleep mode for 180 seconds; if motion is sensed before the sleep time has expired, the EN1260 will restart the 180 second interval. Variable sleep time is recommended for high-traffic operating environments. 1.Place a selection jumper on the appropriate sleep time selection pins. • Place the jumper on the left two pins to select fixed sleep time. • Place the jumper on the right two pins to select variable sleep time. 2.Install the battery. 3.Press the Reset button. 2.5 Register the Transmitter The EN1260 must be registered with the system receiver in order to be monitored and supervised. Each EN1260 has a unique factory-programmed identification number. Refer to the receiver, network coordinator or control panel installation instructions for details on registering a transmitter. 1.When prompted reset the EN1260, press the EN1260 Reset button. 2.Replace the EN1260 cover. Caution: The EN1260 should be tested after registration to ensure operation. To test the EN1260, activate each of the conditions and ensure an appropriate response. Note: The EN1260 retains programming data in non-volatile memory. It does not require re-programming after loss of power. 2.6 Mount the Transmitter Mount the transmitter. 1.Remove the EN1260 printed circuit board from the housing. 2.Use the included hardware to mount the EN1260 housing back plate to the mounting surface. AFrequency band selection pins BReset buttonCPulse count selection pins DTamper switchETest mode reed switchFSleep time selection pins C A D B E F © Inovonics, 2011 - www.inovonics.com 2 a. If using the wall tamper function for increased security, mount the housing back plate per Figure 3, ensuring the tamper switch is depressed.. Figure 3 EN1260 mounting back plate b. If not using the wall tamper, mount the housing back plate using all appropriate hardware. 3 Test the EN1260 3.1 Perform a Walk Test The walk test is performed to test the PIR, ensuring motion is sensed. To perform a walk test: 1.Hold the magnet to the reed switch for less than one quarter of a second, The LED will light three times to indicate the three-minute walk test has been activated. Note: To activate the walk test, the magnet shouldn’t remain near the reed switch for more than one-quarter of a second. 2.Walk in front of the PIR to test the sensor. The LED will light every time the PIR senses motion. 3.The unit will not transmit alarm signals during the three minute test period. When the walk test ends, the LED will light six times. 3.2 Perform Transmission Test 1.Hold the magnet to the reed switch for more than four seconds. The LE…

Text truncated - open the document above for the full version.

A u t h o r i t y t o A c t a s A g e n t Date: March 10, 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Keal Vigil______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: December 31, 2011 Keal Vigil Production Control Specialist II

Request for Confidentiality Date: March 10, 2011 Subject: Confidentiality Request for: FCC ID: HCQ3B6OT9I C R; IC ID 2309A-OT9I C R Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessar y )______ Inovonics Wireless Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 2 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Pe r m i t-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, Keal Vigil Production Control Specialist II

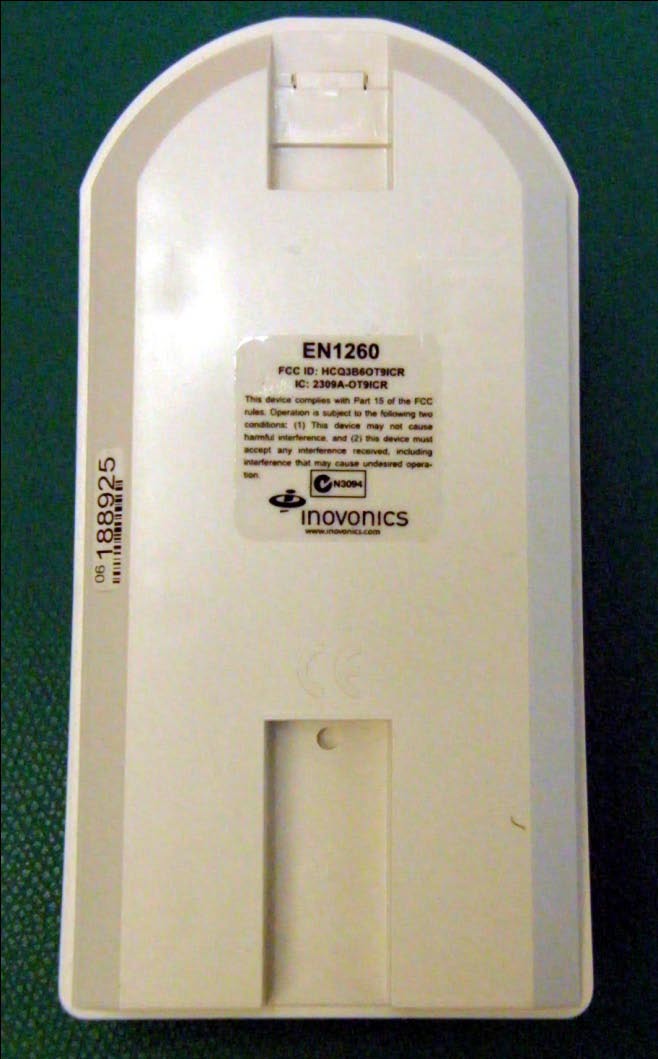

EXTE R N A L P H O T O S FCC ID: HCQ3B6O T 9 I C R IC ID: 2309A-O T9 I C R PRODUCT(S): EN260 Front of Product B a c k o f P r o d u ct

CONFIDENTIAL DOCUMENT LBL-FCC-EN1260 05380B CONFIDENTIALDOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non Disclosure Agreement signed by the Inovonics Corporation and the Recipient. This documentation is not to be reproduced or redistributed except as provided in the Non Disclosure Agreement. MATERIAL:.002" THICK CLEAR MYLAR (3M7350 or equivalent) WITH .001" GLOSSYLAMI- NATION FOR PROTECTION FROM INK SMEARING (Flexcon OM100C or equivalent) AND PER- MANENTADHESIVE (3M300 or equivalent) APPLIED TO THE BACKSIDE. RoHS COMPLIANT MATERIALS REQUIRED ARTWORK:SUPPLIED BYINOVONICS TEXT: BLACK LABELSIZE: 1.062" X .1.062" (SHOWN TO 3 TIMES SCALE) WITH .125 RADIUS ON EACH CORNER AND NO BORDER PACKAGING AND LABELORIENTATION:LABELS TO BE SUPPLIED ON TOPSIDE OF ROLL STOCK WITH TEXTREADABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL Confidential to InovonicsEN126005380 Rev. Level DescriptionDate AInitial Release09/09/2009 BAdded CTICKlogo10/06/2009 EN1260 www.inovonics.com This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera- tion. FCC ID: HCQ3B6OT9ICR IC: 2309A-OT9ICR

FCC ID: HCQ3B6OT9ICR EN1260 Industry Canada ID: 2309A‐OT9ICR Internal photos: PCB Topside Integrated Antenna

FCC ID: HCQ3B6OT9ICR EN1260 IC ID: 2309A-OT9ICR RF Exposure Information: The device is compliant with both MPE requirements (47CFR2.1091) as well as SAR requirements (47CFR2.1093). Calculation for compliance with MPE requirements (47CFR2.1091) is done using a worst-case transmitter power of 50 mW, assumption of a unity gain antenna, and an exposure limit of 0.6 mW/cm 2 (f/1500 mW/cm 2 at 20 cm per 47CFR1.1310) for general applications. This device is not carried or worn by the user. It has an extremely low duty cycle and a low rate of transmission that dramatically reduces the average power level that could pose an exposure hazard. The PIR sensor initiates an alarm transmission upon sensing motion. To prevent rapid discharge of the battery, firmware within the transmitter prevents transmitting more frequently than 1 message every 90 seconds. In addition, the ES1265 is configured to transmit a supervisory message once every 3 minutes. The averaging interval specified in Table 1(B) of 47CFR1.1310 is 30 minutes. For the purposes of this calculation, it is assumed that ten supervisory and 20 alarm messages will be sent in the 30-minute interval. Each supervisory message contains 3 packets, and each alarm message contains 21 packets, for a total of 450 packets in the 30-minute interval. A packet is 20 ms in length. The worst-case average power density at a distance of 20 cm is then, 223 7.49 )20(4 1 1060 min120 min30 450 50 cm nW cmms packet mspackets mW    This is well below the 0.6 mW/cm 2 MPE limit. Calculation for compliance with SAR requirements (47CFR2.1093) is done using a worst-case transmitter power of 50 mW time-averaged by the duty cycle of the transmitter, and the assumption that all RF energy could be absorbed in 1 gram of tissue. The peak exposure limit is 1.6 mW/g (equivalent to 1.6 W/kg per 47CFR2.1093) in any 1 gram of tissue for General Population/Uncontrolled applications. In any 3-minute interval, worst-case the device may transmit up to 2 alarm messages and a supervision message for a total of 45 packets. The maximum duty cycle of the device is, %5.0005.0 1060 min120 min3 45 3    ms packet mspackets FCC ID: HCQ3B6OT9ICR EN1260 IC ID: 2309A-OT9ICR The time-averaged RF transmitted power is then, mWW25.0005.005.0 If all of the transmitted power were absorbed in a 1-gram sample of tissue, the resulting power density is 0.25 mW/gram and is well below the 1.6 mW/gram limit.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Inovonics on the EN1260 Page 1 of 21 TEST REPORT Report Number: 100356542DEN-002F Project Number: G100356542 Report Issue Date: 03/31/2011 Product Designation: EN1260 Standards: FCC title 47 CFR part 15 subpart C RSS-210:2010 Issue 8 AS/NZS 4268:2008 Tested by: Client: Intertek Testing Services NA, Inc. 1795 Dogwood St. Suite 200 Louisville, CO 80027 Inovonics Wireless Corp. 315 CTC Blvd. Louisville, CO 80027 Report prepared by Report reviewed by Michael Spataro Engineering Team Leader Randy Thompson Senior EMC Project Engineer Intertek Report Number: 100356542DEN-002F Issued: 03/31/2011 EMC Report for Inovonics on the EN1260 Page 2 of 21 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test................................................................................................ 4 4 System setup including cable interconnection details, support equipment and simplified block diagram ........................................................................................................................................................ 5 5 Radiated Emissions – Intentional Radiators: Output Power - Fundamental & Harmonics of the Fundamental for 15.247 .............................................................................................................................. 7 6 Radiated Emissions Unintentional & Spurious............................................................................... 13 7 Measurement Uncertainty ................................................................................................................. 20 8 Revision History................................................................................................................................. 21 Intertek Report Number: 100356542DEN-002F Issued: 03/31/2011 EMC Report for Inovonics on the EN1260 Page 3 of 21 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested Passed with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Test date Result 5 Radiated Emissions – Output power of the Fundamental & Harmonics of the Fundamental - FCC 247(b)(2) (d)/15.205 Covers RSS-210 A8.4(1) 11/7/2008 Pass 6 Radiated Emissions – Unintentional & Spurious - FCC 15.247(d) / FCC 15.209/109 Covers RSS-210 A8.5 3/30/2011 Pass Bandwidth – FCC 15.247 (a)(1)(i) ----- N/A Power Spectral Density (PSD) – FCC 15.247(e) ----- N/A Band Edge Measurements – FCC 15.247(d) / 15.209 ----- N/A Duty Cycle & Duty Cycle Correction Factor ----- N/A AC Conducted Emissions – FCC 15.207 – Not Applicable ----- N/A Notes: 1) Only the fundamental, harmonics of the fundamental and Spurious emissions are covered in this test report as requested by the customer. 2) Only the high channel of the transmitter at 927.58 MHz falls within the frequency band specified in AS/NZS 4268:2008 3) FCC CFR47 Part 15.31: Measurement Standards: In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was varied per Part 15.31 to find worst case emissions. Intertek Report Number: 100356542DEN-002F Issued: 03/31/2011 EMC Report for Inovonics on the EN1260 Page 4 of 21 3 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number 902-928MHz wireless transmitter. Inovonics EN1260 3909791/6289648 Receive Date: 11/7/2008 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The Inovonics wireless infrared motion detector is designed for commercial and high-end domestic intrusion detection applications. Two basic models are offered for wall-mount or 360° ceiling mount applications. The ceiling-mount detector uses a four-element passive infrared intrusion detector to allow 360° detection. The motion detectors are available in two configurations. Use part number EE1260 or EE1265 for 868-870 Mhz Europe; use part number EN1260 or EN1265 for 902-928 Mhz North America, 915-928 Mhz Australia, and 922-928 Mhz New Zealand. Equipment Under Test Power Configuration Rated Voltage Rated Current Rated Frequency Number of Phases 3.3 VDC - Battery ----------- ---------…

Text truncated - open the document above for the full version.

1 Test Report: Additional Information Model EN1265 Revision Description Author Issue Date A Initial Release HB 7-April-11 General Remarks: In addition to the intentional and unintentional emissions lab test reports submitted with this application, this test report includes additional test data demonstrating compliance with CFR47, 15.247 and RSS-210, A8.1. For the measurements in this report, the antenna was replaced by a coaxial connection to a MXA signal analyzer, model N9020A. Calculations for Conducted Output Power and Duty Cycle Correction Factor are also included. 2 Report Summary Result Page Section 1 Minimum Channel Separation Pass 3 Section 2 20 dB Occupied BW Pass 4 Section 3 Number of Hopping Channels Pass 5 Section 4 Dwell Time Pass 6 Section 5 Test Instrument Declarations Pass 7 Section 6 Conducted Output Power & Duty Cycle N/A 8 Correction Factor General Declarations Continuous receiver operation N/A Continuous transmitter operation No Band of operation (USA and Canada) 902-928 MHz Band of operation (Australia mode) 915-928 MHz Band of operation (New Zealand mode) 921-928 MHz Lower transmit frequency (Australia) 915.6 MHz Lower transmit frequency (New Zealand) 921.6 MHz Upper transmit frequency (AUS and NZ) 927.6 MHz Minimum Transmit Channel Spacing 400KHz Receiver frequencies N/A Frequency hopping transmitter Yes Integral antenna equipment Yes Normal battery input voltage 3V DC Maximum TX on-time (single message) 22ms 3 Minimum Channel Separation Test Method 15.247 Section 1 UUT Model No. EN1265 Test Date 7-April-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass 4 20 dB Occupied Bandwidth Test Method 15.247 Section 2 UUT Model No. EN1265 Test Date 7-April-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass Plot shows the 20 dB occupied bandwidth of a single channel to demonstrate compliance with 15.247(a)(1)(i) and RSS-210, A8.1(c). 5 Number of Transmitter Channels Test Method 15.247 Section 3 UUT Model No. EN1265 Test Date 7-April-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass Plot demonstrates compliance with 15.247(a)(1)(i), and RSS-210, A8.1(c). This is a stored display of many sequential transmissions to show the overall band occupied by the transmitter. 6 Dwell Time Test Method 15.247 Section 4 UUT Model No. EN1265 Test Date 7-April-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass Plot demonstrates compliance with 15.247(a)(1)(i), and RSS-210, A8.1(c), which states “the average time of occupancy on any channel shall not be greater than 0.4 seconds within a 10 second period.” Measured Dwell Time in ms Maximum limit in seconds Complies 21.64 0.4 Yes 7 Test Instrument Declarations Test Method 15.247 Section 1 through 4 UUT Model No. EN1265 UUT Serial Number(s) UUT Description Security transmitter UUT MFGR: Inovonics Wireless Testing Instrument Description Signal Analyzer Make Agilent Calibration date 27-Sep-10 Model # N9020A Calibration due date 27-Sep-11 Serial # MY46471353 8 Alternative to Conducted Output Power Measurements: Required conducted power output measurements at low, medium, and high channels (per 15.247(b) and (c)) could not be performed directly since the transmit antenna is integrated onto the printed circuit board. However, compliance with these requirements has been achieved by way of performing and passing the radiated tests described in the ALTERNATIVE TEST PROCEDURES in Public Notice DA 00-705, March 30, 2000. Specifically, all radiated emissions shown in the test report are less than 119.2 dBuV/m at 3 meters. This is the field strength limit corresponding to the maximum fundamental power output of 0.25 watts from an isotropic antenna per 15.247 (b) (2) for systems employing between 25 and 49 hopping channels. The calculation as detailed in the above Public Notice is as follows: E = Square Root of (30PG) all divided by d E = 912,871 uV/m = 119.21 dB uV/m where E is the maximum allowable fundamental field strength in uV/m P is the maximum allowable fundamental radiated power = 0.25 watts G is the antenna gain = 1 (Assume 1 for the worst case (lowest allowable) final field strength.) d is the measured distance = 3 meters Duty Cycle Correction Factor (DCCF) DCCF formula obtained from Public Notice DA 00-705 dBDCCF ms ms DCCF ms timeDwell DCCF 6.13 100 8.20 log20 100 log20 −= ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ = ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ =
