HCQ3B6OT9RTXPendant Transmitter

4/11/14 05596E_v1 © Inovonics, 2014 - www.inovonics.comEchoStream® EN1233S/D and EN1235S/D Pendant TransmitterInstallation Instructions1 Overview1.1 Inovonics Wireless Contact InformationIf you have any problems with this procedure, contact Inovonics Wireless technical services: • E-mail: [email protected]• Phone: (800) 782-2709 1.2 Pendant Transmitter Components Figure 1 Pendant Transmitter components 1.3 What’s In The CartonIndividually-packaged products include the following items: • One belt loop screw• One selection jumper• One 3.0V lithium battery 2 Installation and Startup2.1 Installation Notes • These products are designed to be maintained by professional security technicians • Products are intended for indoor use• All products should be manually tested weekly (see “Test the Transmitter” on page 2) 2.2 Initial SetupInstall the Battery 1. Pry the housing apart at either end and pull the two halves apart. 2. Install the battery. Select the Frequency BandEchoStream products are able to use a range of radio frequencies, and must be configured for your geographic area. This product ships with a default frequency range of 902-928 MHz for use in North America. If you are using the product in North America, skip to “Register the Pendant Transmitter”. If you are using the product in Australia or New Zealand, you will need to configure the transmitter.3. Place a selection jumper on the appropriate frequency band selection pins. • Place the jumper on the bottom pins, marked NZ, to set the frequency range to 921-928 MHz for New Zealand. • Place the jumper on the top two pins, marked AU, to set the frequency range to 915-928 MHz for Australia. 4. Press the reset button to complete configuration. Caution: When pressing the reset button, make sure you don’t also touch the frequency band selection pins. Touching the frequency band selection pins while pressing the reset button can inadvertently set the pendant to the wrong frequency band.Register the Pendant TransmitterThe pendant transmitter must be registered with the system in order to be monitored and supervised. When supervised, the pendant transmitter will send a check-in message to the serial receiver or network coordinator every three minutes.Each pendant has a unique factory-programmed identification number. Refer to the control panel’s installation instructions for details on registering a transmitter.5. When prompted by the receiver to reset transmitter, press the reset button. 6. Replace the cover. Caution: The pendant should be tested after registration to ensure operation. To test the pendant, activate each of the conditions and ensure an appropriate response.3 Operation3.1 Using The EN1233 Pendant ChainAlways use the chain included wi th the ES1233. Substituting stronger cords or chains may result in injury to the wearer.3.2 Converting the Pendant Transmitter Belt ClipIf you’d like to convert the pendant transmitter belt clip to a belt loop, secure the bottom of the belt clip to the housing with a coarse thread screw. Figure 2 Use a coarse thread screw to secure the belt clip A Reset button B Frequency band selection pins C Battery B A C Printing Instructions 1. Print duplex 2. Align and orient back page to match front page. 3. Cut on dashed line 4. Fold cutsheet in half along the 8.5" axis. 4/11/14 05596E_v1 © Inovonics, 2014 - www.inovonics.com3.3 Operate the Pendant TransmitterTo activate single button transmitte rs, press the button for at least one second. To activate double button transmitters, press both buttons simultaneously. Alarm signal s are transmitted multiple times and are indicated by the blinki ng transmission LED. When the buttons are released, the transm itter sends an alarm restoral signal.To test a transmitter, acti vate the alarm by pressing the button(s).3.4 Battery ReplacementReplacement batteries can be purch ased from Inovonics using the following part numbers: • BAT608 for a single battery To replace the battery: 1. Pry the housing apart at either end and pull the two halves apart. 2. Install the battery. 3. Press the reset button to initialize the transmitter. 4 Test the TransmitterThe transmitter should be tested weekly and after registration to ensure operation.To test the transmitter: 1. Activate the transmitter and ensure the transmit LED lights and the alarm is received by the receiver or gateway. 2. Press the reset button and ensure the transmit LED lights. 5 SpecificationsTypical battery life: 3-5 years Battery type (BAT608): Panasonic CR2 or equivalent Operating environment: 0 to 60°C (32 to 140°F), noncondensing Note: Specifications and data are s ubject to change without notice. 6 Television and Radio InterferenceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pr ovide reasonable pr otection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oc cur in a particular installation. If this equipment does cause harmf ul interference to radio or television reception, which c an be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 7 FCC RF Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure co…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: March 10, 2011 Subject: Confidentiality Request for: FCC ID: HCQ3B6OT9RTX; IC ID 2309A-OT9RTX Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessar y )______ Inovonics Wireless Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 2 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Pe r m i t-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, Keal Vigil Production Control Specialist II

A u t h o r i t y t o A c t a s A g e n t Date: March 10, 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Keal Vigil______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: December 31, 2011 Keal Vigil Production Control Specialist II

American Certification Body, Inc ACB, Inc. 6731 Whittier Avenue, Suite C110 • McLean, Virginia 22101 USA Ph: (703) 847-4700 • Fax: (703) 847-6888 www.ACBcert.com Date: March 4, 2014 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division Per: 47 CFR 0.457 and 0.459 To Whom It May Concern, ACB is submitting this KBD on behalf of our customer, Inovonics. We are requesting that the following application be placed into Audit Mode in order to Supercede the original RF Exposure Documentation. TC496155 FCC ID: HCQ3B6OT9RTX Inovonics was reminded that the worst-case power density value should not have been used in the formula, rather the actual power density of each product is required. Therefore, the formula was corrected, as well as some additional minor assumptions corrections made. Additionally, the former document mistakenly contained the statement that each product is not carried or worn by the end-user. As these devices are typically worn either around the neck, or on the wrist, this statement was removed in the corrected version. Please let us know if there is any additional information needed in order to process our request. Thank you for your time and we look forward to hearing from you shortly. Sincerely, Karen M Springer Karen Springer Customer Support American Certification Body Office: 703.635.0757 Email: [email protected]

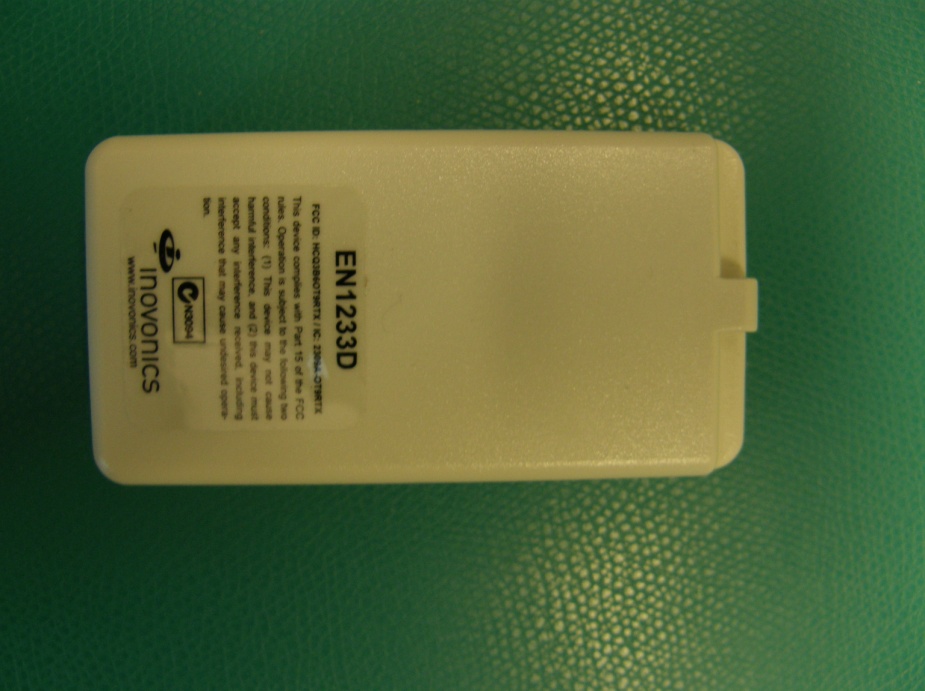

FCC ID: HCQ3B6OT9RTX EN1233D IC ID: 2309A-OT9RTX External Photos: Front of product Back of product showing FCC & IC ID Number Page 1

CONFIDENTIAL DOCUMENT LBL-FCC-EN1233D 05593A CONFIDENTIAL DOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non Disclosure Agreement signed by the Inovonics Corporation and the Recipient. This documentation is not to be reproduced or redistributed except as provided in the Non Disclosure Agreement. Rev. Level DescriptionDate AInitial Release06/29/2009 © Inovonics 2009 EN1233D www.inovonics.com This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera- tion. FCC ID: HCQ3B6OT9RTX / IC: 2309A-OT9RTX MATERIAL: : .002" THICK CLEAR MYLAR WITH .001" GLOSSY LAMINATION (FOR PROTEC- TION FROM INK SMEARING) AND PERMANENT ADHESIVE APPLIED TO THE BACKSIDE. RoHS COMPLIANT MATERIALS REQUIRED. ARTWORK: SUPPLIED BY INOVONICS. TEXT: BLACK. LABEL SIZE: 1.062" X .1.062" (SHOWN TO 3 TIMES SCALE) WITH .125 RADIUS ON EACH CORNER AND NO BORDER. PACKAGING AND LABEL ORIENTATION: LABELS TO BE SUPPLIED ON TOP SIDE OF ROLL STOCK WITH TEXT READABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL.

FCC ID: HCQ3B6OT9RTX EN1233D IC ID: 2309A-OT9RTX Internal Photos: PCB FRONT Trace Antenna PCB BACK Page 1

FCC ID: HCQ3B6OT9RTX EN1233 IC ID: 2309A-OT9RTX RF Exposure Information: SAR Test Exclusion Threshold – The transmitter has a maximum duty cycle of 40% which is controlled by software; it cannot transmit continuously or at a faster rate. The calculation for the SAR exclusion threshold is: [.40 (Duty Cycle)] · [(max. power of channe )/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 The measured power for the transmitter is 17.0 mW. The minimum distance from any radiating element and the user is 5mm. Under these conditions, the threshold calculation is: 31.1928. 5 17 40.0 mm mW This is below the threshold for requiring SAR testing.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Inovonics on the EN1233/EN1235 Page 1 of 24 TEST REPORT Report Number: 100356542DEN-002E Project Number: G100356542 Report Issue Date: 03/25/2011 Product Designation: EN1233 & EN1235 Standards: FCC title 47 CFR part 15 subpart C RSS-210:2010 Issue 8 AS/NZS 4268:2008 Tested by: Client: Intertek Testing Services NA, Inc. 1795 Dogwood St. Suite 200 Louisville, CO 80027 Inovonics Wireless Corp. 315 CTC Blvd. Louisville, CO 80027 Report prepared by Report reviewed by Randall Thompson Senior EMC Project Engineer Michael Spataro Engineering Team Leader Intertek Report Number: 100356542DEN-002E Issued: 03/25/2011 EMC Report for Inovonics on the EN1233/EN1235 Page 2 of 24 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test................................................................................................ 4 4 System setup including cable interconnection details, support equipment and simplified block diagram ........................................................................................................................................................ 5 5 Radiated Emissions – Intentional Radiators: Output Power - Fundamental & Harmonics of the Fundamental for 15.247 .............................................................................................................................. 7 6 Radiated Emissions Unintentional & Spurious............................................................................... 14 7 Measurement Uncertainty ................................................................................................................. 23 8 Revision History................................................................................................................................. 24 Intertek Report Number: 100356542DEN-002E Issued: 03/25/2011 EMC Report for Inovonics on the EN1233/EN1235 Page 3 of 24 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested Passed the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Test date Result 5 Radiated Emissions – Output power of the Fundamental & Harmonics of the Fundamental - FCC 247(b)(2) (d)/15.205 Covers RSS-210 A8.4(1) 11/12/2009 Pass 6 Radiated Emissions – Unintentional & Spurious - FCC 15.247(d) / FCC 15.209/109 Covers RSS-210 A8.5 12/11/2009 Pass 20dB Bandwidth – FCC 15.247 (a)(1)(i) [Covers RSS-210, A8.1(c)] ----- N/A Number of Hopping Channels – FCC 15.247(a)(1)(i) [Covers RSS-210, A8.1(c)] ----- N/A Hopping Channel Carrier Separation – FCC 15.247(a)(1) [Covers RSS-210, A8.1(b)] ----- N/A Band Edge Measurements – FCC 15.247(d) / 15.209 [Covers RSS-210, A8.5] ----- N/A Duty Cycle & Duty Cycle Correction Factor ----- N/A AC Conducted Emissions – FCC 15.207 (not applicable – product battery-powered) ----- N/A Notes: 1) Only the fundamental, harmonics of the fundamental and Spurious emissions are covered in this test report as requested by the customer. 2) Only the high channel of the transmitter at 927.58 MHz falls within the frequency band specified in AS/NZS 4268:2008 3) FCC CFR47 Part 15.31: Measurement Standards: In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was varied per Part 15.31 to find worst case emissions. Intertek Report Number: 100356542DEN-002E Issued: 03/25/2011 EMC Report for Inovonics on the EN1233/EN1235 Page 4 of 24 3 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number 902-928MHz wireless transmitter. Inovonics EN1233/EN1235 16228003/16228005 Receive Date: 11/12/2009 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The Inovonics wireless pendant transmitters are used in many applications including panic/duress, life safety, and custom applications. They feature a rugged design that are offered in configurations that include single, double, or four-button activation; single, dual, or three-condition alarm transmissions; and offered in necklace, belt clip or fixed position with back tamper alarm models. Four- button models are also available and offer mu…

Text truncated - open the document above for the full version.

1 Test Report: Additional Information Model EN1233D Revision Description Author Issue Date A Initial Release HB 30-Mar-11 General Remarks: In addition to the intentional and unintentional emissions lab test reports submitted with this application, this test report includes additional test data demonstrating compliance with CFR47, 15.247 and RSS-210, A8.1. For the measurements in this report, the antenna was replaced by a coaxial connection to a MXA signal analyzer, model N9020A. Calculations for Conducted Output Power and Duty Cycle Correction Factor are also included. 2 Report Summary Result Page Section 1 Minimum Channel Separation Pass 3 Section 2 20 dB Occupied BW Pass 4 Section 3 Number of Hopping Channels Pass 5 Section 4 Dwell Time Pass 6 Section 5 Test Instrument Declarations Pass 7 Section 6 Conducted Output Power & Duty Cycle N/A 8 Correction Factor General Declarations Continuous receiver operation N/A Continuous transmitter operation No Band of operation (USA and Canada) 902-928 MHz Band of operation (Australia mode) 915-928 MHz Band of operation (New Zealand mode) 921-928 MHz Lower transmit frequency (Australia) 915.6 MHz Lower transmit frequency (New Zealand) 921.6 MHz Upper transmit frequency (AUS and NZ) 927.6 MHz Minimum Transmit Channel Spacing 400KHz Receiver frequencies N/A Frequency hopping transmitter Yes Integral antenna equipment Yes Normal battery input voltage 3V DC Maximum TX on-time (single message) 22ms 3 Minimum Channel Separation Test Method 15.247 Section 1 UUT Model No. EN1233D Test Date 30-Mar-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass 4 20 dB Occupied Bandwidth Test Method 15.247 Section 2 UUT Model No. EN1233D Test Date 30-Mar-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass Plot shows the 20 dB occupied bandwidth of a single channel to demonstrate compliance with 15.247(a)(1)(i) and RSS-210, A8.1(c). The 20 dB occupied bandwidth is 268.5 kHz. 5 Number of Transmitter Channels Test Method 15.247 Section 3 UUT Model No. EN1233D Test Date 30-Mar-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass Plot demonstrates compliance with 15.247(a)(1)(i), and RSS-210, A8.1(c). This is a stored display of many sequential transmissions to show the overall band occupied by the transmitter. 6 Dwell Time Test Method 15.247 Section 4 UUT Model No. EN1233D Test Date 30-Mar-11 UUT Serial Number(s) Normal Temp 25.93 C UUT Description Security transmitter Normal Humidity 31.63% UUT MFGR: Inovonics Wireless Tested By: HB Test Result Pass Plot demonstrates compliance with 15.247(a)(1)(i), and RSS-210, A8.1(c), which states “the average time of occupancy on any channel shall not be greater than 0.4 seconds within a 10 second period.” Measured Dwell Time in ms Maximum limit in seconds Complies 21.34 0.4 Yes 7 Test Instrument Declarations Test Method 15.247 Section 1 through 4 UUT Model No. EN1233D UUT Serial Number(s) UUT Description Security transmitter UUT MFGR: Inovonics Wireless Testing Instrument Description Signal Analyzer Make Agilent Calibration date 27-Sep-10 Model # N9020A Calibration due date 27-Sep-11 Serial # MY46471353 8 Alternative to Conducted Output Power Measurements: Required conducted power output measurements at low, medium, and high channels (per 15.247(b) and (c)) could not be performed directly since the transmit antenna is integrated onto the printed circuit board. However, compliance with these requirements has been achieved by way of performing and passing the radiated tests described in the ALTERNATIVE TEST PROCEDURES in Public Notice DA 00-705, March 30, 2000. Specifically, all radiated emissions shown in the test report are less than 119.2 dBuV/m at 3 meters. This is the field strength limit corresponding to the maximum fundamental power output of 0.25 watts from an isotropic antenna per 15.247 (b) (2) for systems employing between 25 and 49 hopping channels. The calculation as detailed in the above Public Notice is as follows: E = Square Root of (30PG) all divided by d E = 912,871 uV/m = 119.21 dB uV/m where E is the maximum allowable fundamental field strength in uV/m P is the maximum allowable fundamental radiated power = 0.25 watts G is the antenna gain = 1 (Assume 1 for the worst case (lowest allowable) final field strength.) d is the measured distance = 3 meters Duty Cycle Correction Factor (DCCF) DCCF formula obtained from Public Notice DA 00-705 dBDCCF ms ms DCCF ms timeDwell DCCF 6.13 100 8.20 log20 100 log20

Project File: 3195062 Page 5 of 27 Intertek Testing Services NA, Inc. 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Intentional Emissions: Axis 1 Project File: 3195062 Page 6 of 27 Intertek Testing Services NA, Inc. 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Intentional Emissions: Axis 2 Project File: 3195062 Page 7 of 27 Intertek Testing Services NA, Inc. 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Intentional Emissions: Worst-Case Axis 3 Project File: 3195062 Page 8 of 27 Intertek Testing Services NA, Inc. 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Intentional Emissions: Worst-Case Axis 3 Project File: 3195062 Page 9 of 27 Intertek Testing Services NA, Inc. 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Intentional Emissions: Worst-Case Axis 3
