HCQ3B6OTPMTXPulse Counting Transmitter for Integrators

Submetering End-Device Developer Guide Revision C Confidential2 Revision C Preface Notice Copyright 2011 Inovonics Inovonics intends this manual for use by Inovonics customers only. All comments concerning the contents of this manual should be directed to the Inovonics marketing department. No part of this work covered by copyright may be reproduced in any form either graphically, electronically or mechanically; including photocopying, recording, taping, or storing in an information retrieval system without prior written permission from Inovonics. Note:Features and capabilities marked “Future” in this document are not implemented in current products. These capabilities are included for your application planning and design. Trademarks Inovonics and EchoStream are registered trademarks of Inovonics. All other brand names and product names used in this manual are trademarks, registered trademarks, or trade names of their respective holders. Technical Services Contact Information For Inovonics technical services: • E-mail: [email protected] • Phone: (800) 782-2709; (303) 939-9336 Confidential3 Revision C Document Conventions The following notices are used throughout this document: Note:Emphasizes points, provides supplementary infomation, or indicates minor problems in an expected outcome. Caution:Indicates possible damage to equipment or loss of data, as well as potential problems in an expected outcome. Warning:Indicates the possibility of minor injury to oneself or others. Danger:Indicates the possibility of serious or fatal injury to oneself or others. Revision History Revision LevelRevision Description BEdited cover and made changes to paragraph styles; edit product overviews to current formats CEdited/added “Installation Instructions”, “Compliance Requirements”, and “Inovonics One- Way Binary RF Module Compliance Review Form”. Confidential 1 Revision C Table of Contents Preface 2 Notice ..................................................................................................................... 2 Trademarks ........................................................................................................... 2 Technical Services Contact Information ............................................................ 2 Document Conventions ....................................................................................... 3 Revision History ................................................................................................... 3 Chapter 1 Overview 3 1.1 Introduction ..................................................................................................... 3 1.2 EN1501 Pulse Counting Transmitter ............................................................ 3 1.2.1 Product Information ............................................................................................ 3 1.3 EN1501-EXT Pulse Counting Transmitter for Integration ........................... 4 1.3.1 Product Information ............................................................................................ 4 1.3.2 EN1501-EXT Components .................................................................................. 4 1.3.3 EN1501-EXT Dimensions ................................................................................... 5 1.3.4 EN1501-EXT Requirements ................................................................................ 5 1.3.4.1 Power ......................................................................................................... 5 1.3.4.2 External Tamper Requirements ............................................................... 6 1.3.4.3 Count Requirements ................................................................................ 6 1.4 EN1501-XL Pulse Counting Transmitter with Extended Life Battery ........ 6 1.4.1 Product Information ............................................................................................ 6 1.5 EN1550 MetraMeter ........................................................................................ 7 1.5.1 Product Information ............................................................................................ 7 Chapter 2 EN1501-EXT Pulse Counting Transmitter for Integration Installation In- structions 8 2.1 Connecting the EN1501-EXT Pulse Counting Transmitter ......................... 8 Confidential 2 Revision C Chapter 3 EN1501-EXT Pulse Counting Transmitter for Integration Compliance Re- quirements 9 3.1 FCC Requirements for the EN1501-EXT ....................................................... 9 3.1.1 Television and Radio Interference .................................................................... 9 Chapter 4 Registration 11 4.1 Registration Overview .................................................................................... 11 4.2 Registration Procedure from the End User’s Perspective ......................... 11 4.3 Registration Procedure from the Developer’s Perspective ........................ 12 4.4 Device Reset, Application Controller Not in Registration Mode ................ 12 4.5 Removing a Registered Device from the System ........................................ 13 Chapter 5 Message Information 14 5.1 Submetering Message Information ............................................................... 14 5.1.1 Default Message .................................................................................................. 14 5.2 Submetering End Device Product Type Identifiers ..................................... 16 5.2.1 Product Naming Conventions ............................................................................ 16 5.2.2 Submetering End Device Identifier Table ......................................................... 16 Required materials from integrator ............................................................................ 17 Integrator information ................................................................................................. 17 Inovon…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: March 11, 2011 Subject: Confidentiality Request for: FCC ID: HCQ3B6O TPMTX; IC ID 2309A-OTPMTX Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Inovonics Wireless Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 2 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Pe r m i t-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, Keal Vigil Production Control Specialist II

FCC Limited Modular Application Request FCC ID: HCQ3B6OTPMTX March 2, 2011 In compliance with FCC Public Notice DA 00-1407, this document is submitted to request a limited modular approval and address the eight requirements identified in the Public Notice: 1.) The RF portion of the circuit has limited shielding from the integrated ground plane in the device’s printed circuit board, and the requirement for shielding is not fully compliant for a Full Modular Grant. Control of the final installation will be performed progressively through instructions documented in the installation manual, review of the host installation by Inovonics, and if necessary, testing the host installation to verify compliance. 2.) This transmitter only accepts a switch closure for data input. The rate at which the input switches affect modulation is controlled by a micro-controller; excessive data rates are not possible. 3.) The modular transmitter has its own voltage regulator, VR1 on the schematic. 4.) The antenna on the modular transmitter is a printed trace on the PCB; it is permanently attached. 5.) The module was tested in a stand-alone configuration. Power was supplied by a 3.2 volt battery. 6.) The modular transmitter will be labeled with its own FCC ID number (see submitted picture), and the modular transmitters will include the following instructions for exterior label requirements: “FCC Label Requirements for EN1501-EXT Inovonics Wireless has received Federal Communications Commission (FCC) approval to market RF modules. The host integrator is responsible for properly labeling the product containing the RF module. Labels must be placed on the outside of the product, and must include a statement indicating that product contains the module, along with the FCC number. Example 1 “Contains RF Module FCC ID: HCQ3B6OTPMT X” Example 2 “Contains FCC ID: HCQ3 B6OTPMT X” RF Module FCC Registration Number EN1501-EXT • FCC: HCQ3B6OTPMT X” 7.) The modular transmitter was tested and conforms with Section15.247. 8.) RF Exposure Information: The device is compliant with MPE requirements (47CFR2.1091) and SAR requirements (47CFR2.1093). Calculation for compliance with MPE requirements (47CFR2.1091) is done using a worst-case transmitter power of 50 mW, assuming a unity gain antenna, and an exposure limit of 0.6 mW/cm 2 (f/1500 mW/cm 2 at 20 cm per 47CFR1.1310) for general applications. This device is not carried or worn by the user. It has an extremely low duty cycle and a low rate of transmission that dramatically reduces the average power level that could pose an exposure hazard. The transmitter initiates a transmission upon sensing a change of state. In addition to these change-of-state transmissions, the transmitter is configured to transmit a supervisory message once every 3 minutes. The maximum message length may occur when the transmitter transmits a serial message consisting of a 12 ms preamble followed by 32 ms of synchronization, identification, payload, and CRC data. The averaging interval specified in Table 1(B) of 47CFR1.1310 is 30 minutes. For the purposes of this calculation, it is assumed that ten supervisory and five change-of-state messages will be sent in the 30-minute interval. Each supervisory message consists of 3 redundant packets, and each change of state message contains 21 packets, for a total of 135 packets in the 30-minute interval. A packet is typically 22.4 ms in length. For this calculation, a maximum packet length of 44 ms will be used. The worst-case average power density at a distance of 20 cm is then, 223 8.32 )20(4 1 1060 min144 min30 135 50 cm nW cmms packet mspackets mW=× × ××× π This is well below the 0.6 mW/cm 2 MPE limit. Calculation for compliance with SAR requirements (47CFR2.1093) is done using a worst-case transmitter power of 50 mW time-averaged by the duty cycle of the transmitter, and the assumption that all RF energy could be absorbed in 1 gram of tissue. The peak exposure limit is 1.6 mW/g (equivalent to 1.6 W/kg per 47CFR2.1093) in any 1 gram of tissue for General Population/Uncontrolled applications. In any 3-minute interval, worst-case the device may transmit up to 2 alarm messages and a supervisory message for a total of 45 packets. The maximum duty cycle of the device is, %1.1011.0 1060 min144 min3 45 3 == × ×× ms packet ms packets The time-averaged RF transmitted power is then, mWW55.0011.005.0=× If all of the transmitted power were absorbed in a 1-gram sample of tissue, the resulting power density is 0.55 mW/gram and is well below the 1.6 mW/gram limit. Sincerely, Director of Manufacturing Engineering

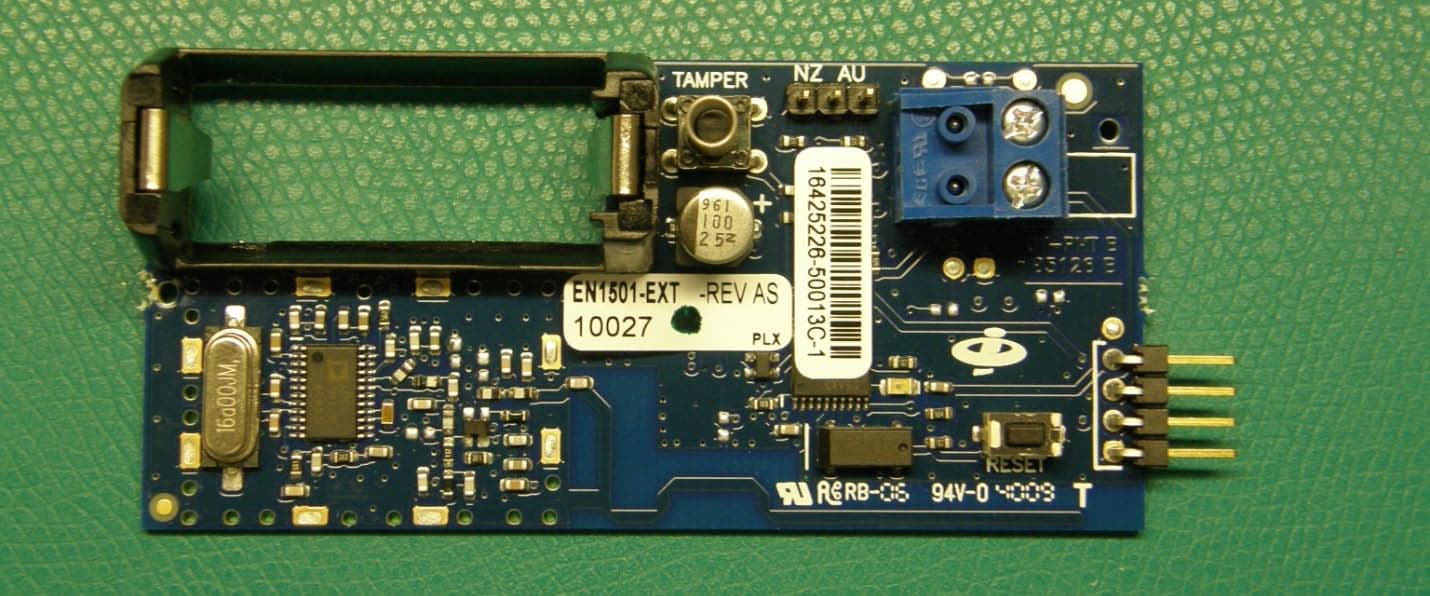

FCC ID: HCQ3B6OTPMTX EN1501-EXT Industry Canada ID: 2309A-OTPMTX External photos: External Topside Bottom Antenna

CONFIDENTIAL DOCUMENT LBL-FCC-EN1501-EXT 06286A CONFIDENTIAL DOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non Disclosure Agreement signed by the Inovonics Corporation and the Recipient. This documentation is not to be reproduced or redistributed except as provided in the Non Disclosure Agreement. MATERIAL:.002" THICK WHITE MYLAR WITH .001" MATTE LAMINATION (FOR PROTECTION FROM INK SMEARING) AND PERMANENT ADHESIVE APPLIED TO THE BACKSIDE. RoHS COM- PLIANT MATERIALS REQUIRED. ARTWORK:SUPPLIED BY INOVONICS TEXT: BLACK LABEL SIZE: 1.220" X .0.455" (SHOWN TO 3 TIMES SCALE), “SHARP CORNERS” AND NO BOR- DER PACKAGING AND LABEL ORIENTATION:LABELS TO BE SUPPLIED ON TOP SIDE OF ROLL STOCK WITH TEXT READABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL Rev. Level DescriptionDate AInitial Release03/09/2011 Confidential to Inovonics www.inovonics.com FCC ID: HCQ3B6OTPMTX / IC: 2309A-OTPMTX EN1501-EXT

FCC ID: HCQ3B6OTPMTX EN1501-EXT Industry Canada ID: 2309A-OTPMTX External photos: External Topside Bottom Antenna

FCC ID: HCQ3B6OTPMT EN1501 IC ID: 2309A-OTPMT 9. RF Exposure Information: Calculation for compliance with MPE requirements (47CFR2.1091) is done using a worst-case transmitter power of 250 mW, assumption of a unity gain antenna, and an exposure limit of 0.6 mW/cm 2 (f/1500 mW/cm 2 at 20 cm per 47CF R1.1310) for general applications. This device is not carried or worn by the end user. It has an extremely low duty cycle and a low rate of transmission that dramatically reduces the average power level that could pose an exposure hazard. The transmitter is typically activated by the opening or closing of a door or window. In addition to these change-of-state transmissions, the transmitter is configured to transmit a supervisory message once every 3 minutes. The averaging interval specified in Table 1(B) of 47CFR1.1310 is 30 minutes. For the purposes of this calculation, it is assumed that ten supervisory and five change-of- state messages will be sent in the 30-minute interval. Each supervisory message consists of 3 redundant packets, and each change of state message contains 21 packets, for a total of 135 packets in the 30-minute interval. A packet is typically 20 ms in length. The worst-case power density at a distance of 20 cm is then, 223 6.74 )20( 4 1 1060 min120 min30 135 250 cm nW cmms packet mspackets mW=¥ ¥ ¥¥¥ p This is well below the 0.6 mW/cm 2 limit.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Inovonics on the EN1501 Page 1 of 22 TEST REPORT Report Number: 100356542DEN-001B Project Number: G100356542 Report Issue Date: 3/17/2011 Product Designation: EN1501 Standards: FCC title 47 CFR part 15 subpart C RSS-210:2010 Issue 8 AS/NZS 4268:2008 Tested by: Client: Intertek Testing Services NA, Inc. 1795 Dogwood St. Suite 200 Louisville, CO 80027 Inovonics Wireless Corp. 315 CTC Blvd. Louisville, CO 80027 Report prepared by Report reviewed by Randall Thompson Senior EMC Project Engineer Michael Spataro Engineering Team Leader Intertek Report Number: 100356542DEN-001B Issued: 03/17/2011 EMC Report for Inovonics on the EN1501 Page 2 of 22 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test................................................................................................ 4 4 System setup including cable interconnection details, support equipment and simplified block diagram ........................................................................................................................................................ 5 5 Radiated Emissions – Intentional Radiators: Output Power - Fundamental & Harmonics of the Fundamental for 15.247 .............................................................................................................................. 7 6 Radiated Emissions Unintentional & Spurious............................................................................... 12 7 Measurement Uncertainty ................................................................................................................. 21 8 Revision History................................................................................................................................. 22 Intertek Report Number: 100356542DEN-001B Issued: 03/17/2011 EMC Report for Inovonics on the EN1501 Page 3 of 22 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested Passed with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Test date Result 5 Radiated Emissions – Output power of the Fundamental & Harmonics of the Fundamental - FCC 247(b)(2) (d)/15.205 Covers RSS-210 A8.4(1)/ A8.5 2/08/2008 Pass 6 Radiated Emissions – Unintentional & Spurious - FCC 15.247(d) / FCC 15.209/109 Covers RSS-210 A8.5/ Section 2.6/ 2.7 3/14/2011 Pass 20dB Bandwidth – FCC 15.247 (a)(1)(i) [Covers RSS-210, A8.1(c)] ----- N/A Number of Hopping Channels – FCC 15.247(a)(1)(i) [Covers RSS-210, A8.1(c)] ----- N/A Hopping Channel Carrier Separation – FCC 15.247(a)(1) [Covers RSS-210, A8.1(b)] ----- N/A Band Edge Measurements – FCC 15.247(d) / 15.209 [Covers RSS-210, A8.5] ----- N/A Duty Cycle & Duty Cycle Correction Factor ----- N/A AC Conducted Emissions – FCC 15.207 (not applicable – product battery-powered) ----- N/A Notes: 1) Only the fundamental, harmonics of the fundamental and Spurious emissions are covered in this test report as requested by the customer. 2) Only the high channel of the transmitter at 927.58 MHz falls within the frequency band specified in AS/NZS 4268:2008 3) FCC CFR47 Part 15.31: Measurement Standards: In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was varied per Part 15.31 to find worst case emissions. Intertek Report Number: 100356542DEN-001B Issued: 03/17/2011 EMC Report for Inovonics on the EN1501 Page 4 of 22 3 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number 902-928MHz wireless transmitter. Inovonics EN1501 3356058/90172657 Receive Date: 2/7/2008 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The Inovonics pulse counting transmitter is used to count the number of pulses generated from a pulse- output device, such as a utility meter. The pulse counting transmitter is also available in a board only configuration with external header pins for integration into a customer-designed meter or prduct. Use part number EN1501-XL for 902-928 Mhz North America, 915-928 Mhz Australia, and 922-928 Mhz New Zealand. Equipment Under Test Power Configuration Rated Volt…
