HCQ3B6PORPIRMotion Detector and Transmitter

WP100 Motion Detector and Transmitter Installation and Instructions 1. FEATURES True Quad element pyroelectric sensor Integral swivel bracket for wall or ceiling installation Sealed chamber protects the optical system Programmable motion event counter (1, 2, 3 events) Multi-position vertical pattern adjustment Low current consumption Microprocessor-controlled temperature compensation White light protection Elegant styled, sturdy case Note: A built-in tamper switch is activated when the cover is removed. 2. Serial Number The WP100 detector and transmitter, has its own unique serial number permanently assigned during manufacture. The main control unit is required to “enroll” the device serial No. at some point prior its usage in the alarm system. Refer to the main control unit’s installation instructions for further details. WP100 S/N: 3. Test mode When power on, the following 3 minutes are testing mode, then you can adjust the position and direction of the PIR. In test mode, when the WP100 detects signals, the LED will turn on. (In normal condition, the LED lighting is used to indicate that the WP100 is emitting RF signals to outside). 4. High Traffic Shutdown Mode To prolong battery life, the motion detector uses a feature called High Traffic Shutdown. When motion is detected, the device will transmit to the receiver and will then shut down for three minutes if motion is detected again during the shutdown time, the unit will not transmit the event to the receiver. The detector will thus remain in the shutdown mode until three minutes after the first motion detected was transmitted. The detector will transmit detected motion every three minutes 5. Specifications Optical Detection pattern: 90°wide angle lens with 18 true quad zones in 3 detection layers. Max. coverage is15×15m(50×50 ft). Pet Alley: plastic mask may be fitted internally; leaving only 9 quad zones in a single and layer; with the same view angle and coverage area as above. Adjustment: Multi-position vertical adjustment. Mounting Height: 1.6m ~ 2.6m(5.4ft ~ 8.7ft) Installation Options: Surface or corner (without bracket) Surface or ceiling (with bracket) Bracket adjustment: Vertical: 30°upward, 20° downward. Horizontal: 360°. Battery: 2x3V Lithium Dimensions (H×W×D):105×61×35 mm (4.1×2.4×1.5in) SIDE VIEW 2.3M 3 6 8 m 10 20 26.7 ft 1032465879 3 4m 10m 1 2 0 2 1 4m 3 103246587910m 6.FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications Any changes or modification not expressly approved by the party responsible could void the user's authority to operate the device.

1

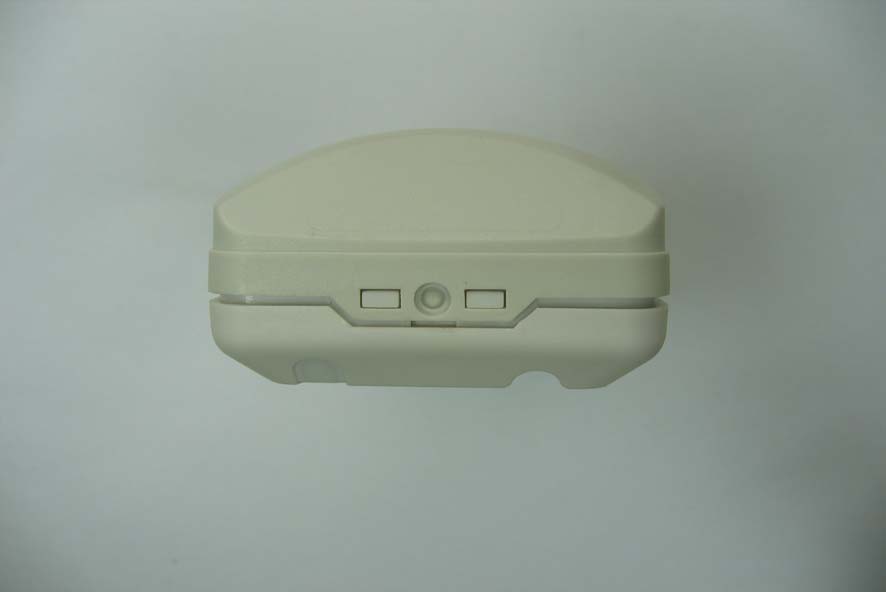

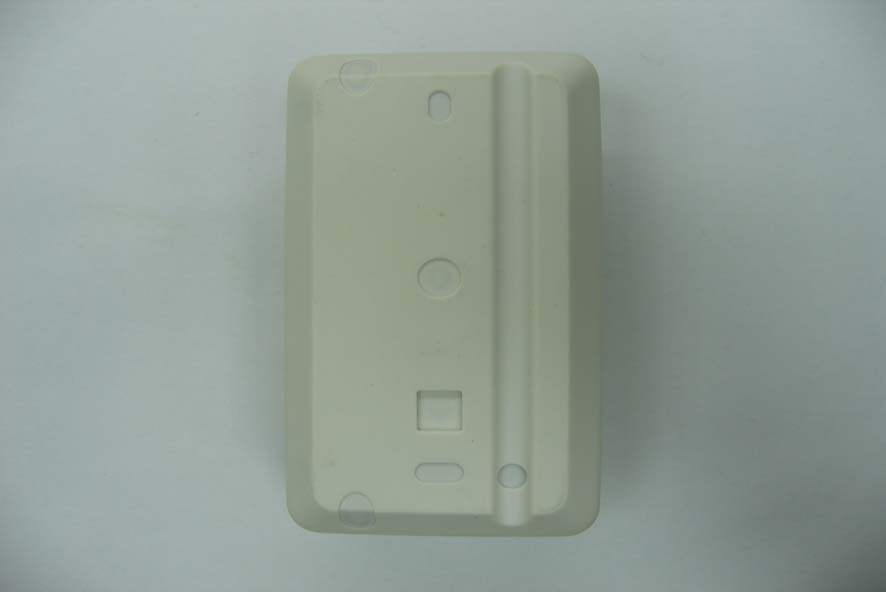

R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Top View of EUT

WP100 OPERATE SPECIFICATION When the MUC detect any trigger from pyroelectric sensor,cover tamper switch or Battery low sensor, it will inform the transmitter. The transmitter will transit a 433.92MHz radio frequency out off via the antenna.

1 1 2 3 4 56 A BC D 6 5 4 3 2 1 D CB A Title Number Revision Size B Date: 15-Jul-2006 Sheet of File: D:\PIR-100F\wp100-e2.DDB Drawn By: 32 1 8 413 U1ALM346N 56 7 U1BLM346N 1211 10 9 U1CLM346N 1415 16 U1DLM346N 2 2 1 1 3 3 D22836D32836 D4 2836 R52.2MR192.2M R1510M R315M R16 6.8M R13470K R1815M C3347PF R24.7MR14470K +3.6V +3.6V + C92.2uF +3.6V+3.6V C13 105 C23105 C12 220PF 1 2 3 J2 PULSE COUNT ON/OFF R2147K R3710M SET C647PF R11.5MR94.7M C5105 D11N4148 +3.6V SET Q6A733 R10470K +3.6V G D S Q1 PIS-209S C28 220PF R11470R R1268K C7103 C30 220PF R31470R + C32 22uF/16V R332.2M C29220PF R2847K + C27 10uF/16V C31 222 R326.8M R352.7M R3456K C35105 C447PF C8 220PF R225.6M VDD 1 OSC1/GP5 2 OSC2/GP4 3 /MCLR/GP3 4 GP2 5 GP1 6 GP0 7 VSS 8 U3PIC12F675 B1 CR123A X 2 Vin I GND G Vout O U27136 C14104P + C2 NA S1TMP_SW R44.7M +3.6V +3.6V R20100K C24102 +3.6V V_BATT Q3 C945 R252.2M D51N4148 C26105 R231M Q4A13 R8270K +3.6V C25104 R171K C10105 + C1 NA +3.6V R362.2MR412.2M V_BATT C34 100P C18 104 R244.7K R260R V_BATT C40 104 C220R XT1 13.56MHZ C2115P C20 5P C162P FSKDATA 1 FSKSW 2 ROI 3 ENTX 4 PSEL 5 VCC 6 OUT 7 VEE 8 U4 TH72011 L1 33NH C175P R29220K L2 33NH C1511P VC13-10P TX_Enable TX_Enable J1TEST R61M LED1LED R7470R V_BATT C3223 C36105 Q5A13 R381K R3910K R4010K 12345 J3CON5 +3.6V DATACLKVPP SHWZ WP100 R42470K C37105 C38105 SCH REV F2 TO F3: C39474 R434.7K + C41 47uF/6.3V SMD ANT1ANTENNA 1.C22 2P TO 0R2.C15 5P TO 11P MATCHING PCB:WP100-F3.PCB

Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 Page: 1 of 21 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服 務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品 負責。本報告未經本公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Motion Detector and Transmitter Brand Name: N/A Model Name: WP-100 Model Difference: N/A FCC ID: HCQ3B6PORPIR Report No.: ER/2006/80013 Issue Date: Aug. 25, 2006 FCC Rule Part: §15.231 Prepared for Invonics Wireless Corporation 315 CTC Boulevard Louisville,Co 80027 Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 Page: 2 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Invonics Wireless Corporation 315 CTC Boulevard Louisville,Co 80027 Product Description: Motion Detector and Transmitter Brand Name: N/A Model No.: WP-100 FCC ID: HCQ3B6PORPIR Model Difference: N/A File Number: ER/2006/80013 Date of test: Aug. 10, 2006 ~ Aug. 23, 2006 Date of EUT received: Aug. 09, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Test By: Date Aug. 25, 2006 Danny Yeh Prepared By: Date Aug. 25, 2006 Gigi Yeh Approved By: Date Aug. 25, 2006 Vincent Su R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 Page: 3 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Aug. 25, 2006 R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 Page: 4 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...........................................................…

Text truncated - open the document above for the full version.

R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP R Report No: ER/2006/80013 ID: HCQ3B6PORPIR Issue Date: Aug. 25, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本 公司書面許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Setup Photos
