HCQ3B6THTWireless Thermostat

© 2001 Inovonics Wireless Corporation. Phone (800) 782-2709 03734A.FM hc:10/15/02 Intended use: Monitors ambient temperature; transmits digitized data via 900MHz Frequency Agile ® technology to Inovonics FA7403 serial receiver. Indoor use only. Specifications: •Transmitter operating environment: 32º to 140ºF (0º to 60°C) Up to 90% relative humidity (non-condensing) •Temperature sensor type: Integrated thermistor, located on board Detectable range: -13° to 140°F (-25° to 60°C) •Battery life: Up to 5 years at 70 to 90°F (20 to 30°C) Extended exposure above or below room temperature reduces battery life. •Battery (BAT604): 3.0V Lithium “2/3 A” size LiMnO2 •Enclosure Dimensions: 4.5" x 2.8" x 1" (114 x 44 x 25.4 mm) •Transmitter weight: Approximately 3 oz (84 g) •RF Specification: Frequency hopping, 900MHz, spread spectru



                        !    "  # $      " %& Mounting thermostats: 1. If necessary, release the housing cover by screwing the housing cover set screw in (CW). 2. Remove the housing cover by lifting from the bot- tom until the housing cover clears the top tabs. 3. Remove the battery, if present, to access the mount- ing hole. 4. Mount the thermostat with the screws provided. 5. Re-install battery, observing correct polarity. 6. Press the Reset button. NOTE: Doublestick tape may be used to mount thermo- stats. Installers should evaluate potential damage to wall surfaces before using tape. Replacing the housing cover: 1. Place top of housing on housing cover top tabs. 2. Close the cover. 3. Turn the housing cover set screw out (CCW) to secure the cover. Programming Transmitters: •In many applications, it is not necessary to program FA7236 series thermostats. Factory default pro- gramming gives each transmitter a unique identifi- cation number which can be decoded in the user’s software to identify the source of temperature data. •Some software developers may wish to assign ID numbers to transmitters, and to set other parame- ters. This data can be loaded into the transmitter via the programming header. Contact Inovonics techni- cal Service for details. NOTE: FA7236 series thermostats retain programming data in non-vola- tile memory. They do not require reprogramming after loss of power. Any time the battery is replaced in the transmitter, the Reset button should be pressed to re-initialize the transmitter and to restore the most recent programming. FA7236 / FA7236SO Wireless Thermostats Installation Instructions 03734A Inovonics Temperature Products Warranty Inovonics Wireless Corporation (“Inovonics”) warrants its Products (“Product” or “Products”) to conform to its own specifications and to be free of defects in materials and workmanship under normal use for a period of fourteen (14) months from the date of manufacture. Within the warranty period Inovonics will repair or replace, at its option, all or any part of the warranted product. Inovonics will not be responsible for dismantling and/or reinstallation charges. To exercise the warranty, the User must be given a Return Material Authorization Number (“RMA”) by Inovonics. Details of shipment will be arranged at that time. This warranty does not apply in cases of improper installation, misuse, damage related to lightning, exposure to temperatures below 32°F or above 140°F, wind, water, or condensing humidity, failure to follow installation and operating instructions, alteration, abuse, accident or tampering, and repair by anyone other than Inovonics. This warranty is exclusive and expressly in lieu of all other warranties, obligations or liabilities, whether written, oral, express, or implied. The implied warranties of merchantability or fitness for a particular purpose are specifically disclaimed. Inovonics will not be liable to anyone for any consequential or incidental damages for breach of this warranty or any other warranties. This warranty will not be modified, varied or extended. Inovonics does not authorize any person to act on its behalf to modify, vary or extend this warranty. This warranty will apply to Inovonics Products only. All other products, accessories or attachments used in conjunction with Inovonics equipment, including batteries, will be covered solely by their own warranty, if any. Inovonics will not be liable for any direct, incidental or consequential damage or loss whatsoever caused by the malfunction of Product due to products, accessories, or attachments of other manufacturers, including batteries, used in conjunction with Inovonics Products. This warranty does not warrant the replacement of batteries that are used to power Inovonics Products. Inovonics does not claim that the Product may not be compromised and/or circumvented. Warning: The User should follow all installation, operation and maintenance instructions. Changes in environmental conditions, radio environment including interference, electric or electronic disruptions and tampering, may cause the Product to not perform as expected.

March 4, 2003 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for FCC ID# HCQ3B6THT Gentlemen: The following reports are marked confidential, and should be maintained in the non- public file. This confidentiality is necessary to protect proprietary information contained within these sections of the application for Certification. 1) Detailed Technical Description 2) Schematics 3) Block Diagram 4) Test Report Thanks for your help. Sincerely, Donald J. Hume President

Confidential to InovonicsFA7236 FCC LabelRev A FA7236 (SO) FCC Label 03744A CONFIDENTIAL DOCUMENTATION The information contained in this document is confidential to and the sole property of Inovonics Wireless Corporation. Receipt of this information requires the existence and full acceptance of the terms and conditions of a Non-Disclosure Agreement signed by the Inovonics Wireless Corporation and the Recipient. This documentation is not to be reproduced or redistributed, except as provided in the Non- Disclosure Agreement. Rev. LevelDescriptionDate AInitial release10/29/2002 MATERIAL: .002” THICK 3M 7381 VOIDABLE (TAMPER EVIDENT) WHITE MYLAR WITH .001” MATTE LAMINATION (FOR PROTECTION FROM INK SMEARING) AND PERMANENT ADHESIVE APPLIED TO THE BACKSIDE ARTWORK: NONE TEXT: BLACK WITH ARIAL FONT HAVING HIGHLIGHTING, SPACING, AND SIZES APPROXIMATELY AS SHOWN LABEL SIZE: 1 1/16” X 1 1/16” (SHOWN TO 3 TIMES SCALE) WITH .125 RADIUS ON EACH CORNER (NOT SHOWN) AND NO BORDER PACKAGING AND LABEL ORIENTATION: LABELS TO BE SUPPLIED ON TOP SIDE OF ROLL STOCK WITH TEXT READABLE AS VIEWED FROM BOTTOM (SHORT) EDGE OF ROLL Louisville, Colorado www.inovonicswireless.com FA7236 (SO) FCC ID HCQ3B6THT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in USA

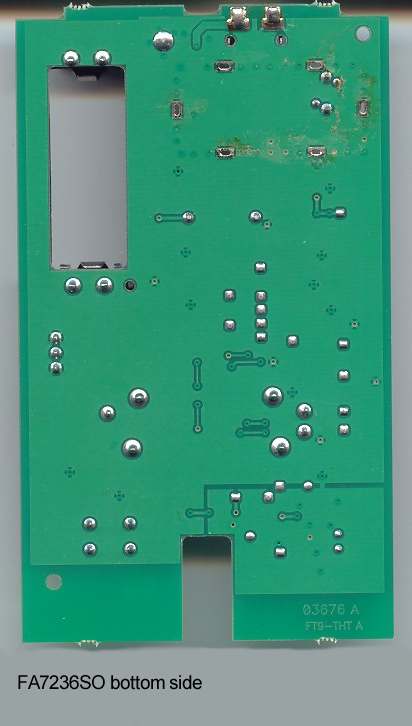

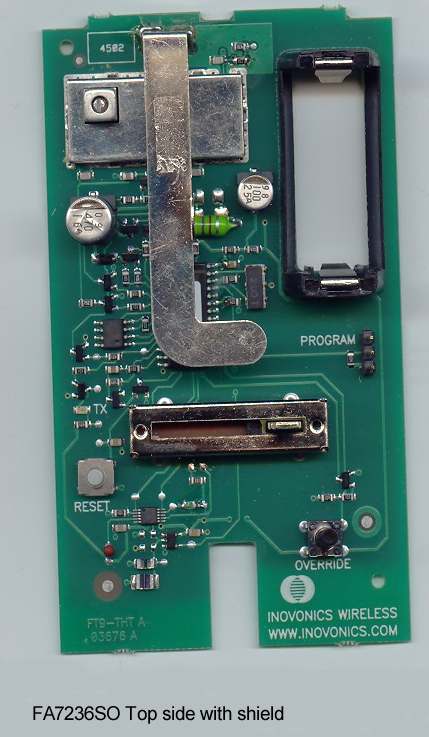

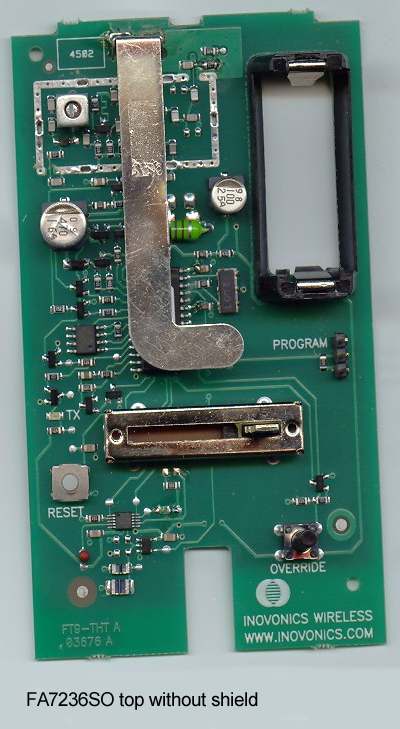

To: Steve Dayhoff, FCC Application Processing Branch From: Daryl Burkhard Inovonics Wireless Corporation [email protected] Re: FCC ID HCQ3B6THT Applicant: Inovonics Wireless Corporation Correspondence Reference Number: 25034 731 Confirmation Number: EA590437 Steve, I have submitted photo’s showing the board in the housing base along with the cover. This product is a wireless thermostat typically installed in a commercial building. Units are located anywhere you would install a thermostat for controlling building temperature. The unit measures the ambient temperature and sends this information to a receiver attached to the building’s HVAC system. Let me know if you require any additional information. Regards, Daryl Burkhard Inovonics Wireless Corp.

CONFIDENTIAL FCC ID: HCQ3B6THT, FA7236SO 3/4/2003 Measurements performed at Inovonics Wireless Corp. lab Equipment used: HP 8594E Spectrum Analyzer—calibration due 5/6/2003 The antenna was removed from the EUT and a direct connection made to the transmitter output. 1. Plot 1 is a spectrum plot showing the carrier frequency separation. Compliance with section 15.247(a)(1) is demonstrated with a test sample configured with firmware allowing two adjacent channels to be captured. 2. Plot 2 demonstrates compliance with 15.247(a)(1)(i) — Number of hopping channels. This is a stored display of many sequential transmissions to show the overall band occupied by the transmitter. 3. Plot 3 shows the 20 dB bandwidth of a single channel to demonstrate compliance with 15.247(a)(1)(i). 4. The duty cycle is calculated over a 100 mSec averaging window as specified in the rules. The longest message contains a total of 213 pulses each 20 uSec in duration, for a total transmitter on time of 4.26 mSec with represents a worst-case duty cycle of 4.26%. The duty cycle correction used is the maximum of 10%. 5. Calculation for compliance with MPE requirements (Section 2.1091) using a worst case of 0.02 Watt, unity antenna gain, and the f/300 (mW/cm 2 ) limit for general applications. This device is used in fixed locations and is not carried or worn by the end user. The key factor is duty cycle. Under normal conditions, a 12-packet message is sent a maximum of once every 15 minutes. Worst case, a 12-packet message is sent once per minute or 72 packets in a 6 minute period. Total On time per packet = 4.26 mSec (for maximum packet length) Duty Cycle = (4.26 x 72) mSec/(6x60x1000) mSec = 0.0852% EIRP = (0.02W)(0.000852) = 17.04 microwatt. Using a distance of 20 cm: 17.04 microwatt / (4 pi 20 2 ) = 3.39 nW/cm 2 6. The Dwell Time is the length of one packet. The worst case dwell time for an extended length packet is 40.1 mSec. The standard packet is about 30 mSec duration. A worst case transmission rate, corresponding to a repeated change of state transmissions would result in a maximum of 12 packets in any 10 second period with each packet on a different frequency. The maximum dwell time is thus the dwell time of an extended packet or 40.1 ms.
