  1. Home/
  2. Adtran/
  3. HDC-SE81AC

HDC-SE81ACIntellifi AP/Router

Adtran
Intellifi AP/Router - FCC ID HDC-SE81AC - Adtran
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 08, 2020
Application Purpose
Original Equipment
Date of Application
Jul 08, 2020
Equipment Note
Intellifi AP/Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Adtran
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SE81ac QuickStartGuide GraphicPlaceholder Recommendations TheSE81acmeshextenderisdesignedtoprovidespeedywirelessconnections. Ifconnectionspeedisanissueinyourhome,youcanalsoconnectthe extendersusingEthernetcables.Beforeconsideringthisoption,usethe recommendationslistedonthispagetohelpyousetupyourSE81acextenders moreeffectively. lSE81acdevicesworkbestwhenplacedright-side-uponaflatsurface. MountinganSE81aconawallorceilingisnotrecommendedor supported. lKeepyourSE81acdeviceatleast20feetawayfromobjectsthatcancause interferencesuchasmicrowaveovensandcordlessponesusedforland- lineconnections. lForbestcoverage: lPlacetheSE81acusedasagateway(theoneconnectedtoyour modem)nearthecenterofyourhome. lPlacetheextendersevenlyaroundyourhome,halfwaybetweenthe gatewayextenderandwi-fideadzones.Seetheplacementdiagrams onthenextpageforrecommendedlocations. lMakesureyourextendersareplaced50feetapartwherethereare noobstructionsandclosertogetherwhenwalls,etc.,mayblockthe signal. lIfyouhaveamulti-storyhome,youmayneedtoinstallthegateway andextendersondifferentfloors.Ina2-storyhome,youmightplace thegatewayonthe1stfloorandtheextendersonthe2ndfloor.Ina 3-storyhome,youmightplacethegatewayonthe1stfloorandthe extendersonthe3rdfloor. Note:Ifyouplaceyourextenderssotheyallconnecttothegateway (wagonwheelconfiguration),thewi-fisignalstrengthwillberoughly thesameoneach.However,ifyouplaceyourextenderssothatthe furtheronesconnectthroughthecloserones(daisychain configuration),thefurtheroneswillhaveaweakersignal.Inother words,thesignalstepsdownabitwitheachdevicethatisnotdirectly connectedtothehub. Tomakesurethesignalisstrongenough,youcanlogintotheSE81acGUIand checkthesignalstrengthontheDashboard. PlacementDiagrams <inserthomediagramshere!!!> -3- Installation Note:SE81acdevicesworkbestwhenplacedright-side-uponaflatsurface. MountinganSE81aconawallorceilingisnotrecommendedorsupported. 1.ConnectaLANportontheSE81acmeshextendertoyourPCusingan Ethernetcable. 2.Toconnectabroadbanddevice: lConnectoneendofanEthernetcabletotheWANportonthe SE81acandconnecttheotherendofthecabletothebroadband device. lConnectoneendofanotherEthernetcabletothebroadband modemandconnecttheotherendofthecabletothewalljack installedbyyourprovider. 3.Plugthepoweradaptertothewalloutletandthenconnecttheother endofittothePowerportoftheSE81ac.YourSE81acautomatically setsuptoconnecttotheInternet.TheLEDonthetopfrontedgeofthe deviceglowsred()andthenwhite()asitsetsupforuse.Whenthe SE81acisreadyforuse,theLEDglowsgreen(). Thisprocessmaytakeafewminutestocompletebeforeyoucanbeginusing yourInternetapplications(browser,email,etc.).Ifyouareunabletoconnect totheInternet,confirmthatallcableconnectionsareinplaceandtheSE81ac ispluggedin. Note:Thepowerratingis12V1A. -5- LAN WAN POWER Loggingintoyourgateway Tochangethesettingsonyourgateway,youmustlogintothegateway's interface.Makesurethatyouhavecompletedthestepsin"Installation"before youbegin. 1.Openyourinternetbrowserapplicationandtype192.168.1.1intothe addressline.TheLogindialogboxappears. 2.EnterthecredentialsshownbelowandclickSignIn.Yourservice providermayuseothersettings.Ifso,contactyourproviderfordetails. -7- UserName:adminPassword:admin WhentheSE81cisreadyforuse,theLEDonthefrontofthedeviceglows green. Notes: lIfyou'veforgottenyourpassword,clickForgotpasswordandfollowthe instructionstoresetyourgatewaytothefactorydefaults.Then,enterthe credentialsprovidedwiththegatewaywhenyoufirstreceivedit. lToreviewtheenduserlicenseagreement,clickLicenseAgreementat thebottomrightcornerofthebrowserwindow.Theagreementappearsin aseparatetab. ConfiguringtheWANmanually Iftheautomaticconnectprocessisunsuccessful,refertotheEthernetWAN ConfigurationsectionoftheSmartRGSE81acGatewayUserManualtomanually establishaconnection. WiFiSetup 1.Intheleftmenu,clickWiFi>Networks.Thefollowingpageappears, showinginformationfortheprimarywirelessnetwork.Thedual-band optionisenabledbydefault. -9- 2.AcceptthedefaultIDshownintheSSIDfieldorentertheSSIDforthe networkthatyouwanttoconfigure.YouwillneedthisIDforStep8. 3.ChooseapassphraseandtypeitintothePasswordfield.Youwillneed thispassphraseforStep8. 4.SelectthedesiredEncryption.ThedefaultisWPA2Personal(PSK+ CCMP).Theotheroption(None)isnotrecommended. 5.IfyoudonotwantthisSSIDvisibletootherusers,clicktheslidebutton nexttoBroadcastSSID. 6.ClicktheApplybuttoninthePendingchanges...dialogboxtosave yoursettings. 7.ToenableaguestWiFinetwork: a.ClicktheGUESTbutton. b.ClicktheslidebuttonnexttoEnabled. c.ModifythefieldsasneededandthenclicktheApplybuttonin thePendingchanges...dialogboxtosaveyoursettings. 8.FollowtheWiFiconnectioninstructionsprovidedwithyourclientdevice toconnecttothegateway.UsetheSSIDnameyouselectedinStep2 andthepassphrasethatyouenteredinStep3. RecordYourSE81acWiFiSettings Predefinedwireless settings Ifyouchangethepreset wirelesssettings PrimaryWiFiNetworkName(SSID) PrimaryWiFiNetworkKey (password) GuestWiFiNetworkName(SSID) GuestWiFiNetworkKey(password) AdditionalSupport Ifyourequirefurtherinstructions,pleasecontactyourlocalISPSupport. AllRightsReserved.SmartRGInc.,anADTRANcompany.©2020 ADTRAN 901ExplorerBlvdNW Huntsville,AL35806 -11- FCCStatements ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesigned toprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgenerates,usesandcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: lReorientorrelocatethereceivingantenna. lIncreasetheseparationbetweentheequipmentandreceiver. lConnecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. lConsultthedealeroranexperiencedra…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 ADTRAN Inc. 901 Explorer Boulevard., Huntsville, AL 35806-2807, United States Date: February 24, 2020 To: BV CPS Inc 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Adtran hereby authorize BV CPS Inc to act as a Certification Body for certifying for the following project(s): Product description: Intellifi AP/Router Model name: SE81ac FCC ID: HDC-SE81AC Sincerely, Signature: Name / Title: Doug Parker / Sr Mgr Compliance Engineering Contact information / address: 901 Explorer Boulevard., Huntsville, AL 35806-2807, United States

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template& Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 ADTRAN Inc. 901 Explorer Boulevard., Huntsville, AL 35806-2807, United States Date: February 24, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: HDC-SE81AC Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name / Title: Doug Parker / Sr Mgr Compliance Engineering Contact information / address: 901 Explorer Boulevard., Huntsville, AL 35806-2807, United States

Cover Letter(s)

ADTRAN Inc. 901 Explorer Blvd., Huntsville, AL35806, United States WIFI Channel 12 & 13 Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID:HDC-SE81AC Please check Product hardware does not have the capability to operate on channel 12 & 13 ■ Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. _________________ Others Pls explain detail here. Company Name:ADTRAN Inc. Address :901 Explorer Blvd., Huntsville, AL35806, United States Name / Title :Doug Parker / Engineering Manager, Compliance Engineering Signature : Phone :256-963-6937 Email : [email protected] Date :February24, 2020

External Photos

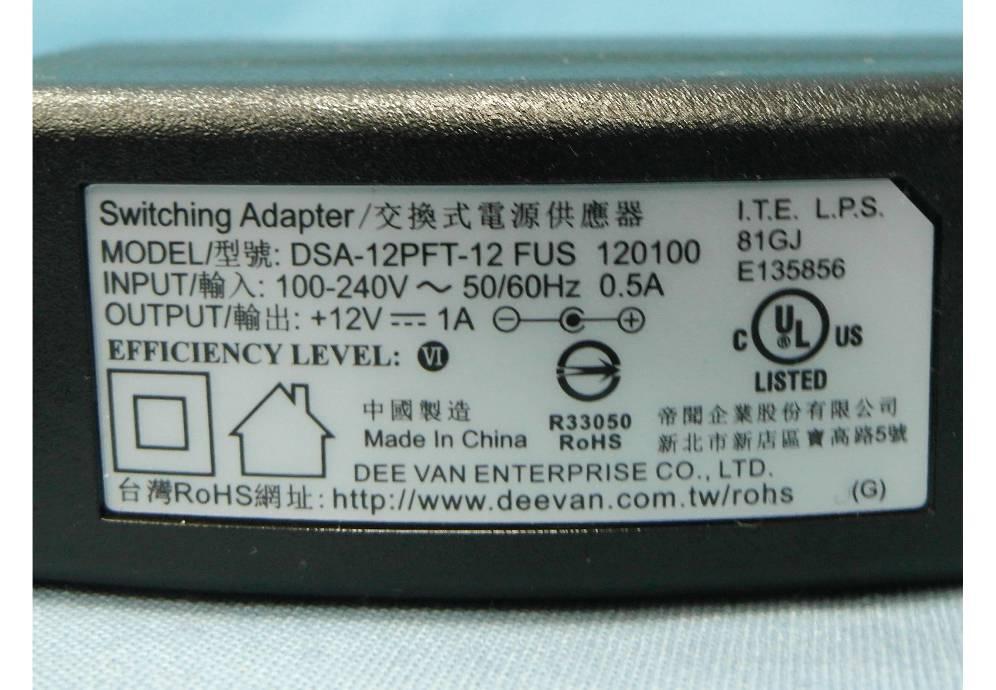

Page 1 of 6 External Photos Model Number: SE81ac FCC ID: HDC-SE81AC Page 2 of 6 EUT Photo (1) EUT Photo (2) Page 3 of 6 EUT Photo (3) EUT Photo (4) Page 4 of 6 EUT Photo (5) EUT Photo (6) Page 5 of 6 EUT Photo (7) EUT Photo (8) Page 6 of 6 EUT Photo (9) EUT Photo (10)

ID Label/Location Info

Label Info. & Label location

Internal Photos

Page 1 of 12 Internal Photos Model Number: SE81ac FCC ID: HDC-SE81AC Page 2 of 12 EUT Photo (1) EUT Photo (2) WLAN 5 GHz ANT-0 WLAN 2.4 GHz ANT-1 WLAN 5 GHz ANT-1 WLAN 2.4 GHz ANT-0 Page 3 of 12 EUT Photo (3) EUT Photo (4) Page 4 of 12 EUT Photo (5) EUT Photo (6) Page 5 of 12 EUT Photo (7) EUT Photo (8) Page 6 of 12 EUT Photo (9) EUT Photo (10) Page 7 of 12 EUT Photo (11) EUT Photo (12) Page 8 of 12 EUT Photo (13) EUT Photo (14) Page 9 of 12 EUT Photo (15) EUT Photo (16) Page 10 of 12 EUT Photo (17) EUT Photo (18) Page 11 of 12 EUT Photo (19) EUT Photo (20) Page 12 of 12 EUT Photo (21) EUT Photo (22)

RF Exposure Info

MPE Report Applicant : Adtran Product Type : Intellifi AP/Router Trade Name : ADTRAN Model Number : SE81ac Applicable Standard : IEEE Std.C95.1 47 CFR § 2.1091 / 47 CFR § 1.1310 Received Date : Mar. 23, 2020 Te s t Period : Apr. 08, 2020 Issue Date : Jul. 07, 2020 Issued by Approved By : Tested By : (Mark Duan) (Kris Pan) A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Te l:+886-3-2710188 / Fax:+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Test Firm MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Report Number: 2005FS13 Rev.01 Page 1 of 11 Revision History Re v. Issued Date Revisions Revised By 00 May 18, 2020 Initial Issue Nicole Chu 01 Jul. 07, 2020 P11 Revised unit Nicole Chu Report Number: 2005FS13 Rev.01 Page 2 of 11 Contents 1.Reference Applicable Standard .......................................................................................................... 4 2.Description of Equipment under Test (EUT) ....................................................................................... 5 3.Human Exposure Assessment ............................................................................................................ 6 4.Power Density Limit – RF Exposure Evaluation ................................................................................. 7 4.1 Conducted Power ............................................................................................................................... 8 5.Test Result ......................................................................................................................................... 11 Report Number: 2005FS13 Rev.01 Page 3 of 11 1.Reference Applicable Standard Standard Description Version ANSI/IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 KHz to 100 GHz, New York. 1992 47 CFR Part §2.1091 Radiofrequency radiation exposure evaluation: mobile devices. - 47 CFR Part §1.1310 Radiofrequency radiation exposure limits. - Report Number: 2005FS13 Rev.01 Page 4 of 11 2.Description of Equipment under Test (EUT) Applicant Adtran 901 Explorer Boulevard, Huntsville, AL 35806-2807, United States Manufacturer Adtran 901 Explorer Boulevard, Huntsville, AL 35806-2807, United States Product Type Intellifi AP/Router Trade Name ADTRAN Model Number SE81ac FCC ID HDC-SE81AC Frequency Range Operate Band Frequency Range (MHz) IEEE 802.11b / 802.11g / 802.11n 2.4 GHz 20 MHz 2412 - 2462 IEEE 802.11n 2.4 GHz 40 MHz 2422 - 2452 IEEE 802.11a 5180 - 5240 5745 - 5825 IEEE 802.11n 5 GHz / 802.11ac 20 MHz 5180 - 5240 5745 - 5825 IEEE 802.11n 5 GHz / 802.11ac 40 MHz 5190 - 5230 5755 - 5795 IEEE 802.11n 5 GHz / 802.11ac 80 MHz 5210 5775 Antenna Information Antenna Model Type Max. Gain (dBi) ANT-0 5718A0399300 Metal PIFA Antenna 2412-2462 3.01 ANT-1 5718A0400300 3.25 G ANT 2412-2462 3.13 Directional Gain 2412-2462 6.14 ANT-0 5718A0401300 Metal PIFA Antenna 5150-5250 4.97 5725-5850 4.06 ANT-1 5718A0402300 Metal PIFA Antenna 5150-5250 4.60 5725-5850 4.58 G ANT 5150-5250 4.79 5725-5850 4.33 Directional Gain 5150-5250 7.80 5725-5850 7.33 Antenna Delivery IEEE 802.11b / 802.11g: 2TX/2RX(CDD) IEEE 802.11n 2.4 GHz 20 MHz / 40 MHz: 2TX/2RX(MIMO/Beamforming on) IEEE 802.11a: 2TX/2RX(CDD) IEEE 802.11n 5 GHz / 802.11ac 20 MHz/ 40 MHz/ 80 MHz : 2TX/2RX(MIMO/ Beamforming on) RF Evaluation 0.570 mW/cm 2 Operate Temp. Range 0~40°C The above equipment was tested by A Test Lab T echno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 / 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Report Number: 2005FS13 Rev.01 Page 5 of 11 3.Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR § 1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation () 2 22 / 44 mW d PG d EIRP S eirp ππ == W here S: is the input power (W); G: is the antenna gain; d : is the distance between antennas and evaluation …

Text truncated - open the document above for the full version.

Test Report

Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. RF Test Report Applicant : Adtran Product Type : Intellifi AP/Router Trade Name : ADTRAN Model Number : SE81ac Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Received Date : Nov. 06, 2019 Test Period : Nov. 13, 2019 ~ Jun. 08, 2020 Issued Date : Jun. 15, 2020 Issued by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Te l:+886-3-2710188 / Fax:+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Test Firm MRA designation number: TW0010 Report Number: 2005FR15 Rev.00 Page 1 of 211 Revision History Rev. Issued Date Revisions Revised By 00 Jun. 15, 2020 Initial Issue Snow Wang Report Number: 2005FR15 Rev.00 Page 2 of 211 Verification of Compliance Issued Date: Jun. 15, 2020 Applicant : Adtran Product Type : Intellifi AP/Router Trade Name : ADTRAN Model Number : SE81ac FCC ID : HDC-SE81AC EUT Rated Voltage : DC 12 V, 1 A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Te l:+886-3-2710188 / Fax:+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By : (Manager) (Fly Lu) Report Number: 2005FR15 Rev.00 Page 3 of 211 TABLE OF CONTENTS 1 General Information ......................................................................................................... 5 1.1. Summary of Test Result ............................................................................................. 5 1.2. Measurement Uncertainty .......................................................................................... 6 2 EUT Description................................................................................................................ 7 3 Test Methodology ............................................................................................................. 8 3.1. Mode of Operation ...................................................................................................... 8 3.2. EUT Test Step ........................................................................................................... 13 3.3. Configuration of Test System Details ........................................................................ 14 3.4. Test Instruments ....................................................................................................... 16 3.5. Test Site Environment............................................................................................... 17 4 Measurement Procedure ................................................................................................ 18 4.1. AC Power Line Conducted Emission Measurement ................................................. 18 4.2. Radiated Emission Measurement ............................................................................. 20 4.3. Maximum Conducted Output Power Measurement .................................................. 24 4.4. 6 dB RF Bandwidth Measurement ............................................................................ 25 4.5. Maximum Power Spectral Density Measurement ..................................................... 26 4.6. Out of Band Conducted Emissions Measurement .................................................... 27 4.7. Antenna Measurement ............................................................................................. 28 5 Test Results .................................................................................................................... 30 Annex A. Conducted Emission ......................................................................................... 30 Annex B. Conducted Test Results .................................................................................... 32 Annex C. Radiated Emission Measurement ................................................................... 100 Report Number: 2005FR15 Rev.00 Page 4 of 211 1 General Information 1.1. Summary of Test Result Standard Item Result Remark 15.207 AC Power Conducted Emission PASS ----- 15.247(d) Transmitter Radiated Emissions PASS ----- 15.247(b)(3) Max. Output Power PASS ----- 15.247(a)(2) 6 dB RF Bandwidth PASS ----- 15.247(e) Maximum Power Spectral Density PASS ----- 15.247(d) Out of Band Conducted Spurious Emission PASS ----- 15.203 Antenna Requirement PASS ----- Standard Description CFR47, Part 15, Subpart C Intentional Radiators ANSI C63. 10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices KDB 558074 D01 15.247 Meas Guidance v05r02 GUIDANCE FOR COMPLIANCE MEASUREMENTS ON DIGITAL TRANSMISSION SYSTEM, FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM, AND HYBRID SYSTEM DEVICES OPERATING UNDER SECTION 15.247 OF THE FCC RULES KDB 662911 D01 v02r01 Emissions Testing of Transmitters with Multiple Outputs in the Same …

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Report Number: 2005FR15 Rev.00 Page 1 of 3 Radiated Emissions Test Configuration: Below 1 GHz _ Front View Below 1 GHz _ Rear View Report Number: 2005FR15 Rev.00 Page 2 of 3 Above 1 GHz _ Front View Above 1 GHz _ Rear View Report Number: 2005FR15 Rev.00 Page 3 of 3

Contact Information

Applicant

Paul Stover(Manager Compliance Engineering)
[email protected]256-963-8099Fax: 256-963-8250

Test Firm

Eurofins E&E Wireless Taiwan Co., Ltd.Fly LU
[email protected]88632710188Fax: 88632710190

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz254.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. Device is 2x2 MIMO and support 20/40MHz bandwidth. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons.
