HDC-W349E0WiFi6 11ax wireless module

W349E0WiFi IoE Module Page 1 of 9 Product Specification W349E0 Wireless Module W349E0is a host-less IoE Smart Network module that enables wireless internet connectivity for any device wishing to be monitored or managed remotely. The W349E0is architected for high performance, feature-rich applications. This module is based on BCM43684, a highly integrated and feature-rich IEEE 802.11ax 4x4 5 GHz. 4 antenna ports are available for flexible use of external antennas for the appliances in consideration. 1. Product Features  IEEE 802.11ax 4 streams radio.  Full security support: WPS, WPA, WPA2, WAPI, WEP, TKIP.  Host interfaces: PCIE  ROM API support. W349E0WiFi IoE Module Page 2 of 9 2. General Specification Product Specification Model Name 1 W349E0 Solution(HDK version) Broadcom 43684 Form factor PCIE module Moisture sensitivity level MSL:3 (follow IC specification) WLAN Standard IEEE 802.11 ax/ac/b/g/n/a Host interface PCIE Antenna configuration 4 antennas Dimensions Minimum Typical Maximum Unit Length 44.7 45 45.3 mm Width 34.7 35 35.3 mm Height 13.5 mm Weight 10 g Antenna Connector 3 RF conncetor Electrical Specification Frequency range 2.412GHZ-2.484GHz , 5.925 GHz-7.125 GHz 1.5170MHz~5250MHz, 5755MHz~5835MHz 2.5170MHz~5835MHz, (support DFS) Electrostatic discharge Human Body Model ±2000V, all pins Standard: ANSI/ESDA/JEDEC JS-001-2012 Charged Device Model ±500V, all pins Standard: JESD22-C101 W349E0WiFi IoE Module Page 3 of 9 Operating Condition Minimum Typical Maximum Unit Operation voltage DC 3.15 3.3 3.45 V 4.5 5.0 5.5 V Operation temperature C-temp 0 50 °C Operation temperature (Full load) I-temp -40 75 °C Operation temperature (Low rate≤ 10Mbps, IOT) I-temp -40 85 °C Humidity Non-Operating 10 90 % Product Specification Model Name W349E0-A1 Solution BROADCOM BCM43684 Form Factor PCIe WLAN WLAN Standard IEEE 802.11 a/n/ac/ax 4T4R Host interface PCIe PCIe VID N/A PCIe DID N/A PCIe SVID N/A PCIe SSID N/A Region Domain N/A Antenna configuration 3 pieces 3x3mm RF connecters Dimensions Minimum Typical Maximum Unit Length 50.9 50.8 50.7 mm Width 29.75 29.85 29.95 mm Height 4.2 4.0 3.8 mm Weight 6.78 g Operating Condition Minimum Typical Maximum Unit Operation voltage DC 2.97/4.5 3.3/5 3.63/5.5 V Operation temperature 0 40 °C W349E0WiFi IoE Module Page 4 of 9 Storage temperature -20 70 °C Humidity Non-Operating 10 80 % Electrical Specification Output power 5GHz Data rate Minimum Typical Maximum Unit 802.11a Mode 54Mbps 17.5 19 dBm 802.11n Mode HT40/HT20 (mcs7) 17.5 19 dBm 802.11ac Mode VHT40/VHT20 (mcs9) 16.5 18 dBm 802.11ax Mode HE40/HE20 (mcs11) 14.5 16 dBm Receiver Sensitivity 802.11a Mode 54Mbps -74 dBm 802.11n Mode HT40(mcs7) -71 dBm HT20 (mcs7) -74 dBm 802.11ac Mode VHT40 (mcs9) -66 dBm VHT20 (mcs9) -69 dBm 802.11ax Mode HE40 (mcs11) -58 dBm HE20 (mcs11) -60 dBm W349E0WiFi IoE Module Page 5 of 9 FCC Statement FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This device is restricted to indoor use. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ISED Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. W349E0WiFi IoE Module Page 6 of 9 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de…

Text truncated - open the document above for the full version.

Confidentiality Request Letter Date: December 27, 2020 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: HDC-W349E0 To whom it may concern: Short-term Confidentiality Pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description / Software Security For U-NII Devices It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Adtran Address : 901 Explorer Boulevard, Huntsville, Alabama 35806-2807, United States Signature : _________________________________ Name and Job Title. : Doug Parker, Manager Global Product Compliance Engineering E-mail : [email protected] Tel. : (256)963-8000

Modular Approval Request Letter Date: December 27, 2020 Subject: Modular Approval Attestation FCC ID: HDC-W349E0 Dear Reviewer, We, Adtran, have the WiFi6 11ax wireless module approved under single modular approval authorization. The requirements regulated in 47 CFR 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AT93C86AY6-10YH-1.8(ATMEL). 3. The requirement of power supply regulation: The part number of the power regulator is BCM43684C0. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the user manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant : Adtran Address : 901 Explorer Boulevard, Huntsville, Alabama 35806-2807, United States Signature : _________________________________ Name and Job Title. : Doug Parker, Manager Global Product Compliance Engineering E-mail : [email protected] Tel. : (256)963-8000

Power of Attorney Date: December 27, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: HDC-W349E0 Product Name: WiFi6 11ax wireless module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Adtran Address : 901 Explorer Boulevard, Huntsville, Alabama 35806-2807, United States Signature : _________________________________ Name and Job Title. : Doug Parker, Manager Global Product Compliance Engineering E-mail : [email protected] Tel. : (256)963-8000

Date: December 27, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Declaration of composite/rated equipment for FCC ID: HDC-W349E0 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Other Class B digital devices & peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Adtran Address : 901 Explorer Boulevard, Huntsville, Alabama 35806-2807, United States Signature : _________________________________ Name and Job Title. : Doug Parker, Manager Global Product Compliance Engineering E-mail : [email protected] Tel. : (256)963-8000

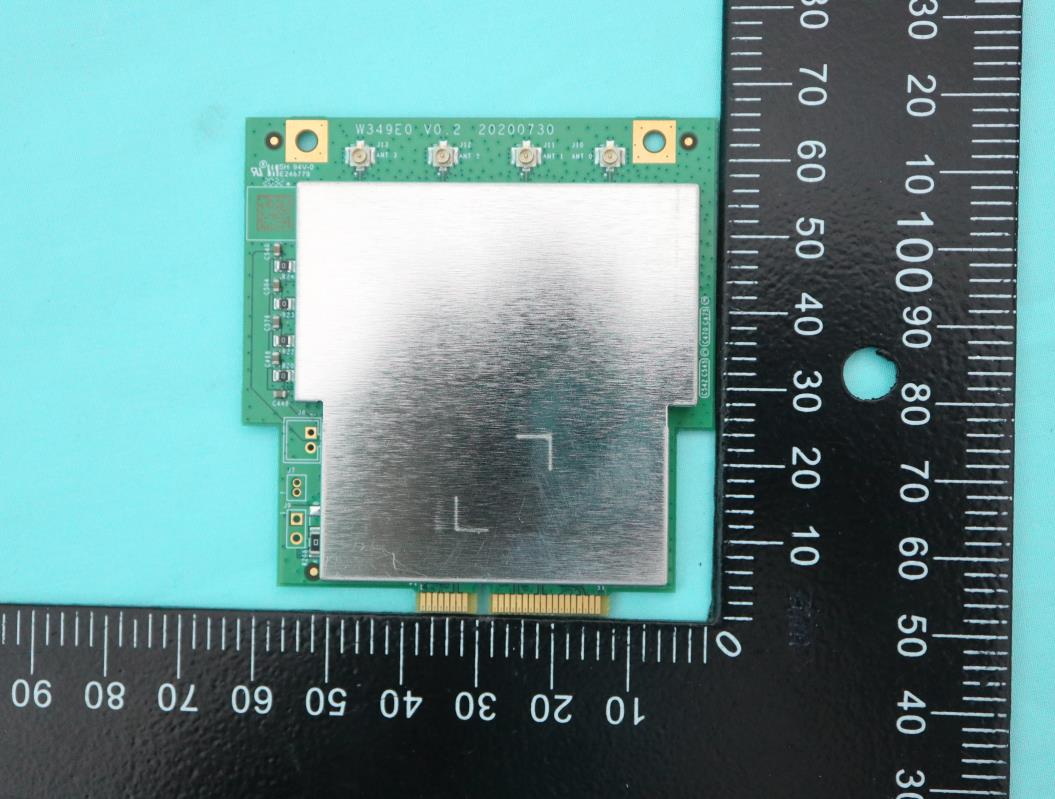

Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 1 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 2 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 3 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 4 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021

Label Location Information EUT (Affix to the Shielding Case) Label Location

Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 5 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 6 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 7 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 8 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 9 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 10 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 11 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 12 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 13 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 14 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 15 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Photographs of EUT Report No. : EP0O2750 SPORTON International Inc. Page No. : 16 of 16 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 ─────THE END────

Radio Exposure Evaluation Report Report No. : FA0O2750 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: HDC-W349E0 Radio Exposure Evaluation Report FCC ID : HDC-W349E0 Equipment : WiFi6 11ax wireless module Brand Name : Model Name : W349E0YYYYYY(Y can be 0-9, a-z, A-Z, blank, “+” or “-” or “#”) Applicant : Adtran 901 Explorer Blvd., Huntsville, AL 35806, USA Manufacturer : XAVi Technologies Corporation 22F., No.69, Sec. 2, Guangfu Rd., Sanchong Dist., New Taipei City 241, Taiwan (R.O.C.) Standard : 47 CFR Part 2.1091 The product was received on Oct. 29, 2020, and testing was started from Nov. 16, 2020 and completed on Dec. 07, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA0O2750 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: HDC-W349E0 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Table for Multiple Listing ........................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA0O2750 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: HDC-W349E0 History of this test report Report No. Version Description Issued Date FA0O2750 01 Initial issue of report Jan. 07, 2021 Radio Exposure Evaluation Report Report No. : FA0O2750 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: HDC-W349E0 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Jenny Yang Radio Exposure Evaluation Report Report No. : FA0O2750 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: HDC-W349E0 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac/ax: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 1.2 Table for Multiple Listing The model names in the following table are all refer to the identical product. Model Name Description W349E0YYYYYY (Y can be 0-9, a-z, A-Z, blank, “+” or “-” or “#”) All the models are identical, the difference model served as marketing strategy. 1.3 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA0O2750 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-327-0973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: HDC-W349E0 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (m…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR0O2750AN TEL : 886-3-3273456 Page Number : 1 of 28 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: HDC-W349E0 FCC Test Report FCC ID : HDC-W349E0 Equipment : WiFi6 11ax wireless module Brand Name : Model Name : W349E0YYYYYY(Y can be 0-9, a-z, A-Z, blank, “+” or “-” or “#”) Applicant : Adtran 901 Explorer Blvd., Huntsville, AL 35806, USA Manufacturer : XAVi Technologies Corporation 22F., No.69, Sec. 2, Guangfu Rd., Sanchong Dist., New Taipei City 241, Taiwan (R.O.C.) Standard : 47 CFR FCC Part 15.407 The product was received on Oct. 29, 2020, and testing was started from Nov. 12, 2020 and completed on Dec. 07, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. : FR0O2750AN TEL : 886-3-3273456 Page Number : 2 of 28 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: HDC-W349E0 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT....................................................................................................... 10 2.1 Test Condition ...................................................................................................................................... 10 2.2 Test Channel Mode .............................................................................................................................. 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 12 2.4 Support Equipment ............................................................................................................................... 13 2.5 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 Emission Bandwidth ............................................................................................................................. 18 3.3 Maximum Conducted Output Power .................................................................................................... 19 3.4 Peak Power Spectral Density ............................................................................................................... 21 3.5 Unwanted Emissions ............................................................................................................................ 23 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 27 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF EMISSION BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF PEAK POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF UNWANTED EMISSIONS APPENDIX F. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Test Report Report No. : FR0O2750AN TEL : 886-3-3273456 Page Number : 3 of 28 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: HDC-W349E0 History of this test report Report No. Version Description Issued Date FR0O2750AN 01 Initial issue of report Jan. 07, 2021 FCC Test Report Report No. : FR0O2750AN TEL : 886-3-3273456 Page Number : 4 of 28 FAX : 886-3-3270973 Issued Date : Jan. 07, 2021 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: HDC-W349E0 Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.407(a) Emission Bandwidth PASS - 3.3 15.407(a) Maximum Conducted Output Power PASS - 3.4 15.407(a) Peak Power Spectral Density PASS - 3.5 15.407(b) Unwanted Emissions PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers…

Text truncated - open the document above for the full version.

Test Photos Appendix F SPORTON INTERNATIONAL INC. Page number : F1 of F4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix F SPORTON INTERNATIONAL INC. Page number : F2 of F4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Under table view Test Photos Appendix F SPORTON INTERNATIONAL INC. Page number : F3 of F4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix F SPORTON INTERNATIONAL INC. Page number : F4 of F4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
